MiTAC Pluto E220 Manual de usuario

Quick InstallationGuide

Introduction

PlutoE220isbuiltaroundthelatestgeneration ofIntel’s Bay Trail.Bay Trailhasbeen

improved3Dgraphicsperformancewithupto5xmorepower and 2xgreaterCPU

performanceoverpreviousgeneration.ThewholenewSOCstructurepacksmore

powerful capability for yourtasks orapplications.

E220 Specification

Item

Spec

Optional

Processor

Intel Bay Trail Desktop J1900

Chipset

SoC

OS support

Win 7, Win 8, WIN10

Linux by request

PCB

Mini-ITX proprietary, 4 layer, 182mm x 185mm

Memory

DDR3L 1333/1600(runs at 1333 MHz)

SO-DIMMs, (2 x So-DIMM slot, up to 8GB)

LAN

Realtek RTL8111E GLAN x2

Audio

Realtek ALC-662

Storage

SATA DOM or 2.5” SATA HDD/SSD or mSATA

Mini Card

1 Full-length for mSATA One-sided screw

1 Half-length for wireless module

WLAN Support

For 802.11 b, g, n

Wireless Card Antenna

Display interface 1 x DVI-I, 1 x HD Out

SPI Flash

16Mb

Front I/O

1 x USB3.0

1 x USB2.0

MIC-in

Headphone-out

Power button

Rear I/O

2 x PS/2

4 x USB2.0

2 x Ethernet RJ45

1 x DVI-I

1 x HD out

2 x Serial Port

1 x DC jack

1 x Kensington lock

Internal speaker

1 x Buzzer As default

Speaker is the option

Power supply

65W, 19V, Power Adapter

Support 75x75 and

100x100 VESA

Standard

VESA Bracket

VESA Mount Yes (100mmx100mm)

Stand For vertical use

Fanless

System Temp: 10 Degree C~ 35 Degree C

Humidity: 20%~85% Non-Condensing

MB Temp: 0~60 Degree C

Environment

Power Button

LED Indicator

Earphone Jack

Microphone Jack

USB 2.0 Port

USB 3.0 Port

WiFi Antenna(Optional)

RJ45 (2nd is optional)

USB 2.0

Serial Ports

HD Out

DVI-I

Parallel Ports

DC-in

For Kensington Lock

Interface

Installation

Unscrew the side cover

Pull back touncover

RAM Istallation

TheRAMsocketsareneartoCPUheatsink

Install the RAM and push to click

HDD

UsetheHDDbracketfortheHDD

installation.

Unscrew to detach the bracket

IfyouwanttoinstalltheSATADOM,just

removethebracketandinstalltheDOMto

the SATAconnector.

AlignthescrewholesforHDDandbracket

FixtheHDDwithscrewsonthebackside

of the bracket

Finish the HDD bracket assembly

Connect the HDD SATA cable

Connecttheothersideofthecabletothe

E220 Jumper Location/Function

1. Location

2. COM Port2 Jumper

3. RTC Jumper

4. Mini PCIe Slot Full-Length Jumper

5. Power Saving Jumper

1.Location

E220 provides 4 groups of herder for user setting. The location show as below

2.Powered COM Port Jumper setting

The COM2 of E220 can define the pin function by itself.

The detailed settings are as follows

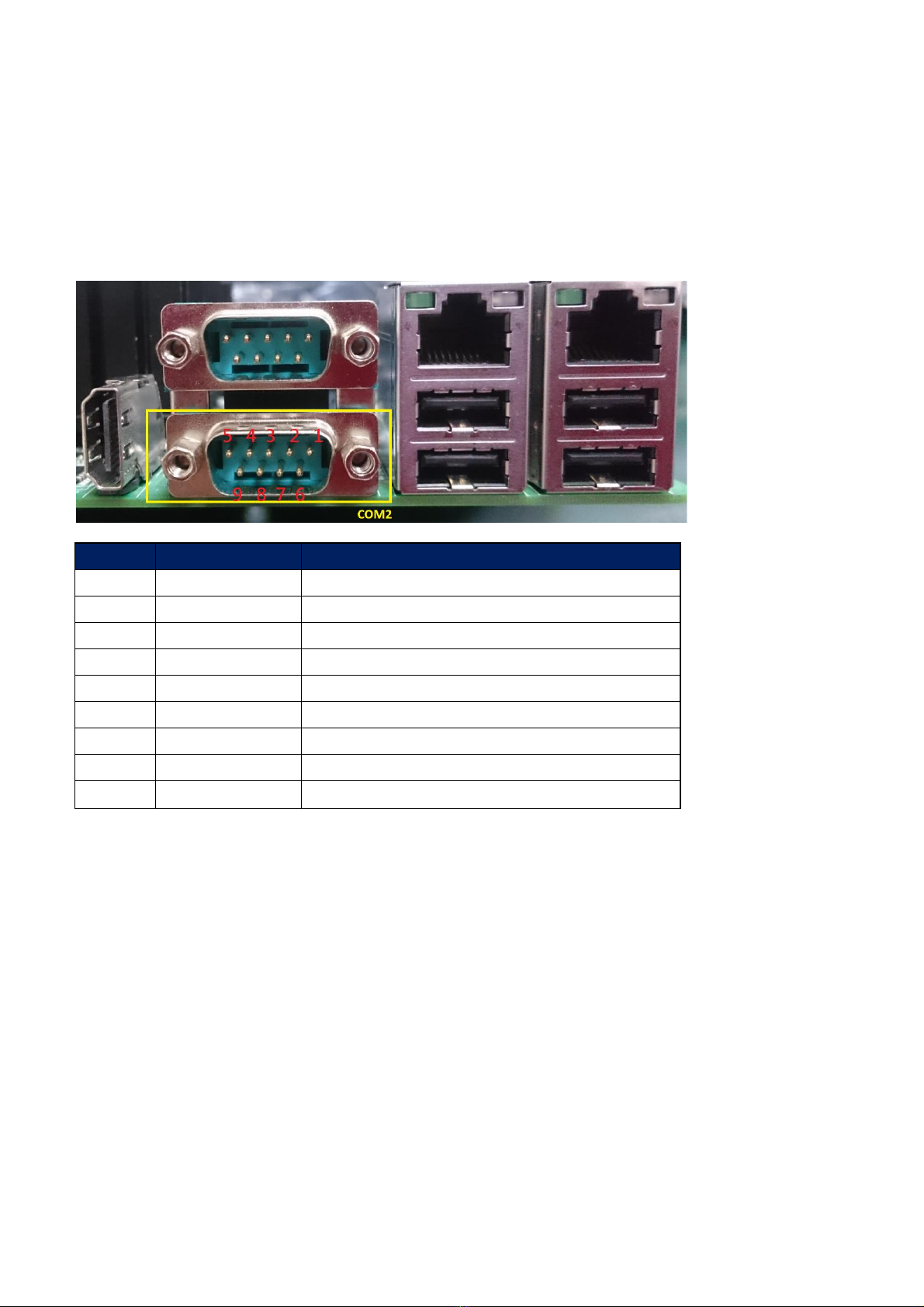

2.1 COM2 location

Default

User define by Jumper

DCD

DCD/+5V

RX/TX/RX_TTL/TX_TTL

TX/RX/TX_TTL/RX_TTL

DTR

DTR/+5V

GND

DSR

RTS

CTS

RX_TTL/CTS/RX/TX/TX_TTL

TX_TTL/RI/TX/RX/RX_TTL
