Mira DISCOVERY Manual de operación
1
THESE INSTRUCTIONS ARE TO BE LEFT WITH THE USER
Installation & User Guide
SHOWER FITTINGS
2
Contents
Section Page
1 ..... Introduction ................................................................... 3
2 ..... Important Safety Information ........................................... 4
3 ..... Pack Contents Checklist .................................................. 5
4 ..... Dimensions ................................................................... 7
5 ..... Specifications ................................................................... 8
6 ..... Installation Requirements ................................................ 9
7 ..... Installation ................................................................. 10
8 ..... Operation ......................................................................... 15
9 ..... Maintenance .................................................................... 16
10 ... Fault Diagnosis ............................................................... 17
11 ... Spare Parts...................................................................... 18
Guarantee, Customer Care Policy, and How to contact us ...... Back cover
3
Thank you for purchasing a quality product. To enjoy the full potential of your new
product, please take time to read this guide thoroughly, having done so, keep it handy
for future reference.
Mira shower fittings are precision engineered to give a satisfactory shower over a range
of pressures. The fittings are suitable for pressures up to 5.0 bar and pressures down
to 0.05 bar.
This product comprises one of the following:
• An adjustable spray handset with four different spray actions is supplied
complete with flexible hose, adjustable clamp bracket assembly, slide bar,
hose retainer and supports. Suitable for connection to both surface mounted
and built-in shower controls.
• A rigid outlet fitting with a single spray action and an adjustable head for altering
spray direction.
If you experience any difficulty with the installation or operation of your new
shower fittings, then please refer to Section 10. "Fault Diagnosis", before
contacting Kohler Mira Limited. Our telephone and fax numbers can be found
on the back cover of this guide.
Introduction
Section
1
4
1. WARNING!
Products manufactured by us are safe and without risk provided they are
installed, used and maintained in good working order in accordance with our
instructions and recommendations.
2. Caution!
2.1. Read all of these instructions.
2.2. Retain this guide for later use.
2.3. Pass on this guide in the event of change of ownership of the installation site.
2.4. Follow all warnings, cautions and instructions contained in this guide.
2.5. The plumbing installation must comply with the requirements of UK Water
Supply Regulations/Bye-laws (Scotland), Building Regulations or any particular
regulations and practices, specified by the local water company or water
undertakers.
2.6. Anyone who may have difficulty understanding or operating the controls of any
shower should be attended whilst showering. Particular consideration should be
given to the young, the elderly, the infirm, or anyone inexperienced in the correct
operation of the controls.
2.7. When this product has reached the end of its serviceable life, it should be
disposed of in a safe manner, in accordance with current local authority
recycling, or waste disposal policy.
Important Safety Information
Section
2
5
Pack Contents Checklist
Tick the appropriate boxes to familiarise yourself with the part names and to confirm
that the parts are included.

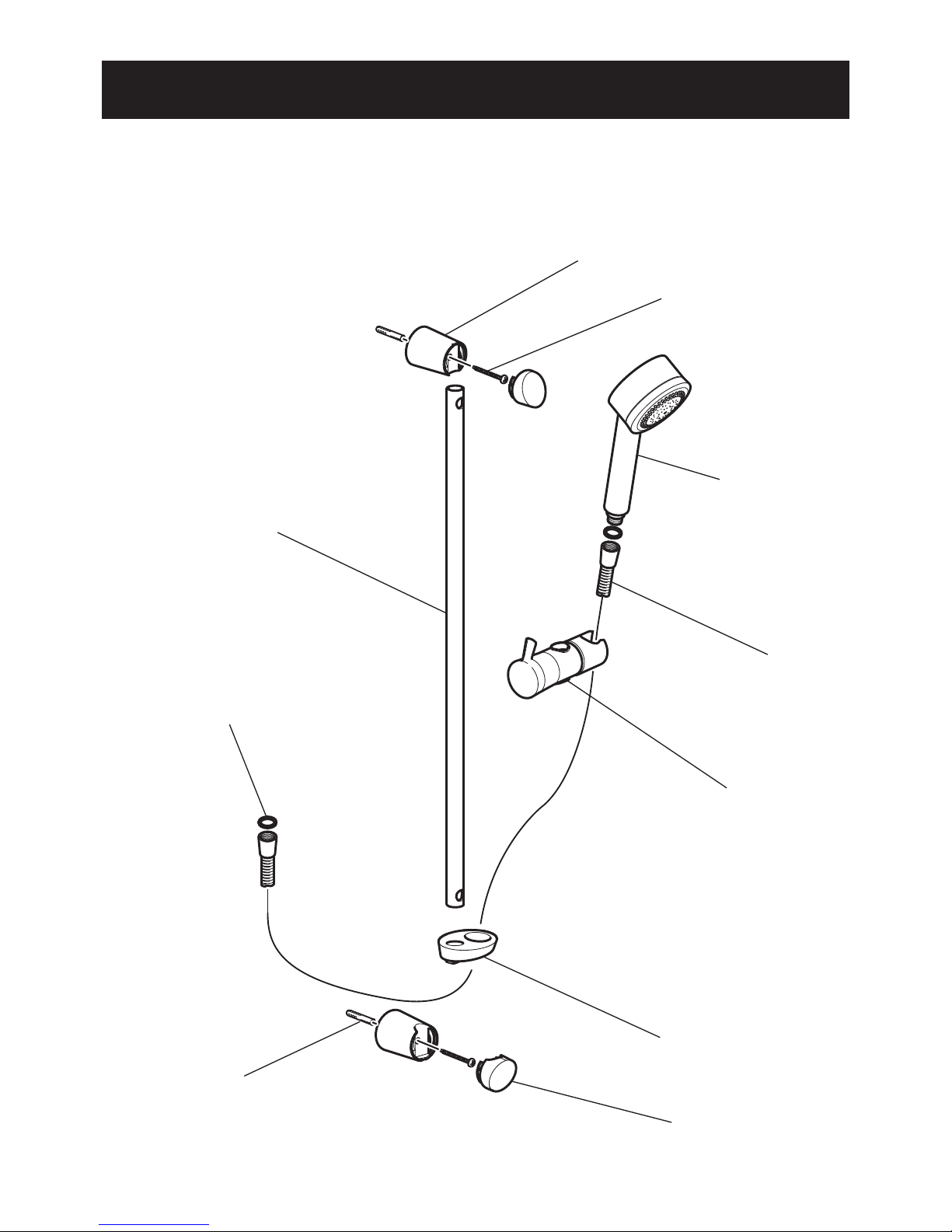

Shower fittings
9
Section
3
2 x Bracket
1 x Slide Bar
1 x Clamp Bracket
Assembly
2 x Wall Plug
1 x Handset
2 x Hose Washers
2 x Bracket Cover
2 x Fixing Screw
1 x Hose Retainer
1 x Hose
6
Pack Contents Checklist
Tick the appropriate boxes to familiarise yourself with the part names and to confirm
that the parts are included.
Shower fittings

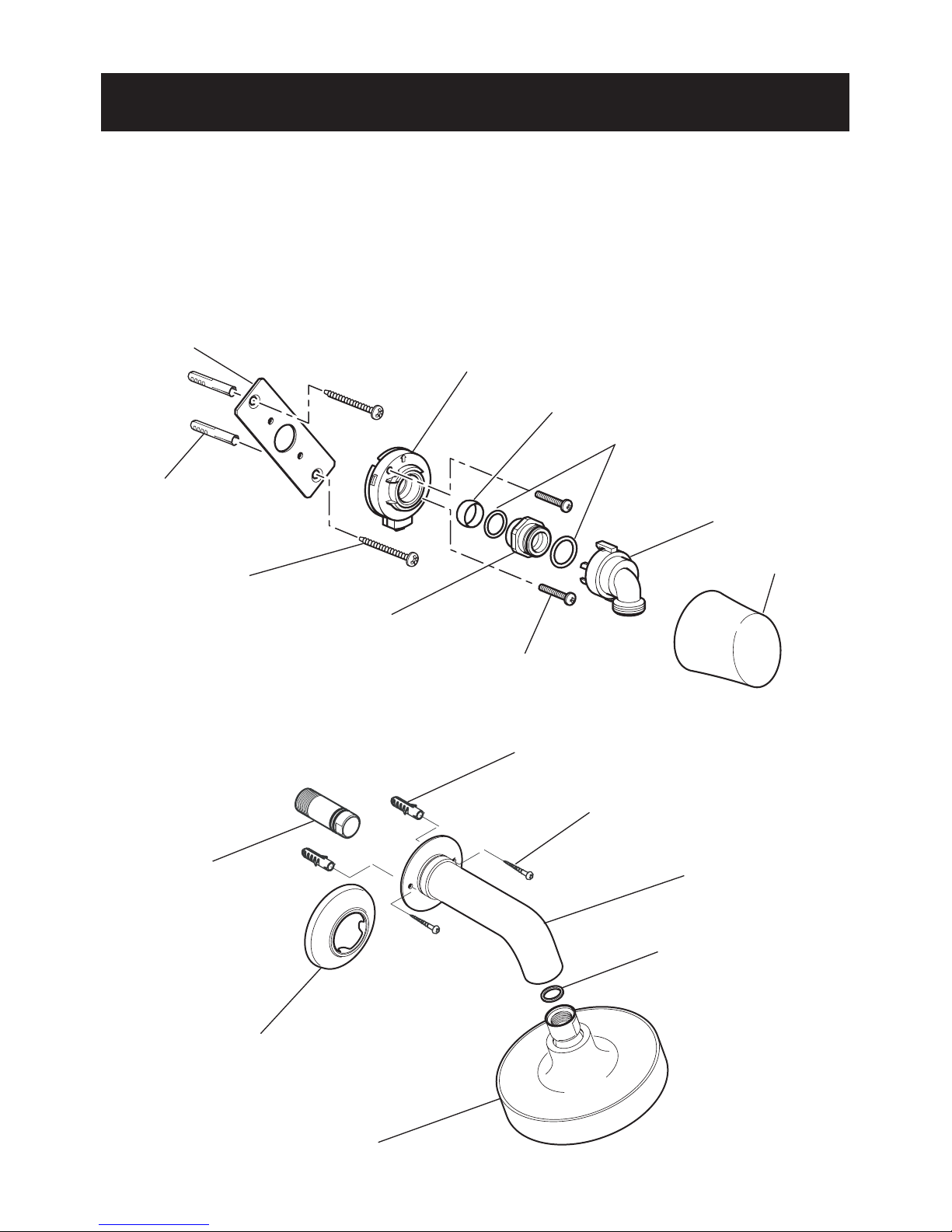

BIV - Built-In Variable Right Angle Connector Fittings Pack
9
Section
3
2 x Wall Plugs
1 x Threaded
Connector
1 x Spray Head
1 x Cover Trim
2 x Fixing Screws
1 x Shower Arm
2 x Wall Plug
1 x Wallplate
2 x Wallplate
Screws
1 x Olive
2 x Backplate Screws
1 x Backplate Nut
1 x Backplate
2 x 'O' Seals
1 x Elbow
1 x Shroud
1 x Rubber Washer
BIR - Built-In Rigid Arm and Shower Head Fittings Pack
7
Dimensions

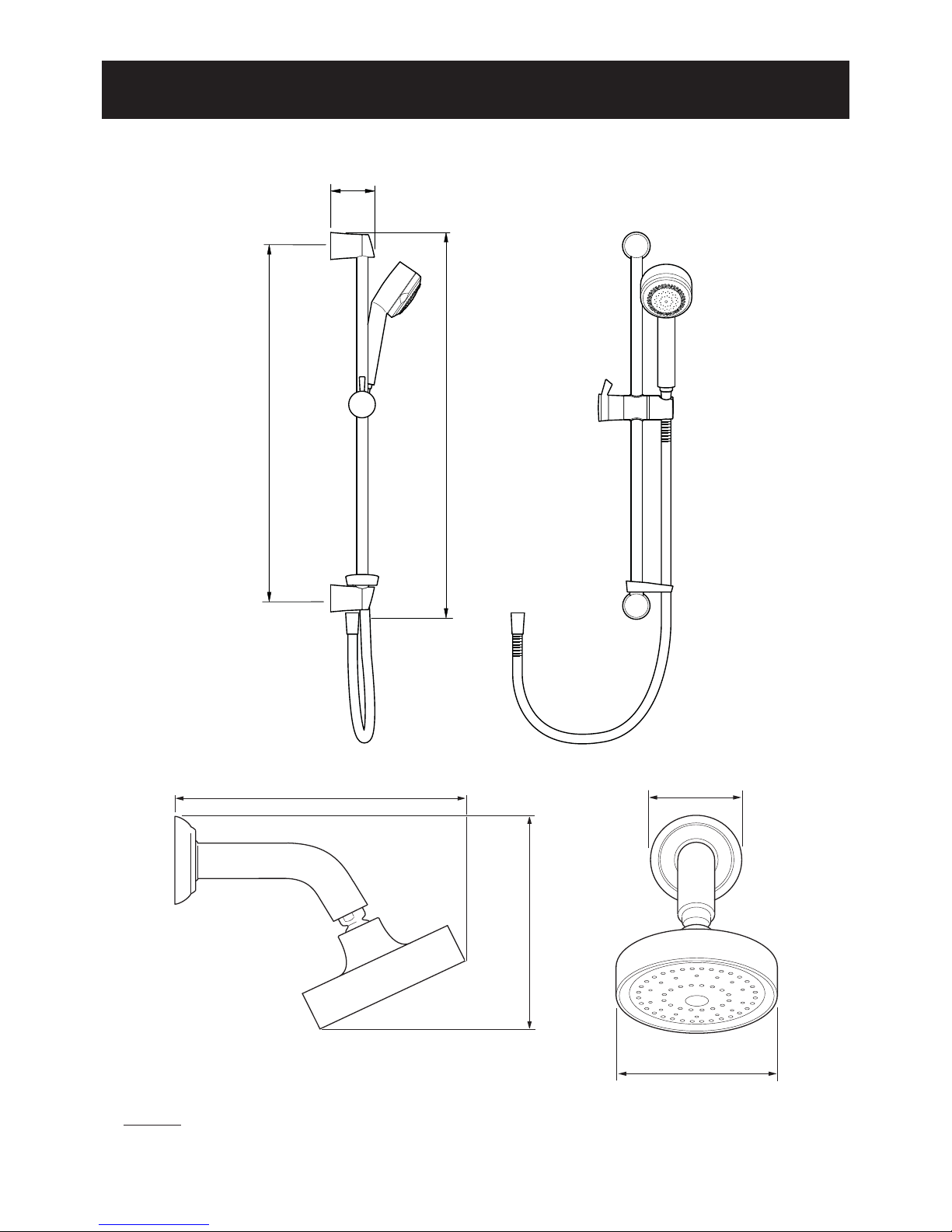

NOTE:- NOT TO SCALE - Dimensions are nominal and in millimetres
4
Section
600
75.5
645
255 73
200
138
8
Specifications
Section
5
Minimum maintained pressure: 0.05 bar.
Maximum maintained pressure: 5.0 bar.
Warning! Exceeding the stated maximum maintained pressure could result in
excessive spray forces and possible damage to the handset.
16
Flow Rate (litres/minute)
14
20
18
12
10
8
6
4
0
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
Pressure Loss (bar)
0
2
16
Flow Rate (litres/minute)
14
20
18
12
10
8
6
4
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
Pressure Loss (bar)
2
Eco
Force
Soothe
Start
Pressure loss = Pressure difference between the inlet and outlet of the fitting.
Mira Discovery adjustable range flow rates - Low capacity nozzle rings fitted
Mira Discovery rigid fitting flow rates - Flow Regulator not fitted
22
9
1. Plumbing
Read the section “Important Safety Information” first.
1.1. Supply pipework MUST be flushed to clear debris before connecting the
appliance.
1.2. A hose retaining ring is supplied to prevent the handset from dropping below the
spill-over level of the bath or shower, which could lead to contamination from
back siphonage. The supplied hose retaining ring should meet the great majority
of user requirements for shower installations with flexible outlet fittings.
However, there will be occasions when the hose retaining ring will not provide
a suitable solution. In these instances an outlet double checkvalve may be
fitted.
1.3. Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
1.4. Do not fit any form of flow control in the outlet pipework if the shower fitting is
installed in conjunction with a product that requires the fitting to act as a vent
(e.g. an electric shower).
1.5. Do not use excessive force when making connections.
1.6. Do not install the product in a position where it could become frozen.
1.7. The layout and sizing of pipework should be such that when other services are
used, pressures do not fall below the recommended minimum for that fitting as
this will cause the spray pattern to collapse.
1.8. Perceived sound levels of the handset and spray impingement, will be affected
by the spray pattern selected and flow rates.
Installation Requirements
Section
6
10
1. Mira Discovery ev - Exposed Variable Shower Fittings
Solid, dry-lined, stud partition, shower cubicle or laminated panel walls
Read the section “Installation Requirements” first.
The slide bar should be fixed to the wall to one side of the product and at a convenient
height for all the family. It should be positioned so that it discharges down the centre
line of the bath, or across the opening of a shower cubicle and should be directed away
from the shower control.
The right angled connector assembly (RAC) for use with built-in shower controls, should
be positioned above and offset from the top outlet of the shower control. This will
prevent the flexible hose from obstructing the temperature and flow controls used to
operate the shower. The pipework between the shower control and the RAC fitting is
not supplied as part of the product.
Installation

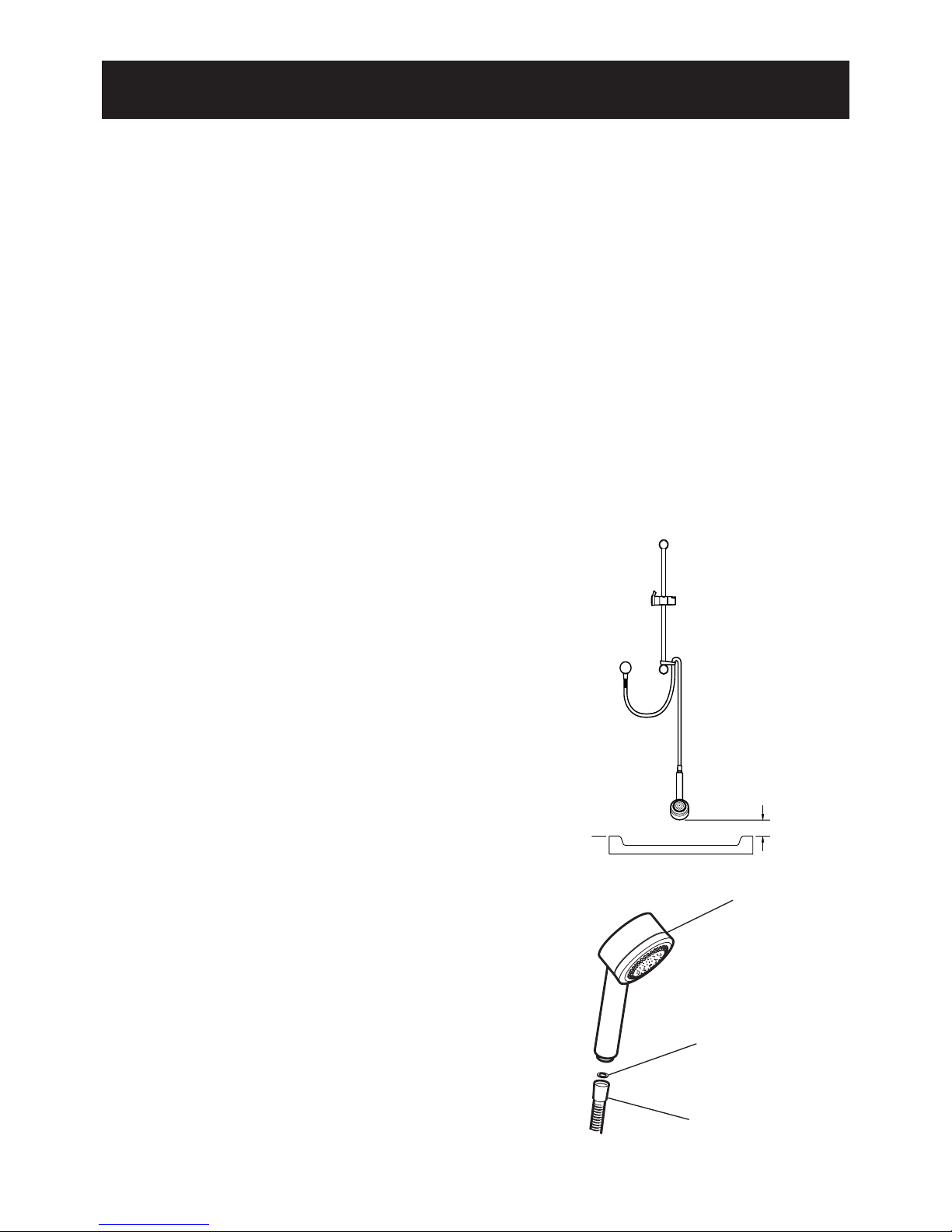

1.1. Decide on a suitable location for
the slide bar avoiding buried
cables and pipes. The position
of the shower control and the
shower fittings must provide a
minimum gap of 25 mm between
the spill-over level and the
handset. This is to prevent back
siphonage. Alternatively an
outlet double check valve can
be fitted.
1.2. Screwthehoseontothehandset.
Make sure that the hose washer
is fitted.
Section
7
Hose
Hose Washer
Handset
Spill-over Level
25mm Min
Otros manuales para DISCOVERY
3
Tabla de contenidos
Otros manuales de Accesorios de cocina y baño de Mira
Mira
Mira REALM Manual de usuario
Mira
Mira Tabla Manual de operación
Mira
Mira DM Pumped Manual de usuario
Mira
Mira Combiforce 415 Manual de usuario
Mira
Mira Platinum Manual de usuario
Mira
Mira Excel Manual de operación
Mira
Mira Crescent Manual del propietario
Mira
Mira Vision Dual Manual de usuario
Mira
Mira Montpellier Manual del propietario
Mira
Mira Infuse Manual de operación
Manuales populares de Accesorios de cocina y baño de otras marcas
Alpha Bidet
Alpha Bidet Alpha One Manual de usuario
InSinkErator
InSinkErator H/HC3300 Manual de instalación
Clou
Clou Xo type 1 Manual de usuario
Kohler
Kohler Contra 26448T-4 Manual de usuario
Grohe
Grohe Bridgeford 20 158 Manual de usuario
Hans Grohe
Hans Grohe Croma Select S 180 Showerpipe EcoSmart... Manual de usuario
