1PRODUCT OVERVIEW

Thank you for purchasing a miniDSP USBStreamer USB audio interface. The USBStreamer comes in two versions.

The box version can be used in two modes by loading different firmware:

•Eight channels of input/output via ADAT (optical). This is the default when the USBStreamer B box version is

shipped from miniDSP.

•Two channels (stereo) input/output via TOSLINK (optical).

The kit version can be used in several modes by loading different firmware:

•Eight channels of I2S via header pins plus two channels via TOSLINK (optical). This is the default when the

USBStreamer kit board is shipped from miniDSP.

•Eight channels of input/output via ADAT (optical).

•Two channels (stereo) input/output via TOSLINK (optical).

•Eight channels of I2S via header pins, with support for sample rates as low as 8 kHz.

•TDM input and output up to 96 kHz, 8 or 16 channels.

Typical applications for the USBStreamer include hi-fi systems and recording studios. The kit version can be built into

multichannel DACs, ADCs and digital audio interfaces, with connection to the USBStreamer via the I2S headers.

Most firmware versions include files with two different IDs. If two USBStreamers are to be connected to the same

computer, make sure that each has firmware with a different ID.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 7

2CONNECTIVITY

2.1 USB

Connect as shown for either box or kit version. The USB port provides power and computer connectivity.

2.2 OPTICAL

The optical ports support TOSLINK or ADAT, depending on the firmware loaded.

2.3 EXTERNAL POWER (KIT VERSION)

External 5V DC power can be connected to the USBStreamer via pin 12 of J2. This pin is connected with a “diode-or”

connection to the power line from the USB port. Supplying 5V DC to this pin will therefore ensure that the

USBStreamer remains powered on even when no USB device is connected. The USBStreamer consumes about 200

mA from this pin.

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 8

2.4 LOGIC-LEVEL I/O (KIT VERSION)

2.4.1 Overview

In addition to the optical interface, the USBStreamer provides additional data formats as logic-level signals:

•I2S, or Inter-IC Sound, is used to carry PCM digital audio between digital chips (ICs) and circuit boards. The

USBStreamer circuit board provides up to 8 channels of I2S input and 8 channels of I2S output.

•TDM, or Time domain multiplexing, is a format used by some ADC and DAC chips to carry multiple channels on a

single data line. This can reduce layout complexity and/or allow a greater number of channels.

Please note that logic-level connectivity is intended for professional engineers or advanced DIY users only. You will

need the knowledge to understand digital clocking and wiring and have access to the equipment necessary to be

able to debug any issues you may run into. (While miniDSP always tries to help its customers, it is infeasible for us to

debug your circuit and wiring for you.)

Be sure to take the following precautions when designing your I2S interface and wiring:

General I2S usage notes

•Unbuffered I2S lines must be kept short to ensure clock and data integrity.

•If driving longer lines, buffers may be required for the clock signals (MCLK, LRCLK, and BLCK).

•Observe correct grounding and shielding, and keep analog and digital grounds separated.

•Ensure that the clock frequencies and ratios as listed on later pages are compatible with connected circuits.

Clock master

The USBStreamer always operates as clock master –that is, the clock lines are always outputs. The connected

circuitry must therefore use the clocks provided by the USBStreamer.

3.3V logic level

All lines use a 3.3V logic level. Ensure that connected circuits use a compatible level (1.8V, for example, will not

work).

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 9

2.4.2 Headers and pinouts

The USBStreamer circuit board has two 12-pin headers located between the optical ports. Logic-level data and

clocks are on J1, while J2 carries auxiliary signaling and GPIO lines reserved for future enhancement.

Table 1 lists the default pinouts. Note that these vary with the specific firmware loaded. See Section 3 for full details.

Note that all I2S lines are 3.3V logic levels. Connected circuits must use a compatible logic level.

Table 1. Sample pinouts (See Section 3 for details)

J1 (I2S mode)

Description

I2S data OUT Ch 1&2

Ground (GND)

I2S data IN Ch 1&2

I2S data OUT Ch 3&4

Ground (GND)

I2S data IN Ch 3&4

I2S data OUT Ch 5&6

I2S data IN Ch 5&6

GPIO (future)

I2S data OUT Ch 7&8

GPIO (future)

I2S data IN Ch 7&8

RST (negative low)

Master clock (MCLK OUT)

GPIO (future)

Bit clock out (BCLK)

GPIO (future)

Ground (GND)

I2S frame sync (LRCLK)

5V external power

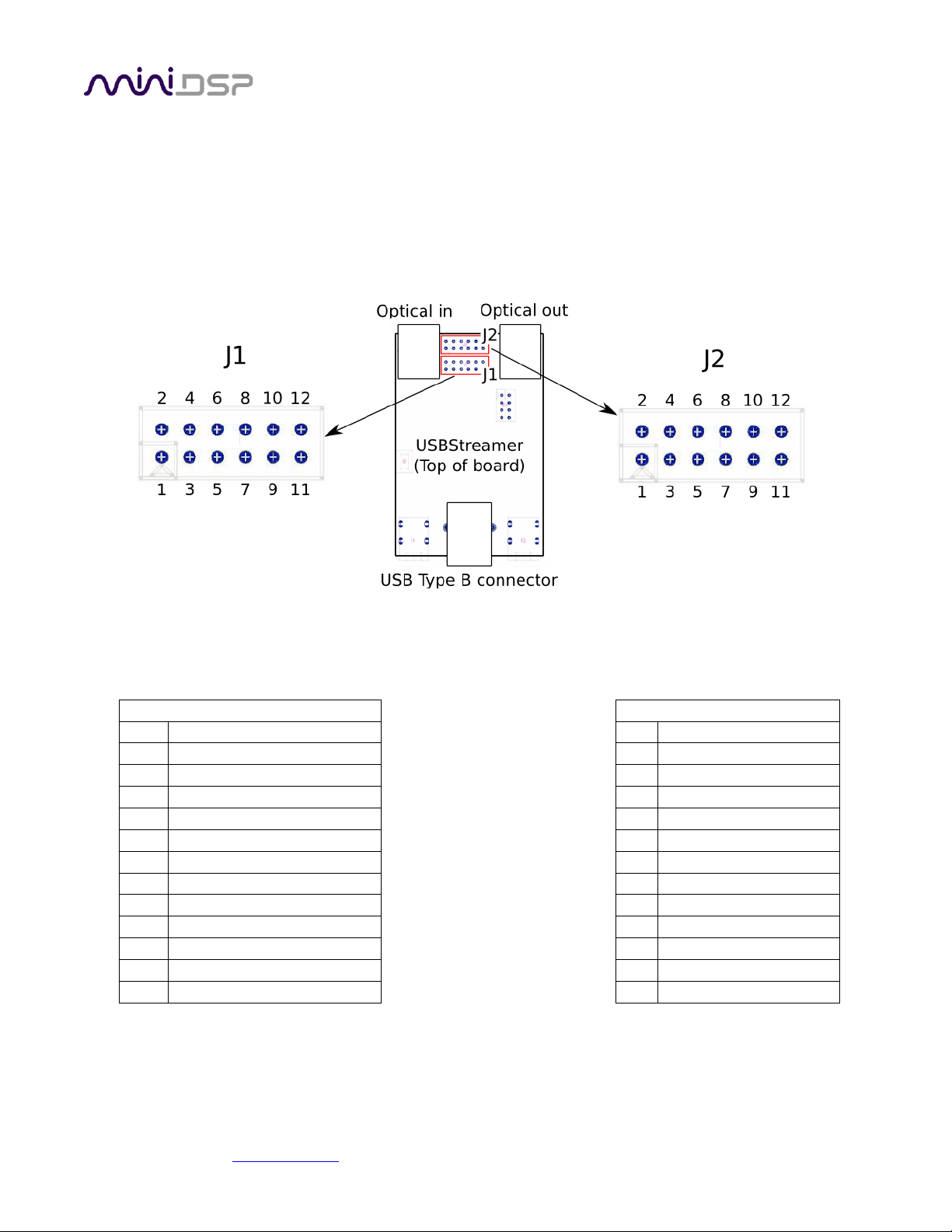

Figure 1. USBStreamer board layout

miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice 10

2.4.3 I2S

2.4.3.1 Clocks

I2S has three clock lines. These clocks are always outputs. The connected circuitry must therefore be set to run in

slave mode and accept its clocks from the USBStreamer.

MCLK The master clock for both playback and recording. This pin is always an output. Connected circuitry

can choose whether or not to use it.

LRCLK The frame synchronization clock, also known as the word clock. This clock is equal to the sampling

frequency (Fs) of the audio signal. This pin is always an output.

BCLK The bit clock (also known as shift clock or system clock). This is always equal to 64 x Fs. This pin is

always an output.

Table 2 summarizes the relation between the clocks. Be sure to double-check that connected circuitry will accept the

clocks at the frequencies and ratios listed.

Table 2. I2S clocks

Sample rate (LRCLK)

Master clock (MCLK)

Bit clock (BCLK)

MCLK/LRCLK

BCLK/LRCLK

8 kHz

24.576 MHz

512 kHz

3072

11.025 kHz

22.5792 MHz

705.6 kHz

2048

12 kHz

24.576 MHz

768 kHz

2048

16 kHz

24.576 MHz

1024 kHz

1536

32 kHz

24.576 MHz

2.048 MHz

768

44.1 kHz

22.5792 MHz

2.822 MHz

512

48 kHz

24.576 MHz

3.072 MHz

512

88.2 kHz

22.5792 MHz

5.6448 MHz

256

96 kHz

24.576 MHz

6.144 MHz

256

176.4 kHz

22.5792 MHz

11.2896 MHz

128

192 kHz

24.576 MHz

12.288 MHz

128

Otros manuales para USBStreamer Box

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de grabación de miniDSP

miniDSP

miniDSP DDRC-24 Manual de usuario

miniDSP

miniDSP C-DSP 8X12 DL Manual de usuario

miniDSP

miniDSP USBStreamer Box Manual de usuario

miniDSP

miniDSP 10X10 HD Manual de usuario

miniDSP

miniDSP C-DSP 6X8 Manual de usuario

miniDSP

miniDSP Dirac DDRC-22A Manual de usuario

miniDSP

miniDSP NANOAVR HD Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
