Minebea Intec PR 57 Manual de usuario
Single Point load cell PR 57
Installation Manual
Translation of the Original Installation Manual 9499 053 05700 Edition 1.0.0 07/24/2023
Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany
Phone: +49.40.67960.303 Fax: +49.40.67960.383
Foreword
Must be followed!
Any information in this document is subject to change without notice and does not represent a commitment on
the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained
and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial
number as well as all license numbers relating to the product have to be cited.
Note
This document is partially protected by copyright. It may not be changed or copied, and it may not be used
without purchasing or written permission from the copyright owner (Minebea Intec). The use of this product
constitutes acceptance by you of the abovementioned provisions.
Table of contents
1 Introduction......................................................................................................................................... 3
1.1 Read the manual......................................................................................................................................................... 3
1.2 This is what operating instructions look like .......................................................................................................... 3
1.3 This is what lists look like........................................................................................................................................... 3
1.4 This is what menu items and softkeys look like..................................................................................................... 3
1.5 This is what the safety instructions look like.......................................................................................................... 3
1.6 Hotline.......................................................................................................................................................................... 4
2 Safety instructions...............................................................................................................................5
2.1 General notes .............................................................................................................................................................. 5
2.2 Intended use................................................................................................................................................................ 5
2.3 Initial inspection.......................................................................................................................................................... 5
2.4 Before operational startup........................................................................................................................................ 5
3 Specifications ......................................................................................................................................6
3.1 Equipment supplied with the load cell....................................................................................................................6
3.2 General information...................................................................................................................................................6
3.3 Possible marking of the load cell for the Ex area .................................................................................................. 7
3.4 Dimensions .................................................................................................................................................................. 8
3.5 Ordering information.................................................................................................................................................8
3.6 Technical data ............................................................................................................................................................9
4 Installation.......................................................................................................................................... 11
4.1 Safety instructions..................................................................................................................................................... 11
5 Connection..........................................................................................................................................12
5.1 General information ..................................................................................................................................................12
5.2 Load cell ......................................................................................................................................................................13
5.3 Load cell cable............................................................................................................................................................13
5.4 Cable gland................................................................................................................................................................ 14
6 Maintenance/repairs/cleaning............................................................................................................15
6.1 Maintenance...............................................................................................................................................................15
6.2 Repairs.........................................................................................................................................................................15
6.3 Cleaning ......................................................................................................................................................................15
7 Disposal ............................................................................................................................................. 16
8 Certificates .........................................................................................................................................17
8.1 CE-00049A................................................................................................................................................................ 18
8.2 UKCA-00008.............................................................................................................................................................24
8.3 17-012 .........................................................................................................................................................................25
8.4 10051........................................................................................................................................................................... 27
Single Point load cell PR 57 Table of contents
Minebea Intec EN-1
8.5 R60/2000-NL1-17.29...............................................................................................................................................28
8.6 TC10952......................................................................................................................................................................30
8.7 BVS 21 ATEX E 023X ................................................................................................................................................. 33
8.8 IECEx BVS 21.0024X................................................................................................................................................. 41
Single Point load cell PR 57 Table of contents
EN-2 Minebea Intec
1 Introduction
1.1 Read the manual
-Please read this manual carefully and completely before using the product.
-This manual is part of the product. Keep it in a safe and easily accessible location.
1.2 This is what operating instructions look like
1. - n. are placed before steps that must be done in sequence.
1.3 This is what lists look like
-indicates an item in a list.
1.4 This is what menu items and softkeys look like
[ ] frame menu items and softkeys.
Example:
[Start]- [Applications]- [Excel]
1.5 This is what the safety instructions look like
Signal words indicate the severity of the danger involved when measures for preventing
hazards are not followed.
DANGER
Warning of personal injury
DANGER indicates death or severe, irreversible personal injury which will occur if the
corresponding safety measures are not observed.
Take the corresponding safety precautions.
WARNING
Warning of hazardous area and/or personal injury
WARNING indicates that death or severe, irreversible injury may occur if appropriate
safety measures are not observed.
Take the corresponding safety precautions.
CAUTION
Warning of personal injury.
CAUTION indicates that minor, reversible injury may occur if appropriate safety
measures are not observed.
Take the corresponding safety precautions.
is placed before a step.
describes the result of a step.
1 Introduction Single Point load cell PR 57
Minebea Intec EN-3
NOTICE
Warning of damage to property and/or the environment.
NOTICE indicates that damage to property and/or the environment may occur if
appropriate safety measures are not observed.
Take the corresponding safety precautions.
Note:
User tips, useful information, and notes.
1.6 Hotline
Phone: +49.40.67960.444
Fax: +49.40.67960.474
eMail: [email protected]
Single Point load cell PR 57 1 Introduction
EN-4 Minebea Intec
2 Safety instructions
2.1 General notes
NOTICE
Warning of damage to property and/or the environment.
The product was in perfect condition with regard to safety features when it left the
factory.
To maintain this condition and to ensure safe operation, the user must follow the
instructions and observe the warnings in this manual.
2.2 Intended use
The load cells are designed for use in table scales, counting scales, and checkweighers.
The load cells PR 57 may only be used as intended for weighing tasks.
In intrinsically safe circuits, only load cells PR 57/..E may be used.
The dimensions of all mounting and structural components must be calculated so that
sufficient overload capacity is ensured for all loads which may occur while taking the
relevant standards into account. In particular, upright weighing objects must be
safeguarded against the weighing installation turning over or being shifted, thus
eliminating danger to people, animals, or goods even in the case of a break in a load cell
or mounting element.
Installation and repair work must only be carried out by expert/qualified personnel.
The load cells reflect the state of the art. The manufacturer does not accept any liability
for damage caused by third-party system components or due to incorrect use of the
product.
2.3 Initial inspection
Check the contents of the consignment for completeness. Check the contents visually to
determine whether any damage has occurred during transport. If there are grounds for
rejection of the goods, a claim must be filed with the carrier immediately. The
Minebea Intec sales or service organization must also be notified.
2.4 Before operational startup
NOTICE
Perform visual inspection.
Before operational startup as well as after storage or transport, inspect the load cell
visually for signs of mechanical damage.
The load cell should not be commissioned if it displays signs of visible damage and/
or is defective.
2 Safety instructions Single Point load cell PR 57
Minebea Intec EN-5
3 Specifications
3.1 Equipment supplied with the load cell
No. Description
1 Load cell
2 Quick guide
3 Calibration Certificate
4 Only with Ex-load cells:
Safety information for PR xx series
3.2 General information
Material Stainless steel
Protection against environmen-
tal influences
Silicone potting
Protection classes in compliance with IEC 529 or DIN EN 60529
IP 66/IP67:
Dust-proof and leak-tight against strong jet water, with harmful effects when
immersed, (1 m water depth, 30 minutes).
Explosion:
Suitable for explosion subgroup IIC and IIIC.
EMC High frequency electromagnetic fields acc. to EN 61000-4-3
10 V/m
Cable diameter 5 mm
Cable length see data sheet
Cable gauge 6×0.14 mm2
Cable bend radius ≥25 mm (fixed installation)
≥75 mm (flexible installation)
Cable sheath material Thermoplastic elastomer (TPE)
Cable sheath color Green
max. platform size in complian-
ce with the technical data accor-
ding to OIML R76
600 mm × 600 mm
Single Point load cell PR 57 3 Specifications
EN-6 Minebea Intec
3.3 Possible marking of the load cell for the Ex area
Zone Marking Certificate no. for
0 II 1G Ex ia IIC T6/T4 Ga
Ex ia IIC T6/T4 Ga
BVS 21 ATEX E 023 X
IECEx BVS 21.0024 X
only PR 5x/..E
20 II 1D Ex ia IIIC T200165°C Da
Ex ia IIIC T200165°C Da
BVS 21 ATEX E 023 X
IECEx BVS 21.0024 X
only PR 5x/..E
2 II 3G Ex ec IIC T6/T4 Gc
Ex ec IIC T6/T4 Gc
BVS 21 ATEX E 023 X
IECEx BVS 21.0024 X
all PR 5x without /..E
21 II 2D Ex tb IIIC T110°C Db
Ex tb IIIC T110°C Db
BVS 21 ATEX E 023 X
IECEx BVS 21.0024 X
all PR 5x without /..E
NOTICE
Installation in the Ex area
For installations in the Ex area, it is imperative to observe the Ex safety instructions in the installation
manuals.
WARNING
Warning of hazardous area and/or personal injury
When used in a dust ex zone, the risk of electrostatic charging must be minimized.
Dust layers on the load cell >5 mm are not permitted.
The load cell must be installed securely.
3 Specifications Single Point load cell PR 57
Minebea Intec EN-7

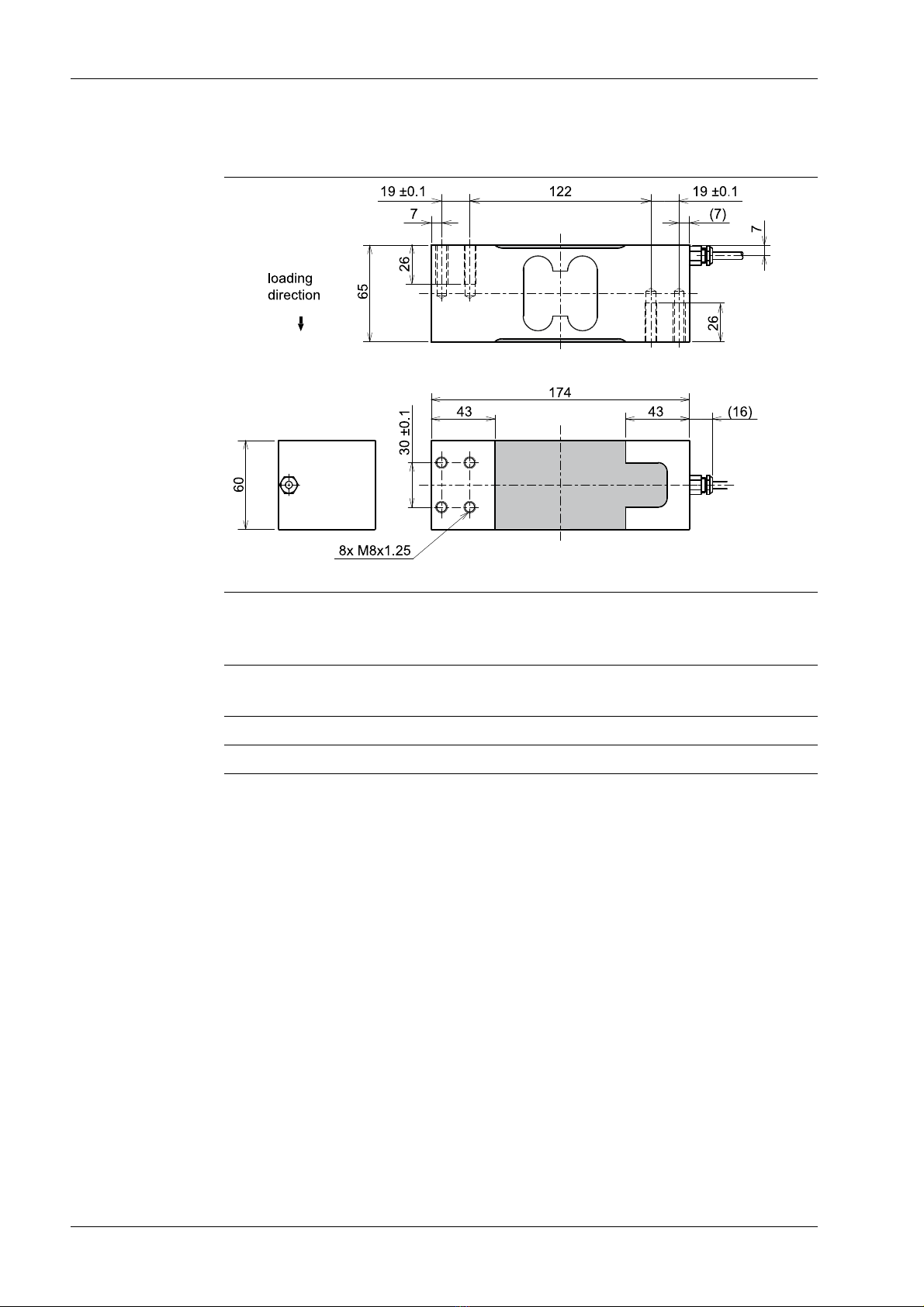

3.4 Dimensions
all dimensions in mm
3.5 Ordering information
Model Max. capacity
Emax
Type OIML Type Ex Type NTEP
PR 57/300 kg 300 kg ..C3MR ..C3MRE ..III5000S
PR 57/500 kg 500 kg ..C3MR ..C3MRE ..III5000S
Single Point load cell PR 57 3 Specifications
EN-8 Minebea Intec
