Features
•Mimaki’s technologies delivers high-image quality
•Smooth image quality by waveform control and precise dot placement technology
•Variable dot printing by 3 different drop sizes of Large/Middle/Small
•Mimaki’s proprietary 3-way intelligent heater optimizes dot gain
•MAPS3 eliminates banding and delivers smooth print densities
•A wide variety of inks broaden application
•Printing exclusive metallic colors with high-intensity silver ink
•Wider color gamut printing with orange ink
•Light black ink produces accurate grayscale printing without color shifts
•White ink achieves high opacity printing
•Versatile Print&Cut functions
•Zero margin crop mark reduces the waste of media
•Supports thin media such as heat transfer media by Cut & Print function
•Dotted line cut function cuts backing sheet leaving a few minimal joints
•Over cut and Corner cut functions cut edges sharp even using thick media
•Segment compensation achieves accurate long-length cutting
•Continuous crop mark detection for unattended Print&Cut operation
3
Mimaki Europe B.V.
Sign Graphics Products
System Configurations
4
Options
MBIS3
Drying fan
Air exhaust unit
Static prevention sheet
8x Eco-cartridge for 600ml BS3 inks
Including Rip software
PC
Works also with:
USB 2 0
5m(15ft) cable is recommended
Connection
Recommended specifications
CPU: Core i5 3.2GHz
MEMORY: 8GB
HDD: 500GB
USB2.0: 4 ports or more
Optical disk drive: DVD-ROM
Windows7 Professional 64bit
Monitor: 1366x768
Mimaki Europe B.V.
Sign Graphics Products
Ink Type / Ink Set
5
10 different ink colors
4 ink set selections
①6C+WSi:Silver included
②4C:High speed printing
③8C: Smooth result & vibrant expression
④6C+WW: 6C plus white printing
Capacity:
CMYKLcLmLkOr:
440ml cartridge
2L Ink pack, for the MBIS3
White and Silver:
220ml cartridge
SS21
M C Y KLc Lm Lk Or WSi
M C Y KKY C M
M C Y KLc Lm Lk Or
M C Y KLc Lm WSi
M C Y KLc Lm W W
Mimaki Europe B.V.
Sign Graphics Products
Ink Type / Ink Set
6
Capacity
CMYK:
600ml Ink pack, for the Eco-cartridge
2L Ink pack, for the MBIS3
Eco-cartridge needs to be ordered extra
BS3
4 Colors
4C :
Ink set
4C : High speed printing
M C Y KKY C M
M C Y KKY C M
Sb53
7 Colors
6C：
*K ink is also available
Ink set
4C : High speed printing
6C : Smooth and vibrant colors
Capacity
BMYKLbLm:
440ml cartridge
2L Ink pack, for the MBIS3
M B Y Dk Lb Lm
M B Y Dk Dk Y B M
M B Y Dk Lb Lm B M
Mimaki Europe B.V.
Sign Graphics Products
Head layout
•1 Print head is incorporated
•Ejects 7 different drop sizes of 4pl/7pl/8pl/14pl/16pl/24pl/35pl
•Prints both high quality mode and high speed mode
7
Nozzle row length
Approx.25.4mm
(1 inch)
Nozzle width
Approx.31mm
(1.2 inch)
1-head:1440-nozzle
(180-nozzle x 8-lines)
123 4 5 6 7 8
Mimaki Europe B.V.
Sign Graphics Products
Highly versatile printer
•Larger Ink drop
•3 different drop sizes are automatically selected from 7drop sizes, depending
on the selected print quality (profile)
•When working with SS21, the 7 drop sizes are 4pl,7pl,8pl,14pl,16pl,24pl, and 35pl
•High speed printing with high densities is attained by taking advantage of the maximum
drop size of 35pl
•The variable dot technology, with a maximum dot size of 35pl, is used for the highest
productivity of 45.4m²/h with SS21/BS3 and 48m²/h with SB53
•This gives the printer a wide coverage, from high resolutions with high qualities to low
resolution printing, with higher densities
8
Case 1 : Maximum dot size =21pl Case 2 : Maximum dot size =35pl
Large
21ｐｌ
Middle
14ｐｌ
Small
4ｐｌ
1 /360 inch
1 /360
inch
Large
35ｐｌ
Middle
14ｐｌ
Small
4ｐｌ
1 /360 inch
1 /360
inch
Low density due to an gap between the dots
↓
Not suitable for high speed mode (low resolution)
High density with no gap between the dots
↓
Suitable for High speed mode
Mimaki Europe B.V.
Sign Graphics Products

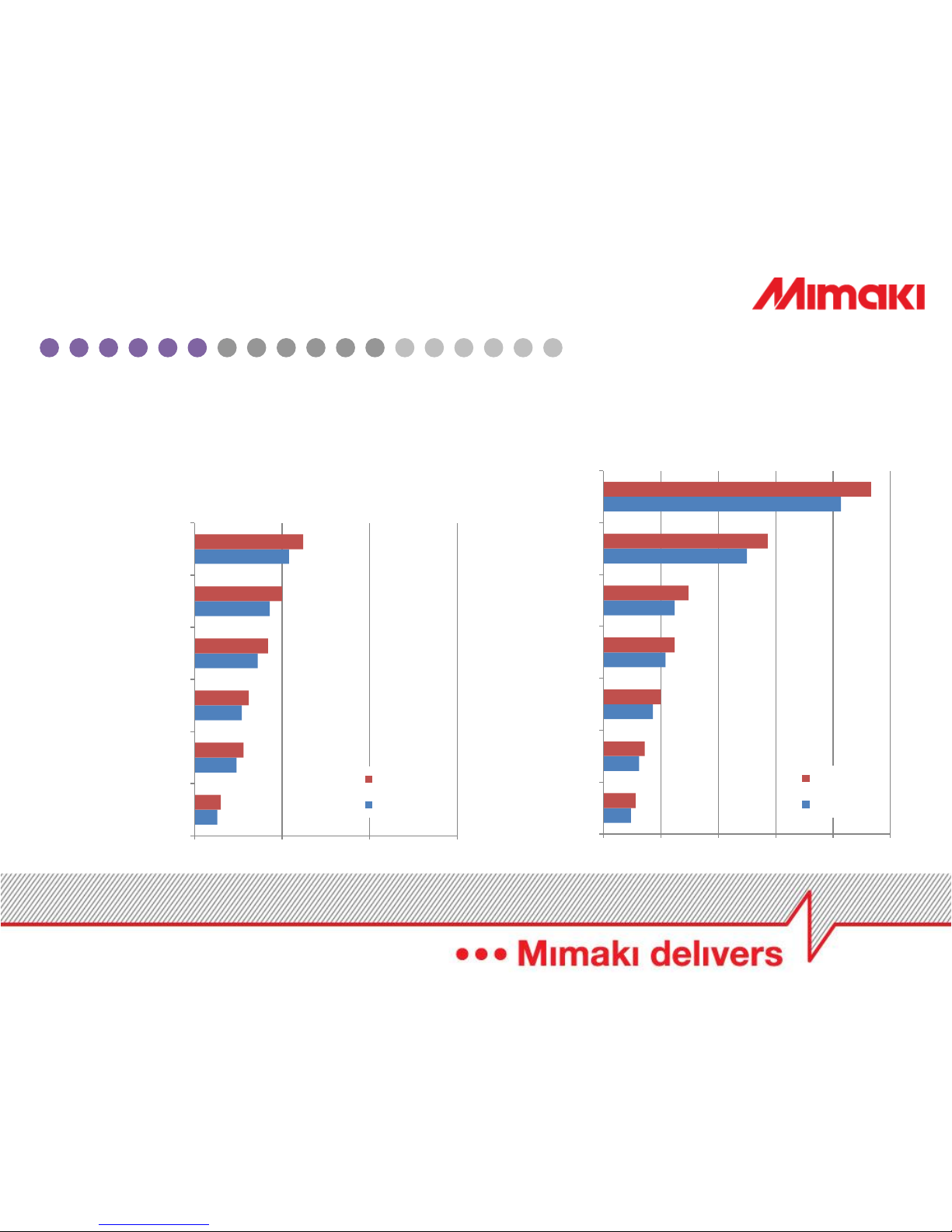

Print Speed (SS21/BS3)
•Ink set: 4C, CMYK
9
PVC Banner
㎡/h㎡/h
1,7
3,6
5,4
7,1
8,5
10,5
12
1,9
4,2
6,2
8,2
9,8
12,2
14,3
0 5 10 15 20
Super Smooth
1440x1440,16P,Bi
High Quality
720x1440,12P,Bi
High Quality
720x1080,8P,Bi
Standard②
720x720,6P,Bi
Standard①
720x720,5P,Bi
High Speed
720x720,4P,Bi
Draft
540x720,4P,Bi
CJV150-107
CJV150-75
4,3
7,1
10,5
12
25
40,2
45,4
010 20 30 40 50
High Quality
720x1440,10P,Bi
Standard②
720x1080,6P,Bi
Standard①
720x720,4P,Bi
High Speed
540x720,4P,Bi
Draft
540x360,2P,Bi
Super Draft
360x360,1P,Bi
CJV150-107
CJV150-75
The print modes in this document is the performance of the printer. The media profiles are created depending on the media type.
Creating profiles with MPM II is possible, when the media profile is not available.
Mimaki Europe B.V.
Sign Graphics Products
1,3
2,4
2,7
3,6
4,3
5,4
1,5
2,8
3,1
4,2
5,0
6,2
0 5 10 15
Super Smooth
1440x1440,20P,Bi
High Quality
720x1440,18P,Bi
Standard②
720x1080,16P,Bi
Standard①
720x1080,12P,Bi
High Speed
720x720,10P,Bi
Draft
720x720,8P,Bi
CJV150-107
CJV150-75
Print Speed, SS21, 8C/6C ink set
•Ink set: 6C(CMYKLcLm+WW/WSi) / 8C(CMYKLcLmLkOr)
10
㎡/h
㎡/h
PVC Banner
2,4
3,1
4,3
5,4
6,2
12,5
20,7
2,8
3,6
5,0
6,2
7,4
14,3
23,3
0 5 10 15 20 25
Super Smooth
720x1440,18P,Bi
High Quality
720x1080,14P,Bi
Standard②
720x720,10P,Bi
Standard①
720x720,8P,Bi
High Speed
540x720,8P,Bi
Draft
540x360,4P,Bi
Super Draft
360x360,2P,Bi
CJV150-107
CJV150-75
