Mighty Mule R4222 Manual de usuario

PHOTO BEAM

R4222

THROUGH BEAM

Mighty Mule, Linear and GTO are registered trademarks of Nortek Security & Control LLC.

www.nortekcontrol.com

Technical Support: (800) 421-1587

TABLE OF CONTENTS

Photoelectric Dual Beam Detector.................................... 3

Parts ............................................................... 3

Receiver Indicators.................................................... 3

Transmitter Indicators ................................................. 3

Mounting Cautions ................................................ 4

Mounting and Connections.......................................... 5

Wiring the R4222 Photo Eyes to Gate Operators............................. 7

Transmitter Terminal ................................................... 7

Receiver Terminal ..................................................... 7

Pole Mounting ....................................................... 8

Dip Setting ....................................................... 8

Beam Alignment .................................................. 9

Beam Interruption Time Adjustment .................................. 10

Verify Correct Operation ............................................ 10

Troubleshooting................................................... 11

Specications .................................................... 11

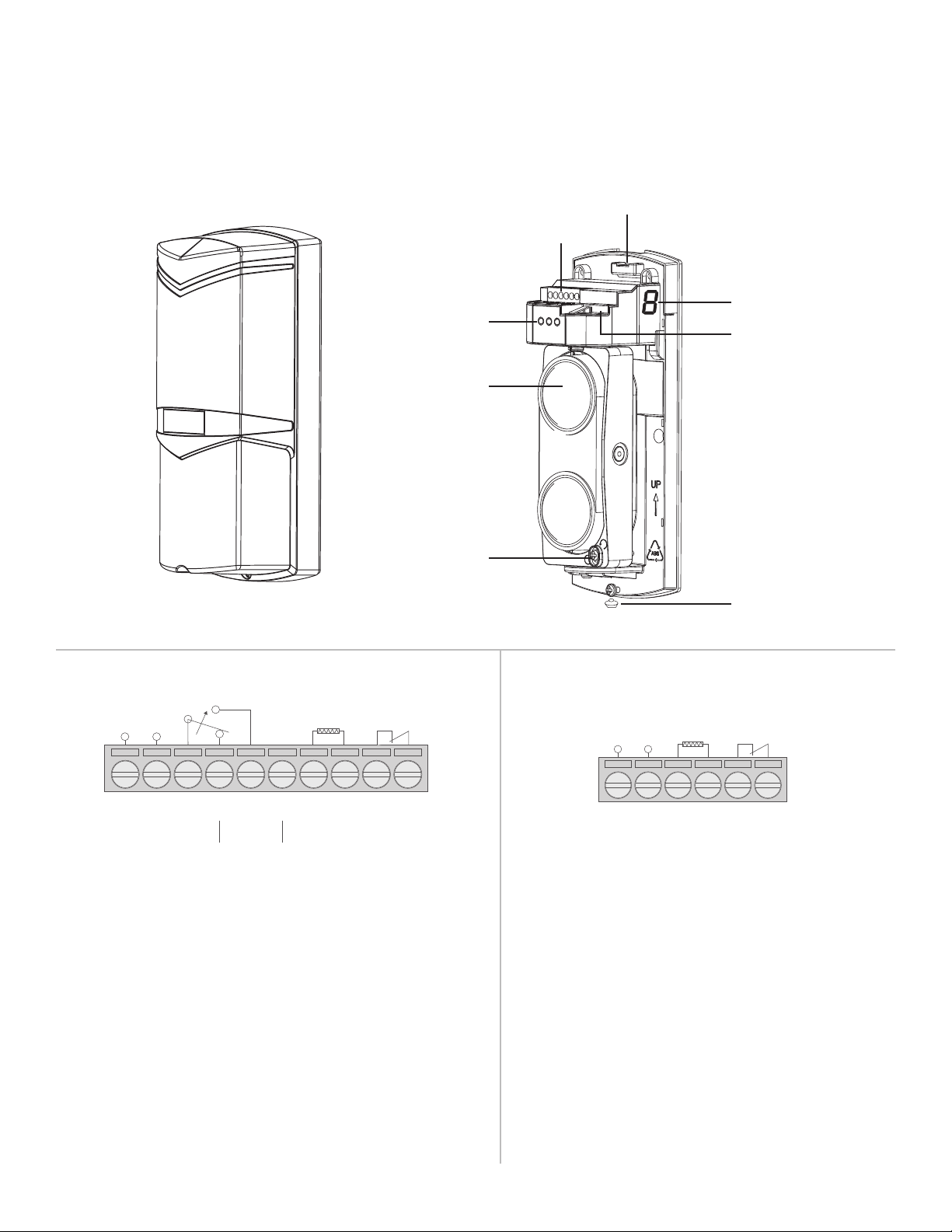

PHOTOELECTRIC DUAL BEAM DETECTOR

Cover

Receiver Wiring Terminals Transmitter Wiring Terminals

Internal View

Wiring Knockout

Connection Terminals

Indicator

Lens

Vertical

Alignment

Screw

Signal Level Display

Cover Locking Screw

Tamper

Parts



POWER HEATER TAMPER

COM

ALARM

NO 

POWER HEATER TAMPER

Receiver Indicators

• GOOD LED (Green). Use when adjusting

beam alignment. ON when beams are

aligned, OFF when beams are not aligned.

(Refer to operation instructions)

• LEVEL LED (Red). ON indicates received

signal. Brightness varies, depending on

incident level.

• ALARM LED (Red). ON indicates beam

blocked. Use when setting response time.

(Refer to operation instructions)

Transmitter Indicators

• POWER LED (green). ON when light

beam is transmitting.

MOUNTING CAUTIONS

Do not mount the detector in the following conditions:

Where obstructions (plants,

fences, etc.) are between the

receiver and the sender.

Where sunlight and headlights

shine directly into the front of

the receiver.

Where the mounting

surface is unstable.

MOUNTING AND CONNECTIONS

1. Loosen the cover holding screw, and

remove the outer cover.

2. Remove the rubber knockout, and use the

screw holes to mount the unit.

3. Remove the rubber knock-out, and pull the

wire through.

Wiring

Back Cover

4. Mount the detector on the wall.

5. Connect wires to the terminals:

See wiring diagram, next page.

• Wire with 22awg minimum

• 300 ft (91 .4m) max length

• Be sure to capture the wire ends under the

wire clamp plates.

• Avoid frayed ends on wires that might

produce a short circuit.

Correct Wrong Wrong



POWER HEATER TAMPER

COM

SAFETY

ALARM



POWER HEATER TAMPER

RED

BLACK

Wiring the R4222 Photo Eyes to Gate Operators

Compatible with Mighty Mule Gate Openers

1. Connect the () Terminals of the TRANSMITTER and RECEIVER to the POSITIVE terminal of

battery with wire.

2. Connect the () Terminals of the TRANSMITTER and RECEIVER to the NEGATIVE terminal of

battery with wire.

3. Connect the () Terminal of the RECEIVER to the COM/COMMON terminal of your gate

opener control board with wire.

4. Connect the () Terminal of the RECEIVER to the SAFETY terminal of your gate opener control

board with wire.

Transmitter Terminal

Receiver Terminal

Pole Mounting

1. Break out the wire hole on the

bracket then pull out the wires.

2. Remove the cover.

3. Attach the base plate on the

bracket using the Regular Ring.

DIP SETTING

NOTE:

1. DIP 1 & 2 on Transmitter & Receiver must be on the same position (same channel).

2. Dial the PIN 5 at “ON” position on Receiver. STARTUP time is about 0.06 seconds.

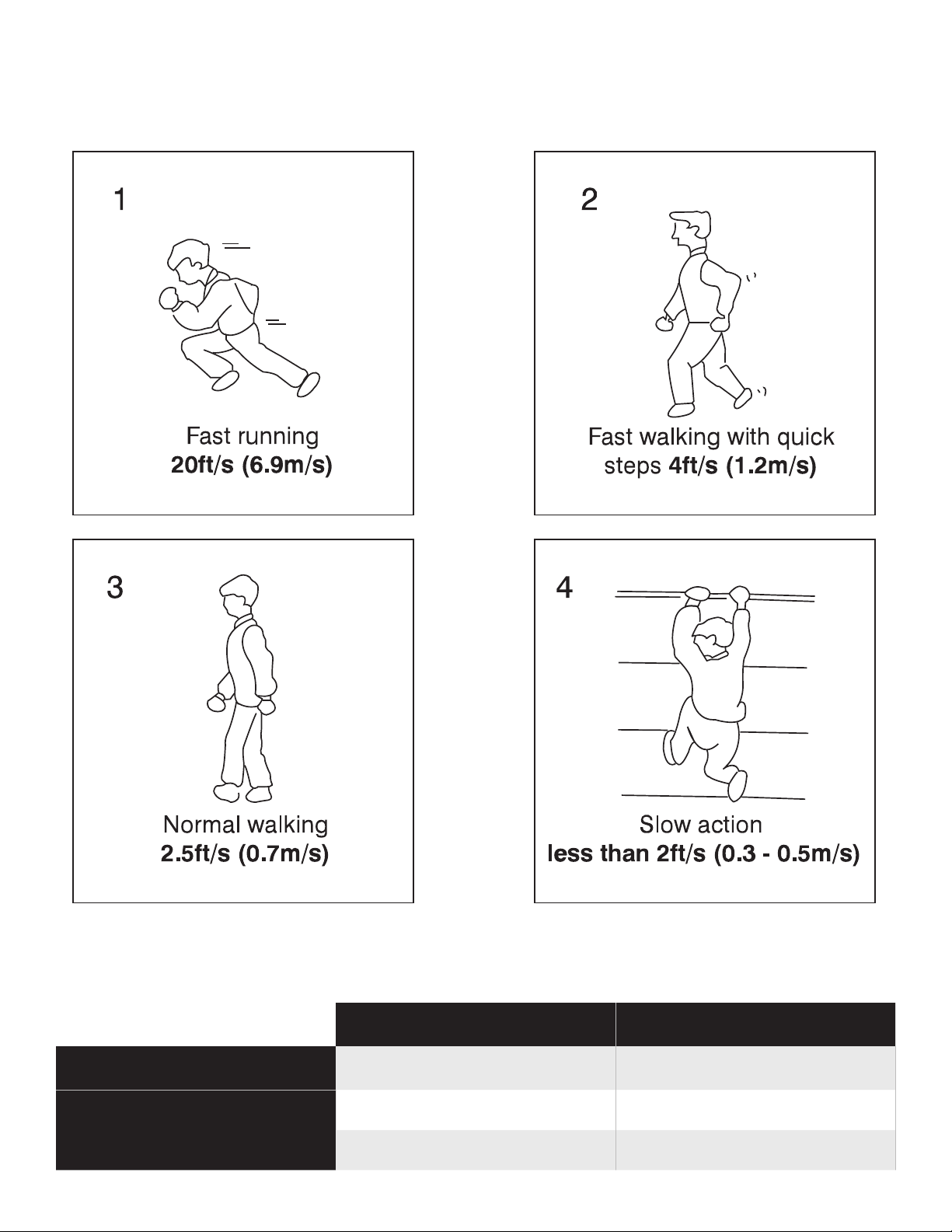

BEAM ALIGNMENT

1. Remove the cover, and turn ON

power.

2. Adjust the horizontal pivot, and the

vertical adjustment screw using the

built-in viewer.

3. Look through the peep hole on

either side and adjust to put the

opposite sensor in the middle of

the cross-hairs in the viewnder.

BEAM INTERRUPTION TIME ADJUSTMENT

VERIFY CORRECT OPERATION

After installation, conrm correct operation by suitable walking.

Condition Indication

Transmitter Transmitting Greed LED is ON

Receiver

Beam Clear GOOD-LEVEL Indication

Beam Blocked Alarm indication lamp is ON
