Miele PWM 908 DV Manual de usuario

Installation Plan

Washing Machine

PWM 908 DV/DP

Always read the operating and installation instructions before

setting up, installing, and commissioning the machine.

This prevents both personal injury and damage to the machine.

en-US

11 282 580/00

2 11 282 580/00

Please have the model and serial number of your machine available when contacting Technical Service.

U.S.A.

Miele, Inc.

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: 800-991-9380

Fax: 609-419-4241

www.miele-pro.com

proinfo@mieleusa.com

Technical Service & Support

Phone: 800-991-9380

Fax: 800-220-1348

proservice@mieleusa.com

Legend:

Connection required

Connection optional or required,

depending on model

Drain valve

Cold water connection

Drain connection

Drain pump

Machine anchoring

Equipotential bonding and

grounding

DOS

Dispenser connection

SLA

Peak-load connection

Electrical connection

Closed plinth

Machine feet, adjustable

Open plinth

Payment system

APCL

Washer-dryer stacking kit

KGA

Payment system connection

Hot water connection

XKM

Communication module

PWM 908 en-US

11 282 580/00 3

Machine dimensions

F F F

KGASLA

XKM

DOS

PWM 908 en-US

4 11 282 580/00

Installation

WW KW KG

WW KW EL

DV KGA

SLA

WW KW KG

UO UG/

WW KW EL

DV KGA

SLA

PWM 908 en-US

11 282 580/00 5

Washer-dryer stack

F F

WW KW

APCL

APCL KGA

SLA

PWM 908 en-US

6 11 282 580/00

Installation

305145,5 145,5

681

1031

B B

BB BS

305145,5 145,5

305

1031

B B

148148

305148 148

PWM 908 en-US

11 282 580/00 7

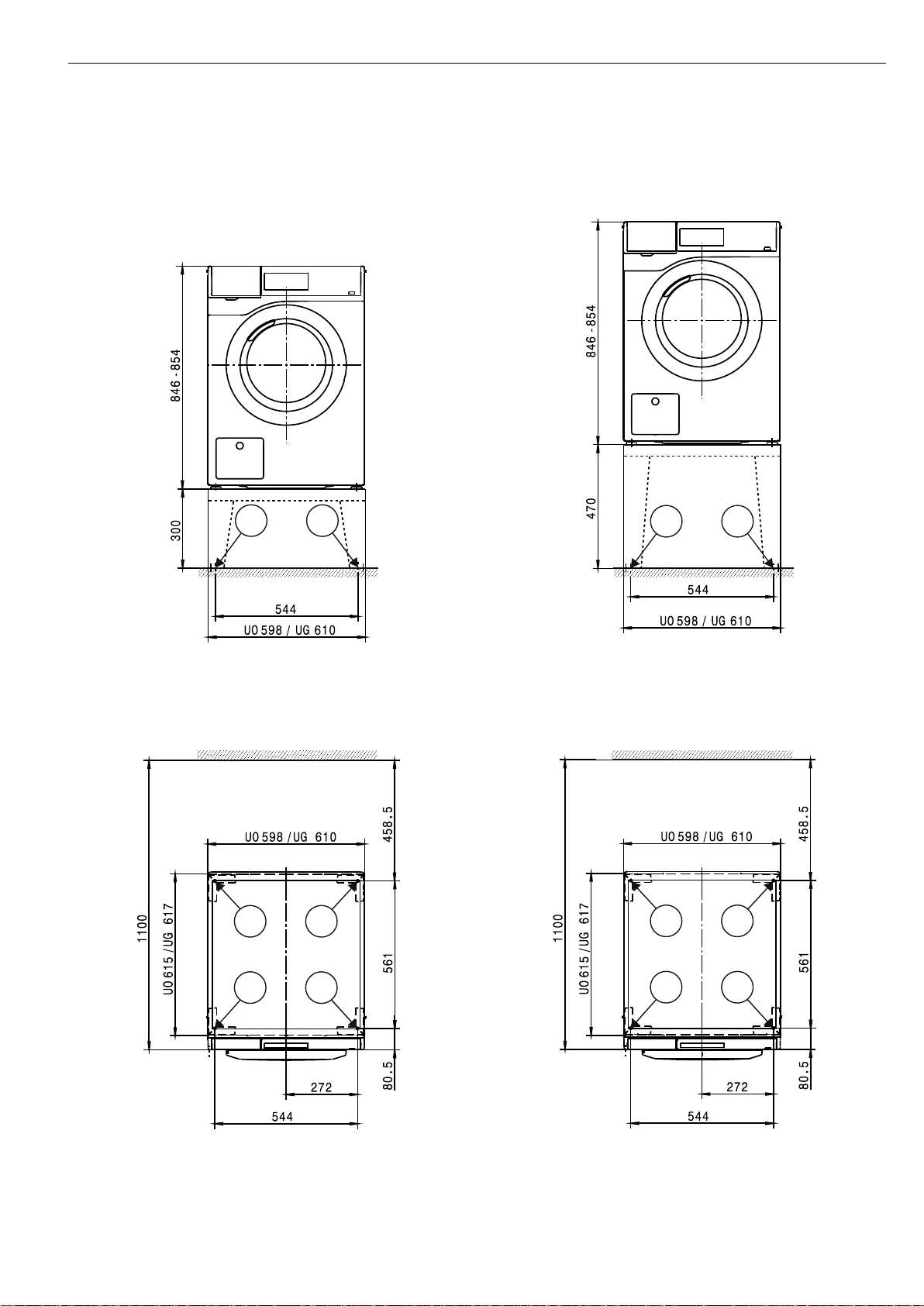

Installation

UO UG/

B B

UO UG/

B B

UO UG/

B B

UO UG/

B B

PWM 908 en-US

= standard, = optional, + = only on request, - not available

8 11 282 580/00

Technical data

PWM 908 DV

PWM 908 DP

Drum volume

gal (l)

19.3 (73)

Capacity

lb (kg)

17.6 (8.0)

Door opening diameter

inch (mm)

11 13/16" (300)

Max. spin speed

rpm

1,600

g-factor

704

Residual moisture (standard load according to DIN 60456)

Electrical connection (EL)

Standard voltage

2N AC 400 V

Frequency

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

2 x 16

Power cord min. cross-section

mm²

4 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Alternative voltage (convertible by Technical Service)

1N AC 230 V

Total rated load

2.85

Fuse rating (B trip rating according to EN 60898)

1 x 16

Power cord min. cross-section

mm²

3 x 1.5

Non-standard voltages MAR 400/440/480 (Marine)

3 AC 400/440/480V

Frequency

50/60

Total rated load

3.6/4.23/5.0

Fuse rating (B trip rating according to EN 60898)

3 x 16

Power cord min. cross-section

mm²

4 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Non-standard voltage MAR 230 (Marine)

3 AC 230 V

Frequency

50/60

Total rated load

4.4

Fuse rating (B trip rating according to EN 60898)

3 x 16

Power cord min. cross-section

mm²

4 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Non-standard voltage MAR 400 (Marine)

2N AC 400 V

Frequency

50/60

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

2 x 16

Power cord min. cross-section

mm²

3 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Non-standard voltage MAR 208-240 (Marine)

2 AC 208-240 V

Frequency

Total rated load

4.0 –5.2

Fuse rating (B trip rating according to EN 60898)

2 x 30

Power cord min. cross-section

3 x AWG10

Wire with plug



Wire length

inch (mm)

78 3/4" (2,000)

PWM 908 en-US

= standard, = optional, + = only on request, - not available

11 282 580/00 9

Technical data

PWM 908 DV

PWM 908 DP

Variations in the following countries:

Standard voltage 13 A (GB only)

2N AC 400 V

Frequency

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

2 x 13

Power cord min. cross-section

mm²

4 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Alternative voltage (convertible)

1N AC 230 V

Total rated load

2.85

Fuse rating (B trip rating according to EN 60898)

1 x 13

Power cord min. cross-section

mm²

3 x 1.5

Standard voltage 25 A (GB only)

1N AC 220-240 V

Frequency

Total rated load

5.05 –6.0

Fuse rating (B trip rating according to EN 60898)

1 x 25

Power cord min. cross-section

mm²

3 x 2.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Standard voltage (CH, DK, S only)

3N AC 400 V

Frequency

Total rated load

4.8

Fuse rating (B trip rating according to EN 60898)

3 x 10

Power cord min. cross-section

mm²

5 x 1.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Standard voltage (B only)

2N AC 400 V

Frequency

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

2 x 16

Power cord min. cross-section

mm²

4 x 2.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Alternative voltage (convertible)

3 AC 230 V

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

3 x 20

Power cord min. cross-section

mm²

4 x 2.5

Alternative voltage (convertible)

1N AC 230

Total rated load

2.85

Fuse rating (B trip rating according to EN 60898)

1 x 16

Power cord min. cross-section

mm²

3 x 1.5

Standard voltage (N only)

1N AC 230 V

Frequency

Total rated load

2.85

Fuse rating (B trip rating according to EN 60898)

1 x 16

Power cord min. cross-section

mm²

3 x 1.5

Wire with plug



Wire length

inch (mm)

78 3/4" (2,000)

Alternative voltage (convertible)

3 AC 230 V

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

3 x 20

Power cord min. cross-section

mm²

4 x 2.5

PWM 908 en-US

= standard, = optional, + = only on request, - not available

10 11 282 580/00

Technical data

PWM 908 DV

PWM 908 DP

Alternative voltage (convertible)

2N AC 400 V

Total rated load

5.5

Fuse rating (B trip rating according to EN 60898)

2 x 16

Power cord min. cross-section

mm²

4 x 1.5

Standard voltage (AUS only)

1N AC 230 V

Frequency

Total rated load

5.5

Fuse rating

1 x 25

Power cord min. cross-section

mm²

3 x 2.5

Wire without plug



Wire length

inch (mm)

78 3/4" (2,000)

Standard voltage (AUS only)

1N AC 230 V

Frequency

Total rated load

2.85

Fuse rating

1 x 16

Power cord min. cross-section

mm²

3 x 1.5

Wire with plug



Wire length

inch (mm)

78 3/4" (2,000)

Alternative voltage (convertible)

1N AC 230 V

Frequency

Total rated load

5.5

Fuse rating

1 x 25

Power cord min. cross-section

mm²

3 x 2.5

Standard voltage for CDN & USA

2 AC 208-240 V

Frequency

Total rated load

4.0 –5.2

Fuse rating

2 x 30

Power cord min. cross-section

3 x AWG10

Wire with plug



Wire length

inch (mm)

78 3/4" 2000

Cold water (KW)

Permissible water flow pressure

PSI (kPa)

1.45 –14.5 (100 –1,000)

Required flow rate (cold water connection only)

gal/min (l/min)

2.9 (11)

Required flow rate (with additional hot water connection)

gal/min (l/min)

2.6 (10)

Average water consumption (60°C standard programme)

gal/h (l/h)

10.5 (40)

Connection to be provided on site, external thread according to DIN 44991 (flat seal)

Inches

¾"

Connection hose ½" with ¾" threaded union



Connection hose length

inch (mm)

61 (1,550)

Hot water (WW)

Max. water intake temperature

°F (°C)

158 (70)

Permissible water flow pressure

PSI (kPa)

1.45 –14.5 (100 –1,000)

Required flow rate

gal/min (l/min)

2.9 (11)

Average water consumption (60°C standard programme)

gal/h (l/h)

3.4 (13)

Connection to be provided on site, external thread according to DIN 44991 (flat seal)

Inches

¾"

Connection hose ½" with ¾" threaded union



Connection hose length

inch (mm)

61 (1,550)

Drain valve (DV)

Connector (ext. diameter)

inch (mm)

3 (75) /DN70

Max. drainage temperature

°F (°C)

194 (90)

Max. transient flow rate

gal/min (l/min)

16 (62)
