Operating and installation instructions

Ventilation System

DA 230-3

To prevent accidents

and machine damage,

read these instructions

before installation or use.

05 853 520

M.-Nr.

IMPORTANT SAFETY INSTRUCTIONS

Functional description

Appliance description

Operation

Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Automatic Safety Shut Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Grease filter timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Checking the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Reprogramming the grease filter timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning and care

Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

After Sales Ser ice

Installation instructions

Table of Contents

Read these Operating Instructions carefully before installing or

using the Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use of

the appliance can lead to personal

injury and material damage.

READ AND SAVE THESE

INSTRUCTIONS

CAUTION

For General Ventilating Use Only.

Do Not Use To Exhaust Hazardous

Or Explosive Materials And Vapors.

This appliance is designed to vent

cooking smoke and odors only.

Be certain your appliance is prop-

erly installed and grounded by a

qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

can not be held responsible for

damages caused by the lack, or

inadequacy of, an effective grounding

system.

Before connecting the appliance to

the power supply make sure that

the voltage and frequency listed on the

data plate correspond with the house-

hold electrical supply. This data must

correspond to prevent machine

damage. Consult a qualified electrician

if in doubt.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

This equipment is not designed for

maritime use or for use in mobile

installations such as caravans or air-

craft. However, under certain conditions

it may be possible for an installation in

these applications. Please contact the

nearest Miele dealer or the Miele Tech-

nical Service Department with specific

requirements.

Before servicing or cleaning the

unit, switch power off at the service

panel and lock the service disconnect-

ing means to prevent power from being

switched on accidentally. When the

service disconnecting means can not

be locked, securely fasten a prominent

warning device, such as a tag, to the

service panel.

Before discarding an old

appliance, unplug it from the

power supply and remove the power

cord and any doors to prevent hazards.

Use

Do not allow children to play with

or operate the appliance or its

controls. Supervise its use by the

elderly or infirm.

Be careful when preparing a

flambé beneath the hood.

Flames may be drawn up into the hood

by the suction or grease filters may

catch fire.

Never operate gas burners without

pots.

Do not leave cooking surfaces

unattended while in use. Over-

heated food, oil and grease can catch

fire.

Do not use the hood without the

grease filters in place.

Clean the grease filters regularly.

Dirty filters are a fire hazard.

Do not use a steam cleaner to

clean the hood. Steam could

penetrate electrical components and

cause a short circuit.

In areas subject to infestation by

cockroaches or other pest, keep

the appliance and its surroundings

clean at all times. Any damage caused

by cockroaches or other pest will not

be covered under warranty.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A RANGE TOP

GREASE FIRE:

Never leave surface units unat-

tended at high settings. Boilovers

cause smoking and greasy spillovers

may ignite. Heat oils slowly on low or

medium settings.

Always turn hood "ON" when cook-

ing at high heat or when cooking

flaming foods.

Clean ventilating fans frequently.

Grease should not be allowed to

accumulate on fan or filter.

Use proper pan size. Always use

cookware appropriate for the size

of the surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A

RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING:

SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal

tray, then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

NEVER PICK UP A FLAMING

PAN - You may be burned.

DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion will result.

Use an extinguisher

ONLY IF:

– You know you have a Class ABC

extinguisher, and you already know

how to operate it.

–The fire is small and contained in the

area where it started.

–The fire department is being called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

,WARNING

To reduce the risk of fire, only

use metal ductwork.

When installing the hood, follow the

recommended minimum safety

distances between a Miele cooktop and

the hood:

–22" (55 cm) above electric cooktops,

–26" (65 cm) above gas cooktops,

–26" (65 cm) above an open grill.

If local building codes require a greater

safety distance, follow their require-

ment.

For non-Miele cooking appliances

maintain the safety distances recom-

mended by the appliance manufacturer

in their installation and operating

instructions.

If there is more than one appliance

beneath the hood and they have differ-

ent minimum safety distances always

select the greater distance.

Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

Do not install this hood over

cooktops burning solid fuel.

Any fittings, sealant, or materials

used to install the ductwork must

be made of approved non-flammable

materials.

Never connect an exhaust hood to

an active chimney, dryer vent, vent

flue, or room ventilating ductwork. Seek

professional advice before connecting

an exhaust hood vent to an existing,

inactive chimney or vent flue.

Ducted fans must always be

vented outdoors.

Make sure that the airflow in the

room is sufficient for combustion

and exhausting of all non-electric heat-

ing appliances (water heaters, gas

cooktops, gas ovens, etc.), otherwise

backdrafts may occur. Follow the heat-

ing manufacturer’s guidelines and

safety standards or those published by

the National Fire Protection Association

(NFPA), or the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE).

If in doubt, consult an experienced

professional.

IMPORTANT SAFETY INSTRUCTIONS

The ventilation hood works by air ex-

traction. The air is drawn in and

cleaned by the grease filters and di-

rected outside.

The hood comes equipped with a

non-return flap. This flap automatically

closes when the hood is turned off so

that no exchange of outside air and

room air can occur. When the hood is

turned on, the air pressure of the ex-

haust fan automatically opens the flap

blowing the inside air and cooking

odors outside.

Functional description

Appliance description

aCo er plate

bChimney

cCanopy

dControl panel

eGrease filters

fO erhead lighting

gMain power switch

hLight button

This button turns the light on and off

and also dims the light.

The lighting can be used independently

of the fan.

iOn/Off button

jFan power le el buttons

Four fan speed selection.

kDelayed Shut Down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after either 5 or 15

minutes.

lGrease filter button

The indicator next to the grease filter

button lights when the grease filters

need to be cleaned.

This button is also used:

–to reset the grease filter timer after

cleaning the grease filters (see

"Cleaning and Care").

–to show how long the grease filter

has been in use (see "Operation /

Grease filter timer").

–to change the number of hours

counted by the grease filter timer

(see "Operation / Reprogramming the

grease filter timer").

Appliance description

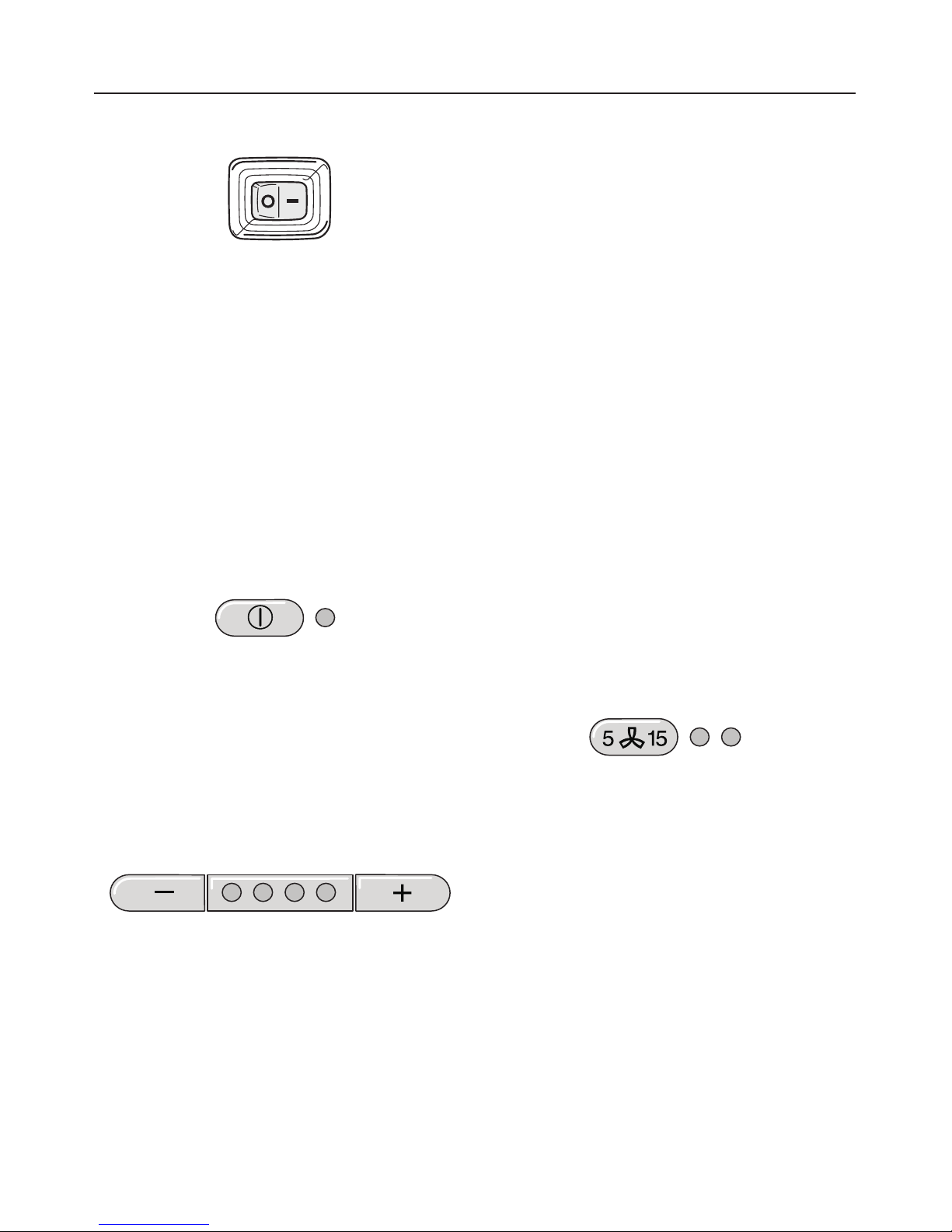

Main power switch

Press the main power switch to "I". The

fan and the lighting can now be oper-

ated.

If the appliance is not going to be used

for a long period of time (e.g. while va-

cationing) turn the appliance off by

pressing the main power switch to "0".

The next time it is turned on, the hood

will operate at the level previously used.

Turning on the fan

^Press the On/Off button.

The fan runs at power level "2".

The On/Off indicator lights.

Selecting the power le el

^Use the _buttons to select the

desired power level.

&=increases the fan speed

$=decreases the fan speed

Level "1" to "3" (green indicators) are

usually sufficient for normal cooking.

Intensi e setting

Level "4" (yellow indicator) should be

used for a short period when frying or

cooking food with a strong aroma.

Fan performance

The maximum air flow capacity is

625 cfm. Factors such as narrow duct

diameter and bends will affect this

value.

Level 1 operates at 40% capacity

Level 2 operates at 60% capacity

Level 3 operates at 80% capacity

Level 4 operates at 100% capacity

Delayed Shut Down

If odors or smoke remain in the kitchen

after cooking has been completed, the

Delayed Shut Down feature can be se-

lected to allow the hood to continue

running for either 5 or 15 minutes.

^Press the Delayed Shut Down button

while the fan is still running.

Press once = 5 minute delay

(left indicator lights)

Press twice = 15 minute delay

(right indicator lights)

To cancel the Delayed Shut Down fea-

ture press the button again.

Operation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de Miele

Miele

Miele DA 4208V D Manual de usuario

Miele

Miele DA 249-3 Manual de usuario

Miele

Miele DA 249-2 Alu EXT Manual de usuario

Miele

Miele RWP 60 Manual de usuario

Miele

Miele DA 5321 W Manual de lista de piezas

Miele

Miele DA 289-4 Manual de usuario

Miele

Miele DA 3160 Manual de usuario

Miele

Miele DA 426-4 Hoja de especificaciones

Miele

Miele DA 5100 D Manual de usuario

Miele

Miele Imperial DIF 976-1 Hoja de especificaciones

Miele

Miele DA 3366 Manual de usuario

Miele

Miele DA 3160 EXT Manual de usuario

Miele

Miele DA 292 i Manual de usuario

Miele

Miele DAS 2620 Manual de usuario

Miele

Miele DA 6000 W Manual de usuario

Miele

Miele DA 402 Manual de usuario

Miele

Miele DA 289-4 Hoja de especificaciones

Miele

Miele DA 6296 W EXT Manual de usuario

Miele

Miele DA 2558 Manual de usuario

Miele

Miele DA 6698 D EXT Manual de usuario

Miele

Miele DA 399 Manual de usuario

Miele

Miele Imperial DIA 1070-2 EX Hoja de especificaciones

Miele

Miele DA5190 Manual de lista de piezas

Miele

Miele DA 5321 W Hoja de especificaciones

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario

Nibe

Nibe S Series Guía del usuario

Caple

Caple CCH100 Manual
