Installation
*INSTALLATION*
Installation
Fire risk and danger of damage
from appliances which give off heat.
Appliances which give off heat can
catch fire and set fire to the
refrigeration appliance.
Do not place appliances which give
off heat, such as mini-ovens, double
burner hobs or toasters on the
refrigeration appliance.
Fire risk and danger of damage
from open flames!
Open flames can set fire to the
refrigeration appliance.
Keep open flames (e.g. a candle)
away from the refrigeration
appliance.
Side-by-side installation
Risk of damage due to
condensation on the external
appliance panels.
In environments with high humidity,
condensation can build up on
external appliance panels, which can
cause corrosion.
Do not place different refrigeration
appliance models directly next to
one another.
If the model number for your
refrigeration appliance does have the
letter S in it, it can be installed side-by-
side. Your refrigeration appliance is
equipped with built-in heating units in
the side panels.
Please contact Miele for information on
which combinations are suitable for
your appliance.
Location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
appliance please bear in mind that it will
use more energy if installed near a
heater, cooktop or other appliance that
gives off heat. Direct sunlight should
also be avoided.
The higher the room temperature, the
longer the compressor will run and the
higher the energy consumption will be.
When installing the appliance, please
note:
- The mains socket must not be
located directly behind the appliance
and must be easily accessible.
- The plug and cable must not touch
the rear of the appliance as they
could be damaged by vibrations from
the appliance.
- Nor should other appliances be
plugged into a socket located directly
behind this appliance.
11210790-04
Installation
*INSTALLATION*
Risk of damage due to
condensation on the external
appliance panels.
In environments with high humidity,
condensation can build up on
external appliance panels, which can
cause corrosion.
To prevent this, it is advisable to
install the appliance with sufficient
ventilation in a dry and/or air
conditioned room.
After installation, make sure that the
appliance door closes properly, that
the specified ventilation gaps are
adhered to, and that the appliance
has been installed in accordance
with these installation instructions.
Climate range
The appliance is designed for use within
a certain climate range (ambient
temperatures) and should not be used
outside this range. The climate range of
the appliance is stated on the data plate
inside the appliance.
Climate range Ambient room
temperature
SN +10 to +32°C
N +16 to +32°C
ST +16 to +38°C
T +16 to +43°C
Operating in a room which is too cold
will result in the compressor switching
off for too long, causing the internal
temperature in the appliance to rise with
the risk of food deteriorating and going
off.
Ventilation
Risk of fire and damage due to
insufficient ventilation!
If the refrigeration appliance is not
ventilated sufficiently, the
compressor will run more frequently
and for longer periods. This will
result in increased energy
consumption and a higher operating
temperature of the compressor. This,
in turn, can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the refrigeration
appliance.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must not be covered or blocked in
any way.
Air at the back of the appliance gets
warm.
11210790-04
Installation
*INSTALLATION*
Fitting the supplied wall spacers
The wall spacers supplied must be
used in order to achieve the stated
energy consumption values and to
prevent the build-up of condensation
at high ambient temperatures.
Appliance depth is increased by
approx. 15mm with the wall spacers
fitted. If the wall spacers are not used,
the functionality of the appliance is not
affected. However, energy
consumption is slightly increased with
less distance between the appliance
and the wall.
Fit the wall spacers onto the back of
the refrigeration appliance on the
bottom left and right.
Limiting the opening angle of the
door
The door hinges are set at the factory to
enable the door to be opened up to
115°. If the appliance door hits an
adjacent wall when opened, for
example, the opening angle can be
limited toapprox. 90°:
The door opening angle limiter should
be fitted before the refrigeration
appliance is installed.

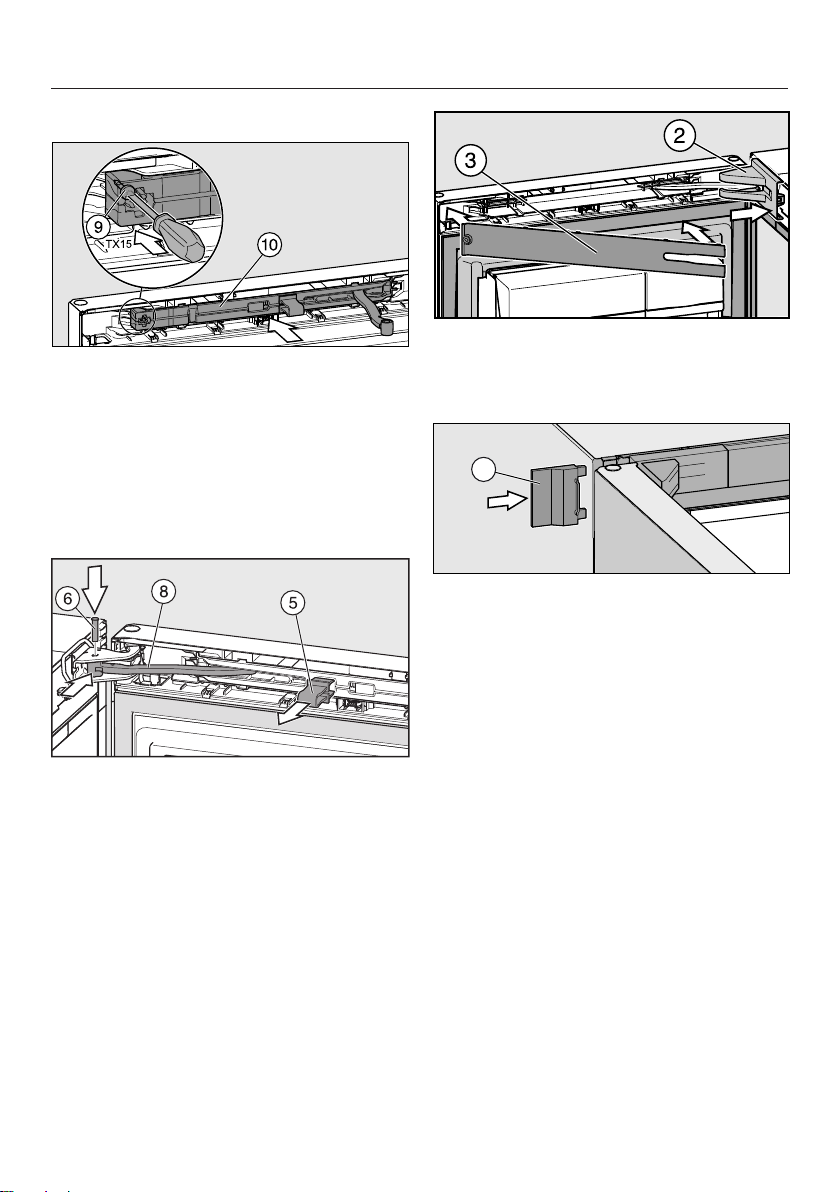

Fitting the door opening angle limiter
Disconnect the appliance from the
mains. Switch off at the wall and
withdraw the plug from the socket, or
switch off the mains circuit breaker.
–Removing the soft-close
mechanism
Open the appliance door.
Slide off the right outer cover.
11210790-04
Installation
*INSTALLATION*
Remove cover from the door hinge
and cover from the soft-close
mechanism.
Click the red safety device
(supplied with the appliance) into
place in the opening.
The safety device prevents the soft-
close mechanism and the hinge plate
from snapping shut.
Do not remove the red safety device
until instructed to do so.
Push the pin out of the door
hinge and remove it.
Move the hinged arm of the soft-
close mechanism away from the door
hinge.
Undo and remove the screw on
the soft-close mechanism and
insert a screwdriver behind the soft-
close mechanism.
Remove the soft-close
mechanism.
–Fitting the door opening angle
limiter
Press a door opening angle limiter
in from above and below as shown.
11210790-04
Installation
*INSTALLATION*
–Fitting the soft-close mechanism
Insert the soft-close mechanism
on the door hinge side (at an angle
initially) until it clicks into position.
Then press the other end of the soft-
close mechanism into the opening.
Secure the soft-close mechanism
with the screw.
Push the hinged arm into the
opening on the door hinge.
Insert the pin into the door hinge
from above. Turn this with a
screwdriver (by approx. ¼ turn) until
both lugs on the pin click into
position correctly in the grooves.
Pull out the red safety device.
Useful tip: Keep the red safety device
in case you want to change the door
hinging again at a later date.
Fit the cover on the door hinge.
Fit the panel so that it clicks into
position.
1
Slide on the outer cover.
Close the appliance door.
11210790-04
Installation
*INSTALLATION*
Installation
Two people are required for
installing the appliance.
The appliance must be empty to
be installed.
Move the appliance carefully on
floors that are sensitive to scratching
to prevent damage.
For easier installation there are
transport handles on the back at the
top and transport wheels underneath
the appliance.
Prepare the appliance for installation
as close as possible to its intended
installation location.
Connect the appliance to the
electricity supply as described in
“Electrical connection”.
Move the appliance carefully to its
intended installation location.
Position the appliance with the wall
spacers (if used) or the back close to
the wall.
Aligning the appliance
To align the appliance, adjust the
front feet using the spanner supplied.
11210790-04
Installation
*INSTALLATION*
Supporting the appliance door
Risk of damage and danger of
injury due to the appliance door
swinging open or the refrigeration
appliance tipping over.
If the additional adjustable foot on
the lower hinge plate is not sitting
correctly on the floor, the appliance
door may swing open or the
refrigeration appliance may tip over.
Ensure that you unscrew the
adjustable foot with the supplied
spanner until it sits on the floor.
Then unscrew it by a further quarter
turn.
Installing the appliance in existing
kitchen units
Risk of fire and damage due to
insufficient ventilation!
If the refrigeration appliance is not
ventilated sufficiently, the
compressor will run more frequently
and for longer periods. This will
result in increased energy
consumption and a higher operating
temperature of the compressor. This,
in turn, can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the refrigeration
appliance.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must not be covered or blocked in
any way.
11210790-04
Installation
*INSTALLATION*
Top box
Refrigeration appliance
Housing unit
Wall
* The appliance depth is increased by
approx. 15 mm for appliances with
wall spacers fitted.
The appliance can be built into a run of
kitchen units and installed directly next
to a kitchen furniture unit. The
appliance front must protrude in front of
furniture fronts by at least 65mm. This
enables the doors to be opened and
shut without being obstructed. To
match the height of the kitchen units in
the run, the appliance can be fitted with
a suitable top box.
When installed next to a wall a
distance of at least 40mm must be
maintained on the hinge side between
the wall and the appliance.
The larger the ventilation gap, the
more economically the compressor
will work.
- A ventilation gap of at least 50mm
depth must be provided at the back
of the appliance behind the whole
width of the top box for air to
circulate.
- The ventilation gap under the ceiling
must be at least 300cm2 to ensure
that the warm air can escape
unhindered.
11210790-04
Installation
*INSTALLATION*
Appliance dimensions
* Dimensions without wall spacers fitted. Appliance depth is increased by 15mm with the
wall spacers supplied fitted.
A
[mm]
B
[mm]
KS28463 D ed/cs 1,850 1,815
11210790-04
Installation
*INSTALLATION*
Changing the door hinging
The appliance is supplied with right-
hand hinging. If left-hand hinging is
required, the hinges must be changed.
Please note that the hinging must not
be changed if this appliance is going to
be installed side by side with another
refrigeration appliance.
Danger of injury and damage
when changing the door hinging!
There is an increased danger of
injury and damage if the refrigeration
appliance is installed by a single
person.
Always change the door hinging with
the help of a second person.
If a door seal is damaged or has
come out of the groove, the door will
not close properly and cooling
performance will be reduced.
Condensate will build up in the
interior and this can cause a build-up
of ice.
Do not damage the door seals and
ensure that they do not come out of
their groove.
Preparing to change the door hinging
To change the door hinging, you will
need the following tools:
Place a suitable cover on the floor in
front of the appliance to protect the
appliance door and your floor from
damage.
Remove the shelves/bottle shelf from
the appliance door.
Removing the top covers
Open the appliance door.
Slide off the right outer cover.
Remove cover from the door hinge
and cover from the soft-close
mechanism.
Tabla de contenidos
Otros manuales de Refrigerador de Miele
Miele
Miele K 12012 S Hoja de especificaciones
Miele
Miele K 9752 iD Manual de usuario
Miele
Miele KF 7650 SNE ed Hoja de especificaciones
Miele
Miele KFNS 37432 iD Manual de usuario
Miele
Miele K 1801 Vi Manual de usuario
Miele
Miele KF 2981 Vi Manual de usuario
Miele
Miele K 8952 SD ed-1 Manual de usuario
Miele
Miele K 8452 S Instrucciones de montaje
Miele
Miele KFN 14842 SD ed Hoja de especificaciones
Miele
Miele K 35222 iD Manual de usuario
Miele
Miele K 2601 Vi Manual de usuario
Miele
Miele K 12010 S-2 Hoja de especificaciones
Miele
Miele K 34472 iD Manual de usuario
Miele
Miele KFN 28032 D ws Manual de usuario
Miele
Miele KWT 6312 UGS Manual de usuario
Miele
Miele KS 37472 iD Manual de usuario
Miele
Miele KFN 14947 SDE ed Manual de usuario
Miele
Miele KDN 9713 iD Hoja de especificaciones
Miele
Miele KFN 14927 SD ed Hoja de especificaciones
Miele
Miele KF 1901 Vi Manual de usuario
