Miele DG4082 Manual de usuario

Installation Instructions

IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE

To prevent accidents

and machine damage

read these instructions

before

installation or use.

,WARNING - Read all instructions

before installation or use of the

steam oven to prevent injury and

machine damage.

~Before installation make sure that

the voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent injury and

machine damage. Consult a qualified

electrician if in doubt.

~Installation, repair and maintenance

work should be performed by a Miele

authorized service technician. Work by

unqualified persons could be

dangerous and may void the warranty.

~Before installation or service,

disconnect the power supply to the

work area by removing the fuse,

"tripping" the circuit breaker or

switching off the power main. Ensure

that power is not restored to the

appliance during maintenance or repair

work.

~Do not use an extension cord to

connect this appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance, (e.g.

danger of overheating).

~Do not operate any appliance with a

damaged cord or plug or if the

appliance has been damaged in any

manner. Return the appliance to the

nearest authorized service facility for

examination, repair or adjustment.

~Inspect the steam oven for shipping

damage. Do not install or operate a

damaged unit. Contact the place of

purchase.

~The steam oven should be installed

at a safe height for users to safely

access all cooking levels and

containers.

~This appliance must not be used in

a non-stationary location (e.g. on a

ship).

IMPORTANT SAFETY INSTRUCTIONS

~This steam oven is designed for

installation in cabinetry or beneath a

countertop. This is necessary to ensure

that all electrical components are

shielded.

~Be certain your appliance is

properly installed and grounded by a

qualified technician. To guarantee the

electrical safety of this appliance,

continuity must exist between the

appliance and an effective grounding

system. It is imperative that this basic

safety requirement be met. If there is

any doubt, have the electrical system of

the house checked by a qualified

electrician.

~Do not tamper with electrical

connections and components or

mechanical parts. Never open the outer

casing of the appliance.

Note to the installer:

Please leave these instructions with the

consumer of the appliance for the local

building inspectors use.

SAVE THESE

INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Miele appliances can be installed flush or proud. Discuss your installation

requirements with your architect, designer and installer.

DG 4082 / DG 4088

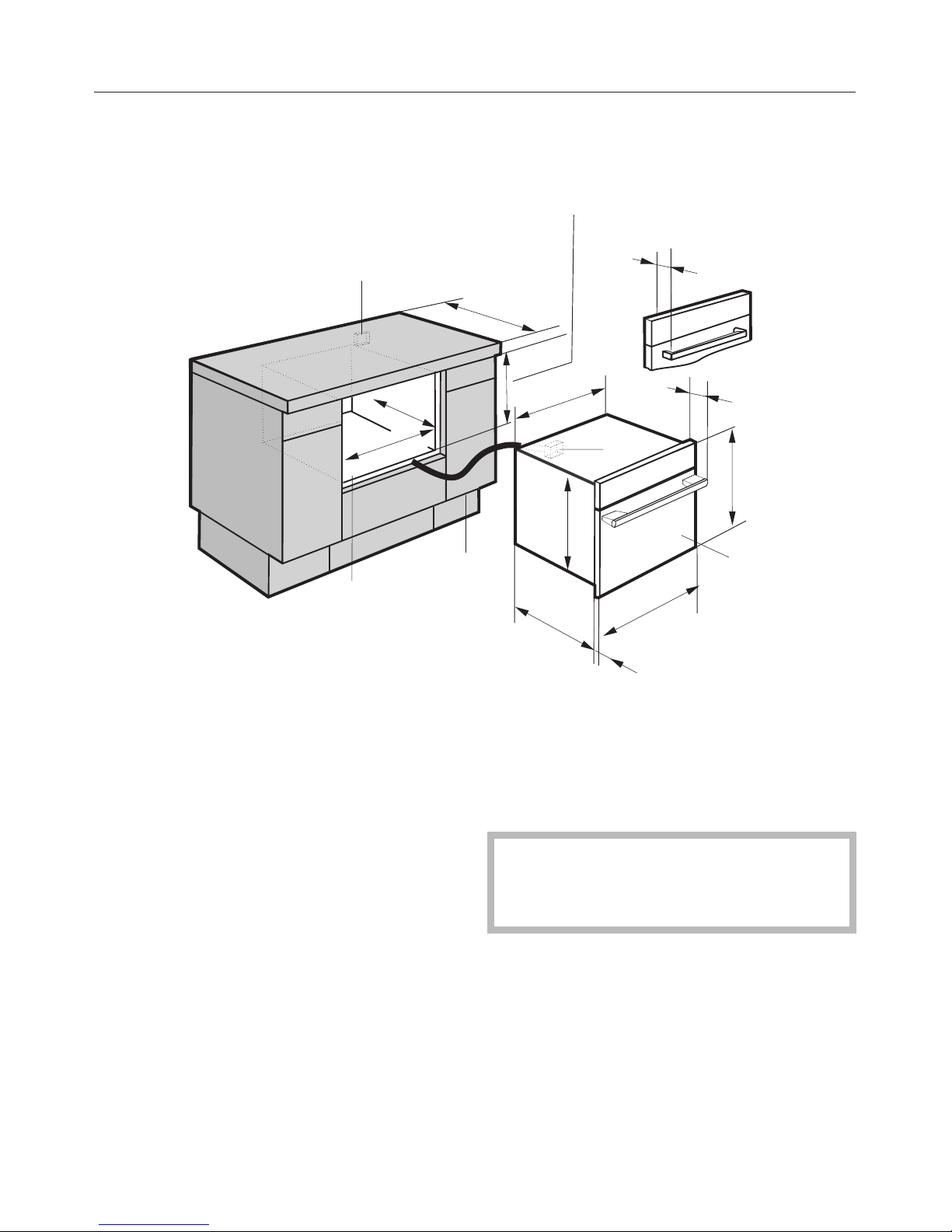

Installation in a tall cabinet

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

(83 mm)

3/8"

1/16"

11/16"

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

(22 mm*

/23 mm**)

(560 mm-568 mm)

-452 mm)

( 500 mm)

7/8"

- 22

(595 mm)

7/16"

1/2"

9/16"

5/8"

- 17

13/16"

1/4

(448 mm

(85 mm)

3/8"

15/16"

Installation under a countertop

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

(22 mm* /

23 mm**)

7/8"

(560 mm - 568 mm)

(600 mm)

( 500 mm)

3/8"

1/16"

11/16"

- 22

(460 mm - 465 mm)

- 18

1/8" 5/16"

5/8"

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

(85 mm)

(595 mm)

7/16"

1/2"

9/16"

1/4"

5/8"

3/8"

(83 mm)

15/16"

Installation above a Miele oven

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

fOven

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

7/8"

(22 mm*/23 mm**)

3/8"

1/16"

7/8"

11/16"

(560 mm - 568 mm)

- 22

( 555 mm)

3/16"

(448 mm

- 452 mm)

5/8"

- 17

13/16"

3/8"

1/16"

(560 mm - 568 mm)

- 22

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

(595 mm)

7/16"

1/2"

9/16"

5/8"

7/8"

(593 mm

- 595 mm)

3/8"

- 23

7/16"

(30 mm)

(595 mm)

7/16"

(22 mm*/

23 mm*

1/4

(83 mm)

( 500 mm)

(85 mm)

3/8"

15/16"

DG 4084 / DG 4086

Installation in a tall cabinet

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

(78 mm)

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

(22 mm*/

23 mm**)

(560 mm-568 mm)

- 452 mm)

( 500 mm)

7/8"

3/8"

1/16"

11/16"

- 22

(595 mm)

7/16"

1/2"

9/16"

5/8"

- 17

13/16"

1/16

(448 mm

(70 mm)

3/4

15/16"

Installation under a countertop

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

(22 mm* /

23 mm**)

( 500 mm)

(560 mm - 568 mm)

(600 mm)

1/16"

11/16"

(460 mm -465 mm)

- 18

1/8" 5/16"

5/8"

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

7/8"

(595 mm)

7/16"

1/2"

9/16"

1/16"

5/8"

(78 mm)

(70 mm)

3/4

3/8"

- 22

15/16"

Installation above a Miele oven

aSteam oven

bCabinet opening

cTerminal block

dOutlet or junction box

This should be accessible after the

appliance has been installed.

ePower cord

fOven

* Machine with glass front

** Machine with stainless steel

front

Appliance and cut out dimensions

7/8"

(22 mm*/23 mm**)

3/8"

1/16"

7/8"

11/16"

(560 mm - 568 mm)

- 22

( 555 mm)

3/16"

(448 mm

- 452 mm)

5/8"

- 17

13/16"

3/8"

1/16"

(560 mm - 568 mm)

- 22

(455.5 mm)

(446 mm)

(549 mm)

(444 mm)

(595 mm)

7/16"

1/2"

9/16"

5/8"

217/8"

(593 mm

- 595 mm)

3/8"

- 23

7/16"

(30 mm)

(595 mm)

7/16"

(22 mm*/

23 mm*

1/16

(78 mm)

( 500 mm)

(70 mm)

3/4

15/16"

^Push the appliance into the niche.

After aligning the oven it must be

secured in position. Open the oven

door and using the two supplied

screws i, secure it to the cabinet

through the holes on either side of

the vertical oven trim.

Installation
