NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 150209

Product and Cut-out Dimensions

F1811Vi / F1801Vi

30"

25" min.

29 3/4"

83 1/2" - 85 3/8"

9 1/2"

24"

2" - 8 3/8"

4 1/8"

84"

1 1/4"

UNIT ACCEPTS

A CUSTOM

FRONT PANEL

6 5/8" - 8 1/2"

Notes

5 foot - 120 Volt - 15 Amp 3-wire molded plug power

supply connects lower left rear.

Standard NEMA 5-15 Outlet - locate less than 9" above

finished floor

1/4" flexible water line - tape to floor

E -

O -

W -

• All Installations must be done in accordance with local codes

• Sides of adjoining cabinets should be filled (flush to frame) to

insure proper fit and finish

Location Codes

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 150209

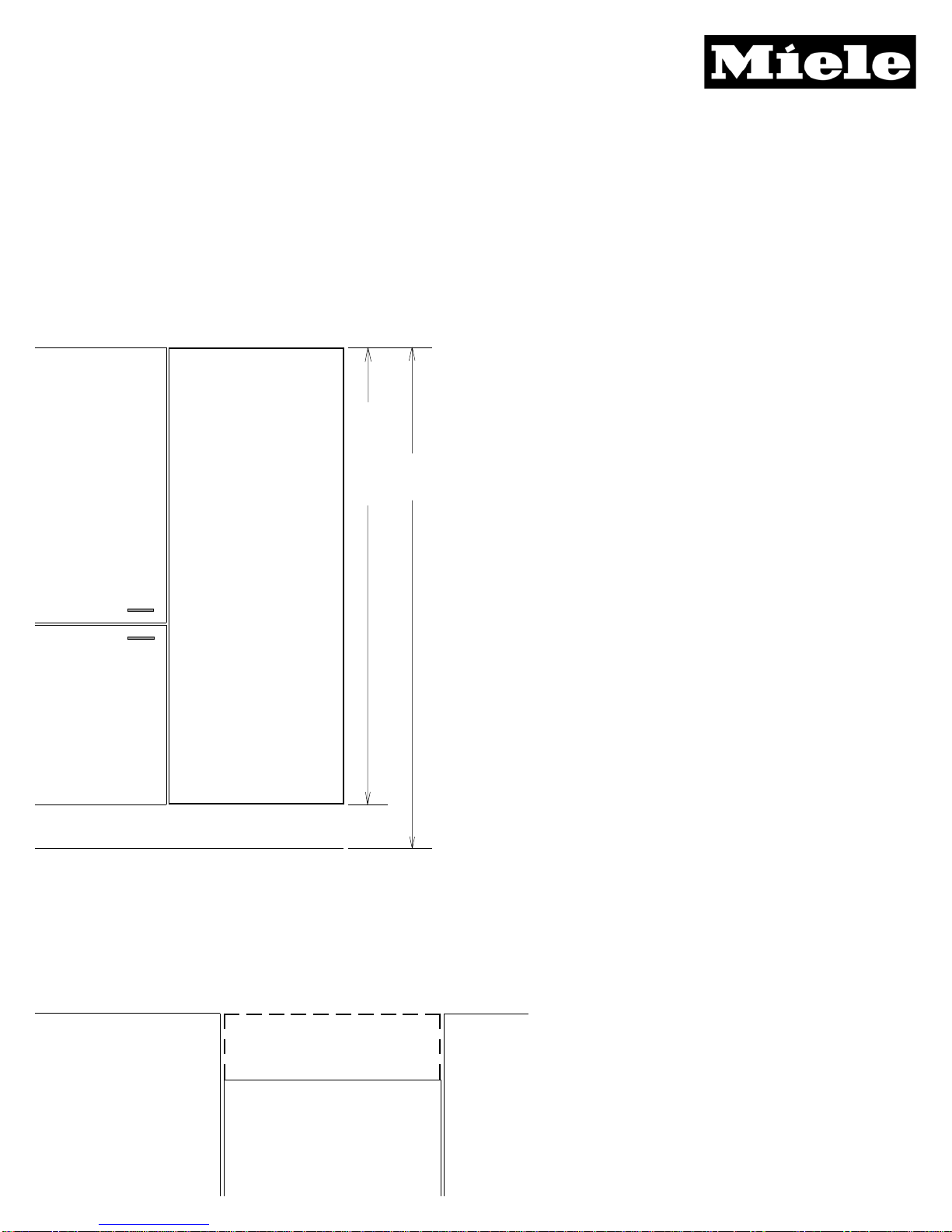

Front Panel Information

Fully Integrated Model

Width: 29 3/4" in all cases

Thickness: Minimum 3/4" outside frame

Height: Determined using the following calculation:

Panel Height = HOC - TKH

HOC = Total height of cabinet or side panel

TKH = Toe-kick height

Note: Finish back side of panels to insure appearance

Panel may extend above unit. This is not

considered in height calculation

Maximum hinge capacity: 200 Pounds

Maximum panel weight: 47 Pounds

Miele

Fully Integrated

Freezer

TKH

HOC

Panel Height

Custom Panel Installations

These units do not come equipped with a front panel. They are designed to accept a custom door panel supplied by

the cabinet maker. Miele has a unique panel integration system which allows the panels to align with the surrounding

cabinets.

Panel size is determined in the following manner:

Panel Notes

If the adjoining cabinets are taller than the height of machine (HOM) - the front panel may be extended accordingly.

Simply maintain the toekick height and extend the panel the needed distance.

Adjoining cabinet

Machine

Extended Panel

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 150209

Front Panel Information

Hinging Details

0-1/8"

Front Panel

1" 1-1/4" 1-1/2"

0-3/4"

1-1/4"

1-1/2"

1-3/4"

Cabinet Front

0-3/4"

1-1/4"

1-1/2"

0-1/8"

FrontPanel

0-3/4"

1-1/4"

1-1/2"

1-3/4"

Cabinet Front

90° Door 115° Door

Thickness options Thickness options

Door Swing

32 11/16"

7/16"

Door Swing

14 3/8"

MAX

NOTE: Additional space needed depending on the thickness

of front panels and handle used.

Freezer units cannot be stop pinned at 90°

NOTE: Additional space needed depending on the thickness

of front panels and handle used.

Freezer units cannot be stop pinned at 90°
