Installation Instructions

T 9822 Gas Dryer

To prevent accidents

and appliance damage

read these instructions

before

installation or use. M.-Nr. 07 431 110

en - US, CA

,WARNING

For your safety the information in this manual

must be followed to minimize the risk of fire or

explosion or to prevent property damage,

personal injury or death.

–Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

–WHAT TO DO IF YOU SMELL GAS

ßDo not try to light any appliance.

ßDo not touch any electrical switch.

ßDo not use any phone in your building.

ßClear the room, building or area

of all occupants.

ßImmediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

ßIf you cannot reach your gas supplier,

call the fire department.

–Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

(In Massachusetts a licensed plumber / gas fitter.)

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Stand ............................................................7

Installation site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Transporting the dryer to the installation site.............................11

Level the dryer ....................................................11

Determining the position of the exhaust connection .......................12

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

How to calculate the effective duct length ..............................19

Exhaust connection with a flexible exhaust hose or rigid pipe ...............23

Direct wall connection ..............................................25

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contents

Installation and connection

,WARNING - Risk of Fire

When using your gas appliance

follow basic safety precautions

including the following:

~It is essential to read all instructions

before installing the appliance.

~To reduce the risk of severe injury or

death, follow all installation instructions.

~Clothes dryer installation must be

performed by a qualified installer.

~Install the clothes dryer according to

the manufacturer's instructions and

local codes.

~Repair and maintenance work

should be performed by a qualified

installer, service agency or the gas

supplier. Work by unqualified persons

could be dangerous and could void the

warranty.

~In Massachusetts:

This dryer must be installed by a

licensed plumber or gas fitter.

~Before installation, disconnect the

tumble dryer from the electrical supply

by shutting off the power main,

unplugging the power cord or tripping

the circuit breaker. Do not restore

power until the installation is complete.

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of malfunction or breakdown,

grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current. This

appliance is equipped with a cord

having an equipment grounding

conductor and a grounding plug. Only

place the plug in an appropriate outlet

that is properly installed and grounded

in accordance with all local codes and

ordinances.

~WARNING – Improper connection of

the equipment grounding conductor

can result in a risk of electric shock.

Check with a qualified electrician if you

are in doubt as to whether the

appliance is properly grounded.

~Do not modify the plug provided

with the appliance! If it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

~Do not use an extension cord to

connect this appliance to the power

supply. Extension cords do not

guarantee the required safety of the

appliance (e.g. danger of overheating).

~This dryer must be vented outdoors

to reduce the risk of fire. Be sure to

observe local building codes.

~Use flexible or rigid metal pipe for

venting. Non-metallic flexible hose

should not be used, it is a potential fire

hazard.

IMPORTANT SAFETY INSTRUCTIONS

~Do not install a clothes dryer with

flexible plastic venting materials. If

flexible metal (foil type) duct is

installed, it must be of a specific type

identified by the manufacturer as

suitable for use with clothes dryers.

Flexible venting materials are known to

collapse, be easily crushed, and trap

lint. These conditions will obstruct

clothes dryer airflow and increase the

risk of fire.

~The appliance shall not be

exhausted into a chimney, a wall, a

ceiling, an attic, a crawl space, or a

concealed space of a building.

~Do not install the appliance in rooms

where temperatures below freezing

may occur.

~Proper installation is the

responsibility of the installer.

~Product failure due to improper

installation is not covered under the

Warranty.

~Gas dryers are not approved for

mobile home installation.

~If there is any doubt concerning

installation, contact Miele’s Technical

Service Department.

U1-800-999-1360

[email protected]

V1-800-565-6435

[email protected]

SAVE THESE

INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

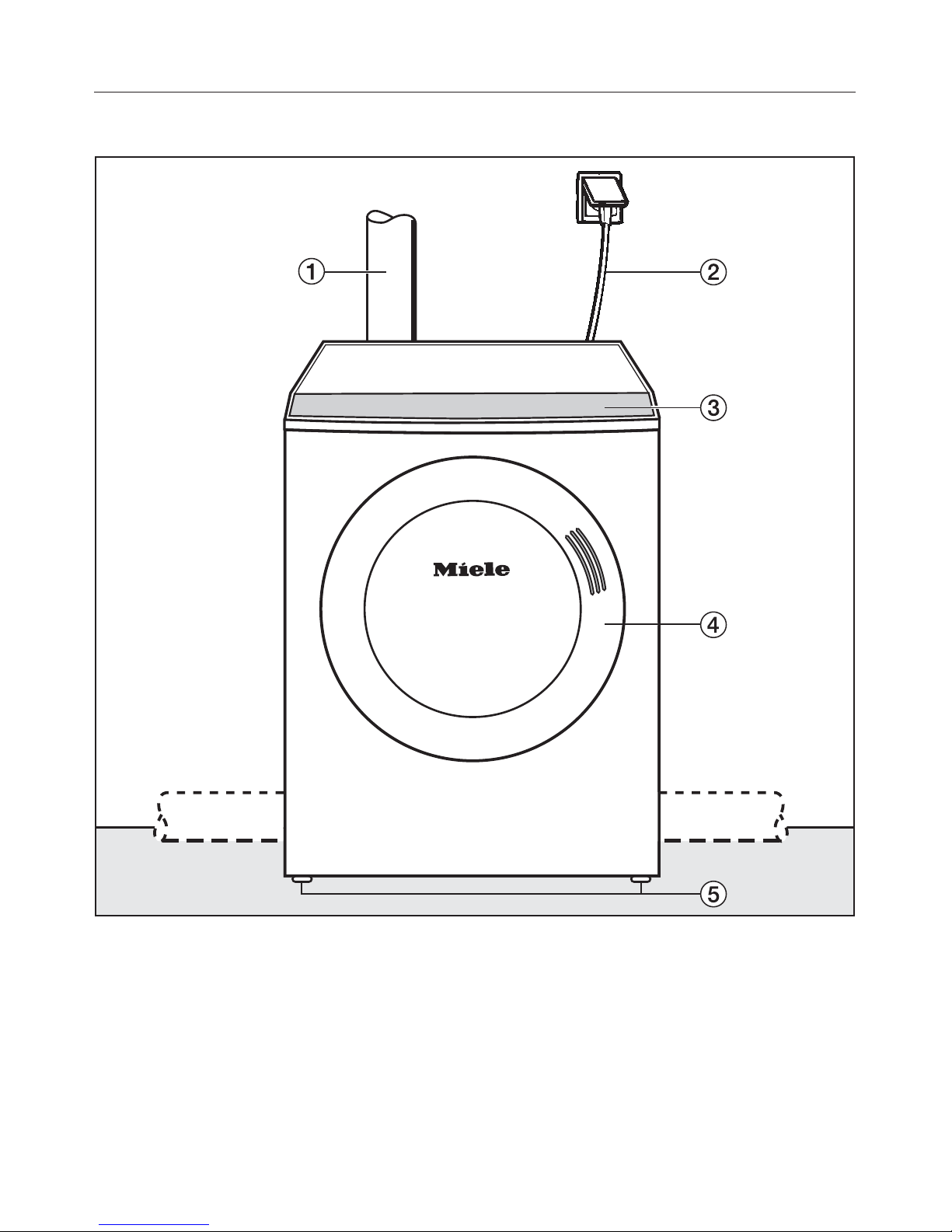

Front view

aExhaust connection

bPower cord with plug

cControl panel

dDoor

eFour height adjustable screw feet

Stand

A dryer stand, with drawer, can be

purchased as an optional accessory.

Installation

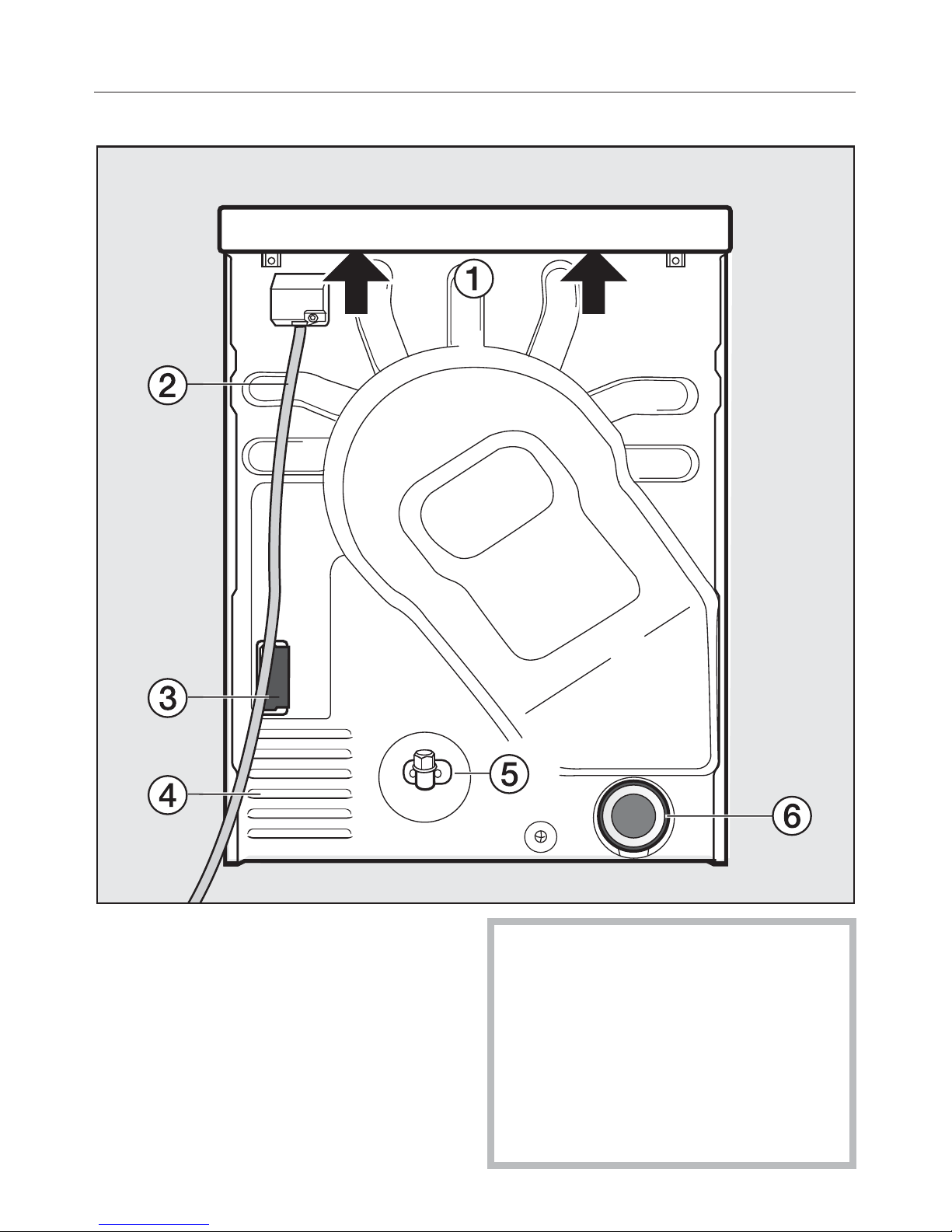

Rear

aHandle for transportation (arrows)

bPower cord with plug

cSlot for module

dAir intake

eGas connection

fExhaust connection with restriction

insert

,WARNING : Do not remove the

restriction insert in the vent

opening. It may result in poor drying

results, damage to the laundry and

higher Carbon monoxide emissions.

Exception: The restriction insert

must be removed if the exhaust

connection if moved to the left or

right side of the dryer.

Installation

,WARNING:

Do not install the dryer:

- outdoors

- in an environment with dripping

water or weather

- near flammable materials

- in rooms which may contain gas

or other fuels

- in closets with solid doors

- with other fuel-burning

appliances in the same closet

- in a location where its door

could conflict with room doors.

- next to a refrigerator

- under a countertop

- on top of a washer.

,The National Fuel Gas Code

restricts installations of gas

appliances in garages. They must

be 18 inches off the ground and

protected by a barrier from

vehicles.

,If the appliance is installed on a

raised platform it must be secured

with retaining clips available from

your dealer or miele.

If installed on a masonry or concrete

base, the base should have a ½"

(13 mm) to 3/4" (19 mm) high rim.

This must be done to prevent the

dryer from vibrating off the base.

Installation site

Confined space installation

^When installed in any space with less

than 122 square feet (11.3 m2),

minimum clearances around the

dryer must be adhered to for proper

ventilation and vents for make up air

must be installed.

^Do not install any other fuel-burning

appliance in the same space as the

dryer.

Confined door openings

Any doors limiting circulation must be

louvered or otherwise ventilated.

Aminimum of 72 square inches

(465 cm2) of opening is required. It

must be equally divided within 3"

(7.6 cm) from the top and bottom of the

door.

Minimum installation clearance

Sides: 0"(0cm)

Top: 12" (30.5 cm)

Rear: 0" (0 cm) (as close to wall as

gas connection and venting allows)

Front to door: 2" (5 cm)

Make sure the dryer door can open

completely once installed.

Exhaust duct clearance

to combustible material: 2" (5 cm)

Installation site
