Operating and Installation Instructions

Condenser Dryer

T 8023 C

To prevent accidents

and appliance damage

read these instructions

before

installation or use.

en - US, CA

M.-Nr. 09 460 400

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Before loading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1. Turn on the dryer and load the laundry ................................7

2. Select a program .................................................7

3. Select a drying option (if needed) ....................................9

4. Select the dryness level...........................................10

5. Select the buzzer (if desired).......................................10

6. Start the program................................................11

7. At the end of a program...........................................11

Canceling or changing a program ....................................12

Adding or removing laundry during a program...........................12

Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cleaning the lint filter ...............................................14

Cleaning the exterior and the control panel .............................15

Cleaning the drum .................................................15

Emptying the condensed water container...............................16

Cleaning the condenser ............................................17

Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Dryer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the light bulb .............................................19

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Washer / Dryer Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installation site ....................................................28

Installation beneath a counter ........................................29

Installation tips ....................................................30

Level the dryer ....................................................30

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Contents

,WARNING - To reduce the risk of

fire, electric shock, or injury to

persons when using your appliance,

follow basic precautions, including

the following:

~It is essential to read all instructions

before using the appliance.

~Do not allow children to play on or in

the appliance. Close supervision is

necessary when the appliance is used

near children. Always close the door

after use to prevent child hazards.

~Before this appliance is removed for

service or discarded, remove the door

to the drying compartment.

~Do not reach into the dryer if the

drum is moving.

~Do not install or store this appliance

where it will be exposed to the weather.

~Do not tamper

with the controls.

~Do not repair or replace any part of

the appliance or attempt any servicing

unless specifically recommended in

these operating instructions. Repairs to

electrical appliances should only be

performed by qualified personnel.

Incorrectly repaired machines may

pose a considerable risk to the user.

~Do not use fabric softener sheets to

eliminate static in this dryer. Best

results are achieved when a liquid

softener is used in the washer. Follow

the manufacturers instructions.

~To prevent the risk of fire, the

following textiles must not be dried in

this dryer:

–items which have not been washed.

–items, such as work-wear, exposed

to grease, oils, or other deposits

(such as lotions or cosmetics) in your

dryer. If these items have not been

thoroughly cleaned there is a danger

that they may contribute to a

chemical reaction that could cause

the laundry to ignite when heated

even after being removed from the

dryer.

– items that have been previously

cleaned, washed, soaked or spotted

with gasoline, dry-cleaning solvents

or other flammable or explosive

substances. They may give off

vapors that could ignite or explode.

– items treated with flammable

cleaning agents or items containing

acetone, alcohol, petrol, stain

remover, wax or chemicals from

buffing, etc.

–items which have been splashed with

hair spray, nail polish remover, etc.

When washing heavily soiled items

ensure that sufficient detergent is

used with a high temperature. If in

doubt wash the item several times.

–items containing foam rubber or

similarly textured rubber-like

materials.

–items with padding or filling (e.g.

pillows or jackets) which have been

damaged. Loose filling could catch

fire.

IMPORTANT SAFETY INSTRUCTIONS

~Allow the dryer to complete each

stage of the program selected,

including the cooling down phase. This

will ensure that the items being

removed are not too hot to handle

~Clean the lint filter before or after

each load.

~Keep the area around the air intake

(toe kick) and adjacent surrounding

areas free from lint, dust and dirt.

~The interior of the machine should

be cleaned periodically by qualified

personnel.

This dryer is intended for

residential use only!

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of malfunction or breakdown,

grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current.

This appliance is equipped with a cord

having an equipment grounding

conductor and a grounding plug. The

plug must be plugged into an

appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

~WARNING – Improper connection of

the equipment-grounding conductor

can result in a risk of electric shock.

Contact a qualified electrician if you are

in doubt as to whether the appliance is

properly grounded.

~Do not modify the plug provided

with the appliance: if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

ae- "Programs" buttons

For selecting a drying program.

b"Options" buttons

For selecting a drying option.

c"Dryness" button

For selecting the dryness level of the

finished laundry.

d"Status" display

Shows the current cycle of the drying

program.

e"Buzzer" button

When selected, a buzzer will sound

at the end of the program.

f"FAULT" indicators

An illuminated indicator will alert you

if the child lock has been activated

or if a fault occurred.

g"Start/Stop" button

Starts and stops a program.

Interrupts a program when pressed.

Flashes during program selection

and lights once the program starts.

h"Door" button

Opens the door when the program

has finished. If the dryer is on, the

drum interior will light when the door

is opened. If the door is left open, the

light will go off after a few minutes to

save energy.

i"On/Off" button

Turns power to the machine on and

off.

Control panel

The dryer must be correctly installed

and connected before the first use.

Please refer to the "Installation

Instructions".

^Before using for the first time, clean

the drum with a cloth.

Before drying, check fabric care

labels for special drying instructions.

qDry with normal temperature

rDry with low temperature

(select "Gentle" option)

sDo not dry in a tumble dryer

– Do not overload the drum!

Overloading the dryer will result in

poor drying results and wrinkling.

–Knitted fabrics and flannel tend to

shrink when washed and dried for

the first time. Do not over dry these

fabrics.

–To prevent discoloration, do not dry

new, dark-colored fabrics with

light-colored items.

–Close zippers and tie up fabric belts

and apron ties to prevent tangles

and damage to clothing.

–Do not dry items that may melt or

ignite in the dryer, such as plastics,

rubber or sneakers.

Program recommendations

Normal

–Cottons and Permanent Press blends

Wrinkle-free

–Permanent Press:

select the Hand Iron dryness level

and reduce the load size for best

drying results

–Delicate fabrics, such as polyester:

select the Gentle option to reduce

creasing

– Pure linen and down filled items

Woolens

– Wool and wool blends

Smooth

– Linen

– Permanent Press (cottons, blends

and synthetics)

Sturdy

–Durable Cottons and Permanent

Press

Fluff / 20 min / 45 min

–All fabric types

Before loading the dryer

1. Turn on the dryer and load

the laundry

^Press the "On/Off" button to turn on

the dryer.

^Press the "Door" button to open the

door.

^Load the laundry loosely into the

drum.

^Make sure the lint filters are in place.

^Close the door with a firm swing - do

not push it shut.

For best results use liquid fabric

softener when washing laundry.

Fabric softener sheet may clog the

filters and cause the dryer to

overheat.

To prevent fabric damage, check

that laundry will not be caught in the

closed door.

2. Select a program

^Press the eor -button until the

desired program indicator lights.

Using the dryer

Program Fabric Note

Normal Available drying options: Turbo, Gentle, Anti-crease

Extra Dry Multi-layer fabrics, mixed loads of

sturdy cottons, e.g. jeans, towels.

The "Extra dry" program should not be

selected for jersey materials.

Items may shrink.

More Dry Uniform loads of cotton, e.g. sheets,

underwear, socks. -

Normal Knitted cotton fabrics that may shrink,

e.g. jersey material or lightweight

cottons.

If items are still damp, dry again using

"More Dry".

Less Dry Cotton or linen fabrics to be left damp

for ironing. -

Hand Iron If fabrics are too damp for ironing, dry

again using "Less Dry".

Rotary Iron Cotton or linen fabrics which will be

ironed with a rotary iron.

To prevent moisture loss, roll up the

laundry until ironing.

Wrinkle-free Available drying options: Turbo, Gentle, Anti-crease

More Dry Synthetic permanent press items,

e.g. pants and shirts. -

Normal Permanent press and blended fabrics,

e.g. cotton/synthetic.

Less Dry Permanent press and blended fabrics

requiring an ironed finish.

Reduce load size for fabrics that wrinkle

easily.

Special Programs Available drying options: Anti-crease only available in

Fluff, Sturdy

Woolens Delicate items which allow machine

drying.

Remove items immediately after the end

of the program while still slightly damp.

Allow items to air dry.

Smooth Program for reducing creasing of

cotton, linen or permanent press

fabrics made of cotton, blends or

synthetics.

Sturdy For mixed loads of cotton and

permanent press items. -

Fluff Individual items to be freshened and

fluffed with cool air.

Reduce load size.

TIMED CYCLES Available drying options: Gentle, Anti-crease

20 min Individual items or very small loads,

e.g. beach towels, swimsuits. -

45 min

Using the dryer

3. Select a drying option

(if needed)

^A drying option can be selected or

deselected with each press of the

button.

OPTIONS

Turbo

Fast drying for sturdy fabrics with

increased temperature and a reduced

program length.

Gentle

For drying delicate fabrics slowly at a

lower temperature.

Anti-crease

Prevents wrinkles if laundry is not

removed immediately after the end of a

program. The drum periodically rotates

for about 1 hour.

Using the dryer

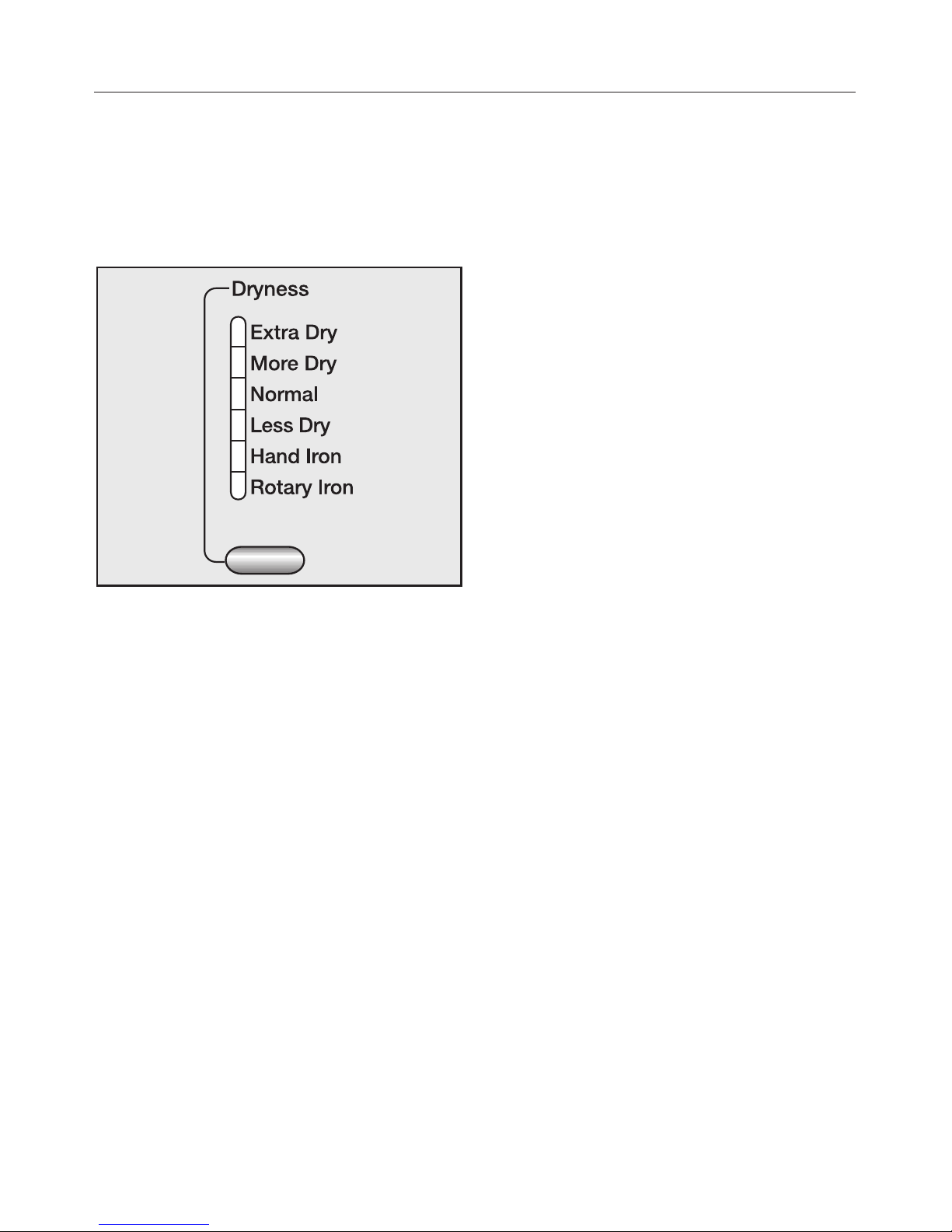

4. Select the dryness level

The dryness level can be selected in

the "Normal" and "Wrinkle-free"

programs. (The dryness level of the

other programs cannot be adjusted.)

^Press the selection button until the

desired indicator illuminates.

In the "Wrinkle-free" program, only

"More Dry", "Normal" and "Less Dry" can

be selected.

5. Select the buzzer (if desired)

^Press the "Buzzer" button to have a

tone beep at the end of the program.

Indicator light:

on = buzzer selected

off = buzzer not selected

To adjust the buzzer volume:

–turn the dryer on

–close the door

– select a program

– if the indicator is lit, press the

"Buzzer" button so the indicator light

goes out.

^Press and hold the "Buzzer" button

until its indicator is lit and you hear

the desired volume and tone.

Using the dryer

Otros manuales para T 8023 C

Tabla de contenidos

Otros manuales de Secadora de Miele

Miele

Miele T 4622 C Manual de usuario

Miele

Miele T 4453 C Manual de usuario

Miele

Miele PT 8507 Manual de usuario

Miele

Miele T 8164 WP Manual de usuario

Miele

Miele TKG 640 WP Manual de usuario

Miele

Miele 11 631 610 Manual de usuario

Miele

Miele PT 6185 Manual de usuario

Miele

Miele T 494 C Manual de usuario

Miele

Miele T 490 Manual de usuario

Miele

Miele heat pump dryer Manual de usuario

Miele

Miele PT 7135 C Manual de usuario

Miele

Miele TEF 765 WP Manual de usuario

Miele

Miele T 4892 C Manual de usuario

Miele

Miele T 1515 VENT ED DRYER - OPERATING Manual de usuario

Miele

Miele PDR 908 HP Manual de usuario

Miele

Miele T 270 C Manual de usuario

Miele

Miele T4839I C BUILDING IN DIAGRAM Manual de usuario

Miele

Miele PT 7251 Manual de usuario

Miele

Miele T 1526 VENT ED DRYER - OPERATING Manual de usuario

Miele

Miele T 6185 Manual de usuario

Miele

Miele T 1515 Manual de usuario

Miele

Miele TKR 350 WP Manual de usuario

Miele

Miele T 8929 WP Manual de usuario

Miele

Miele TKR 650 WP Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario
