Operating Instructions

Vented Dryer

T 1576

To prevent accidents

and machine damage

read these instructions

before installation or use.

05 686 571

M.-Nr.

Contents

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Center pages

Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Before oading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1. Turn on the dryer and load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. Select a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Drying options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3. Select a drying option (if needed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Low energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Gentle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. Start the program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. At the end of a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Changing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adding or removing laundry during a program. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Safety ock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dryer care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Power failure - Emergency door release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Frequent y asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

After Sa es Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

PC Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Insta ation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Contents

,WARNING - To reduce the risk of

fire, electric shock, or injury to per-

sons when using your appliance, fol-

low basic precautions, including the

following:

Read all instructions before using

the appliance.

Do not dry articles that have been

previously cleaned, washed,

soaked in, or spotted with gasoline,

dry-cleaning solvents, or other flamma-

ble or explosive substances. They give

off vapors that could ignite or explode.

Do not allow children to play on or

in the appliance. Close supervision

is necessary when the appliance is

used near children. Always close the

door after use to prevent child hazards.

Before this appliance is removed

from service or discarded remove

the door to the drying compartment.

Do not reach into the dryer if the

drum is moving.

Do not install or store this appli-

ance where it will be exposed to

the weather.

Do not tamper

with the controls.

Do not repair or replace any part of

the appliance or attempt any ser-

vicing unless specifically recom-

mended in these Operating Instruc-

tions. Repairs to electrical appliances

should only be performed by qualified

personnel. Incorrectly repaired ma-

chines may pose a considerable risk to

the user.

Do not use fabric softeners or

products to eliminate static in the

dryer. Best results occur when a liquid

softener is used in the washing ma-

chine.

Do not use heat to dry articles con-

taining foam rubber or similarly tex-

tured rubber-like materials.

– Items containing, hairspray, nail pol-

ish remover or similar substances.

Clean the lint filter before or after

each load.

Keep the area around the air intake

(toekick) and adjacent surrounding

areas free from lint, dust and dirt.

The interior of the machine and ex-

haust duct should be cleaned peri-

odically by qualified personnel.

Do not place items exposed to oils

in your dryer. Items contaminated

with oils may contribute to a chemical

reaction that could cause the laundry

to catch fire.

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or break-

down, grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current. This

appliance is equipped with a cord hav-

ing an equipment-grounding conductor

and a grounding plug. The plug must

be plugged into an appropriate outlet

that is properly installed and grounded

in accordance with all local codes and

ordinances.

WARNING – Improper connection

of the equipment-grounding con-

ductor can result in a risk of electric

shock. Check with a qualified electri-

cian or service representative or per-

sonnel if you are in doubt as to whether

the appliance is properly grounded.

Do not modify the plug provided

with the appliance: if it will not fit

the outlet, have a proper outlet installed

by a qualified electrician.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This dryer is only intended for

residential use!

1Power cord with plug

2Control panel

3Door

4Exhaust connection (left or rear)

5Four height adjustable screw feet

Guide to the dryer

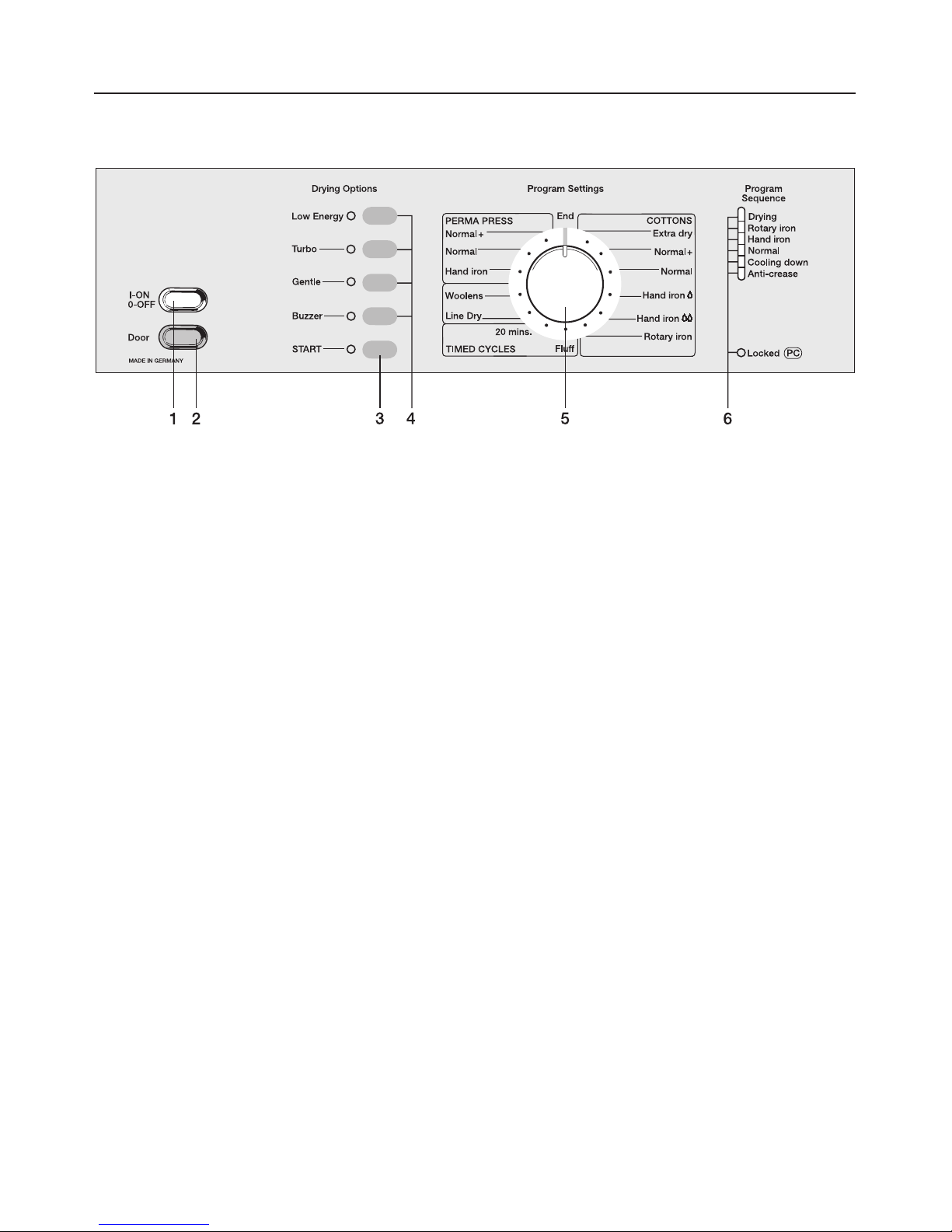

Contro pane

a"On/Off" button

Turns the machine on and off or can-

cels a program. If the dryer is turned on

the drum interior will light when the door

is opened.

b"Door" button

Opens the door or can be used to can-

cel a program.

c"START" button

Begins the selected program.

The indicator:

–flashes when the program can be

started.

–illuminates once a program has

started.

dDrying options

eProgram se ector

The program selector can be turned

clockwise or counterclockwise.

The light ring goes off:

– if a program is not selected after

turning the machine on or if the pro-

gram was not started.

– a few minutes after the end of a pro-

gram.

fProgram sequence disp ay

shows the current cycle of the drying

program.

Guide to the dryer

The appliance must be correctly in-

stalled and connected before the

first use. Please see the "Installation

instructions".

^Check the dryer drum for any residue

that may have deposited during the

manufacturing process. If necessary

clean out with a cloth.

Before drying, check fabric care la-

bels for special drying instructions.

q= Dry with normal temperature

r= Dry with low temperature

(select "Gentle" option)

s= do not dry in tumble dryer

If no symbol is present:

Dry cottons and permanent press laun-

dry in their corresponding programs.

Dry delicate fabrics like polyester, in the

"PERMA PRESS" program with the

"Gentle" option.

Dry wool and wool blends in the

"Woolens" program.

Dry pure linen and down filled items in

the "Line Dry" program.

Drying tips

Knitted fabrics and flannel tend to

shrink when washed and dried for the

first time. Do not over dry these fabrics.

Permanent press and delicate fabrics

tend to crease.

For better drying results reduce the

load size and select the "PERMA

PRESS/Hand iron" program.

To prevent discoloration, do not dry

new dark-colored fabrics with light-col-

ored items.

Do not overload the drum!

Overloading the dryer will result in poor

drying and wrinkling.

Close zippers and tie up fabric belts

and apron ties.

Do not dry items that may melt or ignite

in the dryer such as plastics, rubber or

sneakers.

Before oading the dryer

1. Turn on the dryer and oad

the aundry

^Press the "On/Off" button to turn on

the dryer.

^Press the "Door" button to open the

door.

^Load the laundry loosely into the

drum.

^Close the door with a firm swing - do

not push it shut.

Do not use fabric softener sheets in

this dryer. Silicates contained in

these sheets could cause the dryer

to overheat. To prevent fabric damage, check

that laundry will not be caught in the

closed door.

Using the dryer

2. Se ect a program

^Turn the program selector clockwise

or counterclockwise to the desired

program.

Please refer to the "Programs" chart.

Using the dryer
