Operating and installation instructions

for condenser tumble dryer

PT 7135 C

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed, commissioned and

used for the first time.

M.-Nr. 06 511 380

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and can normally be recycled.

Ensure that any plastic wrappings,

bags etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Rather than just throwing these

materials away, please ensure that they

are offered for recycling.

Disposal of your old machine

Electrical and electronic machines

often contain materials which if handled

or disposed of incorrectly, could be

potentially hazardous to human health

and to the environment. They are,

however, essential for the correct

functioning of your machine. Please do

not therefore dispose of it with your

household waste.

Please dispose of it at your local

community waste collection / recycling

centre and ensure that it presents no

danger to children while being stored

for disposal.

It should be unplugged or

disconnected from the mains electricity

supply by a competent person. The

plug must be rendered useless and the

cable cut off directly behind it to

prevent misuse. See the "Warning and

Safety" section of this booklet for further

details.

Energy saving tips

To avoid unnecessarily long drying

times and high consumption of energy:

–Make sure that your laundry is

thoroughly spun before drying.

The higher the spin, the greater the

savings that can be made in energy

and time during drying.

– Load according to the optimum

amount of laundry recommended for

the programme being used.

Underloading is uneconomical.

Overloading gives a poorer quality of

drying and may cause unnecessary

creasing.

– Make sure the room in which the

dryer is located is well ventilated.

–After every cycle remove the fluff

from the fluff filter in the door and in

the door opening (see "Cleaning and

Care").

–Check the condenser unit from time

to time and clean it when necessary.

Caring for the environment

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Disposal of your old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

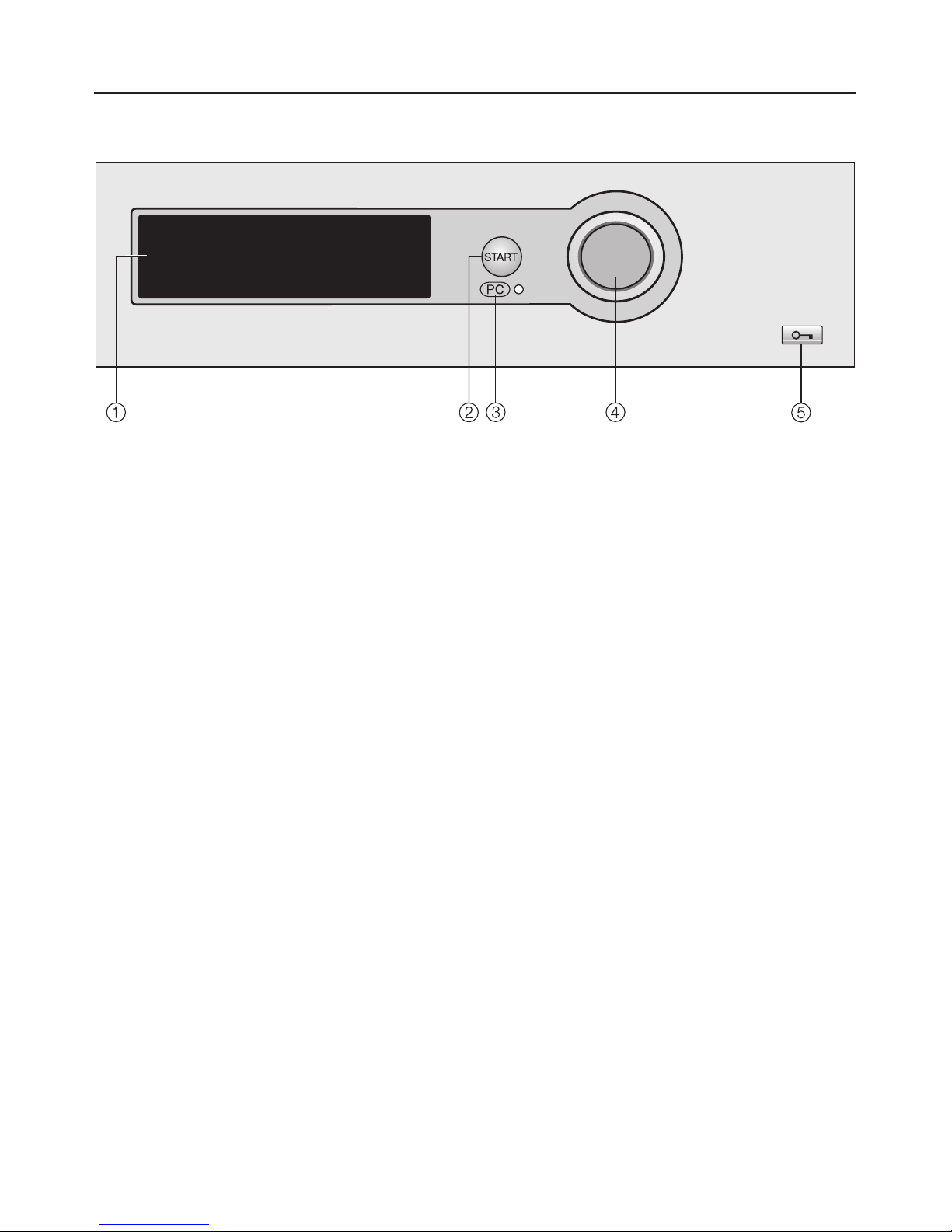

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Favourite programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting/changing a favourite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Saving a favourite programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Payment system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 25

Contents

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Replacing the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Removing the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Checking the heat exchanger unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cleaning the heat exchanger unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Replacing the heat exchanger unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

PC / Optical interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

View from the front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

View from the side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

View from the rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

View from above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installation on a concrete plinth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Payment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 42

Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

External drainage of the condensed water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Contents

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Anti-crease action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Display contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Settings/Supervisor level menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Contents

To avoid the risk of accidents and

damage to the machine please read

these instructions carefully before

using it for the first time. They contain

important information on its safety,

installation, use and maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them on

to any future owner of the machine.

Correct use

The tumble dryer is only intended

for drying fabrics which have been

washed in a water solution, marked on

the manufacturer's care label as being

suitable for tumble drying.

"Dry cleaning kits" for freshening up

garments in a tumble dryer are

increasingly available on the market. If

using, do so at your own risk, and

follow the instructions provided on the

packaging.

Any other applications may be

dangerous. The manufacturer is not

liable for damage resulting from

improper use or operation.

Technical safety

Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

Before connecting the machine,

ensure that the connection data on

the data plate (voltage and connected

load) match the mains electricity

supply. If in any doubt, consult a

qualified electrician.

The electrical safety of this machine

can only be guaranteed when

continuity is complete between it and an

effective earthing system which complies

with local and national regulations. It is

most important that this basic safety

requirement is present and regularly

tested, and where there is any doubt the

on-site wiring system should be

inspected by a qualified electrician. The

manufacturer cannot be held liable for

the consequences of an inadequate

earthing system (e.g. electric shock).

Do not connect the machine to the

mains electricity supply by an

extension lead. Extension leads do not

guarantee the required safety of the

machine (e.g. danger of overheating).

The machine is built in accordance

with current safety requirements.

Unauthorised repairs could result in

unforeseen dangers for the user, for which

the manufacturer cannot accept liability.

Repairs should only be undertaken by a

Miele approved technician.

Ensure current is not supplied to the

machine until after maintenance or repair

work has been carried out.

Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

In countries where there are areas

which may be subject to infestation

by cockroaches or other vermin, pay

particular attention to keeping the

machine and its surroundings in a

clean condition at all times. Any

damage which may be caused by

cockroaches or other vermin will not be

covered by the machine guarantee.

Warning and Safety instructions

If the connection cable is faulty it

must only be replaced with a

genuine Miele connection cable.

In the event of a fault or for

cleaning purposes, the machine is

only completely isolated from the

electricity supply when:

–it is switched off at the wall socket

and the plug is withdrawn, or

–it is switched off at the mains, or

–the mains fuse is withdrawn.

Operation

This equipment may only be used

in mobile installations such as

ships, caravans, aircraft etc. if a risk

assessment of the installation has been

carried out by a suitably qualified

engineer.

The dryer must not be used without

the condenser unit in place.

The dryer must not be used without

the fluff filters in place or if the fluff

filters are damaged in any way.

The fluff filters must be thoroughly

dried after cleaning. If they are

damp or wet when replaced there is a

risk of faults occurring when the

machine is used.

If the water is drained externally

through the drain hose instead of

being collected in the condensed water

container, make sure the drain hose is

securely attached if you hang it in a

sink or basin to avoid the hose slipping

the water causing damage.

Condensed water is not drinking

water. It can cause health

problems in both people and animals.

Warning and Safety instructions

Always keep the area around the

machine free of dust and fluff. Dust

drawn into the machine can over time

cause blockages in the condenser unit.

Do not install the machine in a

room where there is a risk of frost

occurring. At temperatures around

freezing point the machine may not be

able to operate properly.

There is a risk of damage if the

condensed water is allowed to freeze in

the pump, hoses and / or condensed

water container.

The ambient room temperature should

be between +2°C and +35°C.

To prevent the risk of fire the

following textiles must not be

dried in this machine:

– fabrics which contain a large

proportion of rubber, foam rubber or

rubber like materials.

– items which contain padding or

fillings (e.g. pillows, jackets).

–items which have been treated with

inflammable cleaning agents.

–items which have been splashed with

hair lacquer, hair spray, nail varnish

remover or similar substances.

–items which have been soiled with

oils or residues containing grease

(kitchen oils, cosmetics etc.).

–items soiled with wax or other

chemicals (e.g. mops and floor

cloths).

–items which have not been

thoroughly cleaned and which are

still soiled with grease or oil, e.g.

workwear. Such clothing may require

a heavy duty detergent to get them

clean. If necessary consult the

detergent manufacturer for advice.

Do not let anyone sit or lean on the

door, as this can cause the

machine to tip up.

Always close the door after use.

This way you will avoid the danger

of:

–children climbing onto or into the

dryer or hiding things in it.

–pets or other small animals climbing

into it.

Warning and Safety instructions

For machines with stainless steel

surfaces:

The stainless steel surfaces must not

come into contact with liquid cleaning

and disinfecting agents which contain

chlorine or sodium hypochlorite. These

agents can have a corrosive effect on

stainless steel.

Aggressive vapours containing chlorine

can also be corrosive.

Do not store containers of these agents

near the machine.

Safety with children

This machine is not a toy! To avoid

the risk of injury do not allow

children to play on or near it or to play

with the controls. Supervise its use by

the elderly or infirm, and supervise

children whilst you are operating the

machine.

Using accessories

Accessory parts may only be fitted

when expressly approved by Miele.

If other parts are used, guarantee,

performance and product liability

claims may be invalidated.

Disposal of your old machine

^Before discarding an old machine,

disconnect it from the mains supply,

or switch off at the wall socket and

unplug it.

^To prevent the risk of misuse, render

any plug useless and cut off the

cable directly behind the machine.

Make the door lock unusable.

This should be done by a competent

person.

^The manufacturer cannot be held

liable for damage caused by

non-compliance with these Warning

and Safety instructions.

Warning and Safety instructions

Control panel

aDisplay

See the following pages for more information.

bStart button

cPC / Optical interface

This is used by service technicians to run diagnostic checks on your machine

and can also be used to update programming data in the future.

dMulti-function selector

This is used to select menu options (by turning it) and to confirm your selection

(by pressing it).

eabutton

Opens the door.

Operating the tumble dryer

Otros manuales para PT 7135 C

Tabla de contenidos

Otros manuales de Secadora de Miele

Miele

Miele T 1036 VENT ED DRYER - OPERATING Manual de usuario

Miele

Miele T 4622 C Manual de usuario

Miele

Miele PT 8301 SL Manual de usuario

Miele

Miele T 380 VENT ED DRYER - OPERATING Manual de usuario

Miele

Miele TWD 660 WP Manual de usuario

Miele

Miele TOUCHTRONIC T 1413 Manual de lista de piezas

Miele

Miele TMG 440 WP Manual de usuario

Miele

Miele TKG840 WP S Manual de usuario

Miele

Miele PT 5136 OS Manual de usuario

Miele

Miele T 8947 WP Manual de usuario

Miele

Miele Touchtronic T 9800 Manual de lista de piezas

Miele

Miele T 7944 C Manual de usuario

Miele

Miele Touchtronic T 9800 Manual de usuario

Miele

Miele NOVOTRONIC T 7644 C Manual de usuario

Miele

Miele TOUCHTRONIC T 8002 Manual de lista de piezas

Miele

Miele TEF 765 WP Manual de usuario

Miele

Miele T 1322C CONDENSER DRYER Manual de usuario

Miele

Miele TWB 140 WP Manual de usuario

Miele

Miele TEH 785 WP Manual de usuario

Miele

Miele Allerdry T 4464 C Manual de usuario

Miele

Miele T369C - Manual de usuario

Miele

Miele TCR 860 WP Manual de usuario

Miele

Miele T 5205 C Manual de usuario

Miele

Miele PT 7186 Vario Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario
