Miele PG 8050i Manual de usuario

Installation instructions

Professional dishwasher

PG 8050i

To prevent accidents

and machine damage,

read these instructions

before

installation or use. M.-Nr. 07 865 040

en - CA, US

Always read the "Warning and safety instructions" in the operations manual

before installing the dishwasher.

Installation .......................................................4

1. Installing the steam deflector (if applicable) ............................6

2. Installing the dishwasher under the countertop .........................7

Installing the slides ...............................................7

Mounting brackets ...............................................8

Leveling legs....................................................9

3. Aligning the control panel with the drawer fronts .......................10

4. Fitting the front panel .............................................11

Fitting the mounting bracket .......................................11

5. Securing the dishwasher to the countertop............................15

6. Adjusting the door springs ........................................16

7. Installing the toekick .............................................17

Contents

Integrated ("i") dishwashers

"i" models are designed for installation

under a continuous countertop.

–The control panel with accessories is

enclosed in a separate package for

on site installation.

–The front is designed for a custom

made panel to match the existing

kitchen cabinets.

–The dishwasher does not have a

toekick. The toekick area of the

dishwasher needs to be covered

either with the toekick board of the

kitchen cabinets or with a separate

one. The height of the dishwasher

toekick can be adjusted to match

that of adjacent cabinets. The

toekick recess depth is also

adjustable.

All instructions necessary for installing

the dishwasher are described in the

following text.

,To ensure stability, these

dishwashers should only be installed

under a continuous countertop and

securely fastened to the cabinet

base units.

,The dishwasher should not be

installed underneath a cooktop. The

radiant heat generated by the cook

top may damage the dishwasher.

Installation

Dimensions

Dishwasher model PG 8050i

1) with 34 7/8" (870 mm) machine height

2) with 32 1/4" (820 mm) machine height

Range of adjustment is approximately

2" (5 cm).

Machine heights between 35" and 37"

can be obtained if the supplied legs are

removed and extended legs are

attached. Please contact the Miele

Technical Service Department for the

appropriate legs.

Installation

1. Installing the steam

deflector (if applicable)

A stainless steel coverplate is supplied

to protect the underside of the

countertop against steam rising from

the dishwasher when the door is

opened. If the countertop is made of

Corian(r), granite, marble or other solid,

waterproof material, the steam deflector

should not be used.

,If two different materials meet up

at the front edge of the countertop,

then the join must be concealed by

the cover plate.

^Remove the protective backing from

the cover plate.

^Squeeze sealant from the supplied

tube all the way along the hollow

molding in the cover plate.

^Align the cover plate to the front

edge of the countertop in the middle

of the niche.

^Nail the cover plate to the underside

of the countertop with the nails

provided.

Countertops with wood or laminate

edging:

^Hammer the nails through the back

row of holes.

^Use soapy water to wipe off any

excess sealant.

Installation

2. Installing the dishwasher

under the countertop

For ease of service and quick

disconnection, it is best to install the

machine so that the water and

electricity supplies can be accessed

through an adjacent cabinet, rather

than situating them behind the

machine.

If the electrical and water supplies are

located behind the machine the

dishwasher will have to be removed

from the cabinet for service. See the

"Plumbing" and "Electrical" sections for

proper connection procedures before

continuing. If electrical and water

supplies are not located in adjacent

cabinetry it is extremly important that

the toekick is removable.

,There must be no electrical

outlet behind the dishwasher. Risk of

overheating and fire if the

dishwasher were to be pushed up

against a plug.

Installing the slides

Two slides are included and should be

installed on the feet of the dishwasher

before the machine is pushed under

the countertop. This will allow the

machine to slide easier, protect the

floor, and allow adjustment of the rear

leveling legs from the front of the

machine.

^Adjust the height of the legs so that

the top of the dishwasher is roughly

1/4" (5 mm) below the countertop.

Tipping the machine slightly to the rear,

if possible, will make adjusting the front

legs easier. Make sure the machine is

level when adjustments are complete.

^Place the slides, with the ratchet at

the rear, under the dishwasher legs.

Installation

Mounting brackets

To ensure stability this dishwasher

should be securely attached to the

countertop (step 6). Two mounting

brackets are included for this purpose.

^Insert the tab of each bracket into the

guide holes on the top.

Stone or marble countertops:

For these countertops the dishwasher

must be secured to the adjacent

cabinets. Special brackets must be

used, see "Accessories".

The drain hose connection at the rear of

the dishwasher can be turned to allow

the hose to be angled to the right or

left.

^Push the machine into the opening,

making sure the electrical cable and

hoses can reach their connection

points without kinks.

Installation

Leveling legs

^Adjust the rear leveling legs to the

required height with a T20 Torx

screwdriver.

To raise the machine - turn clockwise.

To lower the machine -turn counter

clockwise.

Several turns may be needed to set the

correct height. A low speed electric or

cordless screwdriver can also be used.

^Adjust the front leveling legs by

pushing on the feet with a slotted

screwdriver.

The dishwasher should be raised

until it just touches the underside of

the countertop.

Installation

3. Aligning the control panel

with the drawer fronts

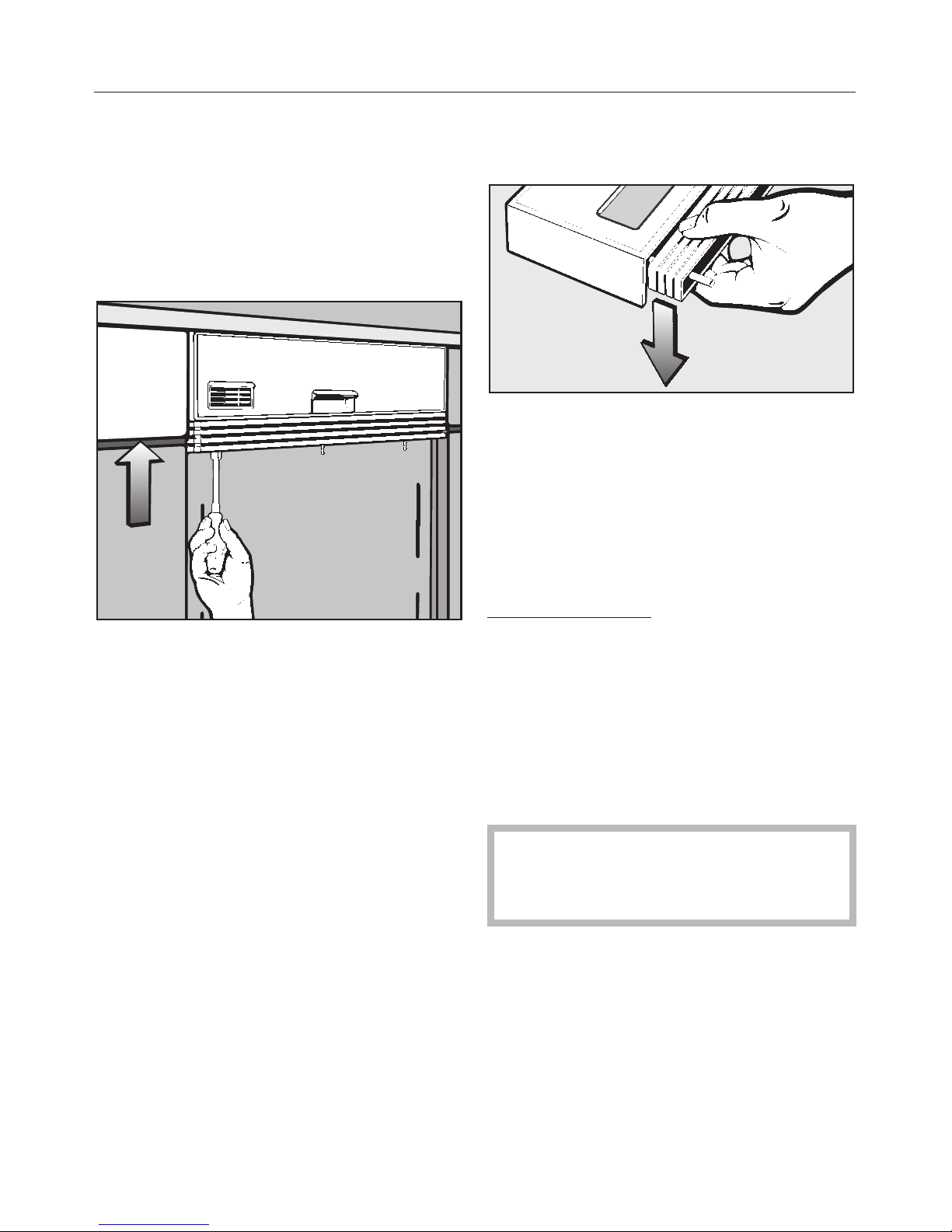

^The control panel can be aligned with

the drawer fronts of the kitchen

cabinets by adjusting the spacer

bars.

^Using an 1/3" (8 mm) socket, turn the

nut clockwise or counterclockwise

until the spacers reach the required

height.

If necessary, individual (or all) spacer

bars can be removed.

^To remove the spacer bars from the

control panel, place the panel on a

table, printed side up, and gently

push down on the spacer bars at a

point near the bottom of the control

panel. This will release the mounting

bolts from their slots.

Adjustment range

from 4 1/2" control panel with-

(112 mm): out spacer bars,

to 5 3/4" control panel with

(145 mm): four spacer bars,

to 6" using a fifth spacer bar

(154 mm): (optional accessory).

After adjusting the control panel

height, cut off the plastic screw

excess.

Installation
