Miele MasterChef KM452 Manual de usuario

Installation instructions

Ceramic Cooktop

KM 452

To prevent accidents

and machine damage,

read these instructions

before installation or use.

M.-Nr. 05 797 870

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety distances above the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Appliance and cut-out dimen ion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

In tallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the spring clips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Granite countertops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the cooktop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Content

Note to the in taller:

Plea e leave thi in truction book

with the con umer for the local

electrical in pector’ u e.

In tallation

The minimum distances given in

these Installation Instructions must

be observed in order to ensure safe

operation. Failure to do so increases

the risk of fire.

The cabinetry and venting hood

should be installed first to prevent

damage to the cooktop.

The countertop must be bonded

with heat resistant (212 °F /100 °C)

adhesive to prevent distortion.

The cooktop can only be installed

as shown in the illustrations, while

maintaining the required safety

distances shown. Do not install the

cooktop between 2 tall cabinets, this is

a fire hazard.

aA minimum distance of 2"

(50 mm) from the cooktop to the rear

wall and a side wall must be

maintained for safety.

To eliminate the risk of burns or fire

by reaching over heated surfaces,

cabinet storage space above the

cooktop should be avoided. If cabinet

storage is necessary, the risk can be

reduced by installing a venting hood to

project horizontally a minimum of 5"

(127 mm) beyond the bottom of the

cabinets.

recommended

not recommended.

not allowed

IMPORTANT SAFETY INSTRUCTIONS

50mm

2 ”

This equipment has not been

designed for maritime use or for

use in mobile installations such as

aircraft or recreational vehicles.

However, under certain circumstances

it may be possible for an installation in

these applications. Please contact the

nearest Miele Dealer or Technical

Service Department with specific

requirements.

Because of the heat radiated

downwards from this type of

appliance we do not recommend

installing it over a drawer. It should be

installed in a cabinet base unit with a

dummy drawer front and an additional

protective barrier beneath the unit..

If, in spite of this, there is a drawer

directly underneath the cooktop, do not

store aerosols, combustible liquids or

easily flammable materials in it. If

cutlery inserts are placed in the drawer,

they must be heat resistant.

The cooktop must not be installed

over a dishwasher, washer, dryer,

refrigerator or freezer. The high

temperatures radiating downwards from

this type of cooktop could damage

these appliances.

Make sure that the power cord to

the cooktop does not come in

contact with any mechanical parts once

the cooktop has been installed.

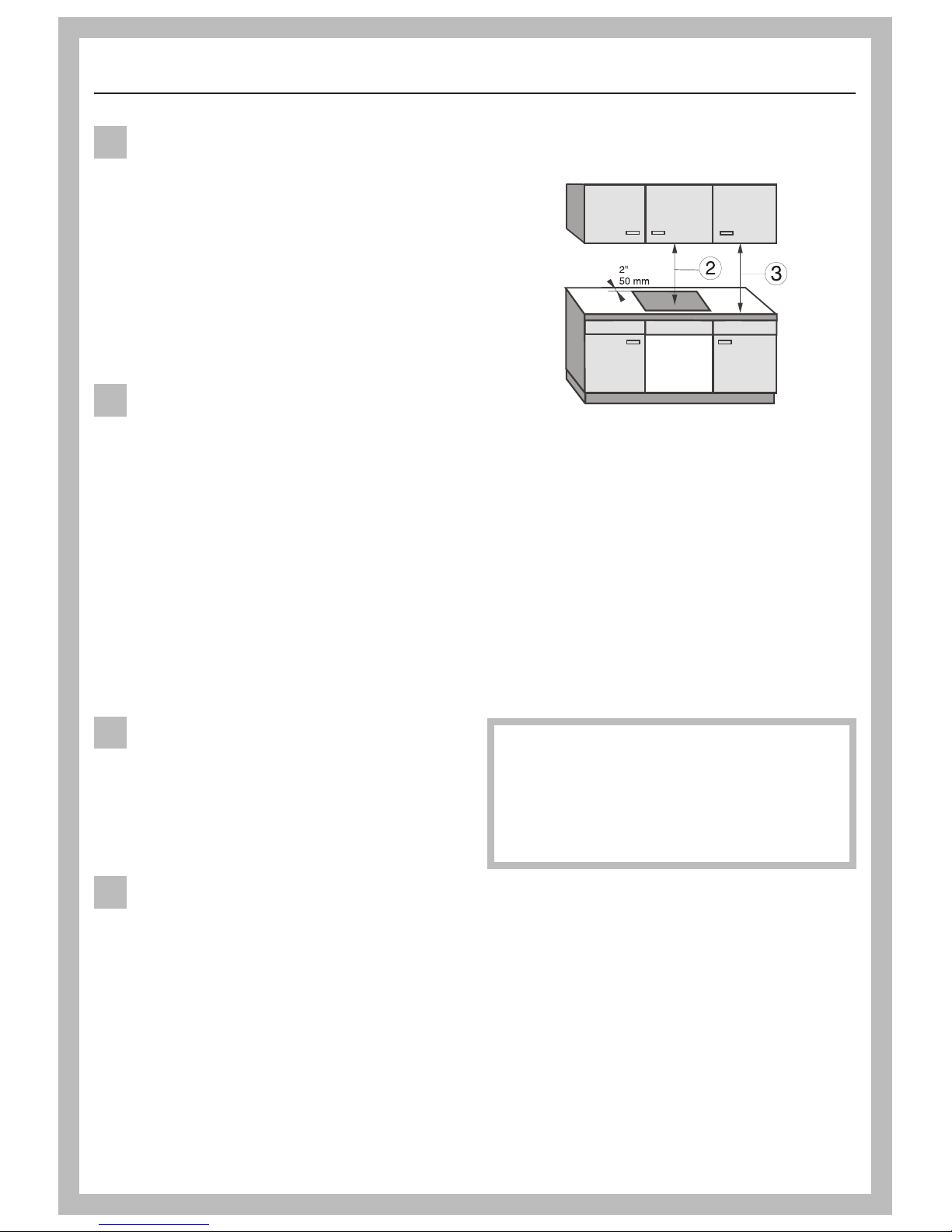

Safety di tance above the

appliance

Maintain a safety distance of at least

30" (760 mm), b, between the

appliance and any flammable objects

above, e.g. cabinetry, venting hood or

utensil rail. The minimum distance of

combustible surfaces located above

and to the side of the cooktop, c, is 18"

(457 mm).

If the manufacturer of these items

states a different figure, follow that

manufacturer’s recommendation..

If more than one appliance is

installed beneath a venting hood,

and they have different minimum

safety distances to the hood, adhere

to the greater safety distance.

IMPORTANT SAFETY INSTRUCTIONS

KM 452

aSpring clips

^Make the countertop cut-out following

the dimensions given in the

illustration.

^Remember to maintain a minimum

distance of 2" (50 mm) between the

rear wall and a right or left hand side

wall. See also "Important Safety

Instructions".

bThere must be at least 3 3/16" (81mm)

of usable depth on the right side of

the cut out.

^Seal the cut surfaces with a suitable

sealant to avoid swelling caused by

moisture. The materials used must be

heat resistant.

If, during installation, the seal around

the frame does not sit flush with the

countertop on the corners, the

corner radius max. R4 (3/16") can be

carefully filed down to fit.

Appliance and cut-out dimen ion

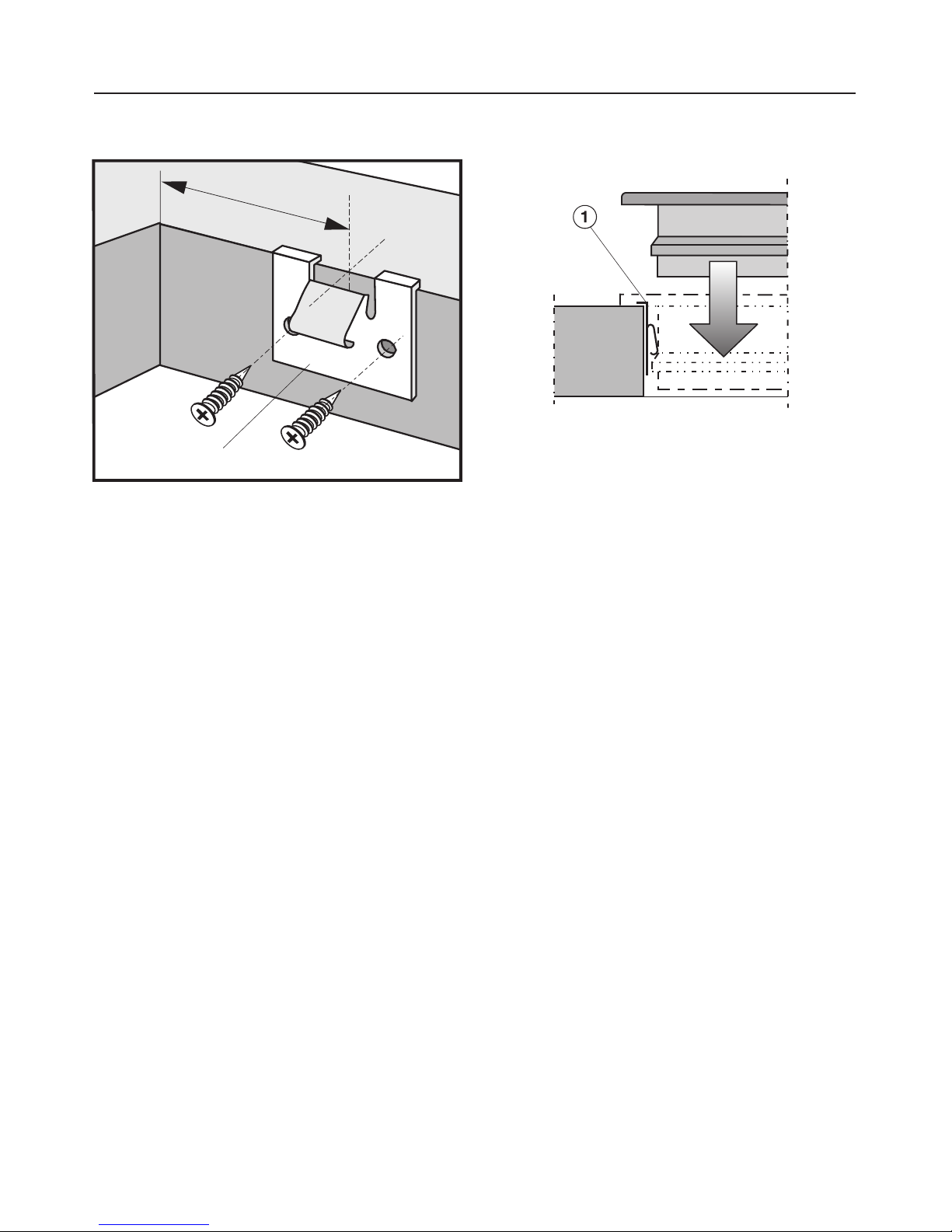

In talling the pring clip

^Fix the supplied spring clips, a, at

the marked positions as shown

above, by laying them on the upper

edge of the cut-out and then

securing them with the 3.5 x 25 mm

screws supplied.

Granite countertop

For granite countertops, the spring

clips, a, must be placed in position

and secured with strong, double-sided

adhesive tape. The edges of the spring

clips must also be coated with silicone

sealant.

The screws are not needed for granite

countertops.

In tallation

(75mm)

3 ”

In talling the cooktop

^Feed the power cord down through

the cut-out and connect the

appliance to the power supply.

^Position the cooktop on the spring

clips, a.

^Then with a hand on each side of the

cooktop press down on the edges

evenly until it clicks into position.

When doing so make sure that the

cooktop seal sits tightly on the

countertop to ensure a correct seal is

provided.

The cooktop can now only be

removed with a special tool.

The cooktop must not be

permanently sealed into the

countertop when installed. The

sealing strip under the edge of the

cooktop provides a sufficient seal for

the countertop.

If the cooktop is sealed into position,

the countertop or appliance could be

damaged if the cooktop needs to be

removed for maintenance or service.

In tallation

,CAUTION: Before servicing,

disconnect the power supply by

either removing the fuse, shutting off

the power main or manually

"tripping" the circuit breaker.

Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and service by unqualified

persons could be dangerous and

the manufacturer will not be held

responsible.

Before connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Only operate the cooktop once it

has been installed into the

countertop.

In taller:

Plea e leave the e in truction with

the con umer.

Power upply

The cooktop is equipped with a flexible

power cord consisting of 3 wires ready

for connection to a grounded power

supply:

–120/240 V, 60 Hz, 50 A fuse rating

–120/208 V, 60 Hz, 50 A fuse rating

Black wire: connect to L1 (hot)

Red wire: connect to L2 (hot)

Green wire: connect to GND (ground)

A dedicated line and junction box

should be used to connect the cooktop

to a 50 A circuit.

For further information, see the wiring

diagram provided with the appliance.

WARNING:

THIS APPLIANCE MUST BE

GROUNDED!

Electrical connection
