Operating and Installation instructions

Ceramic Cooktop with induction

KM 5773

To prevent accidents and

appliance damage,

read these instructions

before installation or use.

M.-Nr. 06 733 330

Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Burner indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Timer/Memory display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Burner data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Heat the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Resetting the touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Induction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Turning on the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Turning on a burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Auto-heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cooking without auto-heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Booster function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning the cooktop off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Timer and Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting the timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Switching a burner off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Timer starting value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Combi operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Contents

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Stop and Go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Safety cut-out feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Overheating protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cooktop care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Help protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Contents

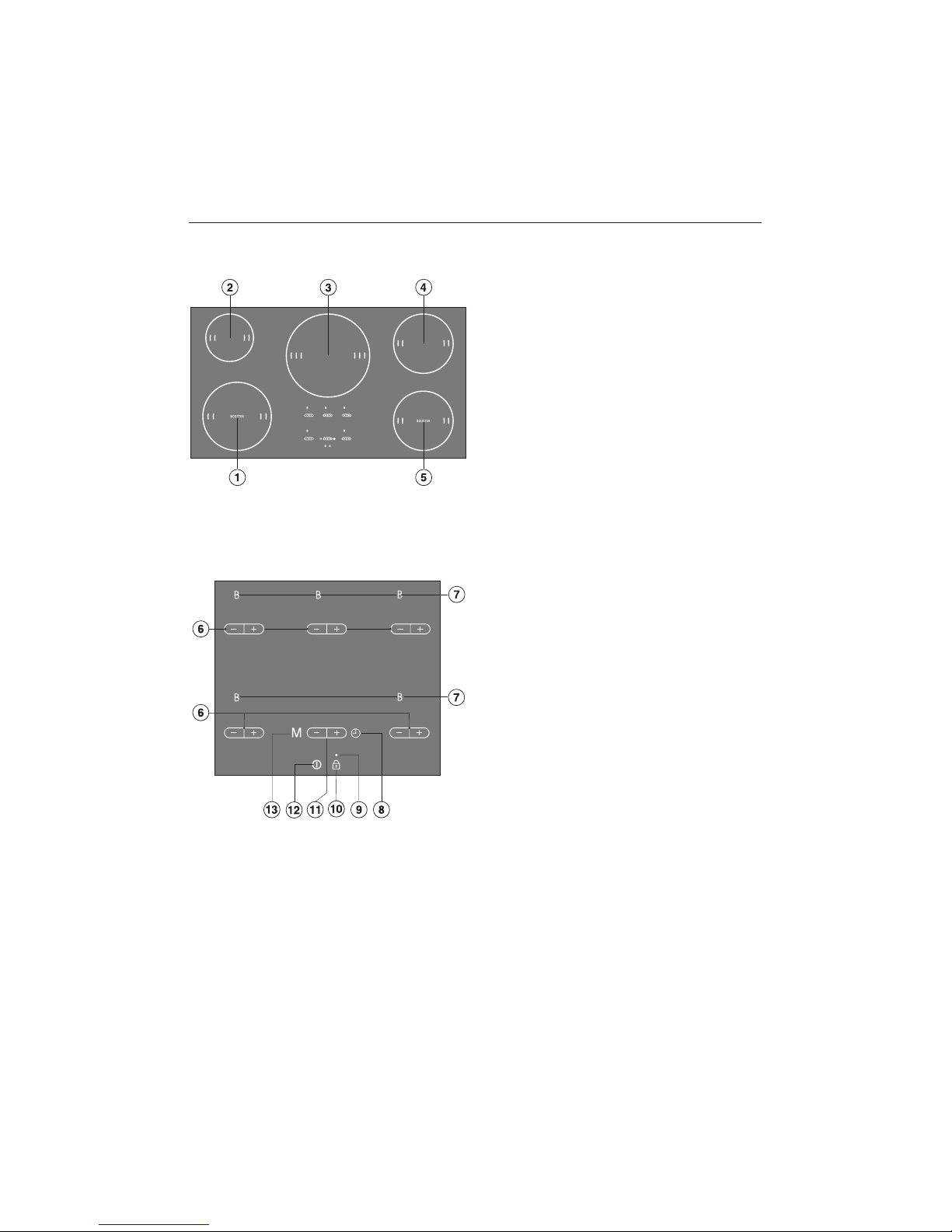

Cooktop

Control panel

abcde burners

Sensors

fPower selector

gBooster

hTurning on the timer, switching

between the functions, selecting a

burner

jChild Safety Lock

kSetting the time /

Selecting the memory program

lCooktop ON/OFF

mMemory function

Indicator:

iLock

Guide to the cooktop

Burner indicator

nDisplay:

0= Burner is ready for use

1to 12 = Power level

#= Residual heat

ß= Missing or not suitable cookware (see "Induction")

F= Error/Fault (see "Safety turn off")

A= Auto-heat with extended power level range

P0 etc. = Program (see "Programming")

S0 etc. = Status (see "Programming")

oIndicator for extended power level (see "Programming")

pLighting circle

The number of segments lit corresponds to the selected power setting

(exception: see "Auto-heat").

qSegment for booster

Guide to the cooktop

Timer/Memory display

rIndicator for burner assignment, e.g. rear right burner

sDisplay for time/memory program

00 to 99= time

P1 to P5 = memory program

tIndicator for taken memory program

Burner data

Burner KM 5773

minimum to maximum

Cin cm*

Power in watts at 230 V**

y16 -23 normal:

with booster:

2300

3200

w10 - 16 normal:

with booster:

1400

1800

b18 - 28 normal:

with booster:

2400

3200

x14 - 20 normal:

with booster:

1850

2500

z14 - 20 normal:

with booster:

1850

2500

All burners 10600

* Pots with a bottom diameter in the stated range.

** The stated power may vary depending on the size and material of the

cookware.

Guide to the cooktop

READ THE OPERATING

INSTRUCTIONS CAREFULLY

BEFORE USING THE

COOKTOP

WARNING -

This appliance is only intended for

residential cooking. The

manufacturer cannot be held

responsible for damage or injury

caused by improper use or for uses

other than those for which this

appliance is intended.

When using your appliance follow

basic safety precautions including

the following:

Persons which lack ability,

experience or knowledge of the

machine must be supervised or

instructed by a responsible person.

Installation

Be certain your appliance is

properly installed and grounded by

a qualified technician in accordance

with national and local safety

regulations. All electrical work should

be completed by a licensed electrician,

in strict accordance with national and

local safety regulations and standards.

The manufacturer cannot be held

responsible for damage caused by an

incorrect installation or connection.

To guarantee the electrical safety

of this appliance, continuity must

exist between the appliance and an

effective grounding system. It is

imperative that this basic safety

requirement be met. If there is any

doubt, have the electrical system of the

house checked by a qualified

electrician. The manufacturer cannot be

held responsible for damages caused

by the lack, or inadequacy, of an

effective grounding system.

IMPORTANT SAFETY INSTRUCTIONS

Do not connect the appliance to

the main electrical supply using an

extension cord. Extension cords do not

meet the safety requirements of this

appliance.

Before servicing, disconnect the

appliance from the main power

supply.

Never open the outer casing of the

appliance.

Tampering with electrical connections

or components and mechanical parts is

dangerous and can cause machine

damage.

Only for frame/facet cooktops:

A small gap will be visible between

cooktop and countertop for the first

days after installation. The gap will

decrease as the cooktop is used. The

electrical safety of your appliance is

warrantied despite the small gap.

Use

Do not use the appliance until it is

properly installed in the countertop.

This is necessary to ensure that all

electrical components are shielded.

This appliance is equipped with an

overheating protection feature. See

"Overheating protection" for more

details.

If the cooktop is installed above a

pyrolytic oven it should not be

used during the pyrolytic process. The

overheating protection of the cooktop

might be activated.

IMPORTANT SAFETY INSTRUCTIONS

Child Safety

Use the Child Safety Lock to

prevent children from turning on

the burners or changing the settings.

See "Safety lock" for more information.

Children should not be left alone or

unattended in an area where a

cooktop is in use. Never allow children

to sit or stand on any part of the

cooktop.

Do not allow children to operate or

play with the appliance.

The burners become very hot

when in use and during the cool

down phase. Keep children away from

the cooktop.

Do not store items of interest to

children in cabinets above the

cooktop. Children climbing on the

cooktop to reach these items could be

injured. Danger of burning!

Keep all pots and pans out of

reach of children. Danger of

burning or scalding. Special

cooktop/stove guards are available

from retail outlets.

Before discarding an old

appliance, switch it off and

disconnect it from the power supply.

Cut off and render the plug useless.

Cut off the cable directly behind the

appliance to prevent misuse.

IMPORTANT SAFETY INSTRUCTIONS

Damage protection

Do not drop anything on the

ceramic surface of the cooktop.

Even lightweight objects could cause

damage to the ceramic glass pane.

Do not use pots or pans with

pronounced edges or ridges on

the ceramic cooktop. These could

scratch the cooktop permanently. See

"Selecting cookware" for more

information. Grains of salt and sand can

also scratch. Make sure that the bases

of any pots and pans are clean, free of

any fat or oils and are dry.

Do not allow solid or liquid sugar,

or pieces of plastic or foil to fall on

the burners when they are hot. If these

residues are allowed to cool on the

ceramic surface pitting or even

cracking could occur. If sugar, plastic

or foil gets on the ceramic surface, turn

the cooktop off. Clean the surface im-

mediately with a shielded scraper

blade while still hot.

Caution:

Danger of burns! Clean the burners

throughly when cooled.

Do not use a steam cleaner to

clean this appliance. Pressurized

steam could penetrate electrical

components and cause a short circuit.

Pressurized steam could cause

permanent damage to the surface and

to components, for which the

manufacturer cannot accept

responsibility.

Never place hot pots or pans over

the touch controls, as the

underlying electronics may be

damaged.

If a drawer is installed beneath the

cooktop, a sufficient distance

between the contents of the drawer and

the bottom of the cooktop must exist.

Otherwise the venting of the cooktop is

not guaranteed.

IMPORTANT SAFETY INSTRUCTIONS

Otros manuales para KM 5773

Tabla de contenidos

Otros manuales de Placa de cocina de Miele

Miele

Miele MasterChef KM452 Manual de usuario

Miele

Miele MasterChef KM452 Manual de usuario

Miele

Miele MasterChef KM452 Manual de usuario

Miele

Miele KM 7678 FR Manual de usuario

Miele

Miele KM 6320 Manual de usuario

Miele

Miele KM 443 Manual de usuario

Miele

Miele SmartLine Tepan Yaki Manual de usuario

Miele

Miele KM 92-2 Manual de usuario

Miele

Miele CS 1421 S Manual de usuario

Miele

Miele KM 2032 Manual de usuario

Miele

Miele CS 1028 Manual de usuario

Miele

Miele KM 6344 Manual de usuario

Miele

Miele KM 5621 Manual de usuario

Miele

Miele KM 360 Manual de usuario

Miele

Miele MasterChef KM421 Manual de usuario

Miele

Miele MasterChef KM342 Manual de usuario

Miele

Miele KM 6092 Manual de usuario

Miele

Miele SmartLine Tepan Yaki CS 7632 Manual de usuario

Miele

Miele KM 3034 Manual de usuario

Miele

Miele KM 6310 Manual de usuario

Miele

Miele Gas cooktop Manual de usuario

Miele

Miele KM 6520 FR Manual de usuario

Miele

Miele KM 360 G Manual de usuario

Miele

Miele SmartLine Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario

Jenn-Air

Jenn-Air CCE1400 Manual de usuario
