Installation Instructions

Gas Cooktop

KM 404

KM 406

To prevent accidents and

machine damage,

read the operating instructions

before

installation or use.

M.-Nr. 05 060 881

®®

WARNING:

If the information in this manual is not followed

exactly, a fire or explosion may result causing

property damage, personal injury or death.

–Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

–WHAT TO DO IF YOU SMELL GAS

ßDo not try to light any appliance.

ßDo not touch any electrical switch.

ßDo not use any phone in your building.

ßImmediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

ßIf you cannot reach your gas supplier, call the

fire department.

– Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

(In Massachusetts a licensed plumber / gas fitter)

–Note to the installer:

Please leave this instruction book with the

consumer for the local electrical / gas inspector’s

use.

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cooktop dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

KM 406. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Countertop cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Laying out the support bars and brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting the cooktop into place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Gas pressure regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Nominal ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Converting to another type of gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Contents

Installation

The minimum distances given in

these Installation instructions are to

combustible surfaces, and must be

observed to ensure safe operation.

Failure to do so increases the risk of

fire.

To prevent damage to the cooktop,

the cabinetry and venting hood

should be installed first.

Gas appliances should only be

installed in a well ventilated area.

The countertop must be bonded

with heat resistant (212 °F / 100 °C)

adhesive to prevent distortion or

dissolving.

The cooktops should only be

installed as shown in the

illustrations, while maintaining the

required safety distances shown. Do

not install the cooktop between two tall

cabinets, this is a fire hazard.

a= minimum safety distance

KM 404 = 10" (255 mm)

KM 406 = 10" (255 mm)

This equipment has not been

designed for maritime use or for

use in mobile installations such as

aircraft or recreational vehicles.

However, under certain circumstances

it may be possible for installation in

these applications. Please contact a

Miele Dealer or Miele’s Technical

Service Department with specific

requirements.

recommended

not recommended

not allowed

IMPORTANT SAFETY INSTRUCTIONS

Cooktops should not be installed

above a dishwasher, washer, dryer,

freezer or refrigerator. The heat

generated by cooktops could damage

these appliances.

Deep fryers must not be installed

next to gas cooktops. Gas flames

can ignite splattering oil. A distance of

at least 12" (305 mm) should be

maintained between these two

appliances.

Install the appliance so that the

power cord or gas piping does not

come into contact with any portion of

the cooktop which may become hot

during use.

This appliance must be installed

with its own shut off valve and gas

pressure regulator. Both the valve

and the regulator must be easily

accessible to the consumer after the

appliance is installed.

This appliance must be

disconnected from the gas supply

during any pressure testing

performed in excess of 1/2psi

(3.5 kPa). The machine must be

isolated at test pressures equal to or

less than 1/2psi (3.5 kPa).

Any pipe connections must be made

using a thread sealant approved for

gas connections. Failure to correctly

install these items could lead to a

gas leak and subsequent explosion.

Safety distances above the

cooktop

There must be a minimum safety

distance of at least 30 inches

(760 mm), b, between the top of the

cooktop and any cabinet above it. The

overhead cabinet depth, if unprotected,

must not exceed 13 inches (33 cm).

The minimum distance of combustible

surfaces located above and to the

sides of the cooktop, c, is 18"

(457 mm).

If the cabinet manufacturer

recommends a different distance, follow

that manufacturers recommendation.

When installing the cooktop under a

venting hood, always observe the

minimum distances recommended

by the hood manufacturer.

Keep this instruction book in a safe

place and pass it on to any future

owner.

IMPORTANT SAFETY INSTRUCTIONS

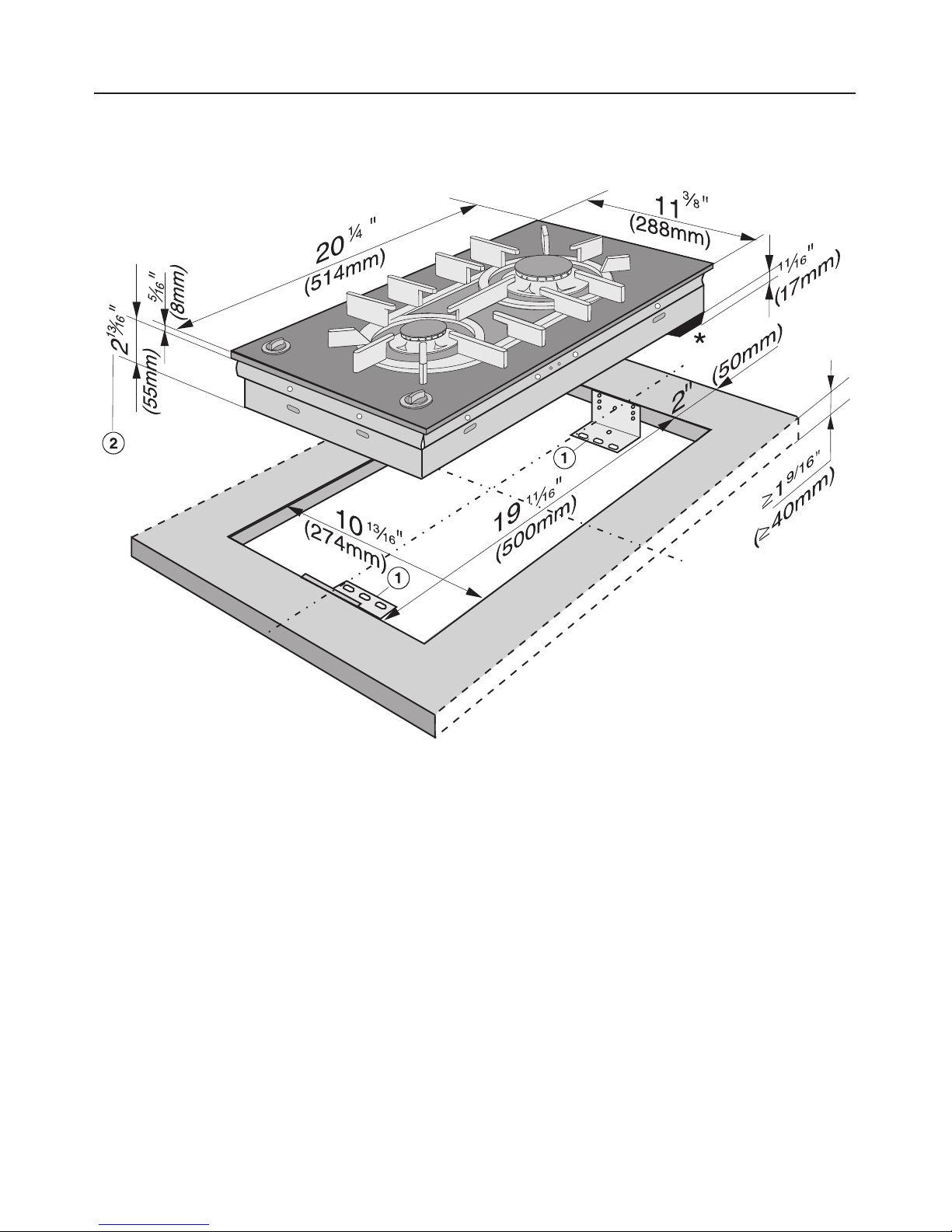

KM 404

aSupport brackets

bBuilding in height plus 1/8" (3 mm) for

the fixing screws

* Please allow an additional 31/2"

(90 mm) depth across the rear of the

cooktop for clearance of the gas

regulator (see "Gas connection" for

illustration).

Cooktop dimensions

KM 406

aSupport bracket

bBuilding in height plus 1/8" (3 mm) for

the fixing screws

* Please allow an additional 31/2"

(90 mm) depth across the rear of the

cooktop for clearance of the gas

regulator (see "Gas connection" for

illustration).

Cooktop dimensions

All Miele combisets have the same

length and width. Make sure that there

is enough room under the countertop to

allow for the depth of the various

appliances. Remember to allow

clearance for the gas regulator and gas

pipe that must be connected to the

appliance.

^Rember to maintain the minimum

safety distances to combustible

surfaces:

– 2 3/4" (70 mm) between the cooktop

and the back wall, and

– 12 " (305 mm) between the cooktop

and a side wall or tall unit to the right

or left of the cooktop.

^See "IMPORTANT SAFETY

INSTRUCTIONS" for further

installation information.

Installing one or multiple appliances:

Cut out the countertop using the

dimensions listed in the following table.

Number of

cooktops

Cut out width

Dimension "B"

110 13/16" (275 mm)

222 1/8" (562 mm)

333 1/2" (851 mm)

444 13/16" (1138 mm)

556 1/8" (1426 mm)

667 1/2" (1714 mm)

778 13/16" (2002 mm)

The tolerance for each dimension is

1/16" (1 mm).

When installing more than one

combiset, a support bar must be

installed between the appliances.

Install the support bars as shown in

the relevant section before setting

the appliances into the countertop.

Countertop cut-out

Laying out the support bars

and brackets

aSupport brackets

bSupport bars

cSlight gap between support bar and

countertop

dBracket center line

The illustration shows the layout for

three combisets and their respective

support bars, b, and support brackets,

a, required for correct installation.

If more than three combisets are being

installed, add an additional 11 3/8"

(290 mm) to the overall length of the cut

out for each additional combiset, or use

the table on the preceding page.

Installation

Securing the support bars

Wood or Corian countertops

^Arrange the bars, b, as shown in the

illustration.

^Drill 1/16" (1.5 mm) pilot holes through

the brackets and secure them using

the supplied screws.

^Fill the gap, c, between the bars and

the countertop using the supplied

silicon sealant.

Granite countertops

For granite countertops, the support

bars, b, can be secured with double

sided tape or construction adhesive.

Do not allow the bars to "float", they

must be securely fastened. Fill the gap,

c, between the bars and the

countertop using the supplied silicon

sealant.

The screws are not necessary for

granite countertops.

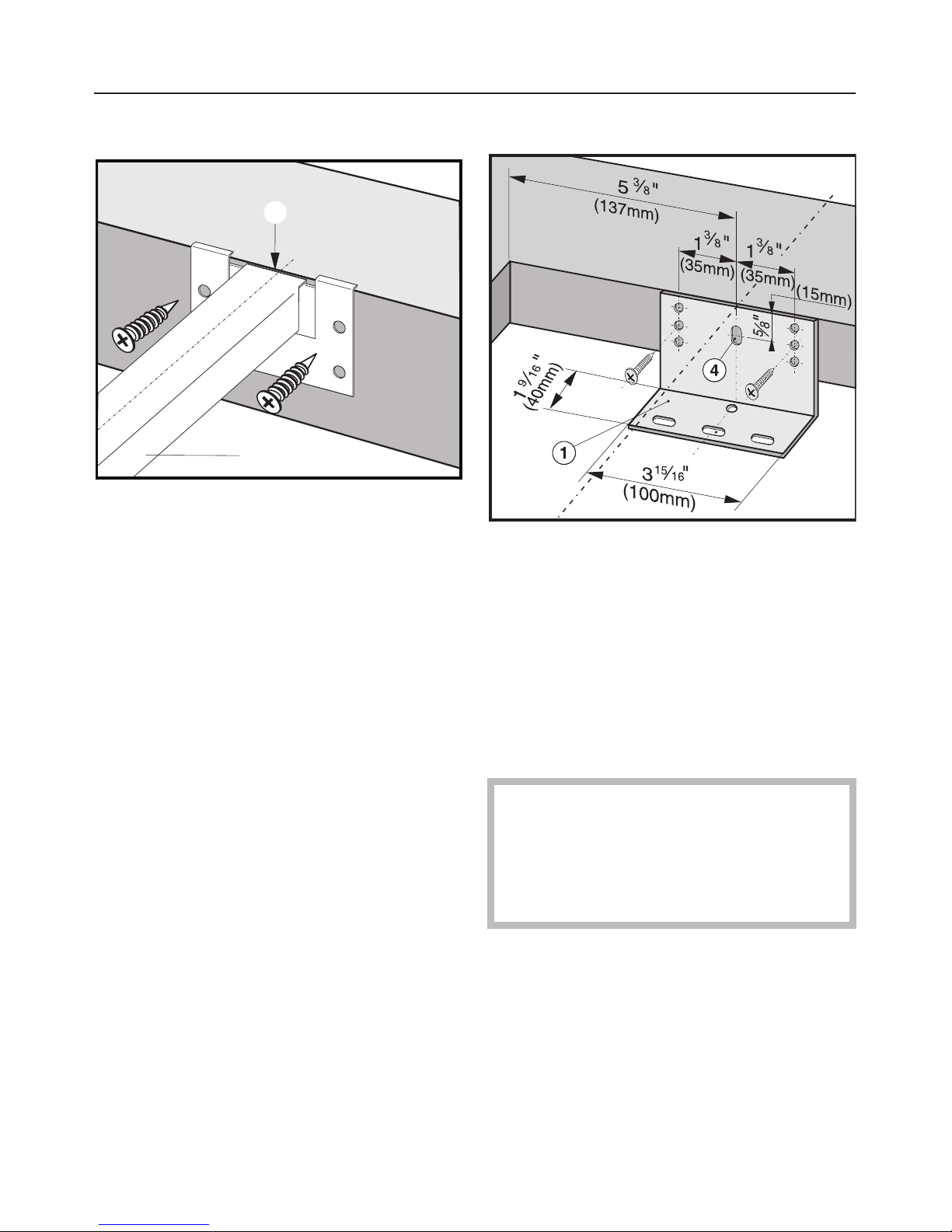

Securing the support brackets

^Place the brackets, a, as shown in

the illustration.

^Drill two 1/16" (1.5 mm) pilot holes for

each bracket and secure them using

the supplied screws.

Granite countertops

A granite countertop must be

prepared with a hole drilled at the

position indicated, d, to secure

each support bracket (see

illustration).

Using a piece of double sided tape or

construction adhesive press the

support brackets supplied, a, into the

position indicated in the illustration,

flush with the top edge of the

countertop. Secure each bracket with

one screw.

Installation
