Midtronics EXP-1050 Manual técnico

Page 1of 7

Software Update Procedure

EXP-1050 FORD

REVISION H

This instruction manual describes the process to successfully update your battery tester.

Read the instruction carefully and follow the steps listed.

Note: The location of the Icons shown on the

screen pictures in this procedure may be different

from the real location in your battery tester due to different versions.

Page 2of 7

Step 1. Preparing tester for update

During the following update process, the SD card will be formatted and therefore the stored data will be lost. To save the historical

data, remove the SD card fromthe tester and savethe files onthe SD card onto a local PC first!

Insert SD card into computer

Insert the SD card into the PC.

Store historical data

Store both *.CSV file stored onto the SD card toa

local PC first to prevent loss ofthe data during the

update process.

Insert SD card back into tester

Insert the SD Card back into the tester

Select Utility menu in tester

Turn onthe tester and select UTILITY from the

MAIN MENU of the tester

Format SD Card inside tester

Select FORMAT CARD from the UTILITY MENU

Format SD Card inside tester

Select YES when the warning screen appears.

Save tester configuration

Select UPDATE from the UTILITY MENU

Save tester configuration

Select option 2 SAVE CONFIG and press NEXT / OK

Page 3of 7

Step 2. Check required download version and save update files onto the SD card

The update files required for your battery tester are depending onthe current software version of your

tester. Check the current software version of your battery tester and download the matching update files via the

process below.

Select Info Menu in tester

Turn on the tester and select INFO in

the main menu of the tester

Select Version Info

Select VERSION INFO in the info

menu.

Determine current firmware

The version info screen shows the

current firmware version of the tester.

Check the current version and

determine the required download file

based on the table below.

VERSION: 192-110103F

Page 4of 7

Insert SD card into computer

Remove SD card fromtester and insert into SD card reader of your PC

WARNING:

NEVER FORMAT THE SD CARD INSIDE A COMPUTER!

Download update files

Download / copy the Update files fromyour computer location and savethem tothe

SD Card.

NOTE: The New update files version type should be the same as before.

e.g. An original “A” version should be replaced with an Update “A” version.

Current Version

Required update files

192-110103GFLSH071G

EEPM088G

(Update from Rev G to Rev H)

192-110103CFLSH071C

EEPM088C

(Update from Rev C to Rev H)

192-110103BFLSH071B

EEPM088B

(Update from Rev B to Rev H)

192-110103AFLSH071A

EEPM088A

(Update from Rev A to Rev H)

Save update files onto SD Card

The update folder contains 2 update files

marked as*.hex

Save both files directly into the root of the SD

Card.

WARNING:

NEVER COPY A FOLDER ONTO THE SD CARD!

192-110103FFLSH071F

EEPM088F

(Update from Rev F to Rev H)

192-110103EFLSH071E

EEPM088E

(Update from Rev E to Rev H)

192-110103DFLSH071D

EEPM088D

(Update from Rev D to Rev H)

Page 5of 7

Example of SD Card content for update

Correct format

!Incorrect format !

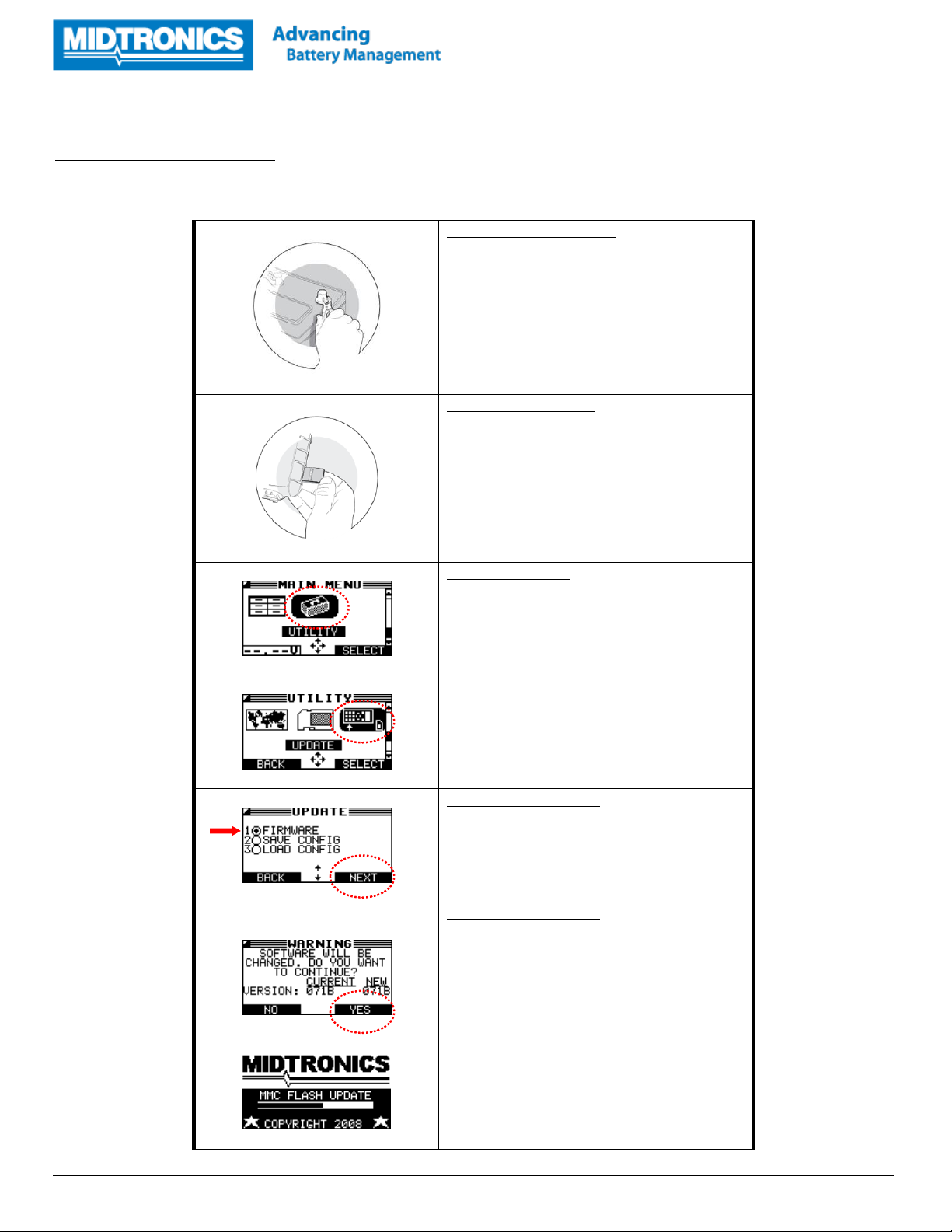

Page 6of 7

Step 3. Update tester firmware

After step 1 and 2 are completed, the tester isnow ready tobeupdated with the update files copied onto the SD card. Follow the

steps below toupdate the tester firmware.

Connect to 12 volt battery

Connect the tester to a 12 volt external battery

to prevent loss ofpower during the software

update

Insert SD card in tester

Insert the SD Card back into the tester

Select Utility menu

Select UTILITY from the MAIN MENU of the

tester

Select Update menu

Select UPDATE in the UTILITY MENU

Update tester firmware

Select option 1 FIRMWARE and press NEXT /

Example screen

Update tester firmware

As soonasthe update warning screen appears,

select YES

Update tester firmware

The tester will start reprogramming the FLASH

memory. This will take approximately 5

minutes

Page 7of 7

Step 3. Update tester firmware continued

Update tester firmware

After the Flash update the tester will

reprogram the EEPROM memory

SUCCESS

UPDATE COMPLETE

TURN OFF TOOL

AND REPLACE MMC

UPDATE CARD

WITH DATA CARD

REBOOT TO CONTINUE

Reboot tester

After the reprogramming is complete, the

tester will prompt to restart the tester.

Switch the tester OFF and ON again.The new

software is now loaded onto the tester

Step 4. Reinstall original tester configuration

After the update ofthe firmware the tester is back into factory settings. To reload the original configuration settings ofthe tester,

follow the steps below.

Select Utility menu

Turn onthe tester and select UTILITY from the

MAIN MENU of the tester

Select Update menu

Select UPDATE from the UTILITY MENU

Load original configuration

Select option 3 LOAD CONFIG and press NEXT

/ OK

Reboot tester

After your personal configuration settings is

reloaded onto the tester, switch the tester OFF

and ON again

Tabla de contenidos

Otros manuales de Equipo de prueba de Midtronics

Midtronics

Midtronics CPX-900 Series Manual técnico

Midtronics

Midtronics CPX-900 EU Manual técnico

Midtronics

Midtronics Honda ED-18V3 Manual de usuario

Midtronics

Midtronics JLR EXP-1080 Manual de usuario

Midtronics

Midtronics CPX-900 WiFi Manual de usuario

Midtronics

Midtronics EXP-4311 Series Manual de usuario

Midtronics

Midtronics PBT-50 Manual de usuario

Midtronics

Midtronics intellect EXP-1000 Manual de usuario

Midtronics

Midtronics EXP-925 Manual de usuario

Midtronics

Midtronics Celltron ULTRA Manual de usuario

Midtronics

Midtronics MDX-P300 Manual de usuario

Midtronics

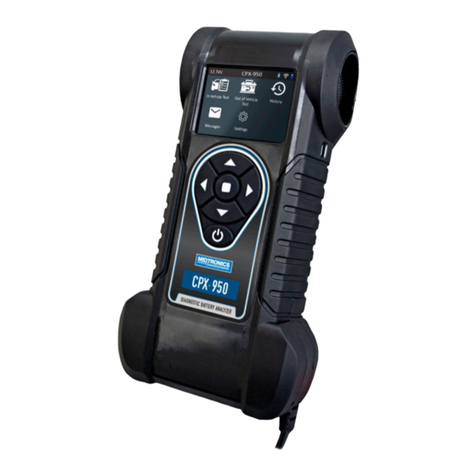

Midtronics Ford CPX-950 Guía de referencia
