Midland G9 Manual

Midland

G9/G9E Plus

”Instruction guide

PMR446+LPD/PMR446 |

Index

Content 4

Coverage/range 4

Batteries and battery compartment 5

Warnings 5

Features 6

Main characteristics 7

Versions 7

Description of the controls and functions 8

Display 8

Radio 10

Operations 12

Turning on/oﬀ 12

Selecting the PMR466 or LDP band 12

Channel selection 12

Displaying the channel/sub audio tone 12

Transmission and reception 13

Transmitting TOT Setting 13

VOLUME adjustment 13

“CALL” 13

“Emergency” 13

Midland G9/G9E Plus instruction guide | 3

MON (Monitor) function / Squelch 14

Scanning all the channels 14

“MENU” key 14

Channel selection 15

CTCSS/DCS tone setting 15

Hi/low power selection (only in PMR446 band) 16

VOX function 17

Vibra-Call function 18

CALL feature 18

ROGER BEEP (End transmission tone) 18

Keypad Beep 18

Emergency Call function 19

Activating / Deactiving the Emergency feature 19

Changing the emergency channel 19

Manual Out of range function 20

Dual Watch 20

Automatic Out-of-Range 21

Display illumination 21

Power save 21

Battery recharge 22

Technical speciﬁcations 23

4 | Midland G9/G9E Plus instruction guide

Thanks for choosing Midland! Midland G9 Plus is a portable transceiver

that is free use in almost all European countries.

Combining the latest technology in radio communication along with a stur-

dy mechanical frame, the Midland G9 Plus makes the ideal and eﬀective

solution for the professionals who need to stay in touch with colleagues in

construction sites and buildings.

Midland G9 Plus is available in two versions:

• Dual Band (PMR446/LPD)

• E version (PMR446 only)

This manual is referred to both models and you will ﬁnd highlighted the

diﬀerences between the two versions.

Content

N° 1 Midland G9 Plus

N° 1 Single desktop charger

N° 1 Wall adaptor

N° 4 1800 mAh AA NiMH rechargeable batteries

N° 1 Belt clip

Coverage/range

The maximum range depends on terrain condition and is obtained du-

ring use in an open space.

The only limitation to maximum possible range are environmental fac-

tors such as blockage caused by trees, buildings, or other obstructions.

Inside a car or a metallic constructions, the range can be reduced. Nor-

mally the coverage in the city, with buildings or other obstructions is

about 1 or 2 Km. In open space but with obstructions like trees, leaves

or houses the maximum possible range is about 4-6 Km. In open space,

without obstructions and in sight, like for example in mountain, the co-

verage can be more than 12 Km.

Midland G9/G9E Plus instruction guide | 5

Batteries and battery compartment

The transceiver accepts the supplied rechargeable batteries or 4 AA alka-

line batteries. To open the battery compartment: with the back of the

radio facing you, unhook the battery holder in the lower part of the radio

and gently slide the cover. Insert the battery observing the polarity and

place the cover again.

Attention: the batteries must be recharged before the ﬁrst use.

Warnings

• BATTERIES - Strictly follow all the warnings on the batteries stated at

chapter “Battery recharge”.

• Do not open the radio for any reason! The radio’s precision mecha-

nics and electronics require experience and specialized equipment;

for the same reason, the radio should under no circumstances be re-

aligned as it has already been calibrated for maximum performance.

Unauthorized opening of the transceiver will void the warranty.

• Do not use detergents, alcohol, solvents, or abrasives to clean the

equipment. Just use a soft, clean cloth. If the radio is very dirty, slightly

dampen the cloth with a mixture of water and a neutral soap.

6 | Midland G9/G9E Plus instruction guide

Features

• New function ‘Side Tone’: End transmission noise muﬄer

• “Dual PTT” feature for high or low output power. Midland G9 Plus is

equipped with a Dual PTT key. Thanks to this brand new feature, it is

possible to use the high power only when it is really necessary, ena-

bling in this way a high reduction of the battery consumption.

• “Emergency CALL” feature. Midland G9 Plus introduces an innovati-

ve and important feature: the channel dedicated to the emergencies.

Radio communications usually happen between two or more users

which are tuned on the same channel: it’s not possible to transmit

or receive to/from diﬀerent channels. But thanks to the “Emergency”

function, you can also keep a check on the Emergency channel: all

users having a Midland G9 Plus can communicate on the tuned chan-

nel and at the same time can receive/transmit Emergency messages

on the dedicated channel. Simply keep pressed the EMG button for 3

seconds and an emergency CALL will be sent to all the G9 Plus within

the range: they will be automatically tuned on the“EC”channel (Emer-

gency Channel).

• “Manual Out of range” feature: just press twice the EMG button and

you will verify whether there are some radios within the range of your

equipment.

• “Vox TalkBack” feature: if one radio is continuously transmitting in

VOX, the Vox TB will automatically stop the transmission after 20” to

allow the transmission to the other users as well.

Midland G9/G9E Plus instruction guide | 7

Main characteristics

• Power: 500mW (PMR446); 10mW (LPD)

• Operating temperature: from -20° to +55° C

• Side Tone

• 38 CTCSS tones/104 DCS codes

• Dual PTT key: high/low output power

• Emergency CALL

• Out of range control

• VOX adjustable in 3 levels and with “TalkBack”

• VibraCALL

• Keypad lock

• Auto power save: automatic current economy circuit

• Low battery indicator

• Dual Watch

• CALL with 5 selectable melodies

• SCAN

• Monitor

• Out of Range

• Roger beep

• High/Low power

• LCD Display with backlight

• Power supply: 4 AA NiMH rechargeable batteries (or an optional 800

mAh NiMH battery pack)

• 2pin accessory plug

Versions

• G9 Plus Dual band (PMR446/LPD)

24 PMR446 channels (8+16 pre-set)/69 LPD channels

• G9E Plus (PMR446 only)

24 PMR446 channels (8+16 pre-set)

8 | Midland G9/G9E Plus instruction guide

Description of the controls and

functions

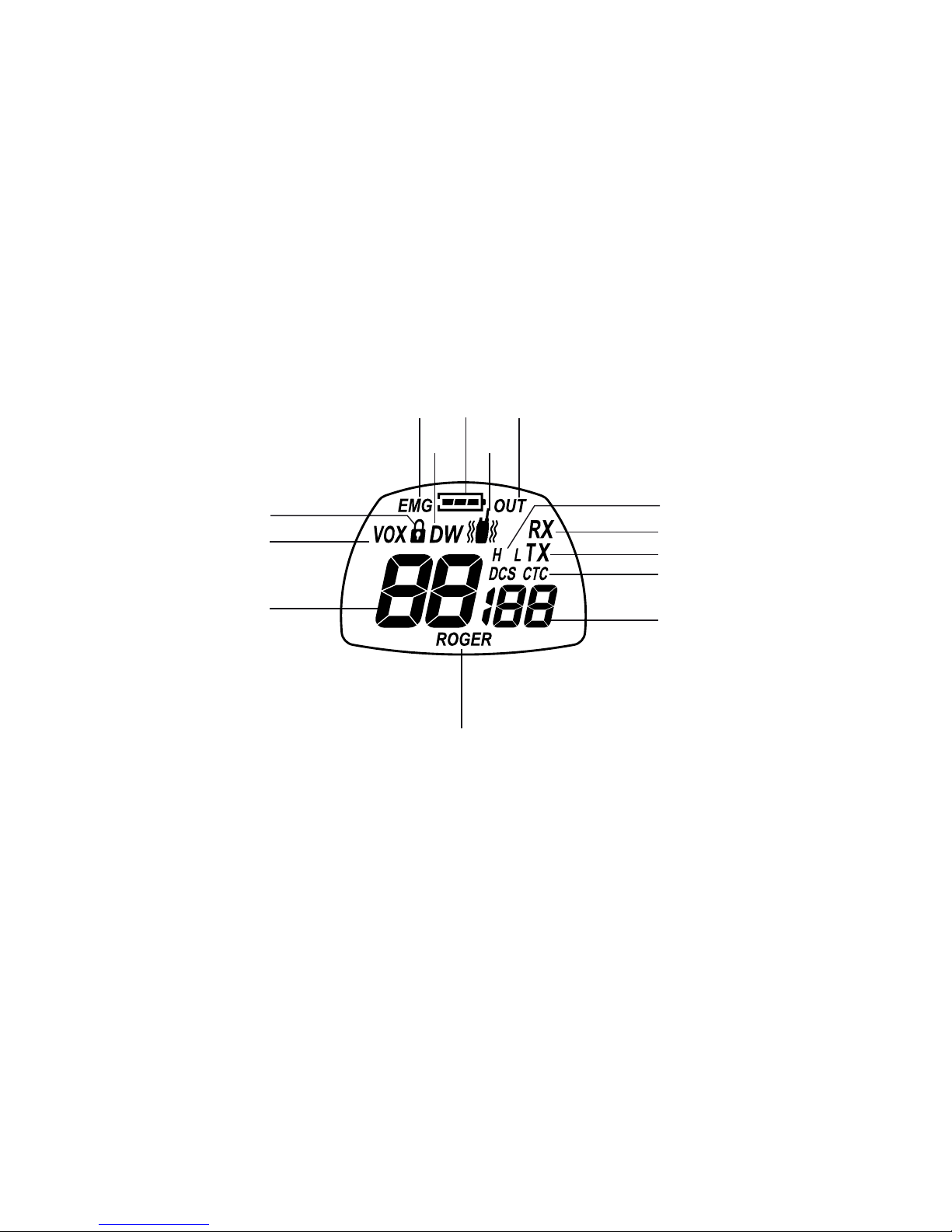

Display

CALL

EMG

Midland G9/G9E Plus instruction guide | 9

Your Midland G9 Plus keeps you constantly updated about its operatio-

nal status through a Liquid Crystal Display (LCD). The symbols and their

corresponding parameters that may appear, according to the operational

status of the device, are described as follows:

1. CHANNEL These two large digits indicate the selected

channel

2. VOX VOX function activated

CALL

EMG

This symbol appears when the keypad lock is

activated

4. EMG Emergency function activated

5. DW Dual Watch activated

CALL

EMG

Indicates the battery status

CALL

EMG

Vibra-Call function activated

8. OUT Indicates if the Automatic Out of Range function

looses contact with the other radios

9. RX Reception mode

10. TX Indicates the transmission (PTT pressed)

11. H(High) / L(Low) High or low power selection. The output power

of the big PTT depends on your selection

12. CTCSS/DCS Indicate the type of sub audio tone selected

13. CTCSS/DCS tone These three small digits indicate the code of the

CTCSS/DCS tones selected (1-38 / 1-104)

14. ROGER Roger Beep activated

10 | Midland G9/G9E Plus instruction guide

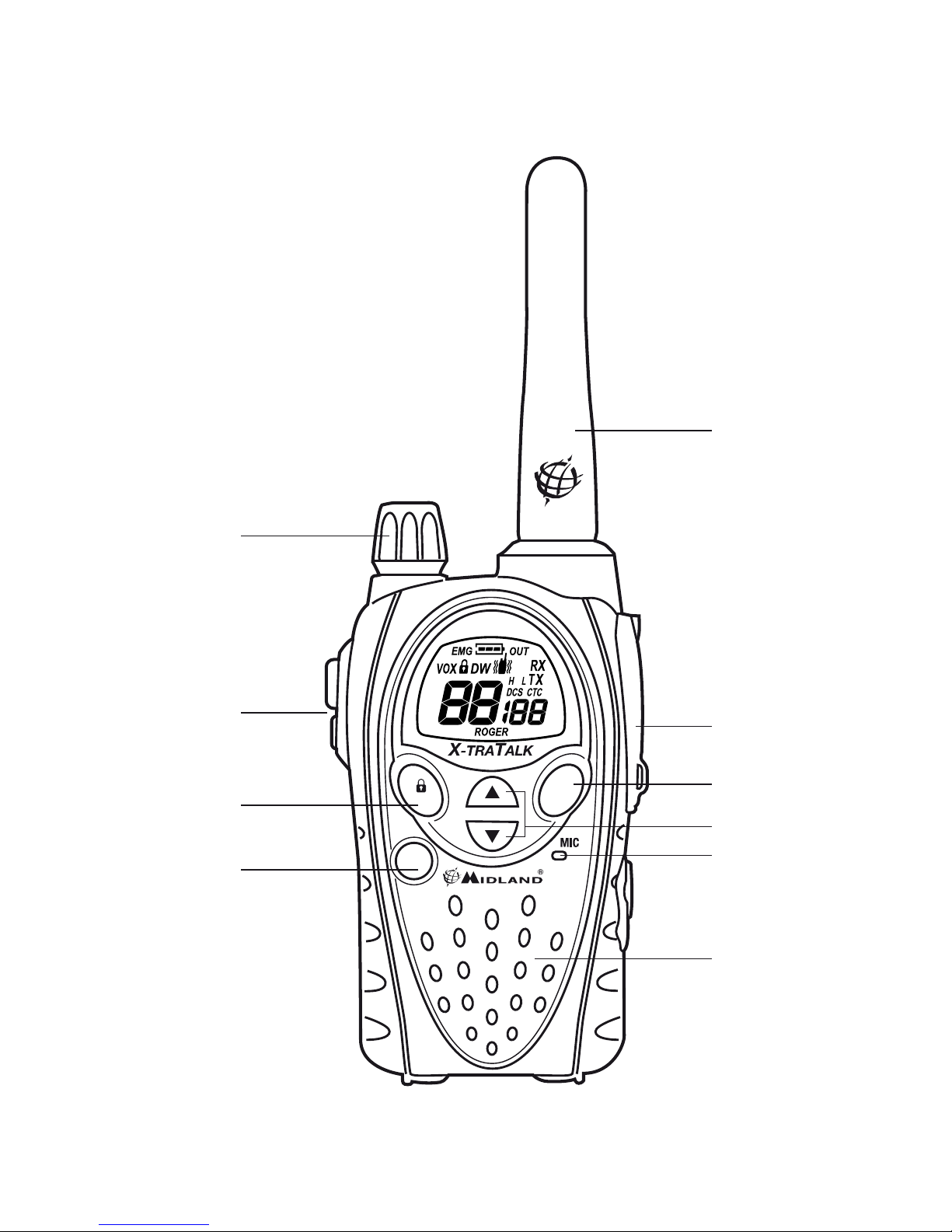

Radio

CALL

EMG
