Midea MTB1T-96CWN1 Manual de funcionamiento

Midea R410A T3 50Hz Split Type

Top-discharge Series

Technical Service Manual

Applicable Model:

Indoor unit

Outdoor unit

MTB1T-96C(H)WN1

MOVTA-96C(H)N1-R

MHB1T-96C(H)WN1

MFA3T-96C(H)RN1

Midea reserves the right to discontinue, or change specification or designs at any time without notices and

without incurring obligations.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707

Content

Part. 1 General information.......................................2

Part. 2 Indoor Unit .....................................................6

Part. 3 Outdoor Unit ................................................40

Part. 4 Installation....................................................49

Part. 5 Controller .....................................................86

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series

Part. 1 General information

1. Model Names of Indoor/Outdoor Units.......................3

2. External Appearance....................................................4

3. Nomenclature................................................................5

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707

1. Model Names of Indoor/Outdoor Units

1.1 Model names of units with cooling only:

Indoor unit

Outdoor unit

Cooling capacity

Type

Model

Power

supply

Model

Power

supply

MBtu/h

Med-static pressure

duct type

MTB1T-96CWN1

220-240V~,

1Ph, 50Hz

MOVTA-96CN1-R

380-415V~,

3Ph, 50Hz

28.1

96.0

Hi-static pressure

duct type

MHB1T-96CWN1

Floor-standing type

MFA3T-96CRN1

1.2 Model names of units with heat pump:

Indoor unit

Outdoor unit

Cooling capacity

Type

Model

Power

supply

Model

Power

supply

MBtu/h

Med-static pressure

duct type

MTB1T-96HWN1

220-240V~,

1Ph, 50Hz

MOVTA-96HN1-R

380-415V~,

3Ph, 50Hz

28.1

96.0

Hi-static pressure

duct type

MHB1T-96HWN1

Floor-standing type

MFA3T-96HRN1

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series

2. External Appearance

2.1 Indoor units

MTB1T-96C(H)WN1

MHB1T-96C(H)WN1

MFA3T-96C(H)RN1

2.2 Outdoor unit

MOVTA-96C(H)N1-R

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707

3. Nomenclature

3.1 Indoor unit:

MFA3 T–96 CR N1

Refrigerant type

N1:R410A

Remote controller

Function code

C: Cooling only

H: Heat pump

Nominal cooling capacity (96×1,000Btu/h)

Ambient type

T or Omit: Tropical type

Series number

Indoor unit type

T: Medium static pressure duct type

H: High static pressure duct type

F: Floor-standing type

Midea

3.2 Outdoor unit:

M O VTA - 96 C N1 - R

Power supply

R: 380~415V, 3Ph, 50Hz

Refrigerant type

N1: R410A

Function code

C: Cooling only

H: Heat pump

Nominal cooling capacity (96×1,000Btu/h)

Series number

Ambient type

T or Omit: Tropical type

Top-discharge type

Outdoor unit

Midea

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series

Part. 2 Indoor Unit

Duct Type ...........................................................................7

Floor-standing Type..........................................................25

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707

Duct Type

1. Features ........................................................................8

2. Specifications ................................................................9

3. Dimensions (Unit: mm)................................................ 11

4. Service Space .............................................................12

5. Refrigerant circuit ........................................................13

6. Wiring Diagrams..........................................................14

7. Capacity Table.............................................................16

8. Static Pressure Curve..................................................19

9. Electric Characteristics................................................20

10.Sound Levels...............................................................21

11. Accessories.................................................................22

MCAC-UTSM-201707 Midea R410AT3 50Hz Top-discharge Series

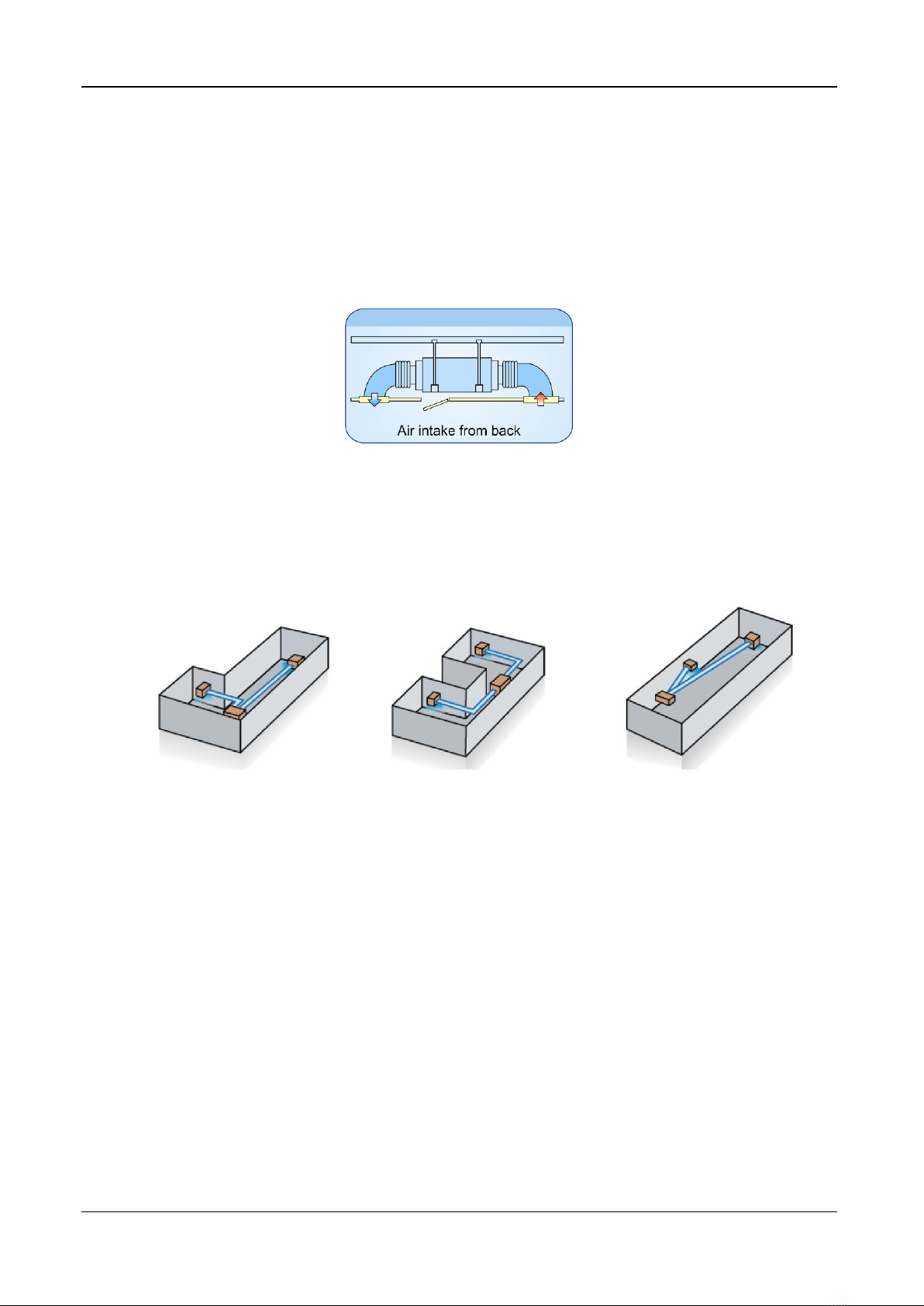

1. Features

High capacity of cooling/heating, efficient and energy-saving.

Nested in the ceiling, space-saving and noble.

Innovative air supply, which provides homogeneous conditioning of the room temperature.

The air outlet is laid out in the way you desire.

Available for remote control or wire control.

Low noise design.

It is suitable be used for office, hospital, commercial place and home, the air conditioner will

create the comfortable and elegance environment for you.

Use refrigerant to transmit cool/heat directly, which provides a high transmitting efficiency.

Midea R410AT3 50Hz Top-discharge Series MCAC-UTSM-201707

2. Specifications

Model

MTB1T-96HWN1

MTB1T-96CWN1

Power supply

220-240V~, 1Ph, 50Hz

T1 Cooling

Capacity

Btu/h

96,000

96,000/87,860

28,100

28,100/25,750

Input

9,600

9,600/15,000

EER

W/W

2.93

2.93/1.72

T3 Cooling

Capacity

Btu/h

87,860

96,000/87,860

25,750

28,100/25,750

Input

15,000

9,600/15,000

EER

W/W

1.72

2.93/1.72

Heating

Capacity

Btu/h

106,000

31,100

Input

10,300

COP

W/W

3.02

Rated input

1,400

Rated current

5.8

Fan motor

Fan type

Centrifugal

Model

YDK300-4X

Quantity

Brand

Matchwell/Yongan

Input (Hi/Med/Lo)

880/730/615

Capacitor

20μF/450V

Speed (Hi/Med/Lo)

r/min

1,100/990/880

Coil

Number of rows

Tube pitch(a)×row pitch(b)

25.4×22

Fin spacing

1.5

Fin type

Hydrophilic aluminum fin

Tube size

Ф9.52

Tube type

Inner grooved copper pipe

Coil(W×H)

1,202×406.4

Number of circuits

Indoor air flow

m3/h

5100

External static pressure

100

Indoor noise pressure level

dB(A)

Refrigerant

Type

R410A

Control

Capillary

Design pressure

MPa

4.4/2.6

Refrigerant pipe (Liquid side/ Gas side)

Ф12.7/Ф25.4#

Connection wire

Power wire

3×2.5mm2

Signal wire

4×1.0mm2

2×1.0mm2
