Metra Electronics 99-7612A Manual de usuario
APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 3/31/2014 INST99-5804
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 99-7612
• ISO DIN radio provision with pocket
• Double DIN radio provisions
• 7612A-Coated with brushed aluminum look
• 7612B-Painted matte black
• A) Radio housing • B) Radio housing brackets • C) Pocket • D) (14) #8 x 3/8” Phillips screws
• E) (2) #8 x 1/2” Phillips screws • F) 7612 Wire harness
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7550 - 1995-up Nissan • 70-7551 - 1995-up Nissan amp integration
Antenna Adapter: • 40-NI11 - Nissan
• Panel removal tool • Phillips screwdriver • Socket wrench
TOOLS REQUIRED
Nissan Murano 2003-2007
99-7612A, 99-7612B
AB C D E F
Dash Disassembly
–Nissan Murano 2003-2007 (without OE NAV)* ......2-3
*Note: This kit will work in NAV models, but you will lose the
OE NAV controls, and voice prompts.
Kit Assembly
–ISO DIN radio provision with pocket ...................3-4
–Double DIN radio provision ................................4-5
Wiring Instructions ................................................ 5
99-7612

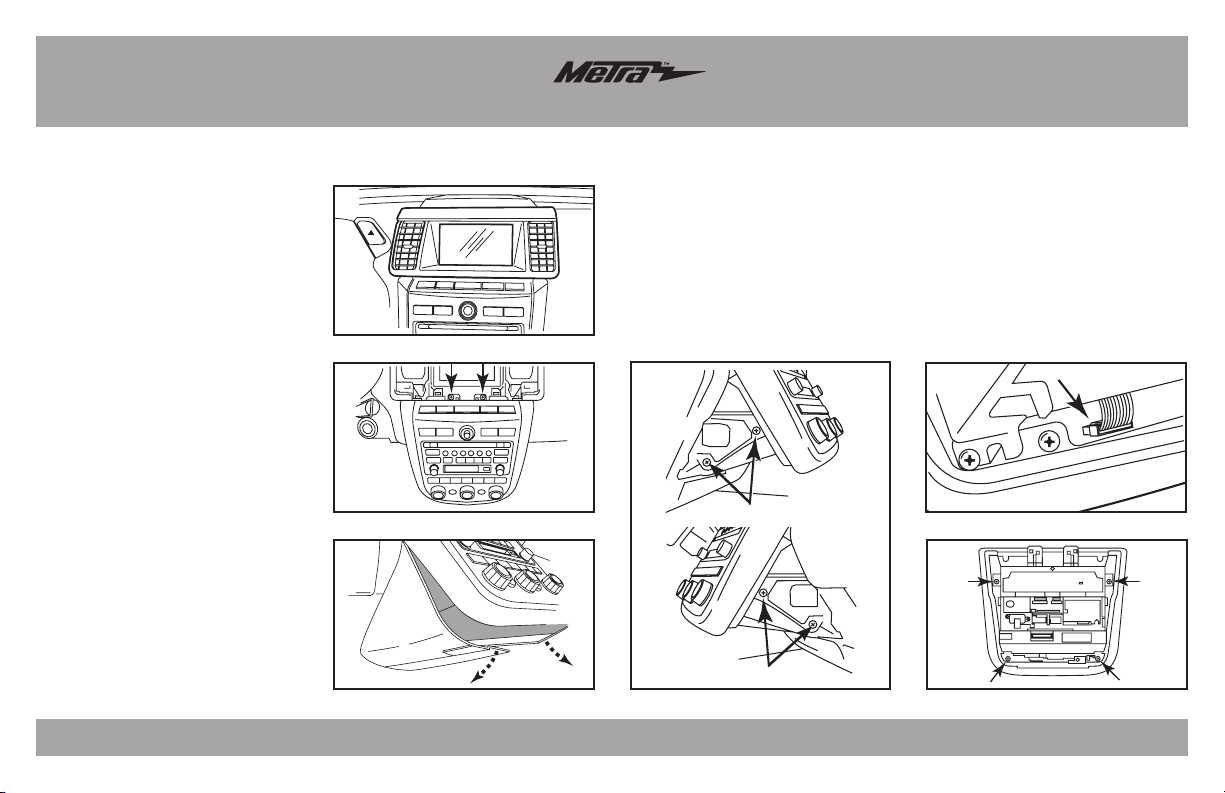

1. Unclip and remove the vent panel
above the radio. (Figure A)
2. Remove (2) Phillips screws
exposed behind the vent panel.
(Figure B)
3. Unclip and remove the lower trim
panel around the bottom of the
radio panel. (Figure C)
Continued on next page
Dash Disassembly
(Figure A)
(Figure E)
(Figure B) (Figure F)
(Figure C) (Figure D)
2
4. Remove (2) Phillips screws on each
side of the radio chassis exposed
behind the lower trim panel.
(Figure D)
5. Remove radio/climate control
assembly from the sub dash.
6. Remove (4) Phillips screws securing
the radio chassis to the factory
radio trim panel. Lift up slightly and
proceed to step 7. (Figure E)
7. Unlock the connector on the switch
panel and remove the cable joining
the chassis and switch panel.
(Figure F)
Continued on next page
Left side
Right side
99-7612
Dash Disassembly Kit Assembly
(Figure B)
(Figure A)
(Figure C)
(Figure G)
(Figure H)

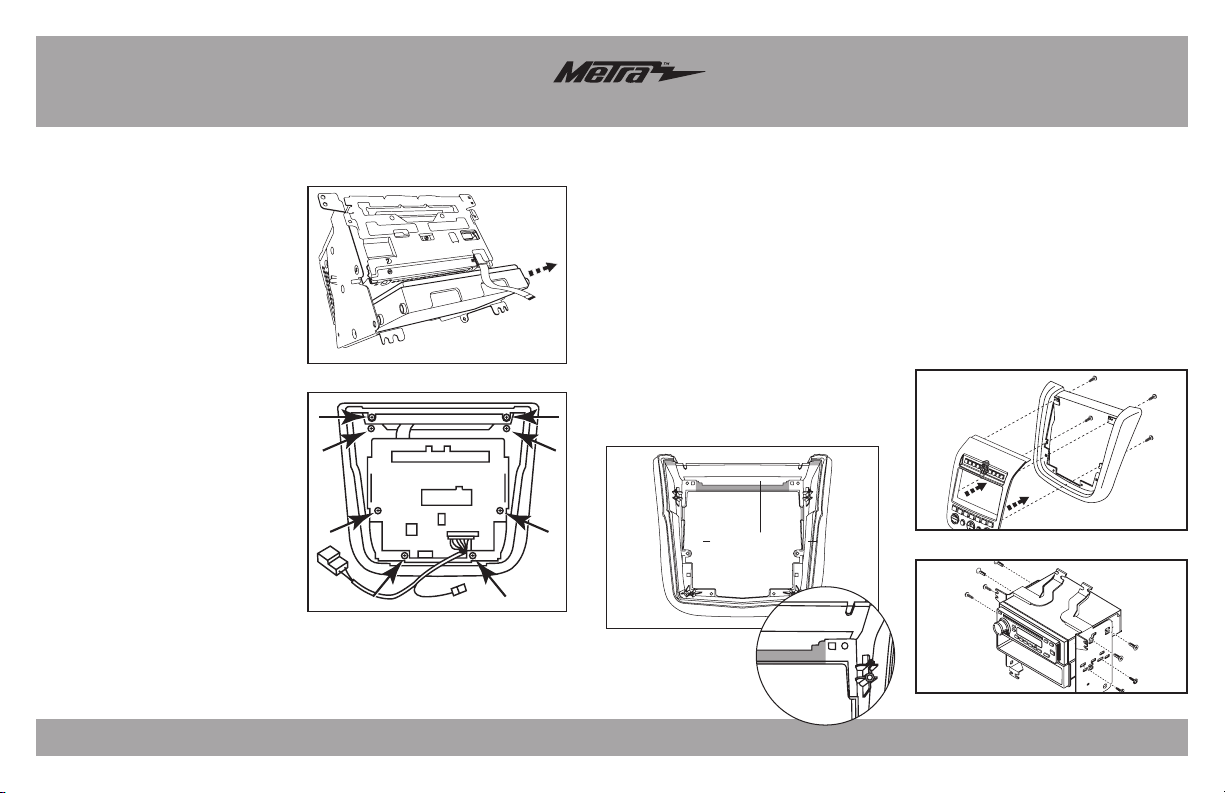

ISO DIN radio provision with pocket
1. Trim the shaded areas from the
factory radio trim panel. (Figure A)
Do not cut the locator and screw hole
off as they will be necessary to mount
the 99-7612 radio housing.
(See detail)
2. Attach the 99-7612 radio housing to
the radio trim panel using (4) supplied
3/8” Phillips screws. (Figure B)
3. Mount the radio housing brackets to
the aftermarket radio with the screws
supplied with the radio. (Figure C)
4. Mount the pocket to the radio/
bracket assembly using (4) 3/8”
Phillips screws supplied with the kit.
(Figure C)
Continued on next page
3
8. Remove the climate module
from radio chassis assembly.
(Figure G)
Note: The climate module will
be reused in kit assembly.
9. Remove (1) Phillip screw,
securing the white flat 16-pin
connector to the switch panel,
then remove the connector.
Note: This connector will be
reused in kit assembly.
10. Remove (8) Phillips screws
securing the switch panel to
the radio trim panel. (Figure H)
Note: The radio trim panel will
be reused in kit assembly.
Continue to kit assembly
Trim shaded areas
Detail
99-7612
ISO DIN radio provision
with pocket (continued)
5. Mount the climate module to the
radio/bracket assembly using
(2) 3/8” Phillips screws supplied
with the kit. (Figure D)
6. Plug the white flat 16-pin
connector, removed in
disassembly, into the 99-7612.
7. Mount the radio/pocket/climate
assembly to the radio trim panel
using (4) 3/8” Phillips screws
supplied with the kit. (Figure E)
8. Locate the factory wiring harness
and antenna plug in the dash.
Metra recommends using the
proper mating adapters from Metra
and/or AXXESS.
9. Follow the wiring instructions in
this manual and reassemble dash
in reverse order of disassembly.
Kit Assembly
(Figure D)
(Figure E)
4

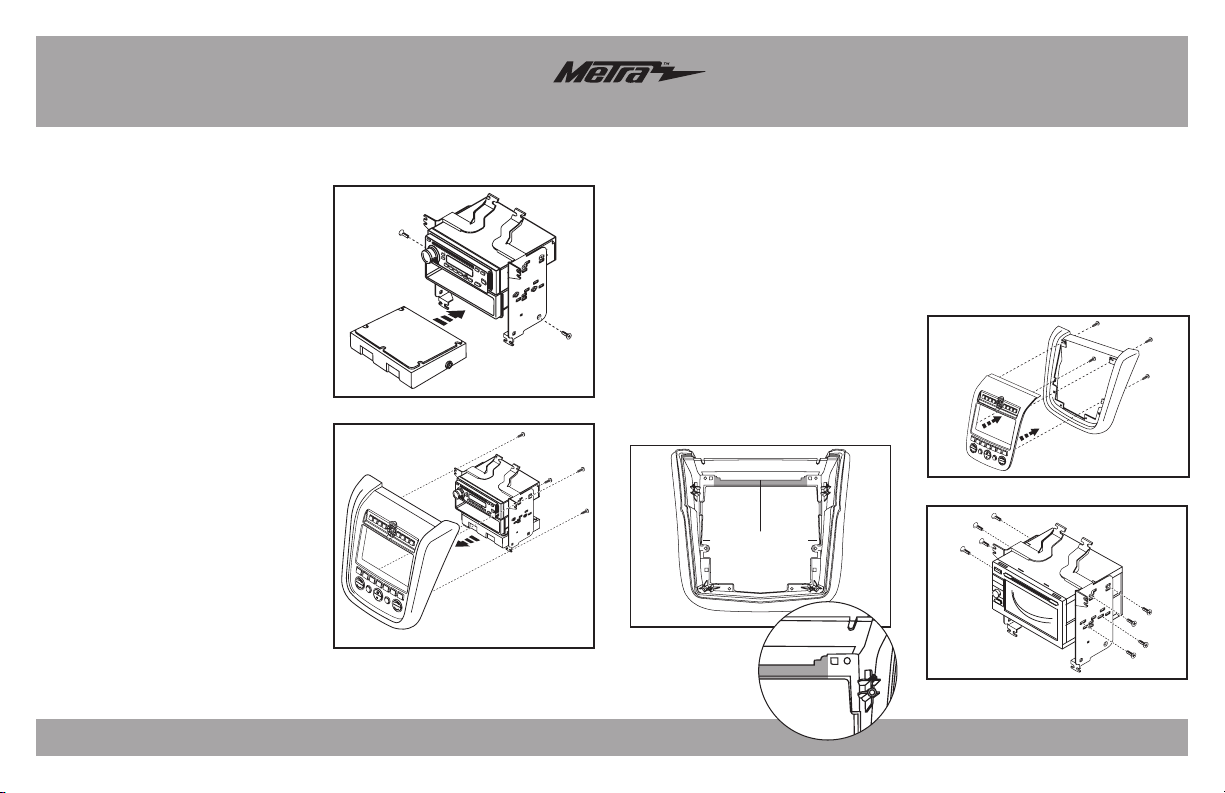

Double DIN radio provision
1. Trim the shaded areas from the
factory radio trim panel. (Figure A)
Do not cut the locator and screw
hole off as they will be necessary
to mount the 99-7612 radio
housing. (See detail)
2. Attach the 99-7612 radio housing
to the radio trim panel using (4)
supplied 3/8” Phillips screws.
(Figure B)
(Figure B)
(Figure A)
(Figure C)
Trim shaded areas
Detail
3. Slide the Double DIN aftermarket
radio into the radio housing
brackets and secure with screws
supplied with the radio. (Figure C)
Continued on next page
99-7612

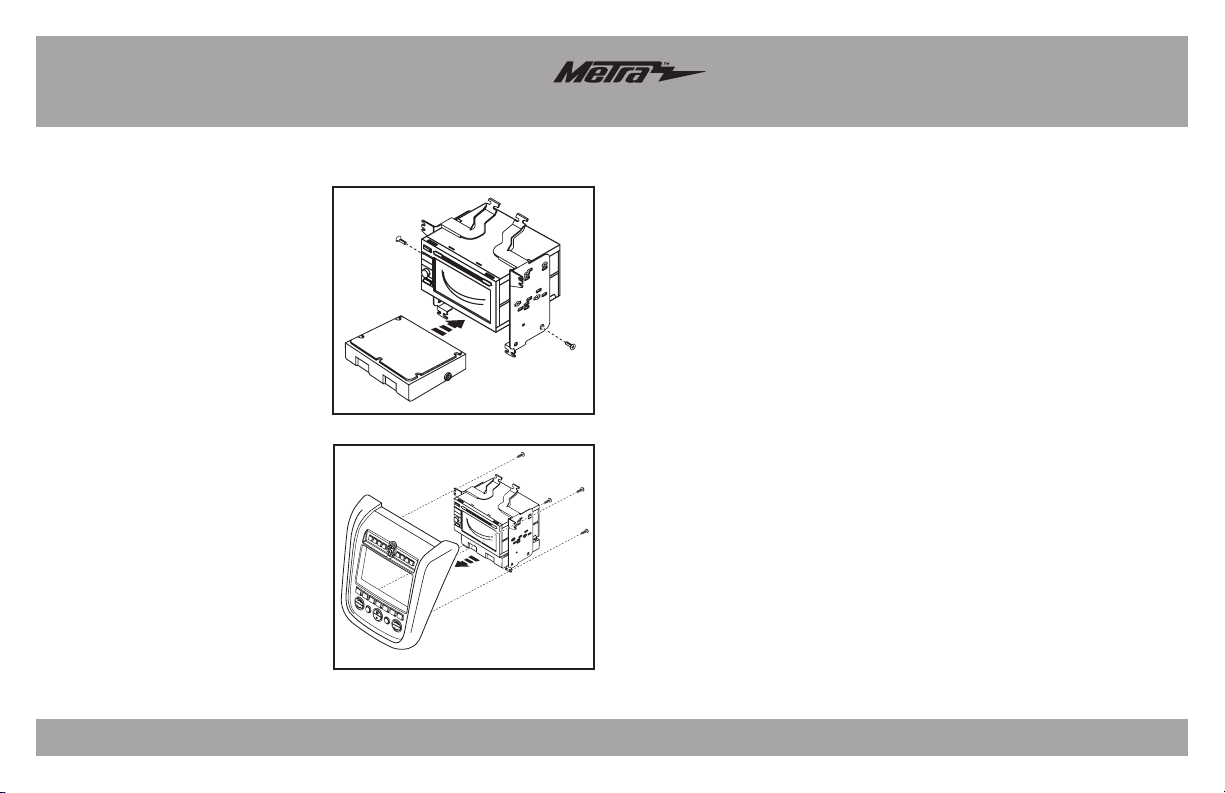

Double DIN radio provision
(continued)
4. Mount the climate module to the
radio/bracket assembly using (2)
3/8” Phillips screws supplied with
the kit. (Figure D)
5. Plug the white flat 16-pin
connector, removed in
disassembly, into the 99-7612.
6. Mount the radio/climate assembly
to the radio trim panel using (4)
3/8” Phillips screws supplied with
the kit. (Figure E)
7. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the radio for proper operation.
8. Follow the wiring instructions in
this manual and reassemble dash
in reverse order of disassembly.
Kit Assembly Wiring Instructions
5
From the included 7612 harness:
1. Plug the Black 16-way connector
into the 99-7612.
2. Plug the Black 12-way connector
into the 99-7612.
3. Plug the White 16-way connector
into the factory harness.
Driver Information Center
Button Control Note:
The metra kit button layout
does not provide the MAINT or
the E/M buttons from the factory
setup. MAINT button on the 99-7612 is
accessed by pressing the DAY/NIGHT
and HOUR buttons simultaneously.
The E/M button is done by pressing
PREV and MIN simultaneously.
(Figure D)
(Figure E)
Additional 12-pin harness (ASWC-1)
• This 12-pin harness is to be
used in conjunction with the
ASWC-1 (not included). Please
refer to the ASWC-1 instructions
for programming.
99-7612
Notes
99-7612
Notes
METRA. The World’s best kits.™1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 3/31/2014 INST99-5804
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
INSTALLATION INSTRUCTIONS FOR PART 99-7612
APLICACIONES
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 3/31/2014 INST99-5804
PRECAUCIÓN: Metra recomienda desconectar el terminal
negativo de la batería antes de comenzar cualquier
instalación. Todos los accesorios, interruptores y,
especialmente, las luces indicadoras de airbag deben
estar enchufados antes de volver a conectar la batería o
comenzar el ciclo de ignición.
NOTA: Remítase a las instrucciones incluidas con el
radio de postventa.
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7612
• Provisión de radio DIN ISO con bolsillo
• Provisión de radio doble DIN
• 7612A - Recubierto con aspecto de aluminio cepillado
• 7612B - Negro mate pintado
• A) Carcasa del radio • B) Soportes de carcasa del radio • C) Cavidad • D) (14) tornillos Phillips #8 x 3/8”
• E) (2) tornillos #8 x 1/2” • F) Arnés de cables 7612
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
CABLEADO Y CONEXIONES DE ANTENA (se venden por separado)
Arnés de cableado: • 70-7550 - Nissan 1995 y más • 70-7551 - Nissan 1995 y más con integración de amp
Adaptador de antena: • Adaptador de antena Nissan 40-NI10
• Herramienta para quitar paneles • Destornillador Phillips • Llave para dados
HERRAMIENTAS REquERIDAS
Nissan Murano 2003-2007
99-7612A, 99-7612B
AB C D E F
Desmontaje del tablero
–Nissan Murano 2003-2007 (sin OE NAV)* ............2-3
*Nota: Este kit funciona en algunos modelos de navegación,
pero se perderán los controles OE NAV, y los mensajes de voz.
Ensamble del kit
–Provisión de radio DIN ISO con bolsillo ..............3-4
–Provisión de radio doble DIN..............................4-5
Instrucciones de cableado .................................... 5
99-7612
1. Desenganche y quite el panel de
moldura que rodea la pantalla,
incluyendo los controles del aire
acondicionado. (Figura A)
2. Quite los (2) tornillos Phillips
que quedan a la vista detrás de
la rejilla/panel de moldura de la
pantalla. (Figura B)
3. Desenganche y quite el panel de
moldura de abajo alrededor de la
parte de abajo del panel del radio.
(Figura C)
Desmontaje del tablero
(Figura A)
(Figura E)
(Figura B) (Figura F)
(Figura C) (Figura D)
2
4. Quite los (2) tornillos Phillips de
cada lado del chasís del radio que
quedan a la vista detrás del panel
de la moldura de abajo. (Figura D)
5. Quite el ensamble del radio/control
de clima del sub tablero.
6. Quite los (4) tornillos Phillips que
sujetan el chasís del radio al panel
de la moldura del radio de fábrica.
(Figura E)
7. Desbloquee el conector del panel
del interruptor y quite el cable
que une el chasís y el panel del
interruptor. (Figura F)
Continúa en la página siguiente
lado izquierdo
lado derecha
