Metra Electronics 99-3043 Manual de usuario

INSTALLATION INSTRUCTIONS FOR PART 99-3043

APPLICATIONS

REV. 10/5/2012 INST99-3043

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

• DIN and ISO DIN unit provisions

• Factory pocket provisions

• A) Radio housing • B) Faceplate• C) Shaft supports • D) (4) 5 mm Flat head screws

• E) (2) Carriage bolts • F) (2) Keps nuts • G) (2) #6 Self tapping screws • H) ISO DIN brackets

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1858 - GM harness for select 1988-2002

Antenna Adapter:

• 40-GM10 - GM adaptor for select 1988-2006

• Cutting tool • Phillips screwdriver • Socket wrench

TOOLS REQUIRED

Chevrolet/GMC/Isuzu/Oldsmobile 1994-1997

99-3043

See application list inside

B CA D

F GE H

Applications

Chevrolet

Blazer .................................................................. 1995-1997

S-10 Pickup ......................................................... 1994-1997

GMC

Jimmy ................................................................. 1995-1997

Sonoma ............................................................... 1994-1997

Isuzu

Hombre ............................................................... 1996-1997

Oldsmobile

Bravada ............................................................... 1995-1997

Table of Contents

Dash Disassembly

– Chevrolet Blazer 1995-1997..............................................2

– Chevrolet S-10 Pickup 1994-1997 .....................................2

– GMC Jimmy 1995-1997 ....................................................2

– GMC Sonoma 1994-1997 ..................................................2

– Isuzu Hombre 1996-1997 ..................................................2

– Oldsmobile Bravada 1995-1997 ........................................2

Kit Assembly

– DIN head unit provision ......................................................3

– ISO DIN head unit provision................................................3

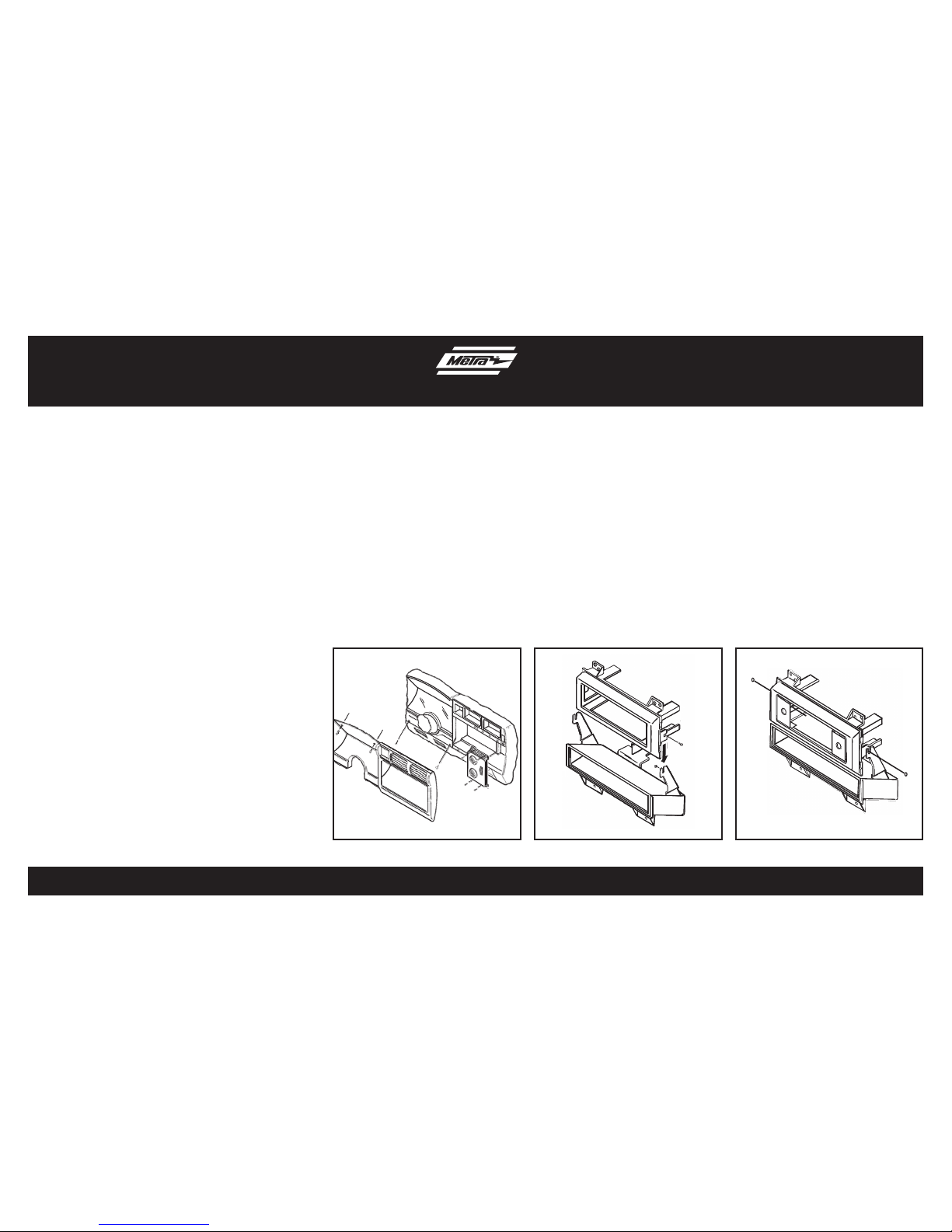

1. Remove (2) screws above the

speedometer cluster. (Figure A)

2. Remove the ashtray and

(1) screw exposed in the

ashtray cavity.

3. Remove (2) screws from the

lower steering column trim bezel

and remove the bezel. (Figure A)

4. Unclip the dash trim bezel,

disconnect the light switch

wiring, and remove the bezel.

5. Remove (4) screws securing

the climate control panel and

remove the panel. (Figure A)

6. Remove (4) screws

securing the factory head

unit/pocket assembly and

disconnect the wiring.

7. Remove the pocket from the

factory head unit and slide the

side tabs on the radio housing

between the mounting tabs on

the pocket. (Figure B)

8. Mount the pocket to the radio

housing with (2) carriage bolts

and (2) nuts supplied. (Figure C)

Continue to kit assembly

All Vehicles

99-3043 Dash Disassembly

(Figure B) (Figure C)

(Figure A)

(Figure B)

Kit Assembly

ISO DIN head unit provision

1. Snap the faceplate into the radio

housing. (Figure A)

2. Slide the aftermarket head unit into

the back of the kit. (Figure A)

3. Slide the ISO-DIN brackets onto the

housing legs and align the holes in the

brackets with the holes in the unit.

4. Mount the brackets to the unit with (4)

5 mm flat head screws supplied “A”.

(Figure A)

5. Mount the brackets to the top of the

housing legs with (2) #6 self-tapping

screws “B”. (Figure A)

6. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

7. Mount the head unit/kit assembly

to the sub-dash with (4) screws

previously removed. (Figure B)

8. Reassemble dash in reverse order of

disassembly.

(Figure A)

“A”

“B”

(Figure B)

DIN head units provision

1. Slide the DIN cage into the kit and

secure by bending the metal locking

tabs down. (Figure A)

2. Slide the aftermarket head unit into

the cage until secure. (Figure A)

3. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

4. Mount the head unit/kit assembly

to the sub-dash with (4) screws

previously removed. (Figure B)

5. Reassemble dash in reverse order of

disassembly.

(Figure A)

INSTALLATION INSTRUCTIONS FOR PART 99-3043

REV. 10/5/2012 INST99-3043

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians
