Merits

P310 series

Service Manual

Nov.1.2006 V1

Index

1. Introduction ............................................................................1

2. Service guide ...........................................................................1

2.1. How to replace or repair the seat assembly................................................ 1

2.1.1. To replace the seat body ................................................................................... 1

2.1.2. To replace the seat base plate assembly ............................................................ 2

2.1.3. To replace the seat post assembly ..................................................................... 2

2.1.4. To replace the left/right armrest ........................................................................ 3

2.2. How to replace or repair the body assembly .............................................. 5

2.2.1. To replace the shroud ....................................................................................... 5

2.2.2. To replace the footplate assembly..................................................................... 5

2.2.3. To replace the anti-tipper wheel assembly ........................................................ 6

2.2.4. To replace the caster wheel assembly................................................................ 7

2.2.5. To replace the driver wheel assembly ............................................................... 8

2.2.6. To replace the frame assembly.......................................................................... 9

The numbers shown in this service manual is just for reference. The part

numbers should be in accordance with current exploded drawing.

1. Introduction

The purpose of this manual is to provide dealers and/or distributors with

the product information and instructions that are required for servicing the

P310 powerchair.

2. Service guide

The P310 powerchair consists of three main parts:

nSeat assembly

nBody assembly

nElectrical system (Please refer to P3 /P7series Shark or VR2 service

manual)

2.1. How to replace or repair the seat assembly

The Seat assembly includes the seat body, the seat base plate, the seat

post assembly and the left/right armrest.

2.1.1. To replace the seat body

◆When should you replace the seat body?

◇If the seat body is worn out.

◇If the seat body is pierced or scratched by something.

◇If the powerchair crashed cause the seat body out of shape.

◆How to replace the seat body?

◇Please proceeding steps as follows if it has to replace.

Replace the seat body by the following steps if it is broken.

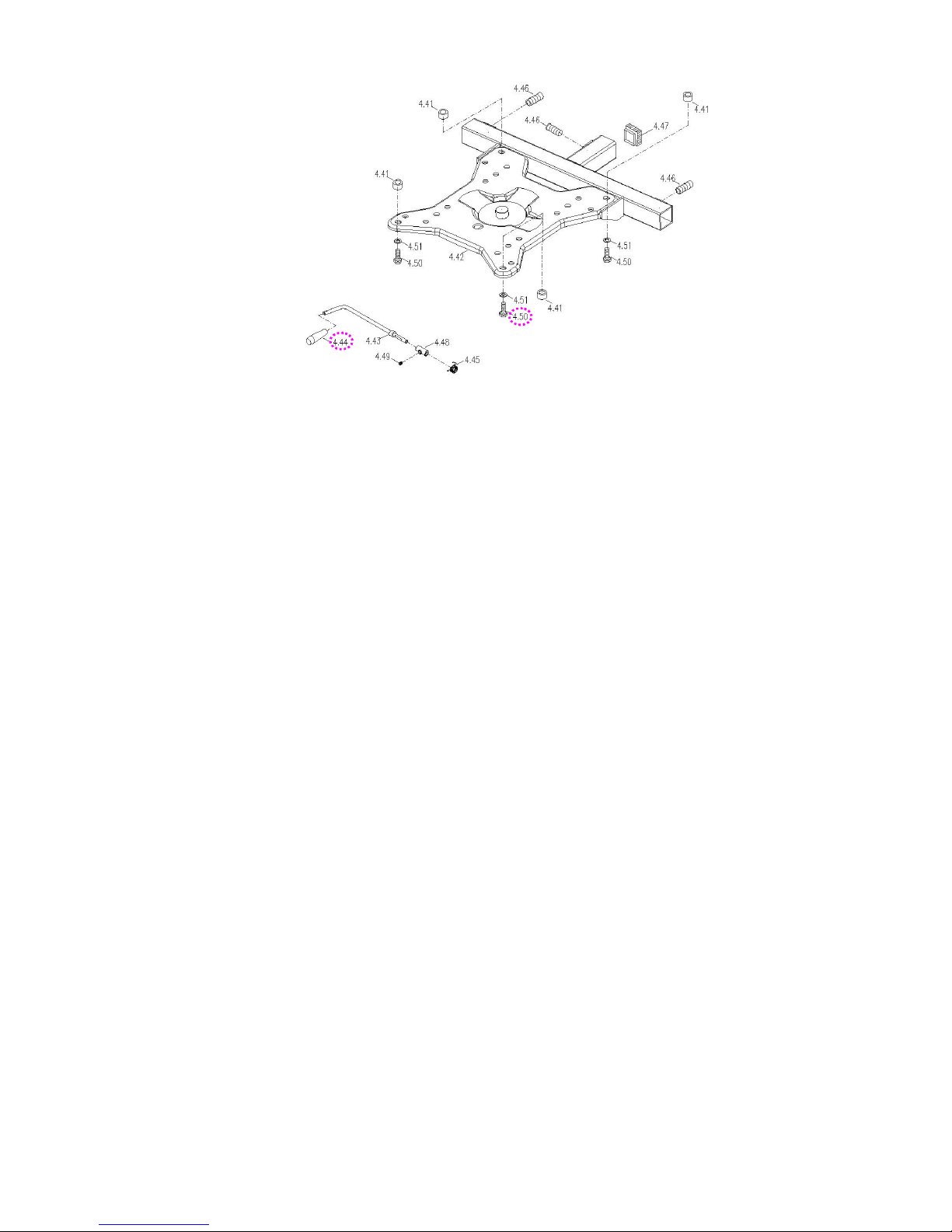

a. Pull the swivel lever (4.44) under the seat up to unlock it and

rotate the seat a little bit to the position where you can feel the

seat rotate freely. Pull the seat upward. (See next page)

b. Use hex tools to loosen four pieces hex fixed bolt (4.50) on

seat base plate assembly and remove the seat body from the

seat base plate assembly if it is broken. (See next page)

2.1.2. To replace the seat base plate assembly

◆When should you replace the seat base plate assembly?

◇If the seat base plate is deformation.

◇If the seat base plate out of shape due to an accident.

◆How to replace the seat base plate assembly?

◇Please proceeding steps as follows if it has to replace.

Follow preceding step of 2.1.1. You can remove seat base plate

assembly too if it is worn out or deformed.

2.1.3. To replace the seat post assembly

◆When should you replace the seat post assembly?

◇If the seat post is deformation.

◇If the seat post out of shape due to an accident.

◆How to replace the seat post assembly?

◇Please proceeding steps as follows if it has to replace.

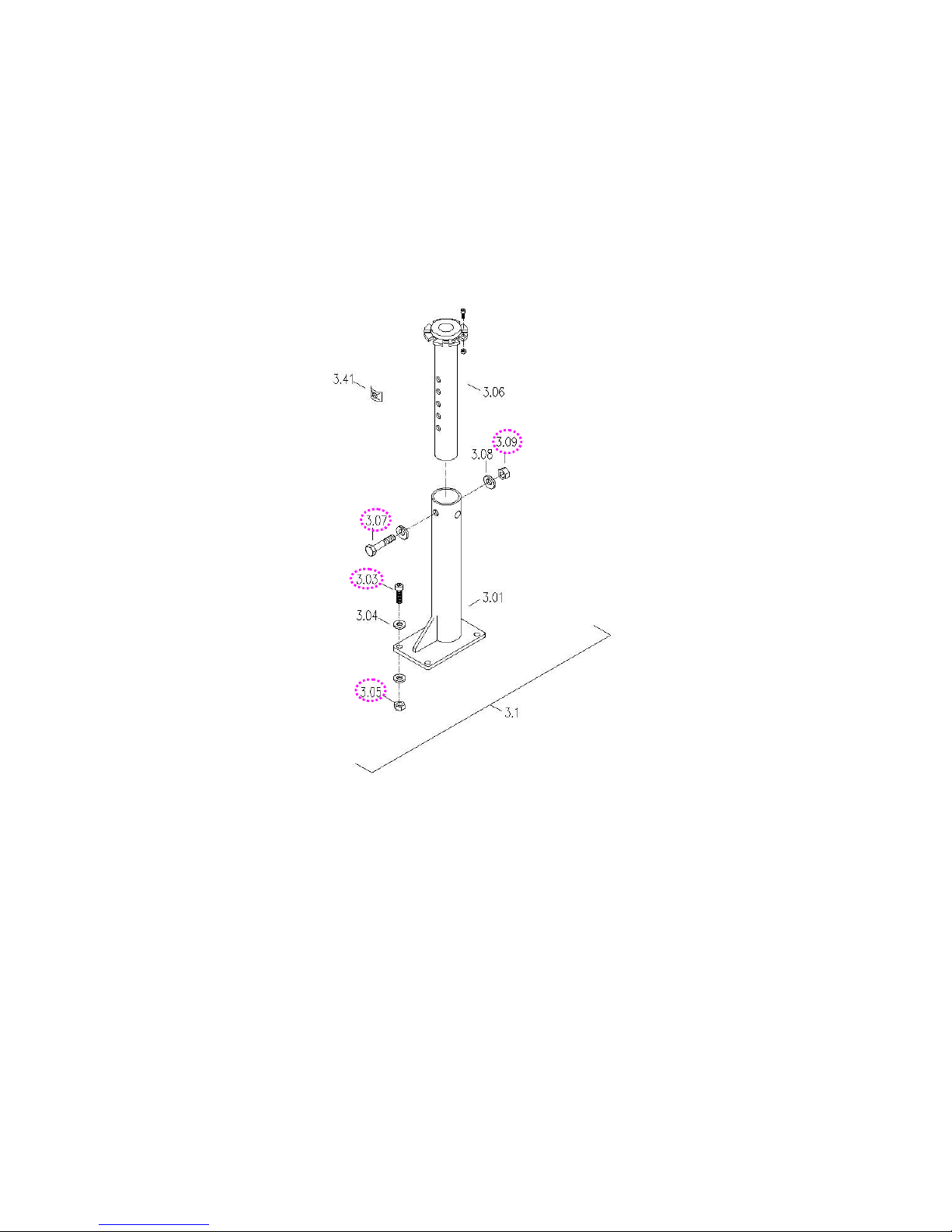

The seat post assembly includes the upper seat post and the lower

seat post.

a. To replace the upper seat post: Use two wrenches to loosen

the nut (3.09) and screw (3.07) to remove the upper seat post if

it is worn out or deformed.

b. To replace the lower seat post: Repeat step of a. then hold the

screw (3.03) and loosen the nut (3.05) to remove the lower seat

post if it is worn out or deformed.

2.1.4. To replace the left/right armrest

◆When should you replace the armrest?

◇If the armrest is worn out.

◇If the armrest is pierced or scratched by something.

◇If the powerchair crashed cause the armrest out of shape.

◆How to replace the armrest?

◇Please proceeding steps as follows if it has to replace.

Use hex tools to loosen bolt (3.28) under armrest to disassemble

armrest from armrest support plate. If the armrest is broken, then

replace it.

Note: The arm tube protective shrouds (3.34 and 3.35) are option

parts for powerchair.

2.2. How to replace or repair the body assembly

The Body Assembly includes shroud, footplate assembly, anti-tipper

wheel assembly, caster wheel assembly, driver wheel assembly and the

frame assembly.

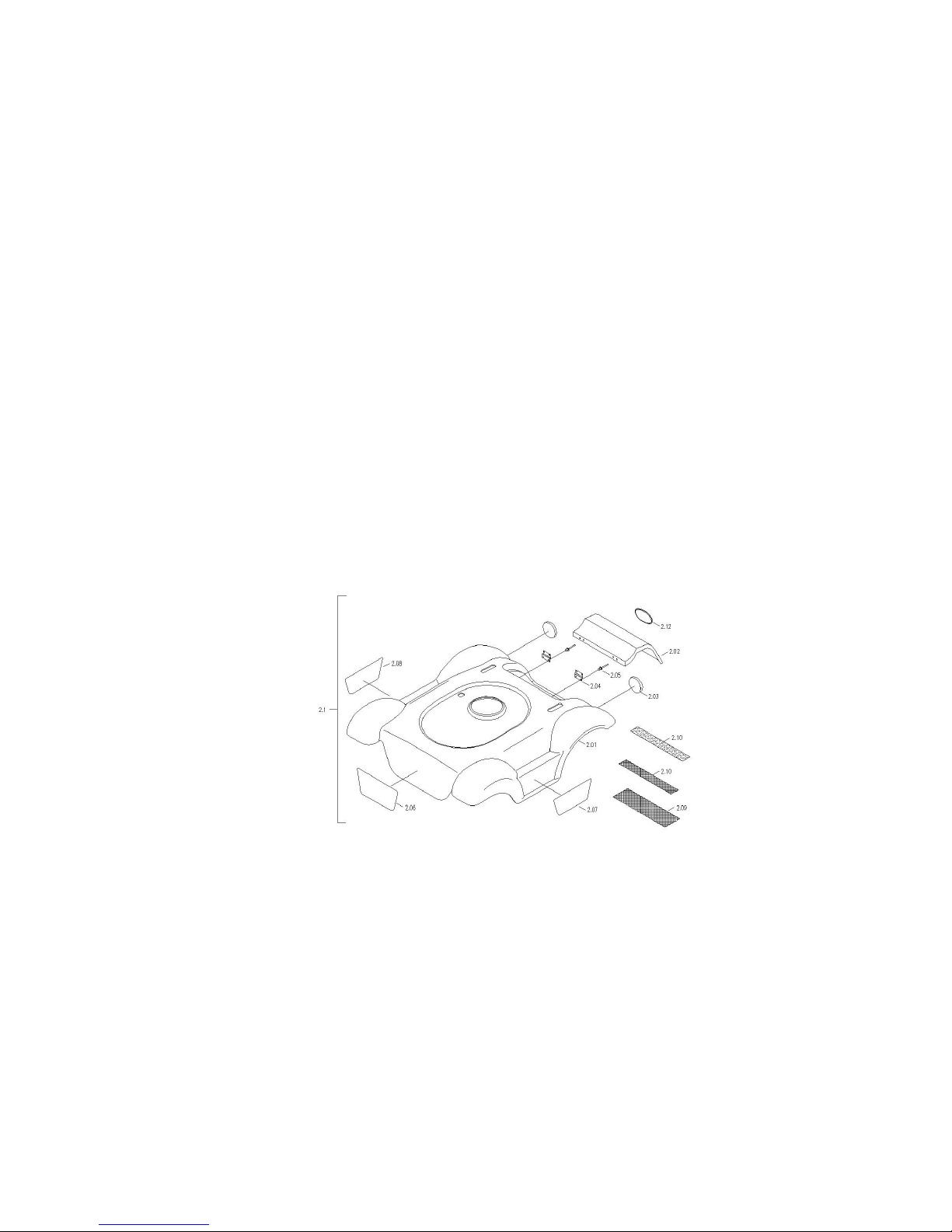

2.2.1.To replace the shroud

◆When should you replace the shroud?

◇If your powerchair can not avoid knocked or bumped cause the

shroud broken.

◆How to replace the shroud?

◇Please proceeding steps as follows if it has to replace.

Check for deformations or cracks on the shroud. Simply lift the

shroud straight up then replace it.

2.2.2.To replace the footplate assembly

◆When should you replace the footplate assembly?

◇If the footplate assembly is deformation.

◇If the footplate assembly out of shape due to an accident.

◆How to replace the footplate assembly?

◇Please proceeding steps as follows if it has to replace.

Replace the footplate assembly if it is worn out or deformed. Hold

the screw (8.07) and loosen the nut (8.08) and then replace the

footplate assembly.

Hole the screw (8.03) and loosen the nut (8.10) then remove the

footplate. If the footplate is worn out, then replace it.

2.2.3.To replace the anti-tipper wheel assembly

◆When should you replace the anti-tipper wheel assembly?

◇If the anti-tipper wheel assembly is worn out.

◇If your powerchair can not avoid knocked or bumped cause the

anti-tipper wheel broken.

◆How to replace the anti-tipper wheel assembly?

◇Please proceeding steps as follows if it has to replace.

Replace the anti-tipper wheel assembly if it is worn out or

deformed. Hold the screw (1.36) and loosen the nut (1.38) and

then replace the anti-tipper wheel assembly. (See next page)

Replace the anti-tipper wheel if it is worn out or deformed. Hold

the screw (1.33) and loosen the nut (1.35) and then replace the

anti-tipper wheel. (See next page)

2.2.4.To replace the caster wheel assembly

◆When should you replace the caster wheel assembly?

◇If the caster wheel assembly is worn out.

◇If the caster wheel assembly is out of shape due to an accident.

◆How to replace the caster wheel assembly?

◇Please proceeding steps as follows if it has to replace.

The caster wheel assembly is composed of a caster wheel and

fork.

Replace the caster wheel assembly by the following steps if, after

inspection, the assembly is found to be deformed.

a. Remove the seat assembly.

b. Remove the shroud.

c. Fix the caster wheel in place, use wrench to loosen the nut of

assembly (5.13 or 7.07) and then remove the caster wheel

assembly. (See next page)

Replace the caster wheel by the following steps if it is worn out or

deformed.

a. Hold the screw (5.09 or 7.02) and loosen the nut (5.11 or 7.05)

and then remove the caster wheel. (See next page)

b. If the PU tire is worn out, then replace it.

PU form (two piece of rims)

solid tire (one piece of rim)

2.2.5.To replace the driver wheel assembly

◆When should you replace the driver wheel assembly?

◇If the driver wheel assembly is worn out.

◇If the driver wheel assembly is out of shape due to an accident.

◆How to replace the driver wheel assembly?

◇Please proceeding steps as follows if it has to replace.

Loosen the nut (5.59) and washer (5.58) to replace the driver

wheel assembly if it is worn out or deformed. (See next page)
