Merit 715T PLUS Manual de usuario

TREADMILL OWNER’S MANUAL

MANUAL DEL PROPIETARIO DE LA CAMINADORA

Read the TREADMILL GUIDE before using this OWNER’S MANUAL.

Lea la GUÍA DEL USUARIO DE LA CAMINADORA antes de usar este MANUAL DEL PROPIETARIO.

715T

3 ENGLISH

22 ESPAÑOL

ASSEMBLY

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly

instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the

treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the

treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill’s serial number located near the on/off

power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.

SERIAL NUMBER:

MODEL NAME: MERIT 715T TREADMILL

WARNING

TRANSPORT WHEEL

ON/OFF SWITCH

CIRCUIT

BREAKER

POWER CORD

WATER BOTTLE

POCKET

SAFTEY KEY PLACEMENT

CONSOLE MAST

MOTOR COVER

RUNNING BELT/RUNNING DECK

SIDE RAIL

ROLLER END CAP

REAR ROLLER

ADJUSTMENT BOLTS

CONTROL PANEL

CONSOLE

TOOLS INCLUDED:

F5 mm L Wrench

F6 mm T-Wrench

FScrewdriver

PARTS INCLUDED:

F1 Safety Key

F1 Console Assembly

F2 Console Masts

F1 Water Bottle Pocket

F2 End Caps

F3 Hardware Bags

F1 Bottle of Silicone Lubricant

(for 2 applications)

If you have questions or if

there are any missing parts,

contact Customer Tech

Support. Contact information

is located on the back panel

of this manual.

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill

from packaging until specified to do so in the assembly instructions. You may

remove the plastic wrap from console masts.

WARNING

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a

protective covering on your floor. Take CAUTION when handling and transporting this

unit. Never open box when it is on its side. Once the banding straps have been removed,

do not lift or transport this unit unless it is fully assembled and in the upright folded

position, with the lock latch secure. Unpack the unit where it will be used. Never grab

hold of any portion of the incline frame and attempt to lift or move the treadmill.

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

WARNING

NEED HELP?

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and

partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease,

such as lithium bike grease is recommended.

PRE ASSEMBLY

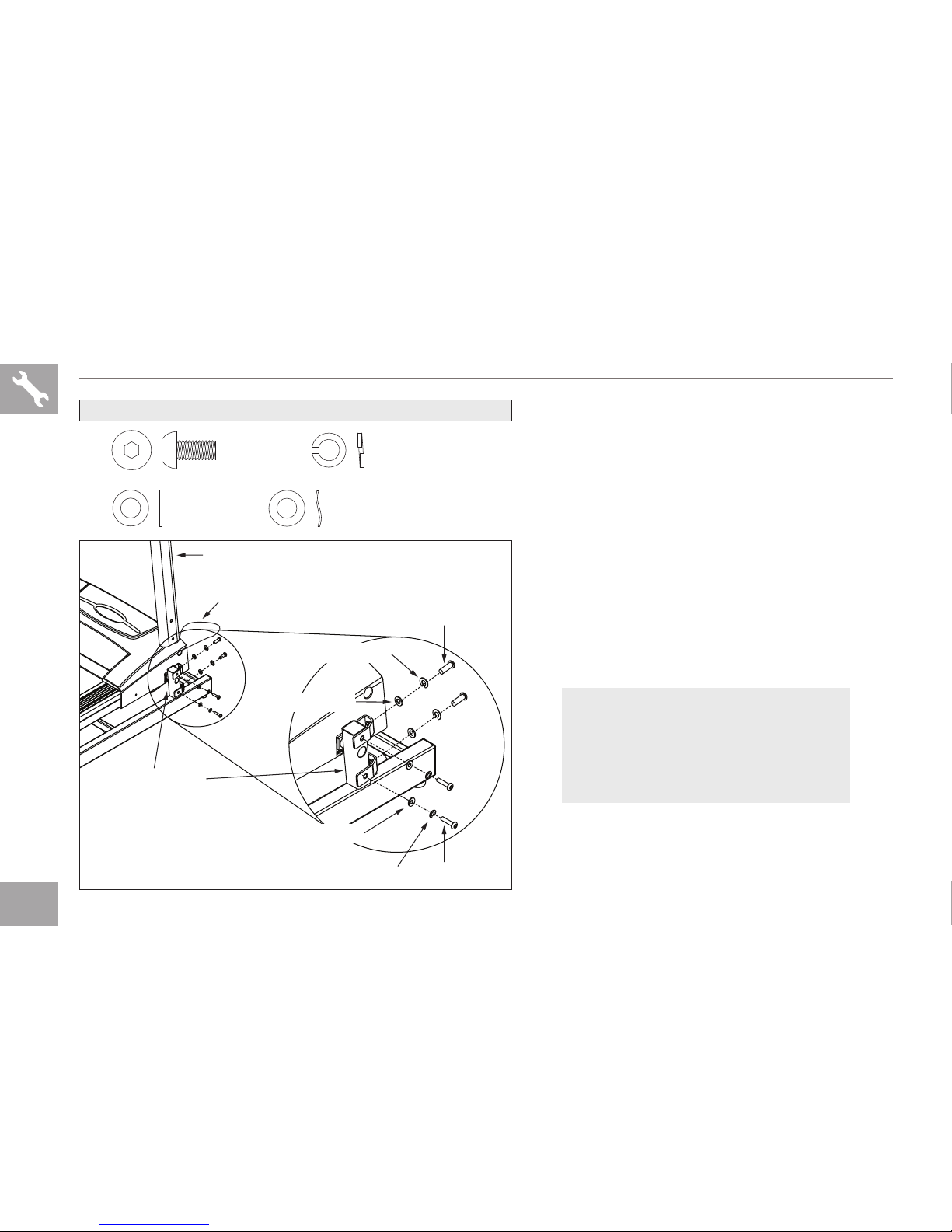

ASSEMBLY STEP 1

A Open HARDWARE BAG 1.

B Slide the right CONSOLE MAST down on to

the CONSOLE MAST SUPPORT TUBE. On

the front of the CONSOLE MAST, bolt in place

using 2 BOLTS (A), 2 SPRING WASHERS

(B), and 2 ARC WASHERS (D). On the side

of the CONSOLE MAST, bolt in place using 2

BOLTS (A), 2 SPRING WASHERS (B), and 2

FLAT WASHERS (C).

C Repeat on other side.

D On right side thread CONSOLE MAST WIRE

through CONSOLE MAST.

WASHER (C)

15.5 mm

Qty: 4

ARC WASHER (D)

17 mm

Qty: 4

SPRING WASHER (B)

15.4 mm

Qty: 8

BOLT (A)

15 mm

Qty: 8

HARDWARE BAG 1 CONTENTS :

BOLT (A)

SPRING WASHER (B)

CONSOLE MAST

SUPPORT TUBE

BOLT (A)

CONSOLE WIRE

SPRING WASHER (B)

ARC WASHER (D)

FLAT WASHER (C)

NOTE: While assembling the masts, do

not completely tighten any bolts until

the end of ASSEMBLY STEP 2. Ensure

that ALL bolts are in place and partially

threaded in before completely tightening

any ONE bolt.

ASSEMBLY STEP 2

A Open HARDWARE BAG 2.

B Attach the CONSOLE to the CONSOLE

MAST using 2 BOLTS (E), 2 SPRING

WASHERS (B), and 2 ARC WASHERS (D).

C Repeat on other side.

D After all bolts are inserted for assembly step

1 and assembly step 2, all bolts can be

completely tightened.

ARC WASHER (D)

17 mm

Qty: 4

SPRING WASHER (B)

15.4 mm

Qty: 4

BOLT (E)

25 mm

Qty: 4

HARDWARE BAG 2 CONTENTS :

BOLT (E)

SPRING WASHER (B)

ARC WASHER (D)

CONSOLE

CONSOLE MAST

NOTE: Be careful not to pinch any wires

while assembling the masts.

ASSEMBLY STEP 3

CONSOLE

CABLE

COVER

A Connect the CONSOLE CABLES and carefully

tuck wires in CONSOLE MAST to avoid

damage.

NOTE: Do not pinch console cable. Be sure the

console cable prongs are aligned and the ends

are tightly seated into each other.

B Attach CONSOLE CABLE COVER.

C Slide the WATER BOTTLE HOLDER down

into the hole in the CONSOLE and snap

together.

WATER BOTTLE HOLDER

CONSOLE

CONSOLE MAST

NOTE: There is no hardware bag for Assembly Step 3.

NOTE: Be careful not to pinch any wires

while assembling the masts.

ASSEMBLY STEP 4

A Open HARDWARE BAG 3.

B Fold up treadmill.

NOTE: Lock latch must be securely engaged

before proceeding with assembly.

C Attach the right ROLLER END CAP using 2

SCREWS (F).

D Repeat on the other side.

E Before the first use, lubricate the treadmill

deck by following the instructions in the

MAINTENANCE section in the TREADMILL

GUIDE.

SCREW (F)

15 mm

Qty: 4

HARDWARE BAG 4 CONTENTS :

SCREWS (F)

ROLLER END CAPS

YOU ARE FINISHED!
