ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 1 of 6
85-03-00924
Installation Instructions
Open this package and identify the parts included with the Panoramic Liner and Panel Kit. If any parts are missing,
contact your Mendota Dealer before proceeding with this installation and obtain the missing parts.
Note: This kit contains a One-Piece Panoramic Liner and a matching color Floor Panel coated with porcelain. Be Careful
not to scratch, crack, or chip the panels!
CAUTION: The Panoramic Liner should be considered as Glass and should be handled with care to prevent
cracking or chipping.
LIST OF PARTS INCLUDED
QTY.
DESCRIPTION
1
PANORAMIC LINER
2
FLOOR PANEL
Other materials required but not included: GLASS CLEANER
SOLUTION FOR CLEANING REFRACTORY FINISH.
TOOLS REQUIRED
Door Removal Tool
(Supplied with fireplace)
¼” HEX DRIVER
General Cleaning & Maintenance: Spray a glass
cleaner solution on a dry soft cloth and wipe the
Panoramic panel surfaces to remove any dirt and
finger prints from the surface. DO NOT use an
abrasive cleaner or a cleaner that contains ammonia.
PILOT
CLEARANNCE
CUTOUT
ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 2 of 6
85-03-00924
Installation Instructions
2.) PULL
3.) ROTATE
4.) RELEASE
1.) INSERT
Instructions:

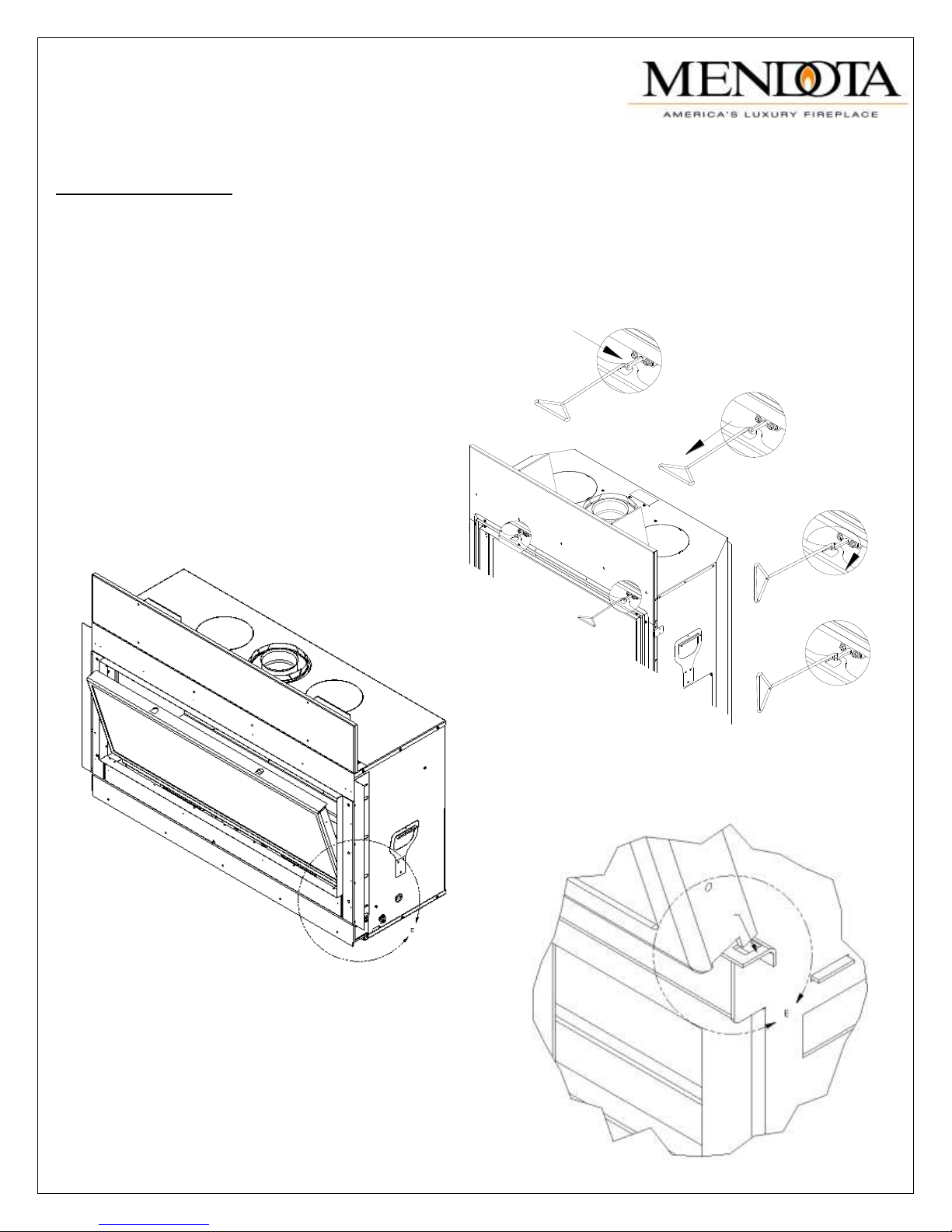

TO REMOVE DOOR
1. Use the glass latch tool to disconnect the spring latches from the glass frame. Insert tool into hole in latch, pull
towards you and Rotate 90 degrees to disengage top latches. Remove tool. There are two spring latches on top of
this gas fireplace.
2. With both hands, rotate top edge of glass frame away from unit 8 inches.
3. Lift glass frame up 1 inch, at an angle, and move away from unit.
4. Door is now free from unit.
ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 3 of 6
85-03-00924
Installation Instructions

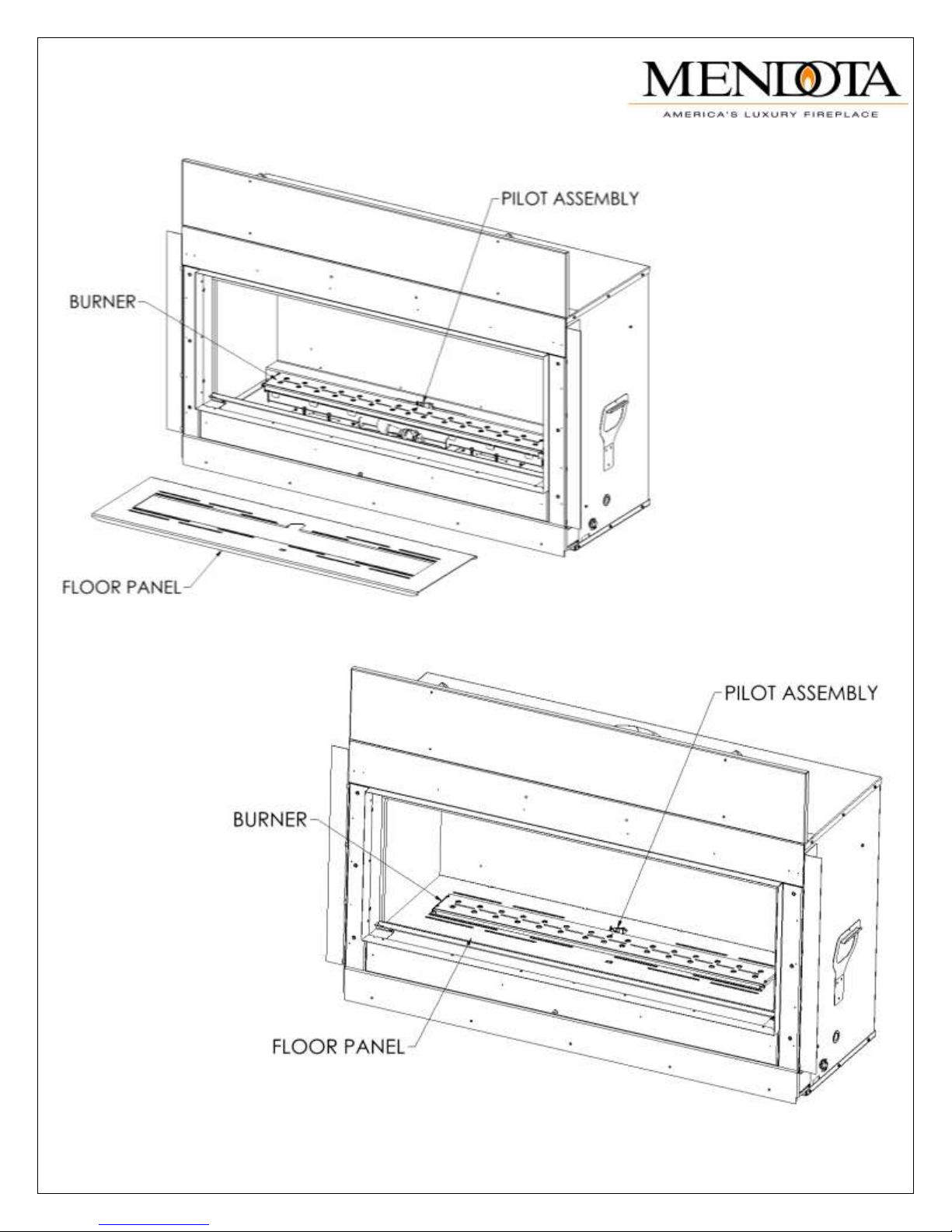

After removing the Door,
Place the Floor Panel over
the Burner, with cutout
toward the back for the Pilot
Assembly.
ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 4 of 6
85-03-00924
Installation Instructions
Remove the Light Cover Bracket and
(2) Screws that hold it in, before
installing the Panoramic Liner.
Once the Light Cover Bracket is
removed, the Panoramic Liner is
ready to be installed.
ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 5 of 6
85-03-00924
Installation Instructions
Slide the Panoramic
Liner in halfway then tilt
the backside up to clear
the Pilot Assembly. Slide
Liner all the way to the
back.
Take extreme care not
to damage pilot hood,
sparker rod or flame
sensor hook.
After installing the Panoramic Panel,
Replace the Light Cover Bracket and (2)
Screws.
ML47 PANORAMIC LINER AND FLOOR
PANEL SET - INSTALLATION INSTRUCTIONS
Page 6 of 6
85-03-00924
Installation Instructions
2.) PULL
3.) ROTATE
4.) RELEASE
1.) INSERT
.

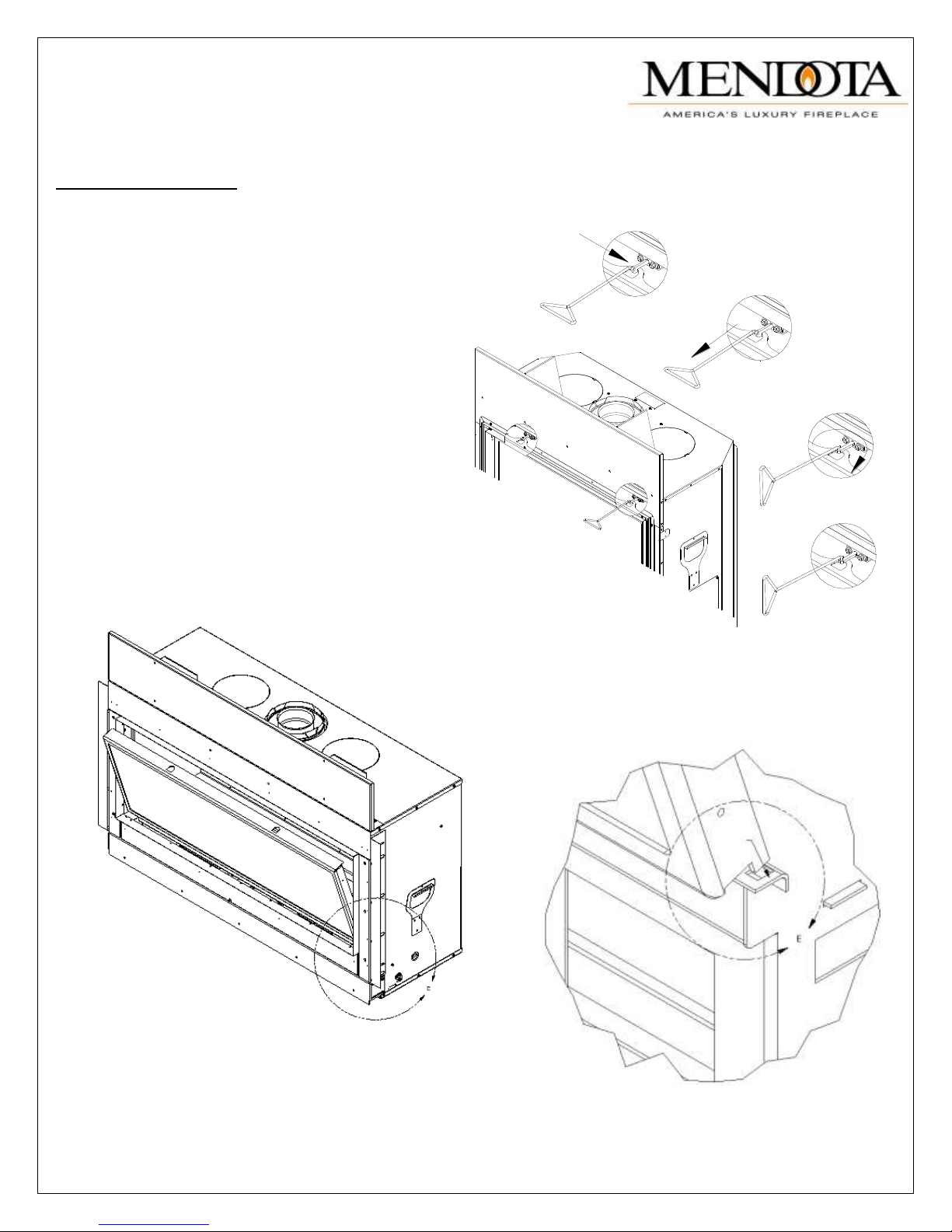

TO REPLACE DOOR
1Identify small tabs that protrude downward on the bottom left and right corners of glass frame. Identify a rectangle slot
on the bottom right and left corners of firebox opening
sides.
1. Carefully line up the bottom corner tabs in glass
frame bottom corners with slots in firebox bottom
left and right corners. Insert tabs into slots and
center glass frame over firebox, left to right.
2. After door has been placed into slots, rotate door
towards firebox until gasket seal is touching the
firebox frame.
3. Use the tool provided to connect the spring latches
to the glass frame. Insert tool into hole in spring
latch, pull latch towards you, rotate latch so the
hook is facing downward then release latch to
hook to door frame.
4. Door is now connected and sealed to unit.
Figure 1
