Operating instructions

Control MIKE 3 - CE

for MEIKO dishwashers

K160 / BTA160/240

TRANSLATION OF THE "ORIGINAL OPERATING INSTRUCTIONS"

The original operating instructions can be downloaded from: https://partnernet.meiko.de

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

2/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

Contents

Page

1Short operating instructions 3

2General information 4

3Description of the MIKE 3 CE electronic system 4

3.1 Description of the membrane key-pad, operation 4

3.2 Operation 5

3.2.1 Filling - Heating 5

3.2.2 Washing 6

3.2.3 Washing interruption 6

3.2.4 Program selection 6

3.2.5 Machine off 7

3.2.6 Impulse switching 7

4Description of the membrane keypad, navigation 8

4.1 Information output 10

4.1.1 Overview of ínformation output 10

4.1.2 Temperatures 10

4.1.3 Operating times 11

4.1.4 General information 11

4.2 Parameterisation 12

4.2.1 Entry to the parameterisation level 12

5Error messages 12

5.1 Error messages - washing not possible 12

5.2 Error messages –limited washing capability 13

6Control version 13

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

3/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

1 Short operating instructions

Open the stop valve in the water

pipe.

Switch on the power supply

from the building.

Membrane

keypad

Meaning

Display

Starting condition: Machine off!

Machine off

The machine’s wash-tanks are filled and heated

by pressing the ”Filling - Heating“ key.

Filling

The tank heating elements switch on as soon

as, the minimum water level has been reached.

Filling / Heating

WT1 45°C KSP1 80°C

As soon as all the tanks are full, the display

shows:

Heating

WT1 45°C KSP1 80°C

The machine is “ready for operation” as soon

as, the required tank temperature is reached.

Ready for operation

WT1 65°C KSP1 82°C

Washing is started by pressing the “Wash“ key.

Operation

WT1 65°C KSP1 82°C

The programme selection buttons ( I –II )

currently have no function.

Washing is interrupted by pressing the “Pause

Wash“ key.

The display shows:

Ready for operation

WT1 65°C KSP1 82°C

The machine is switched off by pressing the

“Machine Off“ key.

Machine off

Switch the power supply from the building off.

Clean the machine.

See the“Cleaning“ chapter in the machine’s Operating Instructions.

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

4/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

2 General information

The Operating Instructions are part of the scope of delivery of the control and must be

kept in a place which is available to the machine’s operating and maintenance staff at all

times.

These Operating Instructions are valid from version V2.2A

Operation and maintenance may only be entrusted to staff who have previously

familiarised themselves with these Operating Instructions. The manufacturer’s warranty

obligations are rendered null and void if the machine is improperly used.

Observe the Safety Instructions in the machine’s Operating Instructions and in these

Operating Instructions.

We reserve the right to make changes as part of the development process. No claims of

any nature whatsoever may be derived from these Operating Instructions.

The user must read the Operating Instructions before the first time the machine is used

so that he / she is familiar with the main operating functions.

3 Description of the MIKE 3 - CE electronic system

The multi-functional "MIKE 3 - CE" system is a programmable micro-processor system for

the purpose of controlling and monitoring the operational and hygiene safety of MEIKO

basket transport dishwashing machines.

The electronic system is operated by a 24 V low safety voltage.

3.1 Description of the membrane key-pad, operation

Display

Interruption I - II

Machine off

Filling-Heating

Washing

interruption

Washing

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

5/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

3.2 Operation

If the machine has been prepared for operation as described in the Operating Instructions

for the machine, it may be switched on. All the steps necessary to prepare it for operation

are described below.

Open the stop valve in the water

pipe.

Switch on the power supply

from the building.

The starting point is the machine when it is switched off.

The display shows:

Machine off

All the operating steps described below may be available. However, not every

machine has every operating step.

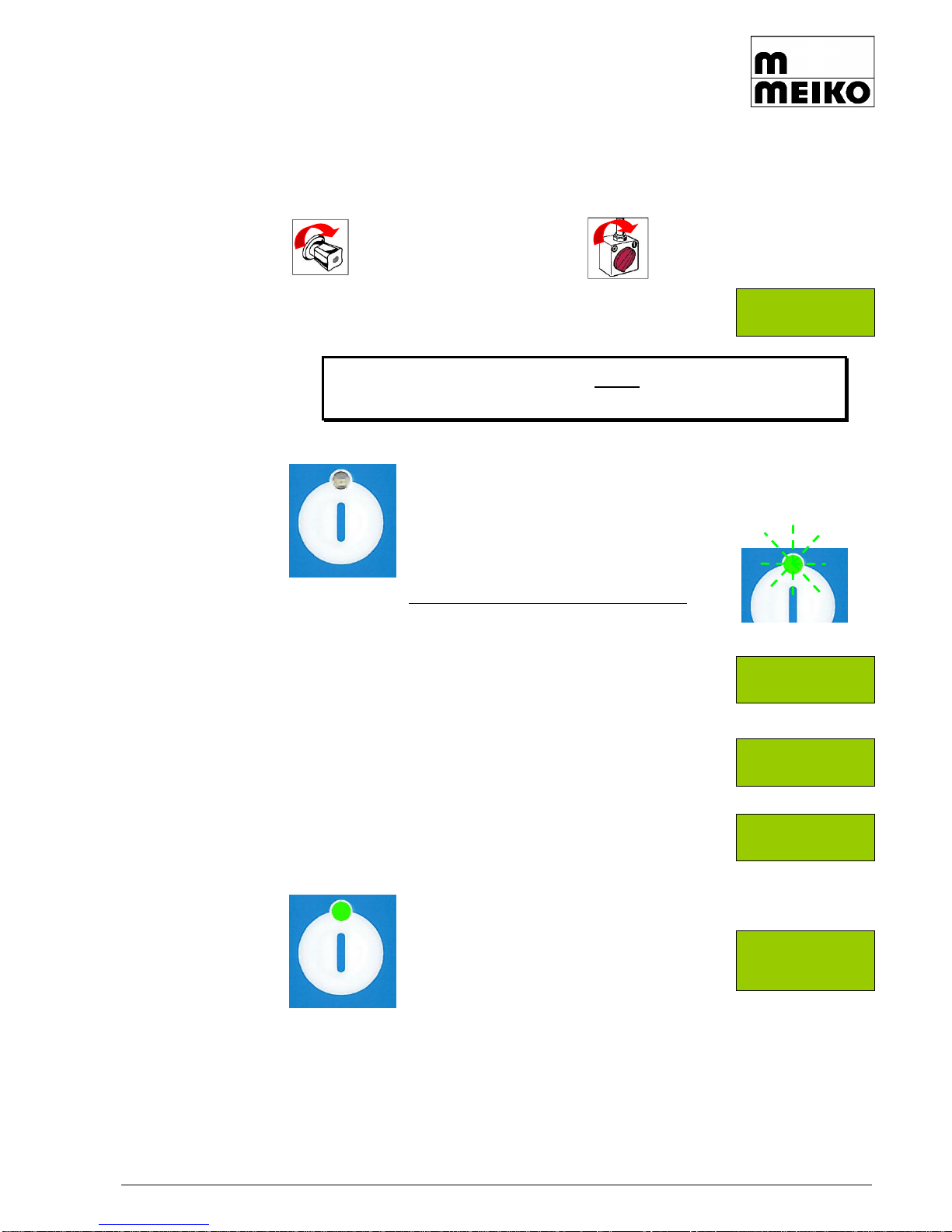

3.2.1 Filling - Heating

"Filling-Heating

key"

The machine’s wash-tanks are filled and heated

by pressing the ”Filling - Heating“ key.

All doors and drains must be closed before the

machine will fill and heat. Any open doors are

indicated in the display.

The LED of “Filling / Heating key” will flash!

The display shows:

The display indicates the stage the process has reached.

The tank heating elements switch on as soon as the minimum water

level has been reached. The display shows:

(Exception: the temperature of the water entering the machine is

already at the temperature for filling the wash tank which is

programmed into the electronic system.)

As soon as all the tanks are full, the display shows:

Filling

Filling / Heating

WT1 45°C KSP1 80°C

Heating

WT1 45°C KSP1 80°C

The display shows “Heating“ until the

programmed tank temperature has been reached.

After this stage the display shows:

The LED of the “Filling/Heating key” is now

illuminated permanently.

Ready for operation

WT1 65°C KSP1 82°C

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

6/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

3.2.2 Washing

"Wash" key

Washing is started by pressing the “Wash“ key.

The LED of the “Wash” key is now permanently

illuminated.

The display shows:

Operation

WT1 65°C KSP1 82°C

If the basket run switch at the end of the table is

occupied by a basket, the following will appear on

the display:

Conveyor end switch

WT1 65°C KSP1 82°C

The machine automatically restarts, when the

washware is removed.

The display shows:

Operation

WT1 65°C KSP1 82°C

3.2.3 Washing interruption

Washing is interrupted by pressing the “Pause

Wash“ key.

All functions, with the exception of the tank

heating, are switched off. (Individual components

may continue running.)

“Pause Wash“

key

The machine remains ready for operation.

The display shows:

Ready for operation

WT1 65°C KSP1 82°C

3.2.4 Program selection

“Programme

Selection" keys

When the machine is first switched on, it always

starts in programme I.

Different programmes can be selected by

pressing ”Programme Selection“ key I, II.

(Option)

The programme selected is indicated by the

corresponding LED being permanently

illuminated.

After washing has been interrupted, the machine

restarts in the programme last set.

It is possible to change to a different programme

(I-II) while the machine is running.

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

7/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

3.2.5 Machine off

The machine is switched off by pressing the

“Machine Off“ key.

The display shows:

Machine off

"Machine Off"

key

3.2.6 Impulse switching

If the machine is equipped with impulse switching, the first cycle

runs after pressing the “Wash” key.

Then, when no further wash ware runs through the washing

machine, the machine's status is switched to "cycle pause". Only

the tank heater of the basket transport mechanism continues to

work.

In the case of basket transport machines, the conveyor continues to

run.

The display shows “Cycle pause”:

Cycle pause

The basket transport machine re-starts automatically when a new

basket is loaded into the machine.

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

8/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

4 Description of the membrane keypad, navigation

Navigation for information exchange

It is possible to read off temperatures, operating times, in every operating condition in the

control´s navigation level; it is also possible to read, amend and log parameters.

For the dialogue, 4 arrow key and 1 amend-/confirm key are provided.

These have the following functions :

Entry to the information exchange dialogue

Browse parameter list,

Change value (up/down)

It is possible to switch to a fast forward / back mode by pressing the key

for a longer period (1 second or more) i.e. the list of values is scrolled

through automatically until the key is released.

Switch to relevant sub-menu (selection)

Quit current sub-menu

Process interruption in the change mode

(you will now be asked if you want to reject the change you have

just made without saving it).

The red LED flashes to indicate a malfunction or warning.

The message appears in the display.

Further general points:

If a key is not pressed for 4 minutes, the normal operating condition display

appears.

Display

Navigation

keys

Change-/

Confirmation key

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

9/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

Navigation example: reading the tank temperature

Note: only the options actually available in your machine will be displayed!

The starting point is the operating condition display e.g.

Operation

WT1 65°C KSP1 82°C

Press the arrow key and the following will appear in the display:

INFORMATION

Press the arrow key again to go to the individual sections of the information output. The

display shows:

* INFORMATION *

Temperatures

Press the arrow key once again and the following will appear in the display:

* INFORMATION *

Temperature WT1

61°C

Pressing the arrow key again will make the following appear in the display:

* INFORMATION *

Temperature KSP1

82°C

Return to the previous sub-menu by pressing the arrow key . The display shows:

* INFORMATION *

Temperatures

Press the arrow key again and the following will appear in the display:

INFORMATION

Pressing the arrow key again will make the operating conditions appear in the display.

Operation

WT1 65°C KSP1 82°C

To change the direction of navigation in the sub-menu, press the or

arrow keys.

Operating Instructions - Control MIKE 3 - CE

Datei:BA_MIKE3-CE_KUNDE_9652929_EN_2008-06.docx Update:2009-12-19 MRL 9652929

10/14

We reserve the right to change execution and construction!

MEIKO Maschinenbau GmbH & Co. KG, Englerstr. 3, D-77652 Offenburg, Tel.: +49/781/203-0, Fax: +49/781/203-1174

4.1 Information output

4.1.1 Overview of ínformation output

Note: only the options actually available in your machine will be displayed!

The starting point is the operating condition display e.g.

Operation

WT1 65°C KSP1 82°C

Press the arrow key and the following will appear in the display:

INFORMATION

* INFORMATION *

Temperatures

See “Temperatures“ section

* INFORMATION *

Operating times

See “Operating Times“ section

* INFORMATION *

General information

See “General Information“

section

4.1.2 Temperatures

* INFORMATION *

Temperatures

* INFORMATION *

Temperature WT1

66°C

The actual temperature in wash-tank 1 (WT1).

* INFORMATION *

Temperature KSP1

83°C

The actual temperature in final rinse 1 (KSP1).

* INFORMATION *

Temperature Drying

68°C

The actual temperature in the drying zone.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Meiko

Meiko

Meiko KA 15 Manual de usuario

Meiko

Meiko TopClean 60 Manual de usuario

Meiko

Meiko b-tronic Manual de usuario

Meiko

Meiko UPster U 500 M2 Manual de usuario

Meiko

Meiko UPster U 400 Manual de usuario

Meiko

Meiko M-iClean Series Guía de inicio rápido

Meiko

Meiko M-iClean H series Manual de usuario

Meiko

Meiko FV 40.2 Manual de usuario

Meiko

Meiko DV 200.2 Guía de inicio rápido

Meiko

Meiko UPster H 500 M2 Manual de usuario

Meiko

Meiko K-Tronic Manual de usuario

Meiko

Meiko M-iClean H series Manual de usuario

Meiko

Meiko DV 80.2 Manual de usuario

Meiko

Meiko UPster H 500 Manual de usuario

Meiko

Meiko K-44E Guía de inicio rápido

Meiko

Meiko M-iClean U Series Guía rápida

Meiko

Meiko K-200 Guía de inicio rápido

Meiko

Meiko K-200 Manual de usuario

Meiko

Meiko FV 28 G-M Manual de usuario

Meiko

Meiko M-iClean U Manual de usuario

Meiko

Meiko DV 80.2 Guía de inicio rápido

Meiko

Meiko EcoStar 545D-M Manual de usuario

Meiko

Meiko FV 40.2 Manual de usuario

Meiko

Meiko EcoStar 545D-M Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
