The Medela®Symphony®Breastpump

has been specially developed to meet the

most stringent demands where hygiene

and mobility are concerned. The operating

principle of the Medela Symphony is

to simulate the natural, physiological

conditions encountered in breastfeeding.

The pump’s kit is separate from the

pumping mechanism and protected

from overflow by a specially designed

membrane. Kit components which could

come in contact with the milk are part of

the accessories and can be very easily

disconnected for cleaning and sterilization.

A carrying case is available, offering

ample space for the pump and the

accessory kit.

There are two different models of

Symphony with the following general

specifications:

Symphony Breastpump, article no.

0240108

none knob control for both vacuum and

suction cycles

npowered by regular electric outlet (100-

240 VAC)

Symphony Breastpump Plus, article no.

0240208

*same as above (0240108), but with

2 internal rechargeable 6 volt batteries

Both models can be used for single

and for double pumping by using the

appropriate accessory kit. Refer to the

separate accessory kit user’s instructions

for further details.

IMPORTANT SAFEGUARDS

WARNING: To reduce the risk of burns,

electrocution, fire, or injury to persons:

1. Separation from the power outlet is only

assured through the disconnection of

the plug and socket connection.

2. This equipment is not suitable for use in

the presence of a flammable anesthetic

mixture.

3. Use only in a dust-free environment.

4. Do not place in or drop motor unit into

water or other liquid.

5. Do not reach for any electrical device

if it has fallen into water. Unplug

immediately.

6. Never operate an electrical device if it

has a damaged cord or plug, if it is not

working properly, if it has been dropped

or damaged, or if it has been dropped

into water.

7. Only use the electric cord that comes

with the Symphony Breastpump.

8. Make sure the voltage of the device is

compatible with the power source.

Save These Instructions

Safety Instructions

CUS

Protection class II

(Double

Insulation)

Type B

Vacuum:

-50mmHg – -250mmHg

-7kPa – -33kPa

Power Supply:

Conventional Outlet:

100V - 240VAC

50/60 Hz

0.5 A

DC Connection:

12 VDC Use only with

25 W Medela®Vehicle Lighter

T=2,5A Adapter #67173

Battery:

2 x 6 V, 1.2 Ah Type: Yuasa NP 1.2-6

Battery(optional): Battery, DC powered

Charging time=12 hours

Full battery pumping

time=approx. 60 minutes

ESD—Use ESD protection when servicing pump.

Disposal:

This breastpump is made of technical plastics and metals

that cannot be separated. It must be disposed of in

accordance with local regulations.

Warranty: 3-years for the unit from the date of delivery, excluding pump set and batteries. The manufacturer is not liable

for any damage or consequential damage caused by incorrect operation, inappropriate usage or use by unauthorized

persons. Routine checks, servicing and battery exchange may only be carried out by Medela authorized personnel.

Symphony Technical Description

Dimensions :

With Stand Without Stand

Length 16.1” 8.5”

Width 16.1” 6.1”

Height 35.4” 9.6”

Weight:

With Battery: 6 lbs. 7 oz.

Without Battery: 5 lbs. 1 oz.

Environmental Conditions

for Operation:

Temperature: +41°F to +104°F

Relative Humidity: 20% to 80%

Atmospheric Pressure: 70 kPa to 106 kPa

Environmental Conditions

Transport and Storage:

Temperature: -4°F to +122°F

Relative Humidity: 20% to 95%

Atmospheric Pressure: 70 kPa to 106 kPa

Standards:

FDA (GMP)

ISO 9001

ISO 13485

CE (93/42/EEC)

Electromagnetic or

Other Interference:

Complies with IEC 60601-1-2. Unlikely to

interfere with other electrical equipment.

Follow Instructions

Alternating Current

Direct Current

Medical Equipment

With Respect to Electrical Shock, Fire and Mechanical Hazards Only

In Accordance With IEC 60601 -1 CAN/CSA 22.2 No. 601.1 22PL

Symphony Diagram Symphony Kit Diagram

Symphony®Breastpump Controls & Parts

11 4

1. PersonalFit™Breastshield, Standard (24mm)............. 87073

2. PersonalFit Breastshield Connector ........................... 87071

3. Valve & Membrane ....................................................... 87089

4. Collection Connector................................................... 8117009

5. Solid Container Lid ..................................................... 8107057

6. Tubing ........................................................................... 8007213

7. Membrane Cap ............................................................ 8100769

8. Protective Membrane .................................................. 8200094

9. Breastfeeding Information Guide ................................ 1907200

10. Symphony Instruction Manual..................................... 1907724

11. Symphony Container Stand ........................................ 8100552

12. Symphony Vehicle Lighter Adapter............................. 67173

Call for pricing

Call Customer Service at 800.435.8316

for ordering information.

Kit shown is Symphony Double Pumping Kit

(67099S)

The Symphony®Breastpump Maintenance & Technical Guide is a resource and tool to be

used to perform maintenance and troubleshoot issues on the Symphony Breastpump.

A visual and functional check of the Symphony breastpump should be performed for optimal

performance on a periodic basis. If maintenance or repairs are needed, this guide will walk

you through the steps. If you have any questions, please contact Customer Service at

800.435.8316.

Cleaning – Use a soft cloth to wipe with warm soapy water, Quick Clean™

Wipes may be used between uses with the same mother. Use Cavicide®to

disinfect between different mothers. (Refer to Cleaning Technical Bulletin

on pages 30-31 for detailed instructions.)

Cover – Inspect for damage and that cover closes and locks shut.

If cover is damaged, please send back to Medela for repairs.

Housing – Inspect for damage, cracks or if housing is separated. (Refer to Correct

Separated Housing Technical Bulletin on pages 28-29 for detailed instructions.)

Rubber Feet – Inspect for damage or missing rubber feet (4 total). If any

are missing, contact Medela Customer Service to order Part # 8000596.

Pump Diaphragms – Inspect for damaged diaphragms.

(Refer to Inspect/Replace Diaphragms Technical Bulletin on pages 12-13

for detailed instructions.)

Power Cord – Inspect power cord for damage.

(Refer to Inspect/Replace Power Cord on pages 26-27 for detailed instructions.)

If you have a Symphony Plus, check battery status by referring to Battery Care

& Maintenance Technical Bulletin on pages 10-11.

Visual & Functionality Checklist

Vacuum Check

Performing a vacuum check on your pump ensures your Symphony®is operating correctly

for breastpumping mothers. Follow the instructions in the Proper Use of Vacuum Gauge

Technical Bulletin on pages 24-25 for detailed instructions. The following values will guide

you through gauging your Symphony vacuum levels:

If you experience values outside of the normal limits reference refer to Technical

Bulletin – Low or No Suction on pages 14-15.

Stimulation Expression

min* max* max* min* Elevation OFF

- 41 - 166 - 207 - 41 + 6600’

- 47 - 187 - 234 - 47 + 3300’

- 50 - 200 - 250 - 50 + 1600’

- 53 - 213 - 266 - 53 Sea Level

*± 20 mmHg

The following values should read:

Stimulation mode changes to Expression mode after 2 minutes

unless the button is pushed.

Recommendations for

Replacement

Over the life of the Symphony®it is possible that certain items may have to be replaced. The

more preventative maintenance that is conducted on the Symphony, the less parts will have

to be replaced. The following are recommended guidelines for when certain parts should

be replaced.

Item Recommendations for Replacement/Repair

Membranes As needed after inspection.

(Refer to Low or No Suction Technical Bulletin on pages

14-15 for detailed instructions.)

Diaphragms As needed after inspection or low suction.

(Refer to Inspect/Replace Diaphragms on pages 12-13

for detailed instructions.)

Motor 6,000 hrs (or as needed)*

Gear Box 6,000 hrs (or as needed)*

Battery As needed.

(Refer to Battery Care & Maintenance Technical Bulletin on pages

10-11 for detailed instructions.)

Main Boards As needed.

(If pump does not turn on and after troubleshooting*.

Refer to Error Codes Technical Bulletin on pages 8-9.)

Housing If broken or separated.

(Refer to Correct Separated Housing Technical Bulletin on pages

28-29 for detailed instructions.)

*Must be replaced or repaired at Medela.

Please contact Customer Service at 800.435.8316 for instructions on how to have your

pump repaired or replaced.

How to Check Pump Total

Running Hours

Checking Pump Total Running Hours

1. Turn the pump on.

2. Go to service menu by pushing the “On” button again while

turning the vacuum control knob.

3. Turn the vacuum control knob until you get “Htot” (hours

total). This is the total hours the pump has run throughout

its life.

4. Use these hours to check to see if maintenance is required

per recommendations on page 6.

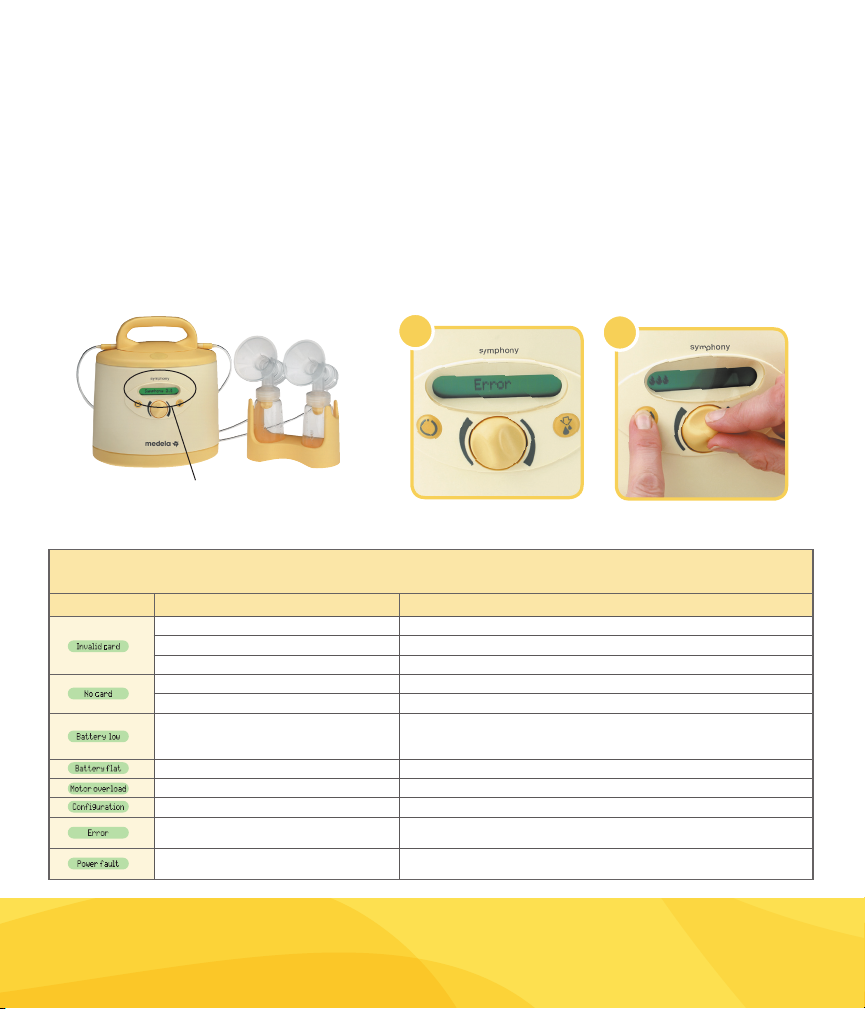

There are two ways in which a Symphony®Breastpump will communicate that the unit has

an issue. If the Symphony is experiencing an issue, an error code will be displayed on the

LCD screen (see ﬁg. 1). Previous problems are recorded in the Menu function under “Err:”.

To retrieve a history of errors, hold down the “On” button while turning the vacuum control

knob, then continue to move the knob until you reach “Err” (see ﬁg. 2). If you continue to

experience issues with your Symphony, please contact Customer Service at 800.435.8316.

Error Codes

ﬁg. 1 ﬁg. 2

LCD Display

LCD Display Messages

The following describes LCD messages that may be displayed indicating an issue with the unit, the potential causes, and action steps to correct the issue.

Potential Issue Actions

Program card isn’t a Symphony card Check if correct program card is used (See Technical Bulletin No. 109A)

Program card is incorrectly inserted Check that card is positioned correctly (See Technical Bulletin No. 109A)

Program card is damaged and not working Replace program card (See Technical Bulletin No. 109A)

Program card isn’t inserted Insert program card (See Technical Bulletin No. 109A)

Program card isn’t completely inserted Push card in all the way (See Technical Bulletin No. 109A)

Battery needs charging soon, will beep every

20 seconds (15 minutes of pumping time

remaining from when the indication started)

Be sure power cord is plugged into back of pump (See Technical Bulletin No. 106A)

Battery is completely discharged Charge the batteries, but you may continue to pump (See Technical Bulletin No. 101A)

Motor is drawing too much current Send Symphony pump to Medela®service center if this happens repeatedly

Software conguration Replace program card if experiencing error (See Technical Bulletin No. 109A)

Potential fault in electronics of gear control Send Symphony pump to Medela service center if this happens repeatedly

Potential fault in electronics of power supply Send Symphony pump to Medela service center if this happens repeatedly

Otros manuales para Symphony

Tabla de contenidos

Otros manuales de Extractor de leche de Medela

Medela

Medela Solo Manual de usuario

Medela

Medela Freestyle Manual de usuario

Medela

Medela Mini Electric Manual de usuario

Medela

Medela Symphony Manual de usuario

Medela

Medela Harmony Manual de usuario

Medela

Medela Base Manual de usuario

Medela

Medela Freestyle Manual de usuario

Medela

Medela Freestyle Hands-free Manual de usuario

Medela

Medela Pump In Style Instrucciones de funcionamiento

Medela

Medela Symphony Manual de usuario

Medela

Medela Symphony PLUS Manual de usuario

Medela

Medela Freestyle Manual de usuario

Medela

Medela Harmony Manual de usuario

Medela

Medela Swing Manual de usuario

Medela

Medela Freestyle 27260 Manual de usuario

Medela

Medela Breast Pump Kit Care Guía de configuración

Medela

Medela Lactina Instrucciones de funcionamiento

Medela

Medela Pump In Style Advanced Manual de usuario

Medela

Medela Single Deluxe Instrucciones de montaje

Medela

Medela Freestyle Manual de usuario

Medela

Medela Symphony Manual de usuario

Medela

Medela Breastpump Manual de usuario

Medela

Medela symphon Manual de usuario

Medela

Medela Mini Electric Manual de usuario

Manuales populares de Extractor de leche de otras marcas

besrey

besrey XN/MS-2246A Manual de usuario

Philips

Philips AVENT SCD241/01 Manual de usuario

Philips

Philips AVENT SCF301 Manual de usuario

nuVita

nuVita MATERNO DUAL 1290 Manual de usuario

Philips AVENT

Philips AVENT Breast Pump Manual de usuario

Chicco

Chicco NaturallyMe Manual de usuario

MOMCOZY

MOMCOZY S12 Manual de usuario

Philips AVENT

Philips AVENT Breast Pump Manual de usuario

Philips

Philips SCF292 Manual de usuario

Philips

Philips AVENT SCF397 Manual de usuario

Philips

Philips AVENT SCF396/11 Manual de usuario

weewell

weewell WPB900 Manual de usuario

CANGAROO

CANGAROO GENTLE TOUCH Manual de usuario

Spectra

Spectra S2 Manual de usuario

Rumble Tuff

Rumble Tuff Easy Express Instrucciones de montaje

Motif Medical

Motif Medical Luna Manual de usuario

CANGAROO

CANGAROO BIJOU Manual de usuario

Bayby

Bayby BBP 1010 Manual de usuario
