MD SPORTS CBF048_048M Manual de usuario

MODEL: CBF048_048M

VM Innovations

ASSEMBLY INSTRUCTIONS

ATTENTION

Contact

MD Sports

Customer Service

DO NOT RETURN

TO THE STORE

* For additional resources and Frequently

Asked Questions, please visit us at

themdsports.com

www.themdsports.com

CBF048_048M 1

(Continued on the next page.)

NOTICE!

This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during the limited warranty

period, a part is found to be defective or breaks, we will offer replacement parts at no cost to you, the customer. The only exceptions

to the warranty include mainframes, table tops, playing surfaces, batteries or tools.

The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse, accidental damage or

neglect.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from one State (province) to

another.

A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is initiated. For all requests for

warranty service, please feel free to contact our Consumer Service Department at:

WEBSITE: www.themdsports.com

Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Medal Sports, can not handle

the product which is out of product’s limited warranty since we only provide available parts. Thank you!

PLEASE CONTACT US BEFORE

RETURNING THE PRODUCT TO THE STORE.

LIMITED 90 DAYS WARRANTY

STAPLE YOUR RECEIPT HERE

1 - Please leave your name, address, phone number, model number, parts needed on the answering machine if there is no attendant.

Failure to do so will result in a delay in shipping parts to you.

2 - Please review the replacement parts list and make sure that you have all of your parts before beginning assembly.

For questions that may arise or for missing/damaged parts, please contact us.

3 - Since you build all tables upside down, please inspect tabletops or playing surfaces right away before putting together, all damaged

table tops/playing surfaces need to be returned to the store. Please contact with retailer for their return policy.

www.themdsports.com

CBF048_048M 2

(Continued on the next page.)

Phillips Screwdriver - Not Included

Standard (Flat Head Screwdriver) - Not Included

Allen Key - Included

CAUTION!

Electric Screwdrivers may be helpful during assembly; however, please set a low torque and use

extreme caution.

CAUTION!

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate

the equipment.

Power Tools

- Set Low Torque

High Torque

over tightened

TOOLS REQUIRED

1 - This product is intended for INDOOR use only.

2 - Please do not sit, climb or lean on the product.

3 - Please do not drag the product when moving it in order to avoid damaging the legs.

4 - Please only use spray furniture polish to clean the exterior surfaces of the product.

5 - This is not a child's toy, adult supervision is required for children playing this game.

WARNING:

Adult Assembly Required.

WARNING:

CHOKING HAZARD 

WARNING:









WARNING:







’



ASSEMBLY TIPS

IMPORTANT NOTICE!

Strong Adults Needed No Children in

Assembly Area Keep away from pets

Do not use or keep product

outdoors. For indoor use only.

No wet/humid conditions.

1 - Please read the instructions carefully, and follow all assembly, operation and safety instructions properly in order to avoid

damage or injury. For the assembly, at least two adults are required.

2 - Some figures or drawings may not look exactly like your product. Please read and understand the text before beginning each

assembly step.

www.themdsports.com

CBF048_048M 3

(Continued on the next page.)

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions

1. Read all instructions - All the safety and operating instructions should be read carefully before this hockey game is

played.

2. Caution - This is not a toy and is intended for use by or under the supervision of adults. Adults should review safety

guidelines with children to avoid possible risk of electric shock or other injuries.

3. Power sources - This hockey game should be operated only from 110 - 120V A. C., 60 cycle current as indicated on

the identification label. If you are not sure of the type of power supply to your home, consult your appliance dealer or

local power company.

4. Power cord protection - Power cord should be routed so that it is not likely to be walked on or pinched by items placed

upon or against it. Pay particular attention to cords at plugs and the point of exit from the game.

5. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

6. Object and liquid entry - Never push objects of any kind into this game through any openings as they may touch

dangerous voltage points or short - out parts which could result in a fire or electric shock. Never spill liquid of any kind

on the game.

7. Ventilation - Openings in the game are provided for the exhaust air to create a cushion effect. The openings on the air

blower are for the intake air. Keep clear of the air blower when it is on. Do not put hands or other objects near the

intake openings. To ensure reliable operation of the game and to protect it from overheating these openings must not

be blocked or covered.

8. Damage requiring service - Unplug the game from the wall outlet.

Do not attempt to service the blower yourself as opening or removing covers may expose you to dangerous voltage or

other hazards. Refer servicing to qualified service personnel under the following conditions.

A. When the power supply cord or plug is damaged.

B. If liquid has spilled, or objects have fallen into the blower.

C. When the air blower exhibits a distinct change in performance e. g. abnormal noise, this indicates a need for service.

9. CAUTION - ELECTRICALLY OPERATED PRODUCT

-Not recommended for children under 8 years of age. As with all electrical products, precautions should be observed

during handling and use to reduce the risk of electric shock.

10. We recommend that the game be periodically examined for conditions that may result in the risk of fire, electrical

shock, or injury to persons. In the event such conditions exist, the game should not be used until properly repaired.

11. RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING - When using electric appliances, basic precautions should always be followed, including the following:

A) Read all the instructions before using the appliances.

B) To reduce the risk of injury, close supervision is necessary when an appliance is used near children.

C) Do not touch moving parts.

D) Only use attachments recommended or sold by the manufacturer.

E) Do not use outdoors.

F) For a cord-connected appliance, the following shall be included:

- To disconnect, turn all controls to the off position, then remove plug from outlet.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Unplug from outlet when not in use and before servicing or cleaning.

- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or

damaged in any manner.

Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

WARNING: To Reduce The Risk Of Fire Or Electric Shock,

Do Not Use This Fan With Any Solid-State Speed Control Device.

For Household use only.

www.themdsports.com

CBF048_048M

(Continued on the next page.)

910 11 12

14 15 16

2 3 4

Hockey Mainframe Right LegLeft Leg

x1 x2 x2 x1

6 7 85

x2 x2

x1 x1 x4

18 19 20

x13

x13x13

22 23

x1x2

26 27

x13

30 31

x2 x4

x26

x1 x1

CBF048_048M PARTS LIST

FOR FIG. 1FOR FIG. 1 FOR FIG. 1 FOR FIG. 8

FOR FIG. 1 FOR FIG. 2 FOR FIG. 3 FOR FIG. 3

FOR FIG. 3 FOR FIG. 3 FOR FIG. 4 FOR FIG. 4

FOR FIG. 4 FOR FIG. 4 FOR FIG. 4

FOR FIG. 4 FOR FIG. 4 FOR FIG. 4 FOR FIG. 4

FOR FIG. 5 FOR FIG. 8 FOR FIG. 1 FOR FIG. 8

FOR FIG. 7 FOR FIG. 7 FOR FIG. 9 FOR FIG. 9

FOR FIG. 10 FOR FIG. 10

Table Tennis and

Basketball Board

End Leg Panel Side Leg Panel

Apron Corner-A Apron Corner-B 5-Hole Rod 3-Hole Rod

Dowel Player A-Red Player B-Red

Player C-Red Player A-Blue Player B-Blue Player C-Blue

Slide Scorer Table Tennis Post Leg Leveler Table Tennis Net

Goal Box-Top Goal Box-Bottom Rim Rim Net

Ball Return Net Rivet Plug Basketball Air Pump

End Apron Side Apron

FOR FIG. 4

2-Hole Rod

CBF048_048M PARTS LIST

www.themdsports.com

CBF048_048M

(Continued on the next page.)

41 42 43 44

45 46 47 48

34 35 3633

x1 x1 x2 x4

38 39 4037

x2 x2

x1 x12

50 51 52

x16 x16

x1x1

54 55

x1x1

58 59

62 A1

x1 x1

FOR FIG. 3FOR FIG. 3 FOR FIG. 6

FOR FIG. 6 FOR FIG. 2 FOR FIG. 2

FOR FIG. 2 FOR FIG. 1 FOR FIG. 4 FOR FIG. 4

FOR FIG. 5 FOR FIG. 5

FOR FIG. 1 FOR FIG. 2

FOR FIG. 11 FOR FIG. 11 FOR FIG. 11

FOR FIG. 11 FOR FIG. 3

Apron Corner-C Apron Corner-D Soccer Ball Top Locking Clasp

Bottom Locking Clasp Pusher Round Puck Felt Pad

Adapter 1/4″x1-1/8″

Butterfly Bolt Rod Bumper Rod Washer

Rod End Cap Handle Table Tennis Ball Table Tennis Paddle

Motor Net Bag

Chess Set Backgammon

Checker Set

Dice Shaker Dice Air Soccer

Arrow Holder Arrow

Bow

Bean Bag

Player Stick

Allen Key 1/4ʺ×1-1/2ʺ Bolt

Hook Chess Checkers with

Backgammon Surface

ASSEMBLY INSTRUCTIONS:

1. Find a clean, level place to begin the assembly of your Product.

2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts list pages.

Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.

CBF048_048M PARTS LIST

www.themdsports.com

CBF048_048M

(Continued on the next page.)

A3 A4 A6

Plastic Screw

x8 x8

Plastic Rod

Bushing

x16

x4 x4

Plastic Ball

Entry Rim

x12

CBF048_048M PRE-INSTALLED PARTS

FOR FIG. 1 FOR FIG. 2 FOR FIG. 3

FOR FIG. 3

FOR FIG. 1

FOR FIG. 3 FOR FIG. 3 FOR FIG. 1 FOR FIG. 1

Apron Corner-E

1/4ʺ T - Nut

5/16ʺ T - Nut

4x18mm Screw 4x35mm Screw 1/4ʺ Barrel Nut

Needle

x6 x16

A10

x14

FOR FIG. 1, 7, 9 FOR FIG. 2, 7 FOR FIG. 6

4x12mm Screw 3x12mm Screw

4x15mm Screw

FOR FIG. 3

1/4ʺ Washer

X 1

X 2

X 12

X 1

X 2

X 4

X 12

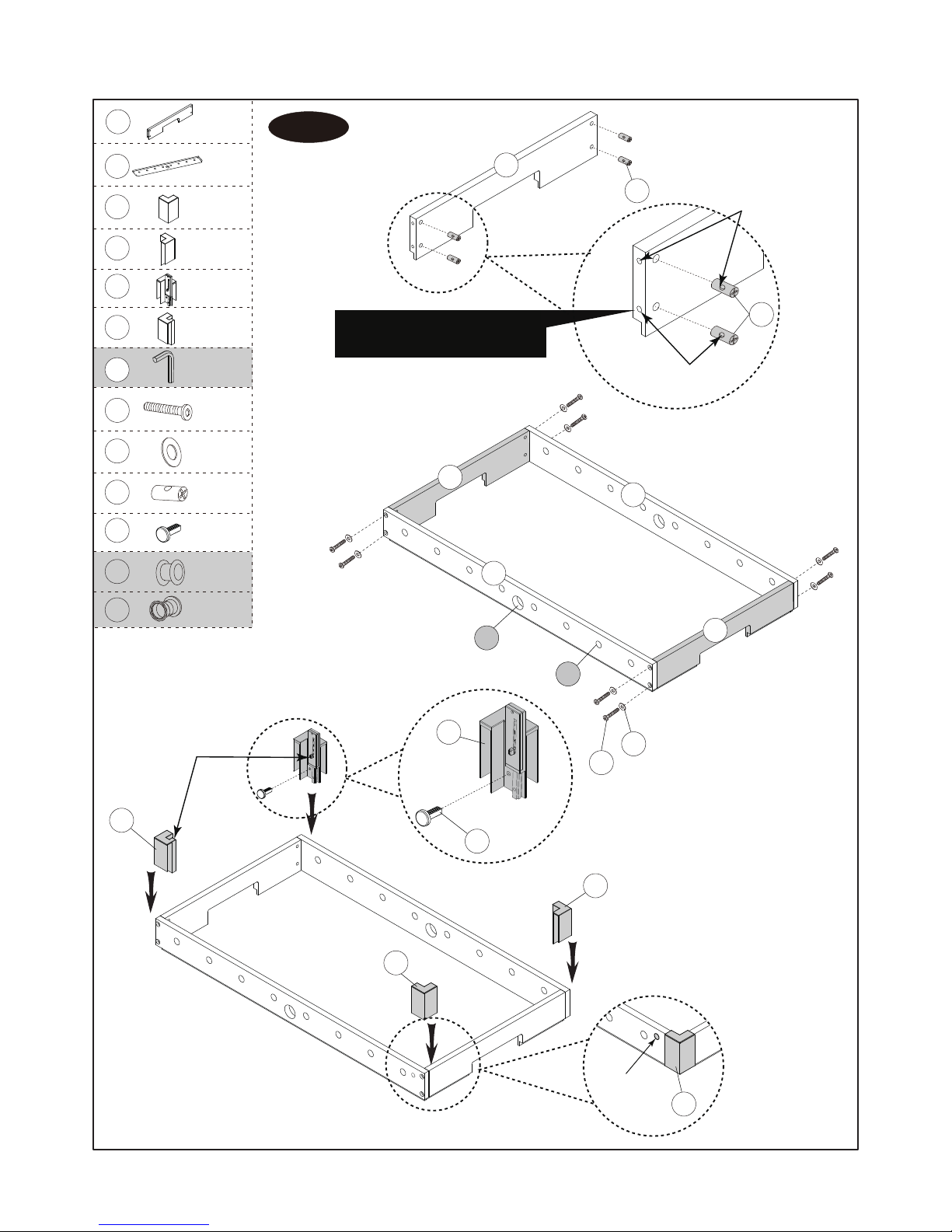

FIG. 1

X 2

X 4

X 8

X 4

www.themdsports.com

CBF048_048M 7

(Continued on the next page.)

DO NOT LEAN THE

TABLE ON ITS LEGS

HOLD TABLE

CABINET DO NOT HOLD THE LEGS

CAUTION: Two strong adults are recommended to turn over the table as shown.

1. Lift the table off the ground.

2. Turn the table over.

3. Place all four feet on the ground at the same time.

www.themdsports.com

CBF048_048M 8

(Continued on the next page.)

Note: Tear off the backside papers of the

Felt Pads (#40) and stick them onto the

bottom of the Pushers (#38).

Note: Go back and make sure that all connections are tight.

FIG. 2

X 1

X 2

X 1

X 4

X 2

A5 A9

FIG. 3

8 X 2

X 1

X 2

X 1

A2 X 8

X 8

X 4

X 16

X 2

X 1

Note: Please note the hole and

the hole alignment.

A6 The Hole

/ Agujero

The Hole

Lock

The Hole

www.themdsports.com

CBF048_048M 9

(Continued on the next page.)

Otros manuales para CBF048_048M

Tabla de contenidos

Otros manuales de Máquina de juego arcade de MD SPORTS

MD SPORTS

MD SPORTS ARC084 017E Manual de usuario

MD SPORTS

MD SPORTS AC208Y21003 Manual de usuario

MD SPORTS

MD SPORTS BG132Y23014 Manual de usuario

MD SPORTS

MD SPORTS TP200Y22010 Manual de usuario

MD SPORTS

MD SPORTS 14804 Manual de usuario

MD SPORTS

MD SPORTS 54804 Manual de usuario

MD SPORTS

MD SPORTS BG135Y20006 Manual de usuario

MD SPORTS

MD SPORTS CB048Y21025 Manual de usuario

MD SPORTS

MD SPORTS AC208Y21002 Manual de usuario

MD SPORTS

MD SPORTS 1614823 Manual de usuario

MD SPORTS

MD SPORTS AC208Y19014 Manual de usuario

MD SPORTS

MD SPORTS AWH042 017E Manual de usuario

MD SPORTS

MD SPORTS CBF048_157M Manual de usuario

MD SPORTS

MD SPORTS WM CANADA Manual de usuario

MD SPORTS

MD SPORTS 24802 Manual de usuario

MD SPORTS

MD SPORTS ARC108_147M Manual de usuario

MD SPORTS

MD SPORTS ARC108 068B Manual de usuario

MD SPORTS

MD SPORTS 1515052 Manual de usuario

MD SPORTS

MD SPORTS BG130Y23001 Manual de usuario

MD SPORTS

MD SPORTS 58400 Manual de usuario

MD SPORTS

MD SPORTS AWH084 017E Manual de usuario

MD SPORTS

MD SPORTS 54806 Manual de usuario

MD SPORTS

MD SPORTS AWH090 017M Manual de usuario

MD SPORTS

MD SPORTS 18402 Manual de usuario

Manuales populares de Máquina de juego arcade de otras marcas

Universal Space

Universal Space COCONUT BASH Manual de usuario

Bay-Tek

Bay-Tek EVOLVE Manual de usuario

Global VR

Global VR America's Army Instrucciones de instalación y funcionamiento

Atronic

Atronic Cashline Manual de usuario

Universal Space

Universal Space Checky Monkey Manual de usuario

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manual de usuario

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manual de usuario

Family Fun Companies

Family Fun Companies Reactor Guía de inicio rápido

Universal Space

Universal Space FRUIT MANIA Extreme Manual de usuario

falgas

falgas CARRUSEL FIESTA Manual de usuario

Konami

Konami DanceDanceRevolution Manual de usuario

Bay-Tek

Bay-Tek quik drop Manual de usuario

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manual de usuario

Adrenaline

Adrenaline Flying Tickets Instrucciones de instalación y funcionamiento

Swinks

Swinks Stern Pinball Ghostbusters Manual de usuario

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manual de usuario

jakar

jakar SPEED CARS Manual de usuario

Carmelli

Carmelli HAT TRICK NG1015H Manual de usuario
