McQuay MicroTech III Manual

Installation and Maintenance Manual IM 967-1

Group: Controls

Part Number: IM 967-1

Date: October 2010

Supercedes: IM 967

MicroTech®III

McQuay Chiller Unit Controller

BACnet®Communication Module (MS/TP)

Pathfinder™ Chiller, Model AWS

Air-Cooled Scroll Compressor Chiller, Model AGZ-D

NOTICE

Use this manual to physically install the McQuay MicroTech III Communication Module into the Chiller unit

controller and connect the Chiller unit controller to your network. Use the appropriate McQuay Engineering

Data (ED), known as the Protocol Information document, to integrate the unit into your network. The Protocol

Information document contains addressing details, BACnet® protocol information, and a list of the data points

available to the network. See the Reference Documents section of this manual for Protocol Information

document numbers. MicroTech III control integration literature is available from your local McQuay International

sales representative and www.mcquay.com.

2 IM 967-1

Contents

Figures .................................................................................................................................................. 2

Revision History ................................................................................................................................... 3

Reference Documents........................................................................................................................... 3

Limited Warranty.................................................................................................................................. 3

General Information.............................................................................................................. 4

Hazard Identification Messages............................................................................................................ 4

Description............................................................................................................................................ 5

Application............................................................................................................................................ 5

Component Data ................................................................................................................................... 5

Light Emitting Diodes (LEDs).......................................................................................................... 6

BACnet Network Connector............................................................................................................. 7

Board-To-Board Connector.............................................................................................................. 7

Installation............................................................................................................................. 9

Contents of the BACnet Communication Module Kit.......................................................................... 9

Installing a new BACnet Communication Module............................................................................... 9

To install a BACnet Communication Module................................................................................... 9

Replacing an Existing BACnet Communication Module ................................................................... 10

To Replace a BACnet Communication Module ............................................................................. 10

Integration............................................................................................................................ 11

Configuring the BACnet Communication Module............................................................................. 11

BACnet MS/TP Configuration using the Keypad/Display............................................................. 11

Changing the BACnet MS/TP Data Transmission Rate ................................................................. 12

Service Information.............................................................................................................15

Test Procedures................................................................................................................................... 15

Parts List............................................................................................................................................. 15

Installation Kit ................................................................................................................................ 15

Figures

Figure 1. BACnet MS/TP Communication Module Attached to MicroTech III Chiller Unit Controller5

Figure 2. BACnet MS/TP Communication Module Components ........................................................ 6

Figure 3. BACnetMS/TP Communication Module and Knockout...................................................... 7

Figure 4. Diagram of Board-to-Board Connector................................................................................. 8

Figure 5. BACnetMSTP Communication Module with Board-to-Board Connector Inserted............. 8

Figure 6. MicroTech III Chiller Unit Controller Password Menu and Main Features........................ 12

Figure 7. MicroTech III Chiller Unit Controller MSTP Setup Menu – Change Baud Rate ............... 13

Figure 8. MicroTech III Chiller Unit Controller MSTP Setup Menu – Apply Change...................... 13

IM 967-1 3

Revision History

IM 967 October 2009 Initial release

IM 967-1 October 2010 Updated OMM 998 to OM 1051. Added AGD Model.

Reference Documents

Number Company Title Source

ANSI/ASHRAE 135-

2004 American Society of

Heating, Refrigerating and

Air-Conditioning Engineers

BACnet®A Data Communication Protocol for Building

Automation and Control Networks www.ashrae.org

IM 1002 (50Hz )

IM 997 (60Hz) McQuay International Pathfinder™Air Cooled Chiller Installation Manual www.mcquay.com

OM 1051 McQuay International Pathfinder Air Cooled Chiller Operation Manual www.mcquay.com

ED 15120 McQuay International MicroTech III Chiller Unit Controller Protocol Information,

BACnet and LONWORKS Networks www.mcquay.com

OMM 1087 McQuay International Air-cooled Scroll Chiller, Model AGZ Operation Manual www.mcquay.com

Limited Warranty

Consult your local McQuay Representative for warranty details. Refer to Form 933-43285Y. To find

your local McQuay Representative, go to www.mcquay.com.

Notice

McQuay International reserves the right to change any information contained herein without prior

notice. The user is responsible for determining whether this software is appropriate for his or her

application.

® ™ The following are tradenames or registered trademarks of their respective companies: BACnet

from the American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc.; Windows

from Microsoft Corporation; D-Net, Pathfinder, McQuay and MicroTech III from McQuay

International.

4 IM 967-1

General Information

This manual contains the information you need to install the BACnet®Communication Module on a

MicroTech III Chiller Unit Controller, incorporate it into the BACnet network, and maintain it.

Hazard Identification Messages

!DANGER

Dangers indicate a hazardous situation that will result in death or serious injury if not

avoided.

!WARNING

Warnings indicate potentially hazardous situations, which can result in property damage,

severe personal injury, or death if not avoided.

!CAUTION

Cautions indicate potentially hazardous situations, which can result in personal injury or

equipment damage if not avoided.

!WARNING

Electric shock hazard. Can cause personal injury or equipment damage.

This equipment must be properly grounded. Connections and service to the MicroTech III

Chiller Unit Controller must be performed only by personnel knowledgeable in the

operation of the equipment being controlled.

!CAUTION

Static sensitive components. Can cause equipment damage.

Discharge any static electrical charge by touching the bare metal inside the control panel

before performing any service work. Never unplug cables, circuit board terminal blocks,

or power plugs while power is applied to the panel.

NOTICE

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with this instruction manual, may cause interference to

radio communications. It has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct

the interference at his or her own expense. McQuay International disclaims any

liability resulting from any interference or for the correction thereof.

IM 967-1 5

Description

The MicroTech III®BACnet Communication Module incorporates a MicroTech III Chiller Unit

Controller into a BACnet local area network (LAN). It supports the BACnet MS/TP (EIA 485) data

link layer (physical layer.)

The BACnet Communication Module is a printed circuit board with a plastic enclosure that connects

to the left side of the McQuay D-Net™ Module as shown in Figure 1 or directly to the MicroTech III

Chiller Unit Controller. The BACnet Communication Module provides access to the MicroTech III

Chiller Unit Controller variables and parameters via BACnet.

Note: The D-Net module is an optional feature that provides remote monitoring and diagnostic

capability for certain models of McQuay chillers. Please refer to supporting literature,

available on www.mcquay.com, for additional details about D-Net.

Application

The BACnet Communication Module connects the MicroTech III Chiller Unit Controller to a

building automation system (BAS) on a BACnet local area network. It is the interface for the

exchange of BACnet objects between the network and the unit controller. Refer to the McQuay

MicroTech III Chiller Operation Manual for keypad details.

Component Data

Figure 1 shows the BACnet Communication Module, located on the far left-hand side of the image

below. It is connected to the AWM, which is mounted directly to the unit controller. Figure 2 shows

the important features of the BACnet Communication Module.

Figure 1. BACnet MS/TP Communication Module Attached to MicroTech III Chiller Unit

Controller

BACnet MS/TP

Communication

Module

D-Net Module attached to unit

controller

6 IM 967-1

Figure 2 shows the location of the major components of the BACnet MS/TP Communication

Module.

Figure 2. BACnet MS/TP Communication Module Components

Light Emitting Diodes (LEDs)

The BACnet Communication Module has a BSP LED and a BUS LED to indicate communication

activity and status of the BACnet Communication Module. These indicators are visible when the

communication module is connected to the MicroTech III Chiller Unit Controller and the unit is

powered on (see Figure 2).

BSP LED

The BSP LED indicates the communication state between the BACnet Communication Module and

the MicroTech III Chiller Unit Controller. The table below describes the status of the BSP LED.

BSP LED Color Meaning

Flashing between Red & Green Board Support Package (BSP) upgrade in progress

Green Communication is established with the unit controller

Communication is established between the communication

module and the unit controller.

Yellow The communication module is capable of communicating to

the unit controller. However, communication is not

established.

Red flashing with 2Hz Red flashing with 2Hz = Software error.1

Red Hardware error.1

1In the event that this should occur, cycle power to the unit controller to attempt to clear the problem. Contact

the McQuay Controls Customer Support Group at 866-4MCQUAY (866-462-7829) for additional assistance if

necessary.

Network Connector

BSP

BUS LED

+ - Ref

IM 967-1 7

BUS LEDs

The BUS LED indicates the communication status between the BACnet Communication Module and

the BACnet MS/TP network. The table below describes the status of the BUS LED.

BUS LED Color Meaning

Green The unit controller is capable of communicating to the network.

Red The unit controller is not capable of communicating to the network.

Orange / Yellow Communication module is initializing.

BACnet Network Connector

An RS485 connector connects the BACnet Communication Module to the MS/TP Network and has

three pins: + , -, and ref (see Figure 2).

Board-To-Board Connector

The board-to-board connector connects the MicroTech III Chiller Unit Controller to the BACnet

Communication Module (see Figures 3, 4 and 5).

Figure 3. BACnet MS/TP Communication Module and Knockout

Knockout

permanently

removed

Board-to-board

connecto

Slot in module must line

up with baffle in board-

to-board connector

8 IM 967-1

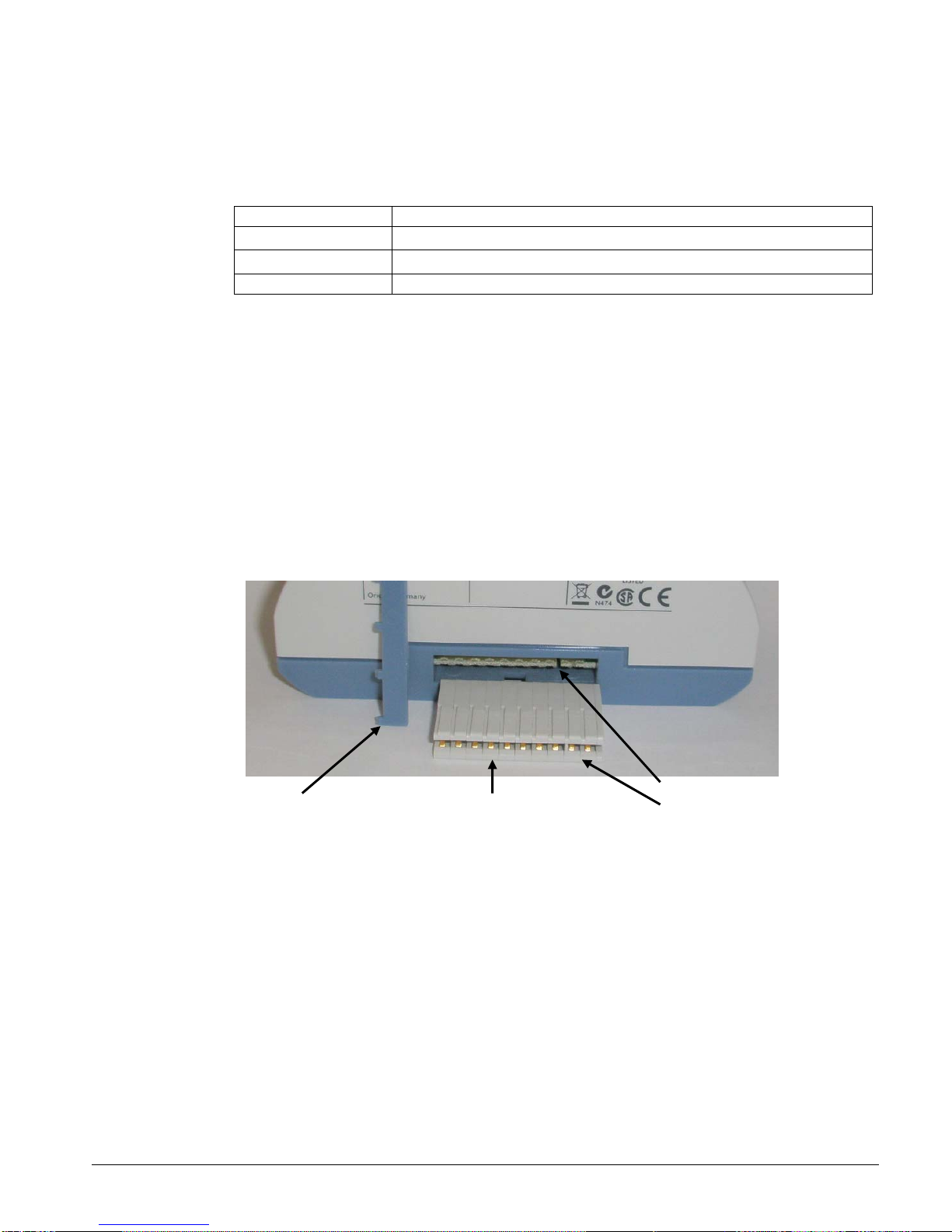

Figure 4. Diagram of Board-to-Board Connector

Figure 5. BACnet MSTP Communication Module with Board-to-Board Connector Inserted

IM 967-1 9

Installation

The following section describes how to field install a new BACnet Communication Module or

replace an existing BACnet Communication Module on the MicroTech III Chiller Unit Controller so

that it can be incorporated into the BACnet network.

!CAUTION

Electrostatic discharge hazard. Can cause equipment damage.

This equipment contains sensitive electronic components that may be damaged by

electrostatic discharge from your hands. Before you handle a communications module, you

need to touch a grounded object, such as the metal enclosure, in order to discharge the

electrostatic potential in your body.

Contents of the BACnet Communication Module Kit

The following is the list of items included in the field-installed kit:

The BACnet Communication Module

Board-to-board connector

Network connector (attached to module)

Installation Manual (IM 967)

Installing a new BACnet Communication Module

Follow these steps to install a BACnet Communication Module on the unit controller. The BACnet

Communication Module can be connected directly to the unit controller itself or to an existing

module, if one is attached.

To install a BACnet Communication Module

!WARNING

Electric shock hazard. Can cause personal injury or equipment damage.

This equipment must be properly grounded. Only personnel knowledgeable in the operation of the

equipment being controlled must perform connections and service to the MicroTech III Chiller Unit

Controller.

1. Remove power from the unit controller.

2. Remove the knockout on the far left end of the unit controller itself (or additional module, if

present). See Figure 3.

Note: To prevent damage to the unit controller, insert a small screwdriver or other tool to the tab on

the bottom of the unit controller and pull the screwdriver away from the controller.

3. Remove the knockout on the right side of the BACnet Communication Module.

4. Insert the board-to-board connector into the BACnet Communication Module (see Figures 3 and

4). Note that it only fits one way and that the baffles must line up with corresponding slots in

BACnet Communication Module and the unit controller (see Figures 4 and 5).

10 IM 967-1

5. Insert the other end of the board-to-board connector to the far-left side of the unit controller or

other device (i.e. module), if attached (see Figure 1).

6. Connect the BACnet Communication Module to the network by inserting a network cable into

the communication module’s network connector (see Figure 2).

7. Power up the unit controller.

8. The unit controller automatically resets itself approximately 30 seconds after it is powered up.

This reset is necessary so that the BACnet Communication Module is synchronized with the unit

controller.

Note: There is a limit of three devices that can be attached to the left side of the unit controller.

Replacing an Existing BACnet Communication Module

Follow these steps to remove an existing BACnet Communication Module from unit controller and

replace it with a new BACnet Communication Module.

To Replace a BACnet Communication Module

!WARNING

Electric shock hazard. Can cause personal injury or equipment damage.

This equipment must be properly grounded. Only personnel knowledgeable in the operation of the

equipment being controlled must perform connections and service to the MicroTech III Chiller Unit

Controller.

1. Remove power from the unit controller.

2. Locate the BACnet Communication Module to the left of the unit controller (see Figure 1).

3. Pull the network cable connector from the BACnet Communication Module.

4. Grasp the BACnet Communication Module and carefully pull it from the unit controller (or from

an adjacent module, if it is attached to one.)

5. Install the new BACnet Communication Module (see steps 2-5 from previous section).

6. Insert the network cable connector into the BACnet Communication Module (see Figure 2 for

location of network connector).

7. Power up the unit controller.

9. The unit controller automatically resets itself approximately 30 seconds after it is powered up.

This reset is necessary so that the BACnet Communication Module is synchronized with the unit

controller.

Otros manuales para MicroTech III

Tabla de contenidos

Otros manuales de Sistema de control de enfriadores de McQuay

McQuay

McQuay IM 743 Manual de instrucciones

McQuay

McQuay MicroTech III Manual

Manuales populares de Sistema de control de enfriadores de otras marcas

AERMEC

AERMEC GR3 Manual de usuario

Trane Technologies

Trane Technologies Tracer TD7 Manual de usuario

CLIMAVETENTA

CLIMAVETENTA W3000 Manual de usuario

Trane

Trane UCM-CLD Manual de usuario

Trane

Trane Tracer CH.530 RLC-SVU01B-E4 Manual de usuario

CLIMAVENETA

CLIMAVENETA W3000 compact Manual de usuario

Parker

Parker R-134A Guía del usuario

Panasonic

Panasonic S-250WX2E5 Manual de usuario

CLIMAVENETA

CLIMAVENETA CVM Manager Manual de usuario

Eaton

Eaton Cutler-Hammer AMPGARD Manual de instrucciones

Carrier

Carrier 30GX080-176 Manual de usuario

CLIMAVENETA

CLIMAVENETA CVM 2 Manual de usuario

Webasto

Webasto Azimut 43 Fly Manual de referencia

CLIMAVENETA

CLIMAVENETA CVM 3000 Manual de usuario

Carrier

Carrier Pro-Dialog CONTROL 4 Manual de usuario

CLIMAVENETA

CLIMAVENETA CVM 20 Manual
