McCulloch PM655FWG Guía de configuración

190366 Rev. 1 08.16.04 BY

ILLUSTRATED PARTS BREAKDOWN

PRO MAC

6.0 HORSEPOWER

22" REAR DISCHARGE LAWN MOWER

MODEL NO. PM655FWG (PM655FWGC)

964 79 57-00

ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00

KEY PART

NO. NO. DESCRIPTION

1 532 18 52-42 Control Bar

2 532 17 76-98 Upper Handle

3 532 15 50-44 Lower Handle

4 532 17 95-85 Rope Guide

5 - - - Engine, Briggs & Stratton, Model Number 122K02

(Order parts from Engine Manufacturer)

6 532 13 19-59 Handle Bolt

7 532 06 64-26 Wire Tie

8 532 18 33-65 Hex Washer Head Screw 1/4-20 x 3

9 532 17 02-94 Throttle Control

10 532 14 66-94 Screw, Self-Tapping 1/4-20

11 532 13 08-61 Engine Zone Control Cable

14 532 17 01-46 Handle Knob

15 532 05 17-93 Hairpin Cotter

16 532 14 76-25 Footguard

17 532 13 20-04 Locknut, Hex 1/4-20

19 532 18 45-90 Blade Adapter

20 532 14 11-14 Blade, 22"

22 532 08 86-52 Screw, Hinge 1/4-20 x 1-1/4

23 532 17 09-47 Kit, Rear Door (Includes Key #61 and #63)

24 532 75 15-92 Locknut, Hex 3/8-16

25 532 18 68-19 Handle Bracket Assembly, LH

26 532 18 68-18 Handle Bracket Assembly, RH

27 532 15 00-78 Thread Cutting Screw 5/16-18 x 3/4

28 532 11 11-90 Cable Clamp

29 532 15 50-47 Wheel Adjusting Bracket

30 532 14 66-30 Spacer

31 532 08 38-16 Screw #10 x 5/8

32 532 14 17-30 Selector Spring

33 532 17 01-43 Selector Knob

34 532 14 98-57 Axle Arm Assembly

35 532 06 23-35 Belleville Washer

36 532 14 27-48 Shoulder Bolt 3/8-16

37 532 16 76-28 Wheel & Tire Assembly, Rear

KEY PART

NO. NO. DESCRIPTION

38 532 08 39-23 Nut, Hex, Flangelock 3/8-16

40 532 18 06-60 Hub Cap

41 532 12 84-15 Pop Rivet

42 532 12 53-48 Rear Bafﬂe

43 532 05 45-83 Hex Head Tapping Screw 1/4-20 x 1/2

44 532 15 04-06 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

45 532 16 68-00 Back Plate

46 532 18 21-66 Danger Decal

47 532 13 88-60 Side Bafﬂe

48 817 60 04-06 Screw, Hex Head, Serrated, Type TT 1/4-20

49 874 10 04-12 Screw, Machine, Flat Head 1/4-20 x 3/4

50 532 75 11-52 Nut, Hex, Flangelock 1/4-20

51 532 17 04-91 Kit, Front Bafﬂe (Includes Key Numbers 48, 49 and 50)

52 532 19 02-75 Kit, Lawn Mower Housing

(Includes Key Numbers 42, 45, 46, 47 and 51)

53 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8

54 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Grade 8

55 532 85 10-74 Hardened Washer

56 532 18 08-57 Discharge Bafﬂe

57 532 15 00-50 Self-Tapping Screw #10-24

58 532 16 66-49 Mulcher Plug

59 532 18 49-41 Engine Pulley

60 532 18 77-23 Hi-Pro Key

61 532 17 09-38 Spring, Rear Door, LH

62 532 18 20-02 Debris Shield

63 532 17 09-39 Spring, Rear Door, RH

64 532 18 41-93 Bolt, Rear Door

65 532 12 50-78 Washer, Engine

- - 532 18 21-34 Decal, Warning (not shown)

- - 532 19 03-64 Operator’s Manual, European

- - 532 19 03-65 Operator’s Manual, Scandinavian

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC) PRODUCT NUMBER 964 79 57-00

KEY PART

NO. NO. DESCRIPTION

1 532 18 45-87 Drive Control

2 532 16 73-87 Bearing, Wheel Adjuster

3 532 75 11-52 Nut, Hex, Flangelock 1/4-20

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2-1/8

5 532 14 65-27 V-Belt

6 532 15 04-95 Spring Retainer

7 532 08 60-12 Driveshaft Cover

8 532 18 06-60 Hubcap

9 532 14 52-12 Nut, Hex, Flangelock

10 532 17 01-51 Drive Cover

11 532 18 07-67 Wheel & Tire Assembly , Front

12 812 00 00-58 E-Ring

13 532 13 70-54 Pinion

14 532 18 05-04 Dust Cover

15 532 17 22-91 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

KEY PART

NO. NO. DESCRIPTION

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

17 532 17 22-90 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

18 532 17 01-43 Selector Knob

19 532 16 99-31 Frame, Grassbag

20 532 19 10-22 Grassbag

21 873 80 04-00 Nut, Hex

22 532 13 20-10 Nut, Hex, Flanged, Zinc Plated 3/8-16

23 532 18 94-07 Drive Pulley

24 532 18 72-11 Gear Case Assembly (See Breakdown)

25 532 13 70-90 Spring

26 532 14 60-72 Hex Washer Head Screw #10-24 x 3/4

27 532 14 97-46 Screw, Slotted, Torx #10-24 x 1-3/4

28 532 07 51-92 Spring

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PM655FWG (PM655FWGC)

PRODUCT NUMBER 964 79 57-00

GEAR CASE ASSEMBLY - PART NUMBER 532 18 72-11

KEY PART

NO. NO. DESCRIPTION

1 532 18 34-97 Case, Lower

2 532 18 34-98 Case, Upper

3 532 18 34-99 Gear, 27 Teeth

4 532 18 35-00 Lever, Clutch

5 532 18 35-01 Spring, Return

6 532 18 35-02 Shaft, Input

7 532 18 35-03 Dog, Movable

8 532 18 35-04 Dog, Fixed

9 532 18 35-05 Wire, Formed

10 532 18 35-06 Bearing, Ball

11 532 18 35-07 Fork, Shift

12 532 18 35-08 Seal, Output Shaft

13 532 18 35-09 Washer

14 532 18 35-10 Seal, Case

15 532 18 35-11 Bushing

16 532 18 75-21 Shaft, Output

17 532 18 35-13 Screw

18 532 18 35-14 Seal, Input Shaft

NOTE: Use Dow Corning #709 to reseal Gear Case Halves.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

Otros manuales de Cortacésped de McCulloch

McCulloch

McCulloch MC11T92RB Manual del propietario

McCulloch

McCulloch M53-675CMD Manual de usuario

McCulloch

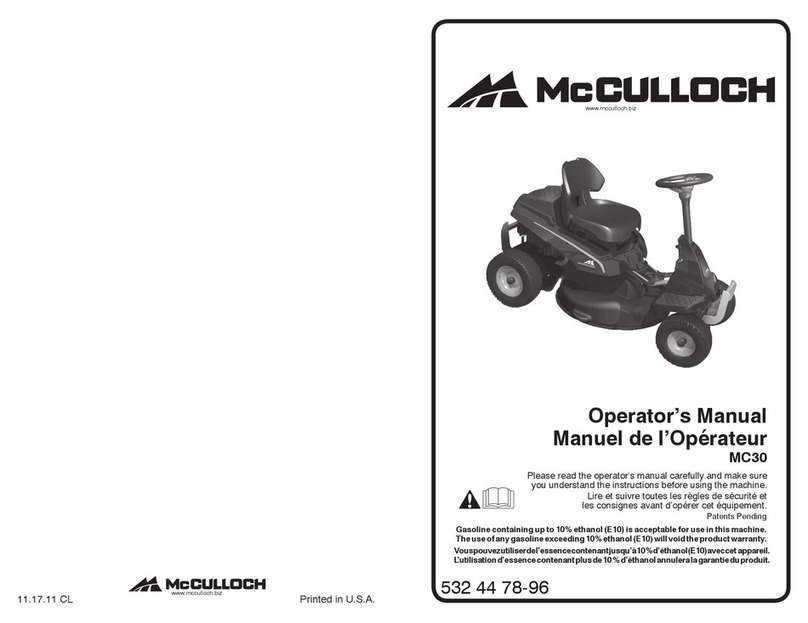

McCulloch MC30 Manual de usuario
