MBW F24/4 Manual de usuario
OPERATOR’S SAFETY
AND SERVICE MANUAL
MBW, Inc.
250 Hartford Rd • PO Box 440
Slinger, WI 53086-0440
Phone: (262) 644-5234
Fax: (262) 644-5169
Email: mbw@mbw.com
Website: www.mbw.com
MBW (UK) Ltd.
Units 2 & 3 Cochrane Street
Bolton BL3 6BN, England
Phone: 01204 387784
Fax: 01204 387797
Email: saleseurope@mbw.com
Website: www.mbweurope.com
L 18432/ 01.28.D
©MBW, Inc. 2021
Printed in the USA
F24/4
F30/4
This manual covers the following serial numbers and higher
for each model listed:
F24/4 . . . . . . . . . . . . . . . . . . . . . 1740249-1741218
F30/4 . . . . . . . . . . . . . . . . . . . . . 1460000
WALK BEHIND TROWELS
- 2 -
Failure to comply could result in serious bodily
injury.
13483
CAUTION
STOP
Read Operating Instructions before
operating this piece of equipment.
Keep unauthorized and untrained
people away from this equipment.
ROTATING & MOVING PARTS!
Make sure all guards and safety
devices are in place.
Wear OSHA approved hearing
protection, foot protection, eye
protection and head protection.
Avoid breathing dust from operating
machine, wear OSHA specified dust
mask/respirator.
SHUT OFF the motor before servicing
or cleaning.
DO NOT RUN in an enclosed area.
The engine produces carbon
monoxide, a POISONOUS GAS.
12573
WARNING
ROTATING PARTS
can crush and cut.
Keep hands away!
01064
WARNING Startengineatidleonly!
NEVER place foot on guard ring.
16267

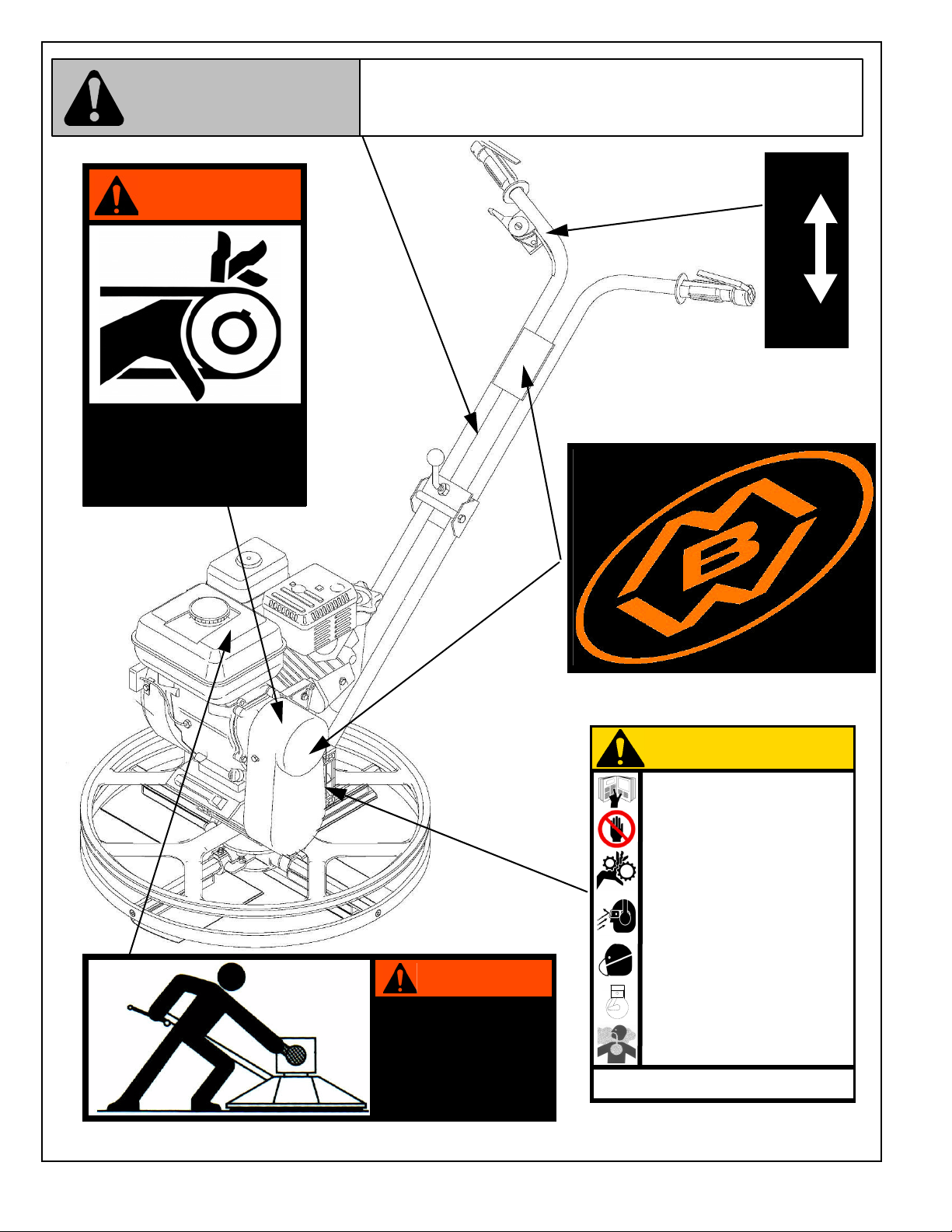

Safety Decals (Decal Set 16268)
13483
12573
01064 (Two Places)
14770
16267
12267
- 3 -
SPECIFICATIONS
Specifications subject to change without notice
F24/4 F30/4
Ring Size 24” (61cm) 30” (76 cm)
Engine Honda GX120 4hp (3kw) Honda GX160 5.5hp (4kw)
Engine Speed 3400 rpm 3600 rpm
Trowel Speed 50-135 rpm 70-125 rpm
Weight 125 lbs (57kg)
Noise Level 85-105 dBA 89-103 dBA
- 9 -
Handle and Drive Assembly
- 10 -
Spider Assembly (F24)
- 11 -
Handle and Drive Assembly (F30)
- 12 -
Spider Assembly (F30)
Este manual sirve para los siguientes modelos
4
