Introduction 3

Instrument Cluster 10

Warning and control lights 10

Gauges 15

Entertainment Systems 17

AM/FM stereo with CD 17

AM/FM stereo with cassette and in-dash six CD 27

Climate Controls 44

Manual heating and air conditioning 44

Lights 48

Headlamps 48

Turn signal control 50

Bulb replacement 51

Driver Controls 56

Windshield wiper/washer control 56

Steering wheel adjustment 58

Power windows 61

Mirrors 62

Speed control 63

Locks and Security 70

Keys 70

Locks 70

Anti-theft system 75

Seating and Safety Restraints 80

Seating 80

Safety restraints 90

Air bags 100

Child restraints 110

Driving 121

Starting 121

Table of Contents

Brakes 125

Transmission operation 129

Vehicle loading 148

Trailer towing 151

Recreational towing 156

Roadside Emergencies 157

Hazard flasher switch 157

Fuses and relays 158

Overheating 164

Jump starting 171

Wrecker towing 177

Customer Assistance 179

Reporting safety defects (U.S. only) 189

Cleaning 190

Maintenance and Specifications 196

Engine compartment 204

Engine oil 206

Battery 210

Fuel information 217

Air filter(s) 231

Refill capacities 244

Engine data 246

Accessories 250

Index 251

including photocopying, recording or by any information storage and retrieval

system or translation in whole or part is not permitted without written

authorization from MNAO. MNAO may change the contents without notice and

without incurring obligation.

Table of Contents

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or

other reproductive harm. In addition, certain fluids contained in

vehicles and certain products of component wear contain or

emit chemicals known to the State of California to cause cancer

and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mazda product. Please take the

time to get well acquainted with your vehicle by reading this handbook.

The more you know and understand about your vehicle, the greater the

safety and pleasure you will derive from driving it.

For more information on Mazda and its products visit the following

website:

•In the United States: www.mazdausa.com

•In Canada: www.mazda.ca

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your

particular vehicle. Furthermore, due to printing cycles it may describe

options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It

is an integral part of the vehicle.

WARNING: In the event of an accident the Fuel pump shut-off

switch will automatically cut off the fuel supply to the engine.

The switch can also be activated through sudden vibration (e.g.

collision when parking). To reset the switch, refer to the Fuel

pump shut-off switch in the Roadside Emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of

personal injury and prevent possible

damage to others, your vehicle and

its equipment? In this guide,

answers to such questions are

contained in comments highlighted by a bold WARNING statement.

These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is

imperative that you consult the

relevant section of this guide before

touching or attempting adjustment

of any kind.

Protecting the environment

We must all play our part in

protecting the environment. Correct

vehicle usage and the authorized

disposal of waste, cleaning and

lubrication materials are significant

steps towards this aim. Information in this respect is highlighted in this

guide with the tree symbol.

Always dispose of used automotive fluids in a responsible manner. Follow

your community’s regulations and standards for recycling and disposing

of automotive fluids.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the

first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is

necessary to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES

Event Data Recorder

The computer in your vehicle is capable of recording detailed data

potentially including but not limited to information such as:

•the use of restraint systems including seat belts by the driver and

passengers,

•information about the performance of various systems and modules in

the vehicle, and

•information related to engine, throttle, steering, brake or other system

status potentially including information related to how the driver

operates the vehicle including but not limited to vehicle speed.

This information may be stored during regular operation or in a crash or

near crash event. This stored information may be read out and used by:

•service and repair facilities.

•law enforcement or government agencies.

•the Manufacturer and Distributor.

Emission warranty

The New Vehicle Limited Warranty includes Bumper to Bumper

Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,

your vehicle is eligible for Emissions Defect and Emissions Performance

Warranties. For a detailed description of what is covered and what is not

covered, refer to the Warranty Guide that is provided to you along with

your Owner’s Guide.

Using your vehicle as an ambulance

WARNING: Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the an ambulance preparation package.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert See Owner’s Guide

Protecting the

Environment Fasten Safety Belt

Air Bag-Front Air Bag-Side

Child Seat Child Seat Installation

Warning

Child Seat Lower

Anchor

Child Seat Tether

Anchor

Brake System Anti-Lock Brake System

Brake Fluid -

Non-Petroleum Based Master Lighting Switch

Hazard Warning Flasher Fog Lamps-Front

Fuse Compartment Fuel Pump Reset

Windshield Wash/Wipe Windshield

Defrost/Demist

Rear Window

Defrost/Demist Power Windows

Introduction

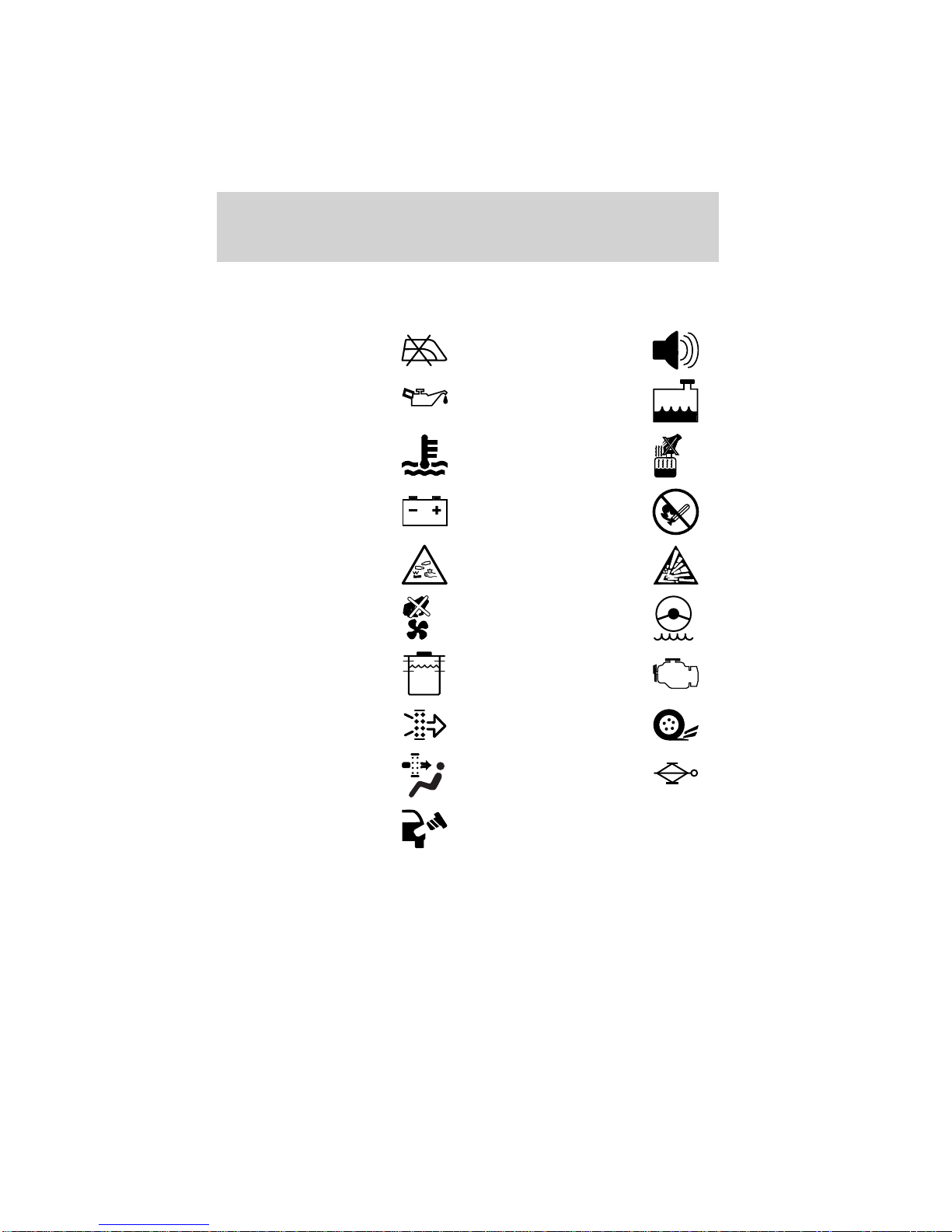

Vehicle Symbol Glossary

Power Window Lockout Personal Alarm System

Feature

Engine Oil Engine Coolant

Engine Coolant

Temperature Do Not Open When Hot

Battery Avoid Smoking, Flames,

or Sparks

Battery Acid Explosive Gas

Fan Warning Power Steering Fluid

Maintain Correct Fluid

Level

MAX

MIN Emission System

Engine Air Filter Traction Control

Passenger Compartment

Air Filter Jack

Check fuel cap

INFORMATION ABOUT THIS GUIDE

The information found in this guide was accurate at the time of printing.

Mazda may change the contents without notice.

Introduction

Instrument cluster

(pg. 10)

Windshield wiper/washer

control

(pg. 56)

Driver air bag

(pg. 100)

Speed controls*

(pg. 63)

Instrument panel

dimmer/dome light

control

(pg. 49)

Hood release handle

(pg. 203)

Power mirror control*

(pg. 62)

Fog lamp control*

(pg. 48)

Headlamp and turn

signal control

(pg. 48)

Manual tilt steering

column lever

(pg. 58)

* if equipped

Instrument Cluster

Audio system

(pg. 17)

4WD control*

(pg. 138)

Climate controls

(pg. 44) Auxiliary power point

(pg. 60)

Rear window defroster

control

(pg. 47) Hazard flasher control

(pg. 157)

Cigarette lighter

*if equipped

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may

become serious enough to cause expensive repairs. A warning light may

illuminate when a problem exists with one of your vehicle’s functions.

Many lights will illuminate when you start your vehicle to make sure the

bulb works. If any light remains on after starting the vehicle, have the

respective system inspected immediately.

Service engine soon: Your vehicle

is equipped with a computer that

monitors the engine’s emission

control system. This system is

commonly known as the On Board Diagnostics System (OBD II). The

OBD II system protects the environment by ensuring that your vehicle

continues to meet government emission standards. The OBD II system

also assists the service technician in properly servicing your vehicle.

The indicator light illuminates when the ignition is first turned to

the RUN position to check the bulb. If it comes on after the engine is

started, one of the engine’s emission control systems may be

malfunctioning. The light may illuminate without a driveability concern

being noted. The vehicle will usually be drivable and will not require

towing.

What you should do if the light illuminates

Light turns on (without blinking):

This means that the OBD II system has detected a malfunction.

Temporary malfunctions may cause your light to illuminate.

Examples are:

1. The vehicle has run out of fuel. (The engine may misfire or run

poorly.)

CHECK

FUEL

CAP

Instrument Cluster
