Introduction 4

Instrument Cluster 12

Warning and control lights 12

Gauges 18

Entertainment Systems 21

AM/FM stereo 21

AM/FM stereo with single CD 25

AM/FM stereo with CD 32

AM/FM stereo cassette with single CD 45

Climate Controls 68

Heater only 68

Manual heating and air conditioning 69

Lights 73

Headlamps 73

Turn signal control 75

Bulb replacement 75

Driver Controls 82

Windshield wiper/washer control 82

Steering wheel adjustment 83

Power windows 85

Speed control 89

Locks and Security 97

Keys 97

Locks 97

Anti-theft system 97

Table of Contents

Seating and Safety Restraints 105

Seating 105

Safety restraints 107

Air bags 119

Child restraints 131

Driving 148

Starting 148

Brakes 153

Transmission operation 158

Vehicle loading 170

Trailer towing 172

Roadside Emergencies 181

Getting roadside assistance 181

Hazard flasher switch 182

Fuel pump shut-off switch 182

Fuses and relays 183

Changing tires 194

Jump starting 201

Wrecker towing 206

Customer Assistance 207

Reporting safety defects (U.S. only) 217

Cleaning 218

Underbody preservation 223

Table of Contents

Maintenance and Specifications 224

Engine compartment 234

Engine oil 238

Battery 243

Fuel information 250

Refill capacities 272

Lubricant specifications 275

Engine data 276

Accessories 279

Index 280

including photocopying, recording or by any information storage and retrieval

system or translation in whole or part is not permitted without written

authorization from Mazda Motor Corporation. Mazda may change the contents

without notice and without incurring obligation.

Table of Contents

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to

the State of California to cause cancer and birth defects or

other reproductive harm. In addition, certain fluids contained in

vehicles and certain products of component wear contain or

emit chemicals known to the State of California to cause cancer

and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mazda Motor Corporation

product. Please take the time to get well acquainted with your vehicle by

reading this handbook. The more you know and understand about your

vehicle the greater the safety and pleasure you will derive from driving

it.

For more information on Mazda Motor Corporation and its products visit

the following website:

•In the United States: www.mazdausa.com

•In Canada: www.mazda.ca

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your

particular vehicle. Furthermore, due to printing cycles it may describe

options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is

an integral part of the vehicle.

WARNING: In the event of an accident the Fuel pump shut-off

switch will automatically cut off the fuel supply to the engine.

The switch can also be activated through sudden vibration (e.g.

collision when parking). To reset the switch, refer to the Fuel

pump shut-off switch in the Roadside emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible

damage to others, your vehicle and its equipment? In this guide, answers

to such questions are contained in comments highlighted by the warning

triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is

imperative that you consult the

relevant section of this guide before

touching or attempting adjustment

of any kind.

Protecting the environment

We must all play our part in

protecting the environment. Correct

vehicle usage and the authorized

disposal of waste cleaning and

lubrication materials are significant

steps towards this aim. Information in this respect is highlighted in this

guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

There are no particular breaking-in rules for your vehicle. During the

first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is

necessary to give the moving parts a chance to break in.

Introduction

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper to Bumper

Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,

your vehicle is eligible for Emissions Defect and Emissions Performance

Warranties. For a detailed description of what is covered and what is not

covered, refer to the Warranty Guide that is provided to you along with

your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic

controls.

WARNING: Please read the section Air bag in the Seating and

safety restraints chapter. Failure to follow the specific

warnings and instructions could result in personal injury.

WARNING: Front seat mounted rear facing child or infant

seats should NEVER be used in front of a passenger side air bag

unless the air bag can be and is turned OFF.

Introduction

Notice to owners of pickup trucks and utility type vehicles

WARNING: Utility vehicles have a significantly higher rollover

rate than other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully.

Your vehicle is not a passenger car. As with other vehicles of this type,

failure to operate this vehicle correctly may result in loss of control,

vehicle rollover, personal injury or death.

Be sure to read Driving off road in the Driving chapter.

Using your vehicle with a snowplow

WARNING: Do not use this vehicle for snowplowing.

Using your vehicle as an ambulance

WARNING: Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Mazda Ambulance Preparation

Package.

Introduction

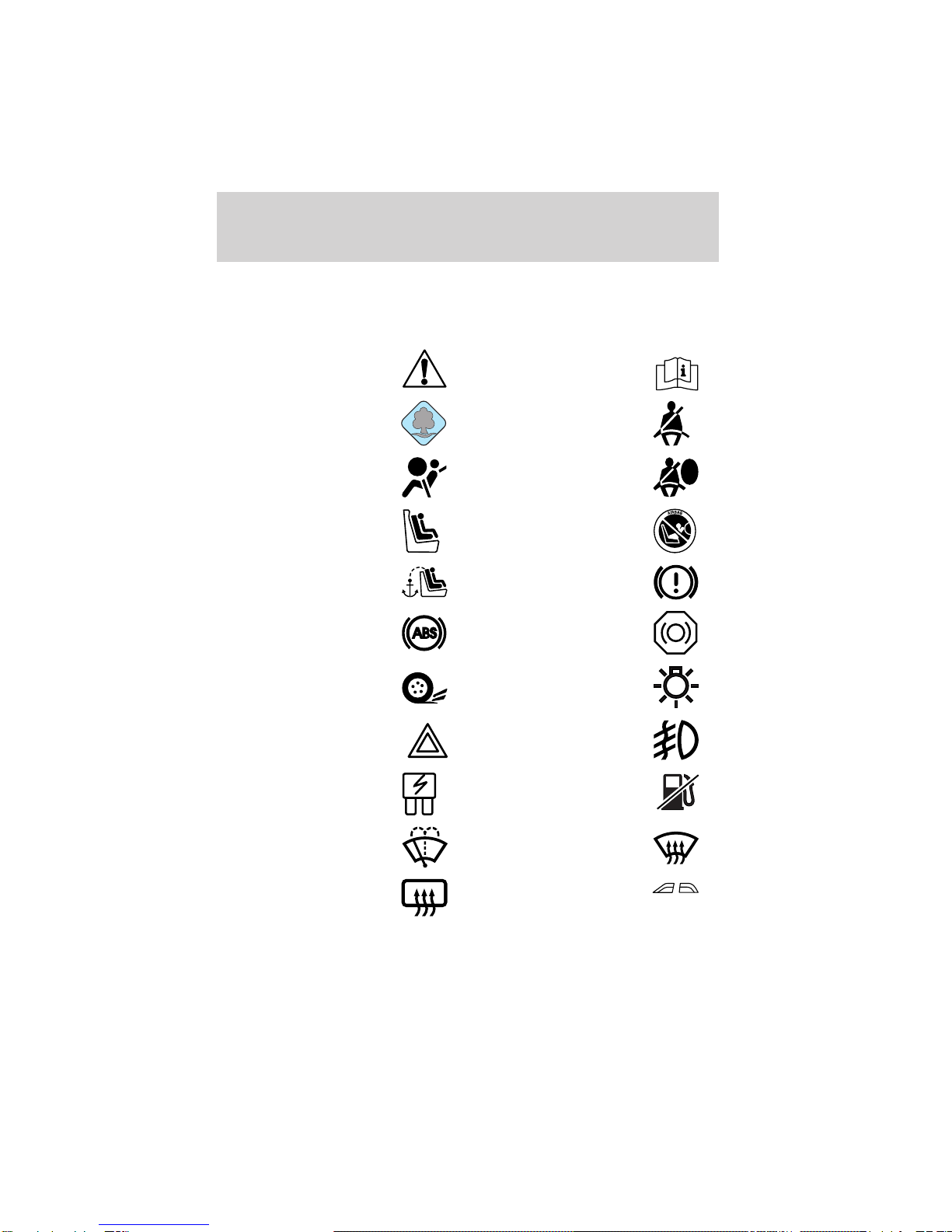

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert See Owner’s Guide

Protecting the

Environment Fasten Safety Belt

Air Bag-Front Air Bag-Side

Child Seat Child Seat Installation

Warning

Child Seat Tether

Anchorage Brake System

Anti-Lock Brake System Brake Fluid -

Non-Petroleum Based

Traction Control Master Lighting Switch

Hazard Warning Flasher Fog Lamps-Front

Fuse Compartment Fuel Pump Reset

Windshield Wash/Wipe Windshield

Defrost/Demist

Rear Window

Defrost/Demist

Power Windows

Front/Rear

Introduction

Vehicle Symbol Glossary

Power Window Lockout Panic Alarm System

Feature

Engine Oil Engine Coolant

Engine Coolant

Temperature Do Not Open When Hot

Battery Avoid Smoking, Flames,

or Sparks

Battery Acid Explosive Gas

Fan Warning Power Steering Fluid

Maintain Correct Fluid

Level

MAX

MIN Emission System

Engine Air Filter Passenger Compartment

Air Filter

Jack Check fuel cap

INFORMATION ABOUT THIS GUIDE

The information found in this guide was accurate at the time of printing.

Mazda may change the contents without notice.

Introduction

456

RPMx1000

ABS

BRAKE

CHECK

ENGINE

CHECK

FUEL

CAP

PRN D 21 THEFT

SPEED

CONT

4WD

HIGH

4WD

LOW

O/D

OFF

10 MPH

60 70

km/h

0 0 0

101

0 0 0 0 0 0

80 100

120

140

160

180

DOOR

AJAR

CHECK

GAGE

DIM

OFF

SET

ACC

COAST

OFF

Headlamp control

(pg. 73)

Instrument panel dimmer

control

(pg. 74)

Instrument cluster

(pg. 12)

Speed control*

(pg. 89)

Hood release

(pg. 234)

Driver air bag

(pg. 121)

Parking brake release

(pg. 157)

Turn signal and

wiper/washer control

(pg. 75)

Instrument Cluster
