Maytag MHWZ400TB00 Manual de usuario
TOP AND CABINET PARTS
1
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
8−07 Printed in U.S.A. (drd) Part No. W10140755 Rev. A
AUTOMATIC
WASHER
TOP AND CABINET PARTS
2
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10117443
Use & Care Guide
W10118956
Tech Sheet
W10118989
Energy Guide
W10112913
Quick Start Guide
2 Top
8540716 White
W10128645
Black
3 Cabinet
8540548 White
W10117456
Black
4 Panel, Front
W10112948
White
W10117457
Black
5 Toe Panel
8540813 White
W10112981
Black
6
W10121009
Foot, Leveling (4)
7 487576 Washer, Plastic
8 3359452 Nut, Lock (4)
9 8518891 Rivet
10 8540580 Panel, Rear
11 8540581 Brace, Transport
12 8540199 Bolt, Shipping (4)
13 Hose, Water Inlet
8571377 Blue Coupler
8571378 Red Coupler
14
W10029820
Cord, Power
15 8540540 Motor Control Unit
16 8540974 Brace, Rear
17 8540093 Clamp, Tube
Transportation
18
W10114608
Hose, Drain
19 8540607 Retainer,
Hose Outlet
20 238614 Bumper (2)
21
W10015090
Screw, 8−18 x 5/8
22 8540230 Filter,
Interference
23 8540224 Switch, Pressure
24 8540294 Hose, Pressure
Switch
25 8540479 Screw, Grounding
26 8540268 Cover, Transport
27 8540021 U−Bend,
Drain Hose
28
W10085220
Microswitch (2)
29 8540728 Sleeve,
Cord Support (2)
30 8540727 Screw, 3 x 8 mm
31 8540329 Screw
32 8540720 Brace, Top
(Includes Item 33)
33 8283273 Damper, Brace
34 2161302 Sleeve, Pressure
Switch Hose
35 3347868 Cable Tie
36 16123 Washer, Water
Inlet Hose (4)
1−1/16 x 5/8
37 8540290 Harness Channel,
Top Rear
38 8540288 Harness Channel,
Side Front
39 8540289 Harness Channel,
Side Rear
40
W10110676
Strain Relief,
Power Cord
41 8540644 Bracket, Spring

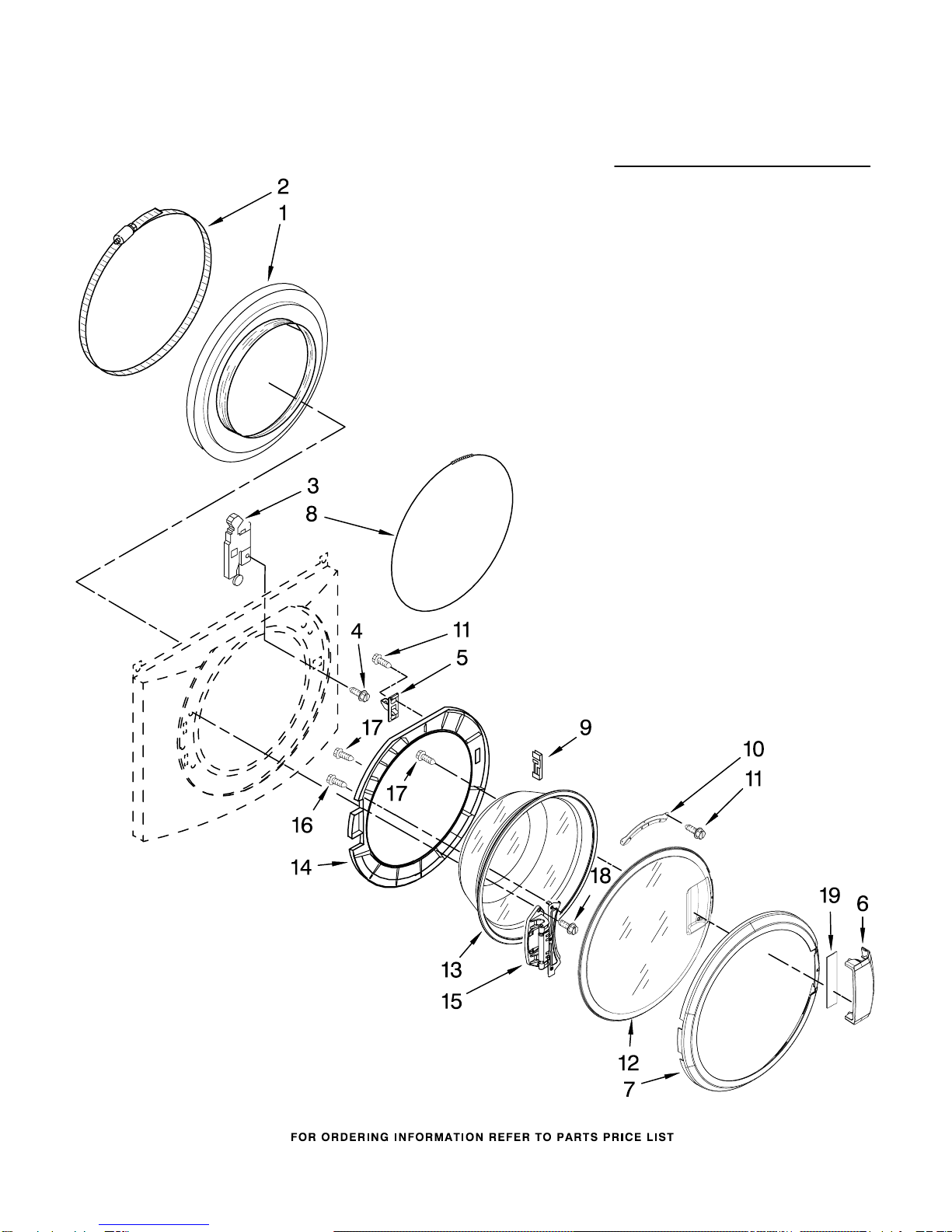

DOOR AND LATCH PARTS
3
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION
1 8540952 Bellow
2 8540108 Clamp, Bellow
3 8540772 Lock, Door
4 8540725 Screw
5 8540221 Hook, Door
6
W10117475
Handle, Door
7 Trim Ring,
Outer Door
W10112914
White
W10112915
Chrome
8 8540107 Clamp, Bellow
(Front)
9 8540115 Clamp, Support
10 8540114 Clamp, Glass (2)
11 8540513 Screw
12
W10119007
Frame, Door
Front Assembly
13 8540428 Glass, Door
14
W10138523
Frame, Door
Back Support
15
W10118967
Hinge, Door
16 8540284 Screw
17 8540282 Screw
18
W10015090
Screw
19
W10112927
Pad, Door Handle

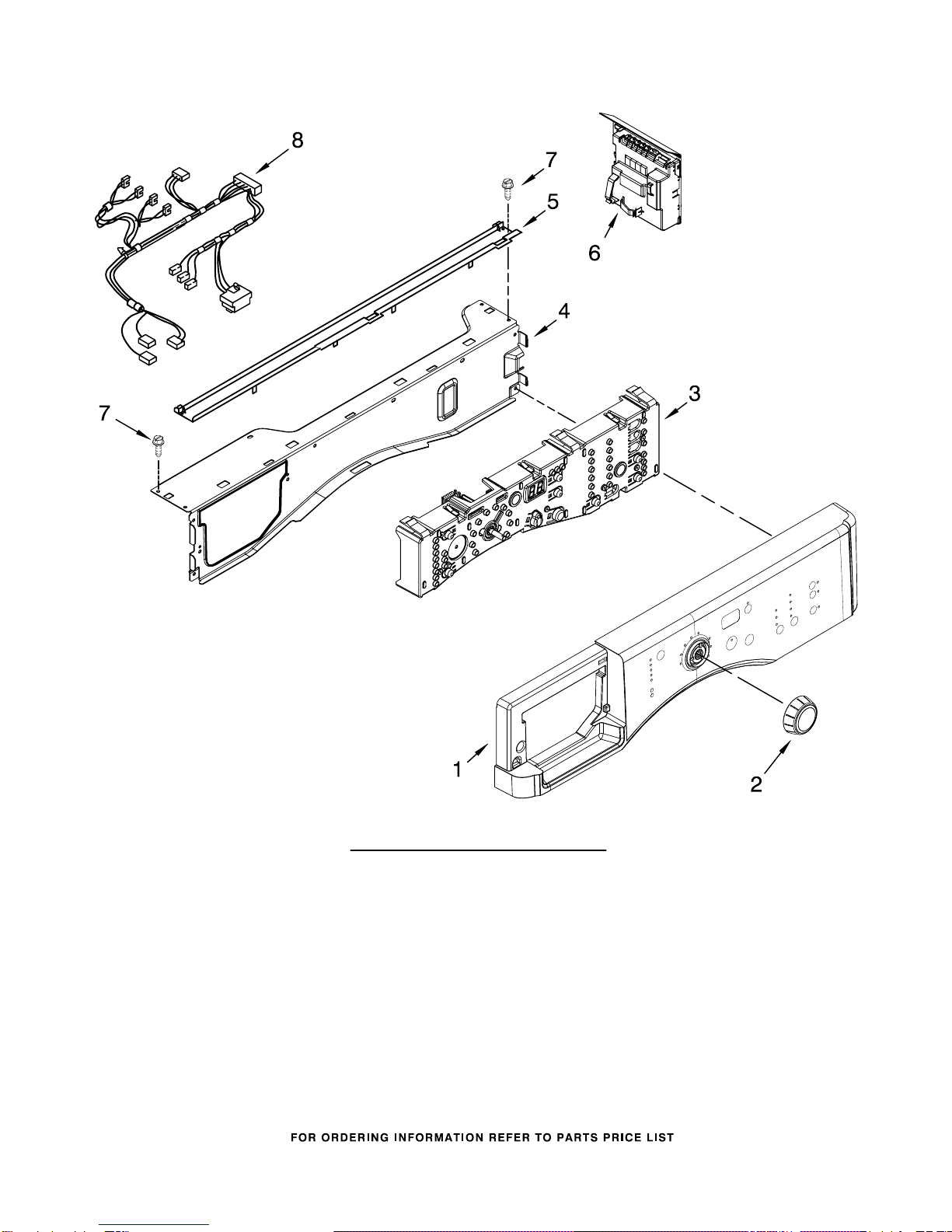

CONTROL PANEL PARTS
4
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION
1 Panel, Control
W10117405
White
W10119011
Black
2 Knob, Control
W10112899
Elephant/Chrome
W10119050
Chrome
3
W10117418
User Interface
4 8540558 Brace, Top Front
5 8540722 Channel, Water
6
W10118972
Microcomputer,
Machine Control
7
W10015090
Screw, 8−18 X 5/8
8 8540882 Harness, Wiring
(Main)
DISPENSER PARTS
5
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8540751 Valve, Inlet
2 8540065 Hose, Valve
To Dispenser
3 370450 Clamp, Hose
4 8540282 Screw
5 8540042 Nozzle, Inlet
6 8540393 Cam, Actuator
7 8540394 Lever, Water
Distribution
8 8540041 Actuator
9 VS611 Washer
10 8281276 Clamp, Hose
11 8540395 Connection, Lever
12 8540058 Dispenser
13 8540053 Nozzle,
Distribution
14 8540063 Hose, Dispenser
To Tub
15 Handle, Drawer
W10118955
White
W10118961
Black
16
W10112569
Badge Assembly
17 8540399 Cover,
Detergent Drawer
18 8540402 Drawer,
Detergent
19 8540400 Hook, Drawer
20 8540429 Siphon,
Bleach/Softener
PUMP AND MOTOR PARTS
6
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION
1
W10140582
Motor, Drive
2 8540134 Bolt, Motor
3 8540180 Air Trap
4 8540013 Ball
5 8540008 Clamp
6 8540012 Hose,
Tub to Pump
7 370448 Clamp, Hose
8 356138 Clamp, Drain Hose
9
W10130913
Pump (Complete)
10
W10034820
Foot, Rubber
(Slider)
11
W10034830
Foot, Rubber
(Lock)
12 8540033 Cap, Lock Foot
13 8533964 Screw,
10−16 x 1.25 (2)
14 8540025 Seal, Filter Cap
15 8540996 Filter Assembly
(Includes Item 14)
16 8540525 Harness, Motor

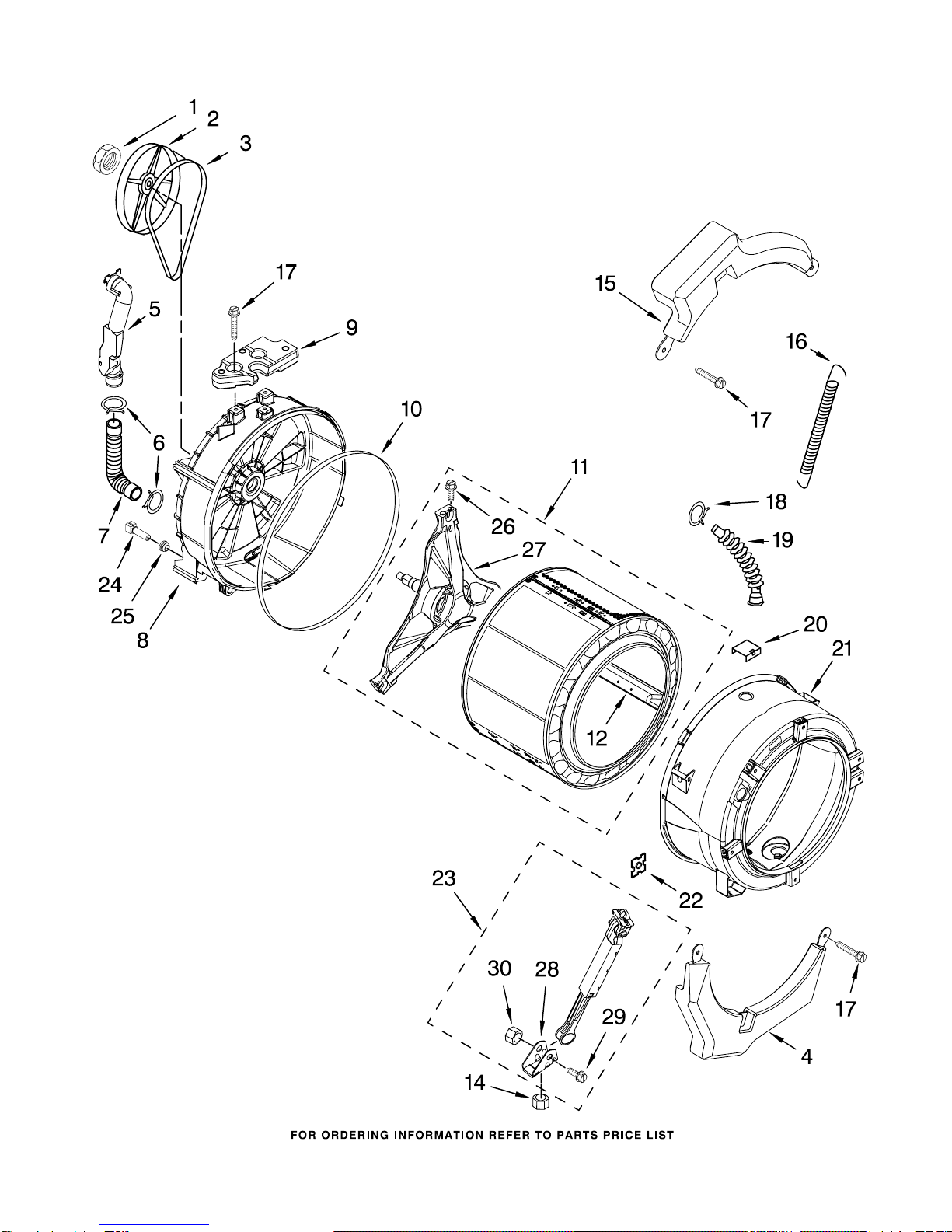

TUB AND BASKET PARTS
7
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
TUB AND BASKET PARTS
8
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION
1 8533999 Nut, Pulley
2 8540088C Pulley
3
W10116215
Belt, Drive
4 8540600 Counterweight,
Front Lower
5
W10112169
Pipe, Ventilation
6 8540010 Clamp, Vent Hose
7 8540019 Hose, Exhaust
8
W10112660
Tub, Rear
(Includes Items
10, 21 & 22)
9 8540604 Counterweight,
Rear
10 8540090 Gasket, Tub
11
W10112984
Basket, Complete
12
W10112972
Baffle, Tub
14 8534084 Nut, Shock
Absorber Mounting
15 8540598 Counterweight,
Front Upper
16
W10010360
Spring,
Suspension
17
W10094780
Bolt,
Counterweight Mtg.
18 3363365 Clamp, Hose
19 8540015 Hose, Exhaust
20 8540092 Clamp, Tub
21
W10112661
Tub, Front
(Includes Items
8, 10 & 22)
22 8540072 Nut, Push−In
23
W10084740
Shock Absorber
24 8540226 Negative
Thermistor Control
25 8540766 Seal, Rubber
26 8540382 Screw
27 8540342 Crosspiece
Assembly
28 8540940 Bracket, Shock
Absorber Mounting
29 8540841 Bolt, Shock Brkt.
30 8540842 Nut, Shock Brkt.
OPTIONAL PARTS (NOT INCLUDED)
9
For Models: MHWZ400TQ00, MHWZ400TB00
(White) (Black)
W10140755
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
786020 Black
PAINT, BULK (1 qt.)
799344 White (Uncut)
786032 Black (Uncut)
ACCESSORY PARTS
285863 Drain Extension
