Maytag CENTENNIAL MTW5800TW0 Manual de usuario

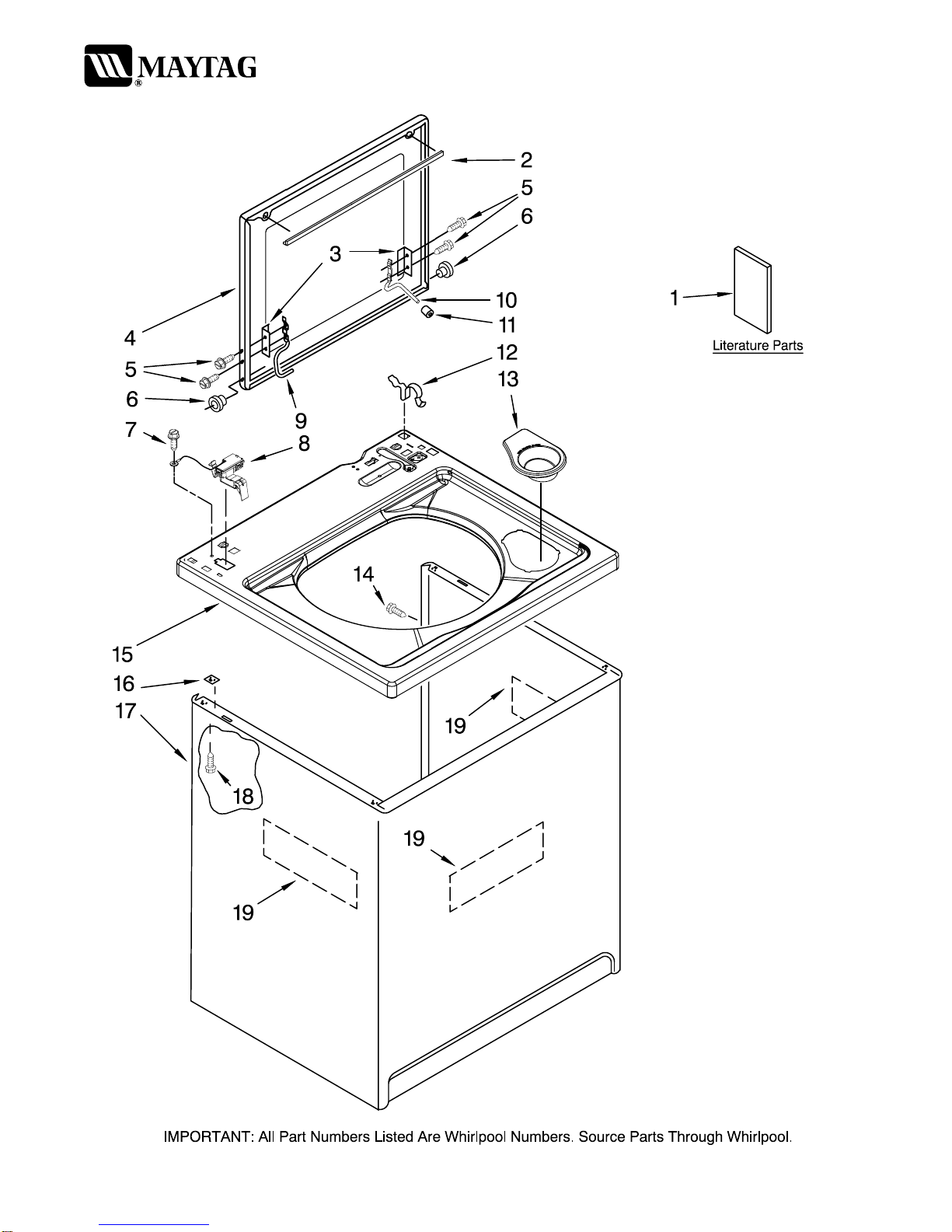

TOP AND CABINET PARTS

For Model: MTW5800TW0

(White/Grey)

02−07 Litho in U.S.A. (drd) Part No. W10119735 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10092682

Use & Care Guide

W10092688

Feature Sheet

W10092713

Energy Guide

W10111392

Wiring Diagram

2 8054939 Seal, Lid

3 21097 Pad, Lid Hinge (2)

W10093680

Lid

W10119828

Screw, Lid Hinge

Mounting (4)

6 8319539 Bearing, Lid

Hinge (2)

7 3351614 Screw, Ground

8 8318084 Switch, Lid

9 8559336 Hinge, Lid (L.H.)

10 54583 Hinge, Lid (R.H.)

11 19119 Bumper, Lid Hinge

12 62780 Clip, Top &

Cabinet & Rear

Panel (2)

13 8565967 Dispenser, Bleach

14 3357011 Screw, 10−16 x 1/2

15 8543479 Top

16 62750 Spacer, Cabinet

To Top (4)

17 63424 Cabinet

18 3390631 Screw,

10−16 x 3/8 (4)

19 3976348 Absorber, Sound

(Cabinet)(3)

CONTROLS AND REAR PANEL PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

CONTROLS AND REAR PANEL PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 359625 Screw, 8−18 x 1/2

2 8579715 Console Shell

(Includes Item 3)

3 8312709 Clip, Console (2)

4 8577843 Switch,

Water Level

5 8578335 Switch, Water

Temperature (ATC)

6 8317975 Retainer, Harness

W10111389

Timer

(Motor Not A

Service Part)

8 90767 Screw, 8−18 x 3/8

W10089679

Panel, Control

(Includes Item 10)

W10112569

Badge Assembly

11 8536939 Clip, Knob

W10112572

Knob, Control

W10110033

Knob, Timer

W10112571

Dial, Timer

15 8568314 Strap, Console

16 8578842 Cord, Power

17 3952821 Strain Relief,

Power Cord

18 9740848 Screw, 8−18 x 1/2

19 3351614 Screw, Ground

20 3347868 Cable Tie

21 8577378 U−Bend,

Drain Hose

22 8559373 Drain Hose

Assembly (Includes

Items 27 & 28)

23 8541669 Bucket, Drain Hose

(Left Half)

24 8541658 Bucket, Drain Hose

(Right Half)

25 62863 Screw, 10−16 x 3/8

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8541668 Clamp, Hose

29 8317496 Clamp, Hose

30 3363366 Clamp, Hose

31 3951449 Hose, Pump To Tub

(Includes Item 30)

32 8318015 Panel, Rear

33 62747 Pad, Rear Panel

W10113814

Harness, Wiring

(For Detail See

Pages 9 & 10)

35 8055003 Clip, Harness

& Pressure Hose

36 8539874 Shield, Suds

37 3979347 Valve, Water Inlet

& Thermistor Assy.

38 301958 Clamp, Hose

39 8317974 Hose, Vacuum Break

40 370450 Clamp, Hose

41 387606 Break, Vacuum

42 8572717 Capacitor,

Motor Start

43 8318046 Clip, Capacitor

44 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

45 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler

W10093726

Shield, Assembly

Lower

W10000080

Rivet

W10093725

Shield, Upper

49 3949187 Switch, Rotary

50 3949180 Switch, Rotary

51 694419 Buzzer, Mini

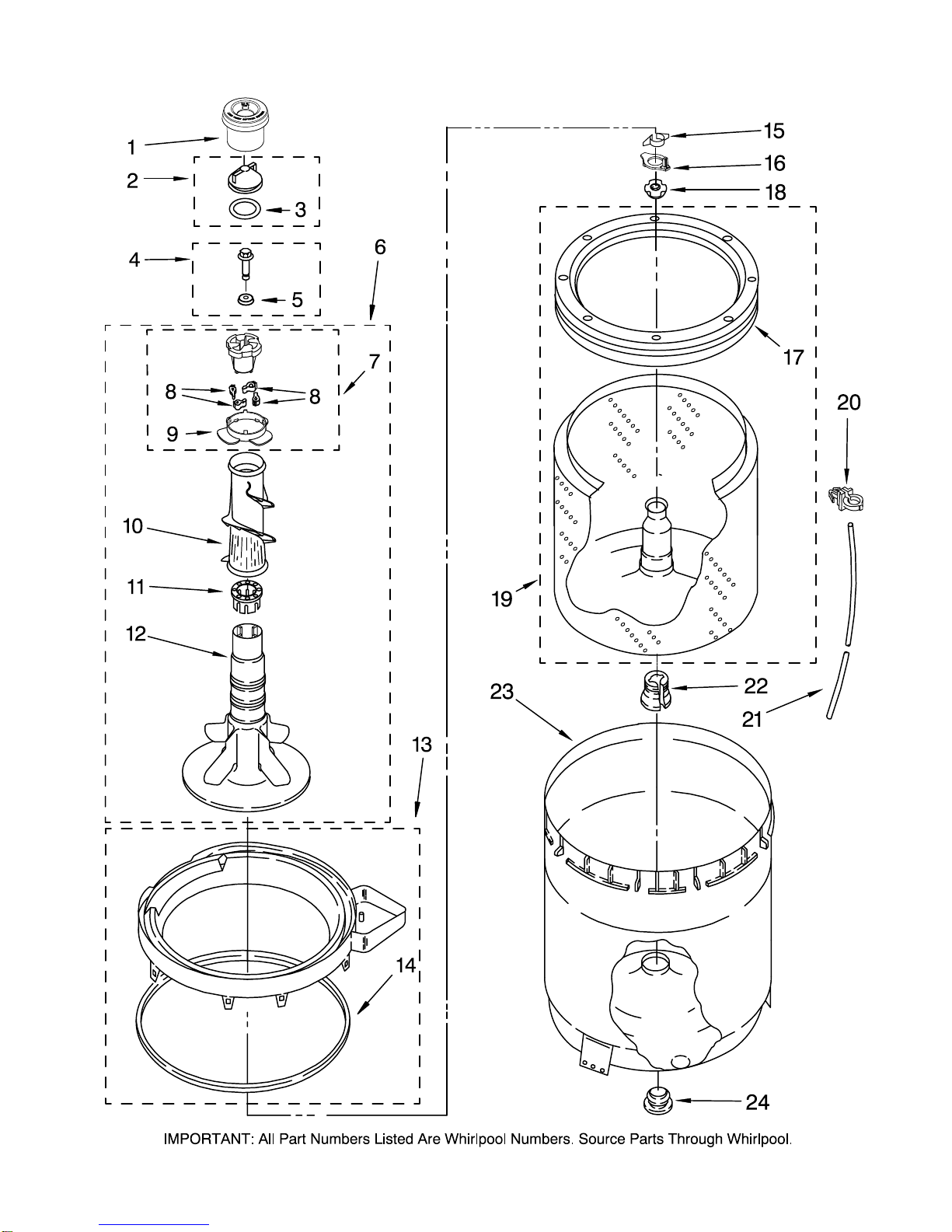

AGITATOR, BASKET AND TUB PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

AGITATOR, BASKET AND TUB PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

Illus. Part

No. No. DESCRIPTION

1 8565968 Dispenser,

Fabric Softener

2 3354733 Cap, Barrier

3 3348855 Seal, Inner Cap

4 358237 Screw & Washer

(5/16−24 x 1)

5 3949550 Washer

W10093672

Agitator

(Complete)

7 3363663 Cam, Driven

8 3366877 Dog, Agitator

Clutch (4)

9 3363661 Bearing,

Driven Cam

10 3349019 Clothes Mover

11 3350389 Spacer, Thrust

W10110020

Agitator

13 8528150 Tub Ring

14 3976308 Gasket, Tub Ring

15 3354845 Clip, Agitator

16 8543666 Washer, Agitator

W10106550

Balance Ring

W10116603

Nut, Spanner

19 8579546 Basket & Balance

Ring

20 2219077 Clip, Pressure

Switch Hose

21 3347780 Hose, Pressure

Switch

22 389140 Block, Basket

Drive

23 63849 Tub

24 383727 Gasket, Centerpost

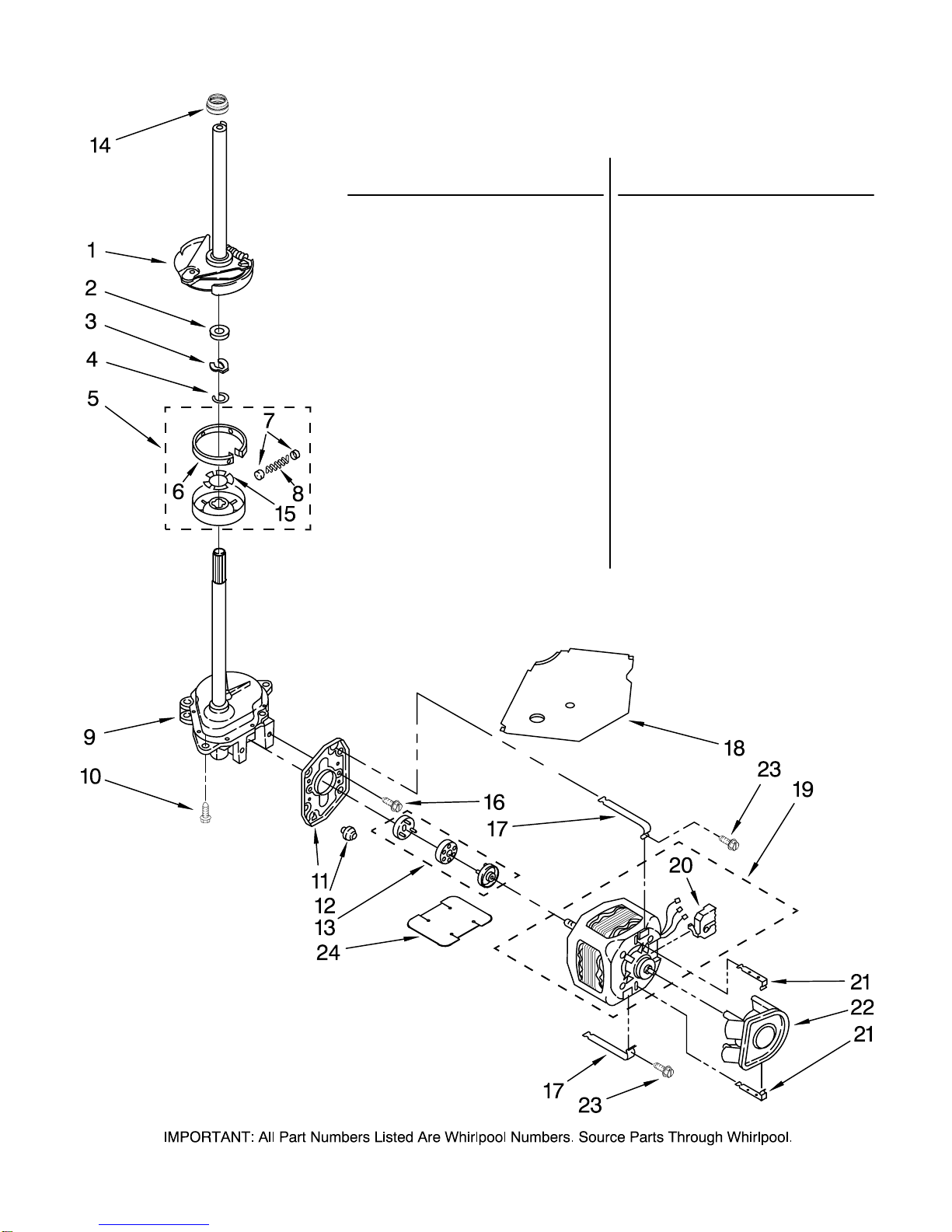

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3978849 Coupling, Motor

& Isolation

14 8577374 Seal

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

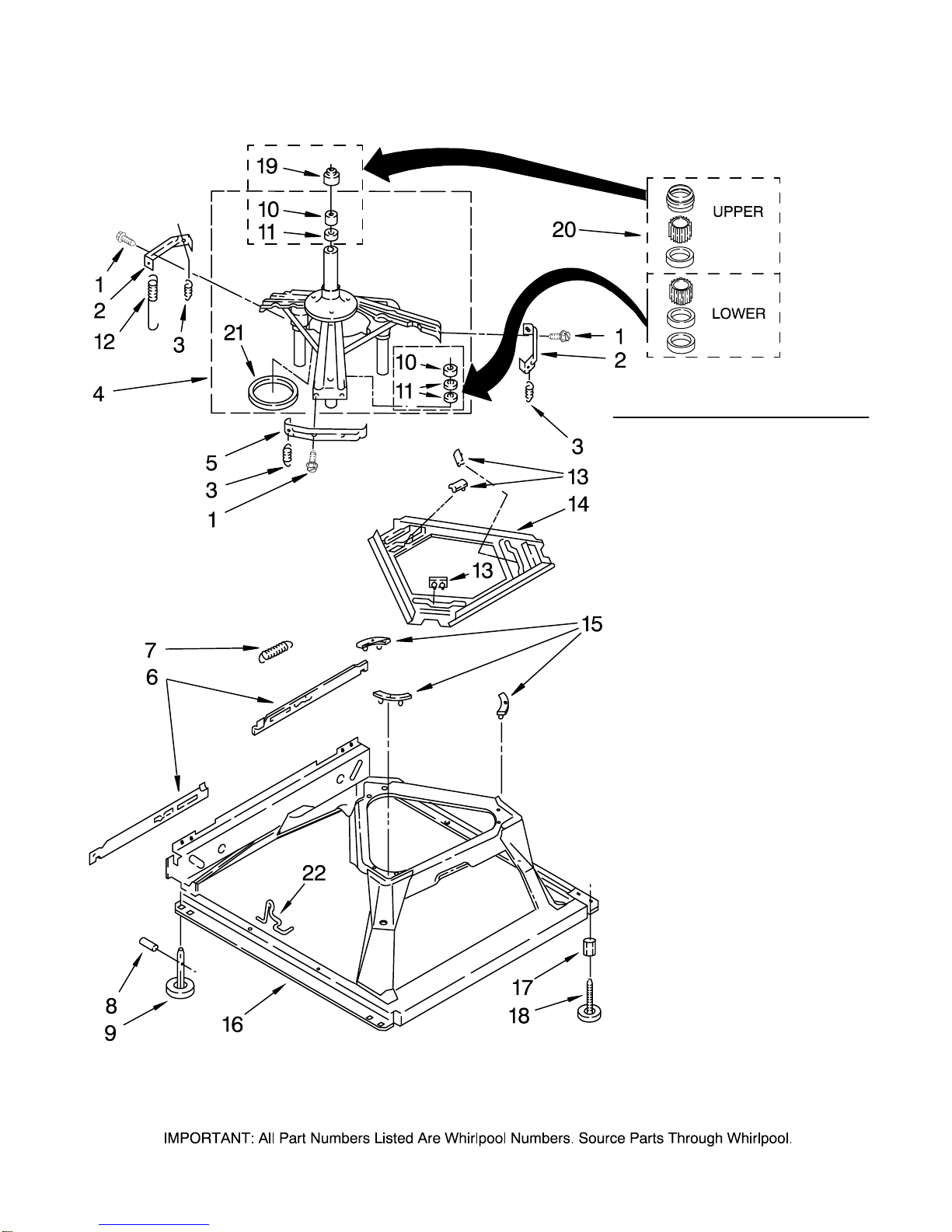

MACHINE BASE PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

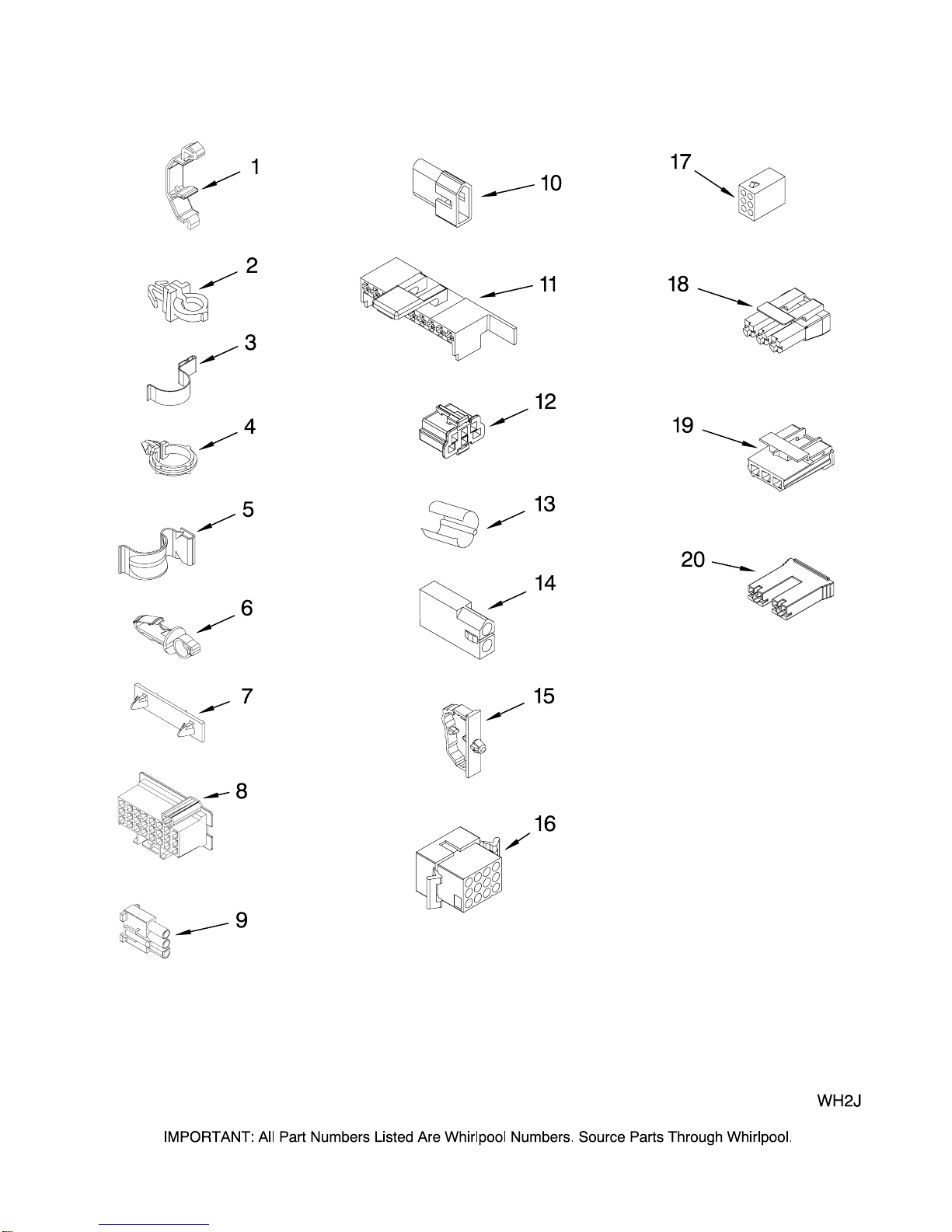

WIRING HARNESS PARTS

For Model: MTW5800TW0

(White/Grey)

W10119735

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: MTW5800TW0

(White/Grey)

W10119735
