Maytag MSD2550VEB00 Guía de solución de problemas
CABINET PARTS
1
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
11−08 Printed In U.S.A. (wam) (bay) Part No. W10197412 Rev. C
REFRIGERATOR
CABINET PARTS
2W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10171539
Energy Guide
W10153840
Owner’s Manual
W10156278
Service and Wiring
Sheet
W10154390
Instruction Sheet
(Door Removal)
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2209697 Shim
9 2203771 Hinge Top (RC)
10 3400113 Screw
11 8281227 Screw
12 Hinge Cover
2203407W White
2203407B Black
13 2217075 Hinge Bottom
14 Filler, Wrapper
2201014 White
2201017 Black
15 Grille
2260500W White
2260500B Black
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408W White
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502B Black
31 489500 Screw
32 2260519 Block, Housing
Support
33 Button, Water
Filter
2260503W White
2260503B Black
34 2304708 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)
REFRIGERATOR LINER PARTS
3
W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
6 2311637 Wire Harness,
Dual Crisper
7 2319866 Shelf Ladder
8 489478 Screw
9
W10004810
Screw (2)
10 2256085 Bracket Retainer
11 489290 Screw
12 2209754 Air Diffuser
Assembly
13 2152019 Air Diffuser
Cover
14 2150331 Cover, Wiring
15 2162085 Socket
16 2217199 Reservoir
17 2255743 Light Bulb
18 2209769 Light Lens
19 488280 Screw
REFRIGERATOR SHELF PARTS
4W10197412
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
2 2309518 Snack Bin
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
7 2174150 Glass, Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188654 Meat Pan
15 2179350 Deflector
16 2255592 Trim, Handle
17 2309560 Shelf, Snack Bin
18 2179243 Trim, Handle
19 2309524 Shelf, Snack Bin
FREEZER LINER PARTS
5
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
FREEZER LINER PARTS
6
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2312041 Shelf
Upper
3 Track, Basket−Dual
2301291 Right
2301292 Left
4 941839 Hole Plug
5 2309597 Shelf
6 2309757 Freezer Bin
7 2163762 Cup, Shelf (16)
8 3400893 Screw
9 Shelf Track
2301289 Right Side
2301290 Left Side
10 2309596 Shelf (2)
11
W10004810
Screw (8)
12 842534 Clip, Air Duct (2)
13 2198587 Cover, Emitter
14 2198635 Spring
15 2198634 Pin
16 1115373 Switch, Rocker Arm
17 2220398 P.C. Board
Emitter
18 2255720 Cover, Ice Maker
19 2212321 Slide, Ice Maker
Mounting
20 489478 Screw
21 489214 Screw
22 2162085 Light Socket
23 2255743 Light Bulb
24 8281185 Screw
25 2198633 Flipper
26
W10173569
Cover, Receiver
27 2255562 Slide, Ice Maker
Shut Off
28 2255114 P.C. Board,
Receiver
29 2198643 Lens
30 2198589 Light Shield
31 2212340 Light Lens
32 2198641 Bracket, Ice Maker
Cover
33 2155597 Socket, Light
34 Ladder
2320024 Left Side
2320025 Right Side
35 2303234 Shield, Wiring

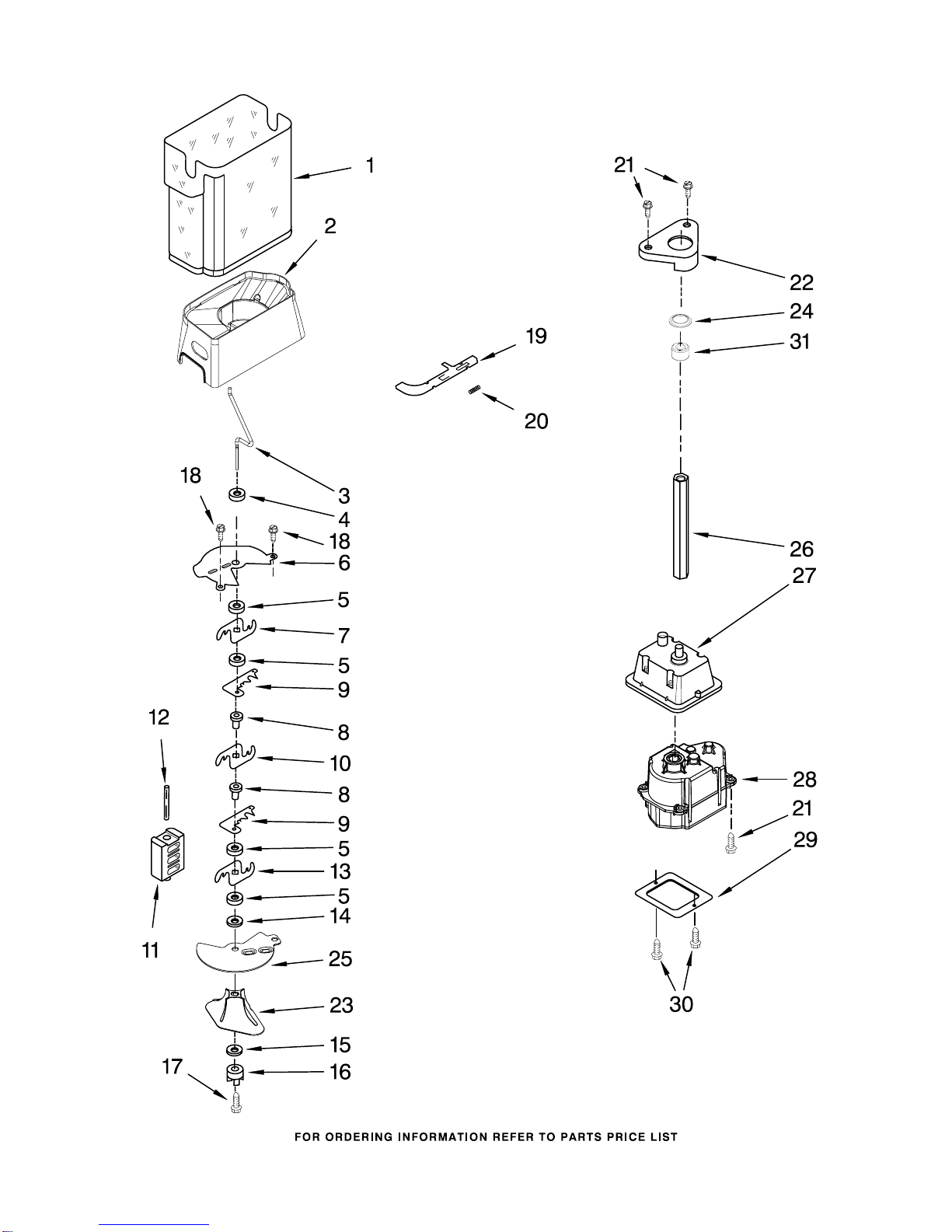

MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2
W10170127
Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2317277 Latch, Bin
20 2198608 Spring, Latch
21 8281163 Screw
22 2188919 Holder
23 2317243 Wiper
24 2198628 Seal
25 2317250 Divider, Chamber
26 2188916 Drive Shaft
27 2256154 Enclosure, Motor
28 2315544 Dispenser, Motor
29 2212305 Cover
30 489478 Screw
31 2315559 Sleeve, Coupling
100
W10170129
Ice Container
(Complete)

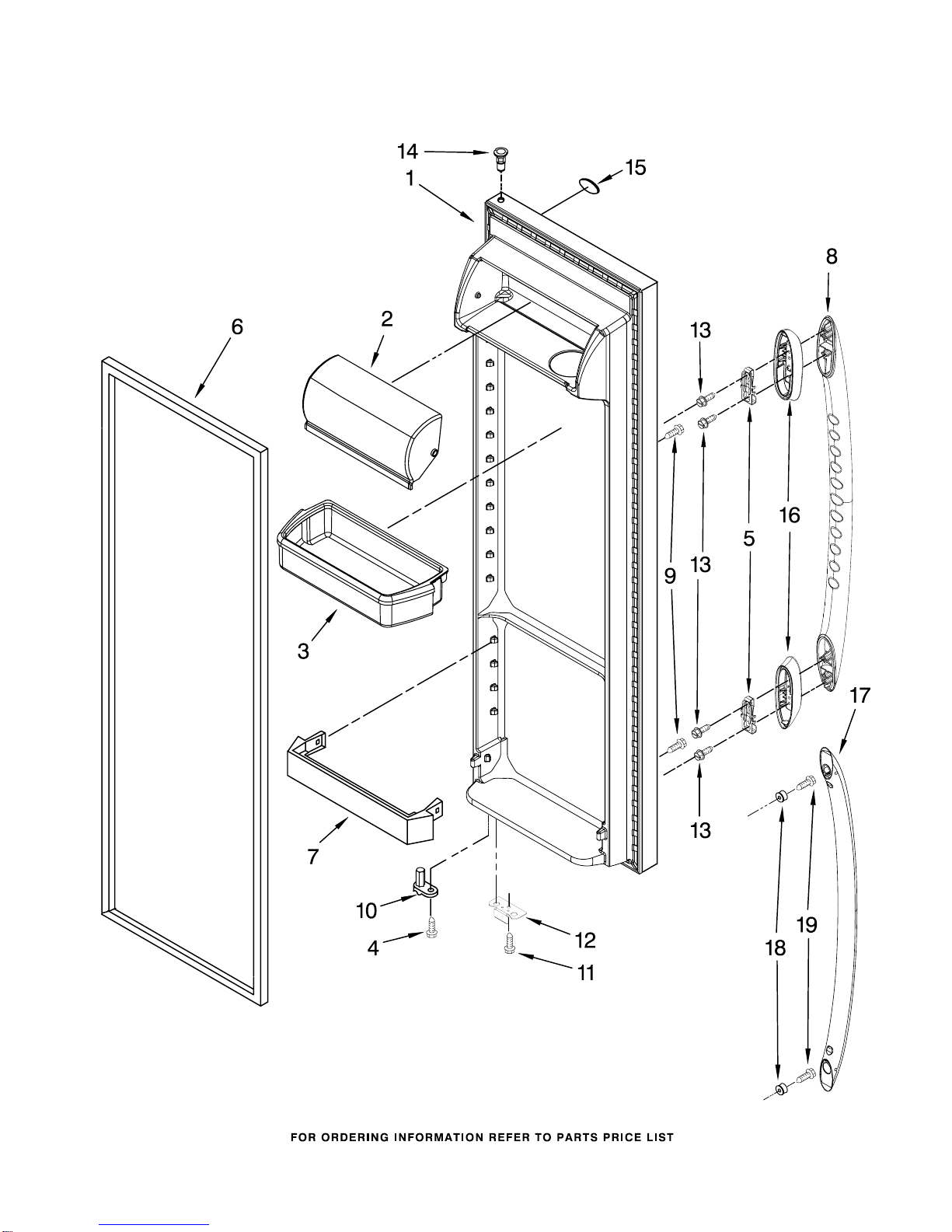

REFRIGERATOR DOOR PARTS
9
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
REFRIGERATOR DOOR PARTS
10
For Models: MSD2550VEW00, MSD2550VEB00, MSD2550VES00, MSD2550VEU00
(White) (Black) (Stainless) (Stainless VCM)
W10197412
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10153847
White
W10159873
Black
W10180652
Stainless
W10172722
Stainless VCM
2 2256101 Compartment Door
3 2203828 Shelf Bin (3)
4 3400012 Screw
5 13067101 Clip
6 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
7 2156022 Shelf Bin
8 Handle
(Includes #13)
12743701W
White
12743701B
Black
9 12990203 Screw (4)
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2206629 White
2206629B Black
13 2326016 Screw
14 2308091 Thimble−Top
15 2324038 Nameplate
16 Accent
12834803W
White
12834803B
Black
17 Handle
67006391 Stainless
18 2326259 Stud, Handle
19 488208 Screw
