Maytag MSD2542VEB00 Guía de solución de problemas
1
CABINET PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
04−08 Litho In U.S.A. (mat) Part No. W10197413 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10153840
Use & Care Guide
W10158909
Service & Wiring
Sheet
W10153841
Energy Label
W10154390
Instruction Sheet,
Door Removal
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 2304249 Screw Plate (2)
8 2260507 Housing, Water
Filter
9 2209697 Shim (2)
10 489500 Screw (2)
11 4396841 Water Filter
12 2203770 Hinge Top (FC)
13 2203771 Hinge, Top (RC)
14 488500 Screw
15 Hinge Cover
2203407W White
2203407B Black
16 2217075 Hinge Bottom (2)
17 Cap, Water
Filter
2260518W White
2260518B Black
18 3400113 Screw (4)
19 2260519 Block, Housing
Support
20 3400858 Screw
21 Filler, Wrapper
2201014 White
2201017 Black
22 Grille
2260500W White
2260500B Black
23 489497 Screw
24 Button, Water
Filter
2260503W White
2260503B Black
25 3400103 Screw (2)
26 489290 Screw
27 489464 Screw
28 2304697 Tube, Filter
Inlet
29 2255012 Tube, Filter
Outlet
30 940139 Drain Fitting
31 1108438 Extension Tube
32 1108439 Clip, Drain Tube
33 2252035 Cover, Unit
34 Cabinet (Not A
Serviceable Part)
35 Hinge Cover
2203408W White
2203408B Black
36 8281227 Screw
37 549193 Clamp, Service
Cord
38 489084 Screw
39 2155311 Door Closer,
Lower Cam (2)
40 489483 Screw (2)
REFRIGERATOR LINER PARTS
3
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2257741 Louver
3 2256035 Bracket, Dual
Crisper Light
4 489084 Screw
5 2311637 Wire Harness,
Crisper Light
6 2311612 Clip, Control
Box (2)
7 2209753 Air Diffuser
Assembly
8 2152019 Air Diffuser
Cover
9 2150331 Cover, Conduit
10 486298 Screw
11 2162085 Socket
12 2217199 Reservoir
13 527949 Light Bulb
14 2209769 Light Lens
15 488280 Screw (2)

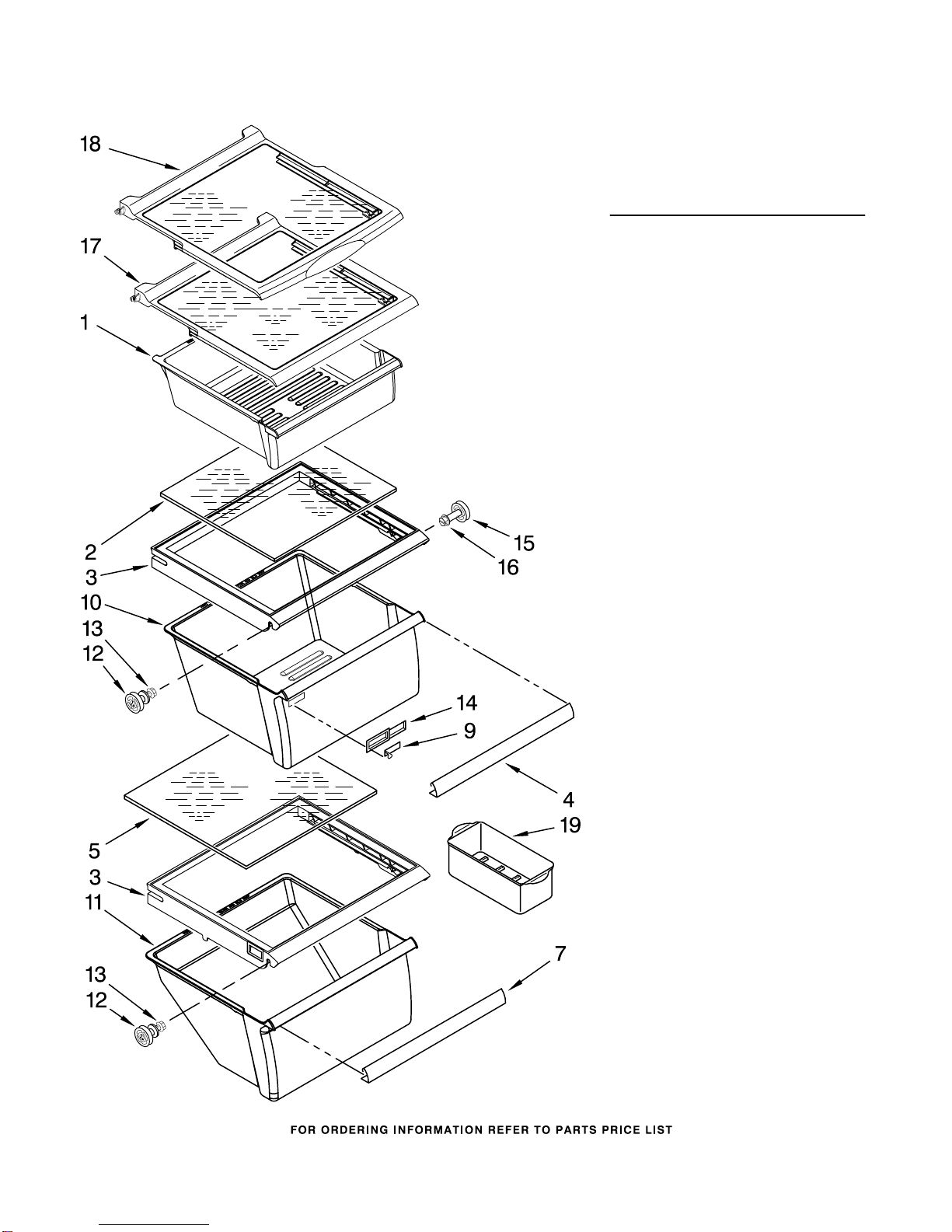

REFRIGERATOR SHELF PARTS
4
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION
1 2309518 Snack Pan
2 2174150 Glass, Cover
3 2311726 Cover, Pan
4 2255593 Trim, Pan
5 2179259 Glass, Cover
7 2255592 Trim, Meat Pan
9 2179342 Slide, Humidity
Control
10 2188652 Crisper Pan
11 2188724 Meat Pan
12 2196485 Stud Assembly
13 3400894 Screw
14 2179343 Housing, Humidity
Control
15 2196483 Stud Assembly
16 8281158 Screw
17 2309561 Shelf Assembly,
Spillguard
18 2309523 Shelf Assembly,
Slide−Out
19 2311722 Egg Bin
5
FREEZER LINER PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
6
FREEZER LINER PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2163762 Cup, Shelf
Mounting (12)
3 2171713 Door, Ice
Compartment
4 2309597 Shelf, Wire
5 842534 Clip, Air Duct (2)
6 2196206 Support, Stud (4)
7 2309757 Freezer Bin
8 1115373 Switch, Rocker Arm
9 8281158 Screw (4)
10 2196483 Stud Assembly (4)
11 2309596 Shelf, Wire
12 2171714 Shelf, Top
Compartment
13 2171705 Light Lens
14 527949 Light Bulb
15 2162085 Light Socket
16 Slide, Container
1119237 Left Side
1119293 Right Side
17 489100 Screw (4)
18 3400893 Screw
19 2309522 Shelf, Wire
MOTOR AND ICE CONTAINER PARTS
7
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
MOTOR AND ICE CONTAINER PARTS
8
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION
1 2183726 Bracket, Motor
2 2188385 Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Solenoid
5 489355 Screw (2)
6 2311639 Wiring Assembly,
Ice Dispenser
7 489399 Screw (6)
8 2205716 Coupling, Motor
9 489478 Screw
10 2162085 Socket, Light
11 2196091 Ice Container
12 1119005 Spacer, Step (3)
13 1119007 Spacer, Flat (2)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2209781 Drum
23 2171682 Floating Baffle
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Front Cover,
Ice Container
34 527949 Light Bulb
35 2171706 Light Lens,
Dispenser
100 2209780 Ice Container
(Complete)
9
REFRIGERATOR DOOR PARTS
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
REFRIGERATOR DOOR PARTS
10
For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00
(White) (Black) (Stainless−VCM) (Stainless Steel)
W10197413
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
W10153847
White
W10159873
Black
W10150583
Stainless−VCM
W10170585
Stainless Steel
2 2256101 Door, Compartment
4 2187172 Door Bin (3)
6 Door Gasket,
Magnetic
2309528 Mist Beige
2309529 Black
7 Handle
12743701W
White
12743701B
Black
8 2308091 Thimble−Top
9 13067101 Clip
10 12990203 Screw
11 2182178 Door Closer,
Upper Cam
12 489420 Screw
13 Bracket, Door Stop
2206629 Chrome
2206629B Black
14 Accent, Handle
12834803W
White
12834803B
Black
15 2324038 Nameplate
16 489491 Screw (4)
17 2177962 Trivet, Shelf
18 3400012 Screw
