Maytag MFI2067AEB12 Manual de usuario

CABINET PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

1−08 Litho In U.S.A. (pl) Part No. W10183316 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10164064

Tech Sheet

W10164010

Use & Care Guide

W10184171

Guide, Energy

16026312 Service Manual

(Bottom Mount)

2 67006317 Tube W/Waterline,

Fill−IM

3 67003405 Block, Pivot

4 B5759649 Gasket, MC Back

5 Cover, Top Hinge

(Right)

67005956 Black

67005957 Bisque

67005958 White

6 Cover, Fill Tube

67006320 Black

67006321 White

7 67006427 Cover, Control Box

8 M0108105 Clamp, Tube

9 67006521 Screw, Hinge Cover

10 67005955 Hinge, Top Right

11 67006380 Screw, Center

Hinge

12 67006697 Screw, Adjusting

(Rear Roller)

13 Cover, Top Hinge

(Left)

67005951 Black

67005952 Bisque

67005953 White

14 67006303 Screw, Top Hinge

15 Hinge, Center (RT)

67006379 White

67006443 Black

16 67006390 Box, HV Control

17 Cover, Corner (2)

67003484 White

67003485 Black

67003486 Bisque

18 67005950 Hinge, Top Left

19 Roller Assy.

(Front)

W10130459

Right

W10130460

Left

20 67006564 Screw (8)

21 Shim, Top Hinge

67006308 Left

67006309 Right

22 Grille, Toe

W10131133

White

W10131135

Bisque

W10131134

Black

23 67006428 Lid, HV Control

24 Hinge, Center (LT)

67006277 White

67006442 Black

25 67006425 Screw, Cover

26 67006118 Roller Assy. (2)

(Rear)

27 67006426 Cover, Water Valve

28 67006626 Screw, Block

29 67006429 Gasket, HV Control

12575101ED

Cover, MC Back

31 67001066 Tube, Drain

32 67001067 Clip, Drain Tube

33 67003796 Fiber, Acoustic

W10141622

Brake, Foot

W10164422

Board, HV Control

36 Cabinet (Not a

Servicable Part)

REFRIGERATOR LINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

REFRIGERATOR LINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67006328 Module, Light

3 67006326 Foil, Light

4 67006327 Cover, Light

5 67006316 Grille, Air

6 12466103 Switch, Light (2)

7 67006318 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67006330 Cover, Water Tank

(Upper)

12 67006331 Lid, Water Filter

13 67006329 Cover, Water Tank

(Lower)

UKF8001AXX

Filter, Water

15 67006325 Bracket, Filter

Base

16 12002355 Thermister

17 67006324 Bracket, Water

Tank & Valve

18 12956202 Water Tank &

Head Assembly

19 12664501 Plug, Bypass

20 67006322 Valve, Water Inlet

21 67007113 Cover, Ice Box

Harness

22 M0238642 Screw

23 67006319 Cover, Chiller

Vent

24 67006970 Waterline, Cabinet

(W/Nut)

W10118193

Enclosure, Water

Valve Connector

W10118194

Lid, Enclosure

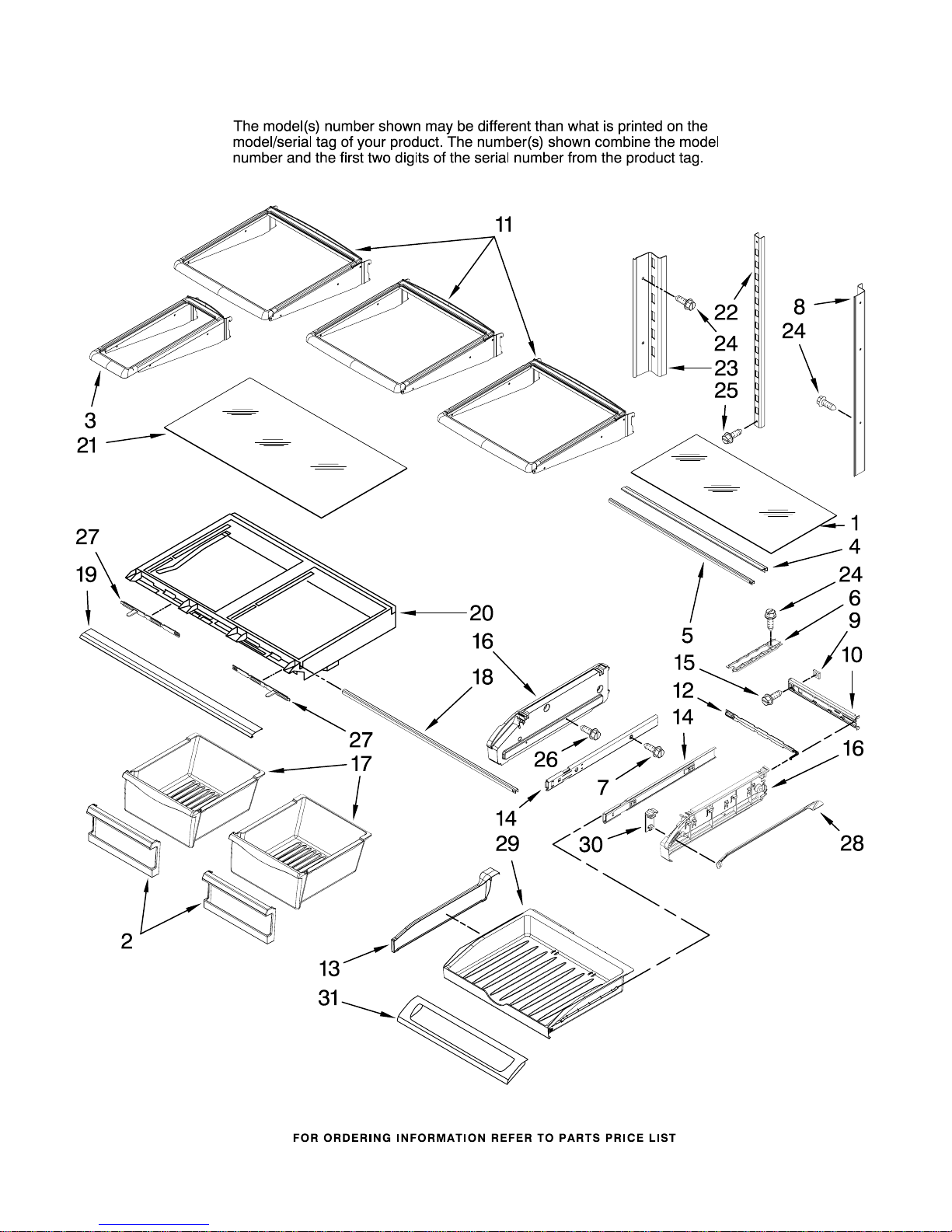

SHELF PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

SHELF PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

Illus. Part

No. No. DESCRIPTION

1 67002332 Glass, Pantry

2 67005923 Front, Crisper

Pan (2)

3 67006977 Shelf, Mini

(Stationary)

4 67006010 Extr, Glass

Support (2)

5 67002330 Brace, Pantry (2)

6 67001719 Track, Pantry

7 67006287 Screw

8 67007115 Ladder, Side

9 67002329 Gasket, Pantry

10 67005625 Housing, Control

11 67006969 Shelf, Glide (3)

12 67003793 Slide, Temperature

13 67002321 Divider,

Pantry Drawer

14 67007026 Glide, Drawer (2)

15 67006400 Screw

16 Endcap, Pantry

67005862 Left

67005857 Right

17 67002659 Pan, Crisper (2)

18 67002748 Brace, Crisper

Cover

19 67005721 Trim, Crisper

20 67006185 Frame, Crisper

21 67006655 Glass, Crisper

Cover

22 67006358 Ladder, Center

23 67006354 Ladder, Side

24 67006400 Screw

25 67006360 Screw (2)

26 67006415 Screw

27 67005864 Slide, Humidity

Control

28 67003794 Rod, Temperature

Control

29 67003530 Drawer, Pantry

30 67003791 Knob, Temperature

Control

31 67005903 Door,

Pantry Drawer

MOTOR AND ICE CONTAINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

MOTOR AND ICE CONTAINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

Illus. Part

No. No. DESCRIPTION

W10149456

Icemaker (Includes

Fill Tube Cup,

Wire Harness &

Sensor Arm

2 67006334 Impinger Assembly

3 67006335 Shroud, Ice

Box Fan

W10162697

Motor, Fan

5 67006337 Blade, Fan

W10165970

Clip, Fan Motor

7 67006339 Grommet, Fan Motor

8 67007109 Divider, Ice Box

9 67006341 Gasket, Damper

10 67006342 Motor, Auger

W10127427

Damper, Control

12 67006344 Solenoid

13 67007110 Screw, Impinger

14 67006425 Screw (3)

15 67007111 Bracket, Solenoid

16 67006346 Washer

17 63052−1 Yoke, Ice

Dispenser

18 67006347 Yoke, Solenoid

19 67006348 Spring, Solenoid

20 67007112 Ice Bin Assembly

(Includes Auger)

FREEZER LINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

FREEZER LINER PARTS

For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12

(Black) (Bisque) (Stainless) (White)

W10183316

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 12002355 Thermistor Kit

3 12002497 Gear (Left)

(Incl. #7)

4 67003924 Cover, Thermistor

5 67004017 Shaft, Rack

Y12570701

Socket, Light

7 12002497 Gear, (Right)

(Incl. #3)

8 67006473 Screw, Bracket (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67006383 Cover, Evap

12 67006425 Screw

13 Bracket, Door

Slide

W10119064

Left

W10119295

Right

14 67006423 Module, Freezer

Light

15 67006338 Clip, Fan Motor

16 67006422 Switch, Rocker

17 67006287 Screw, Fan Shroud

18 67006769 Screw, Slide

To Basket

W10180420

Slide, Drawer (2)

20 67003731 Gasket, Foam

21 Adapter

W10184173

Left

W10184175

Right

22 67006382 Grille, Air

23 67006424 Shroud, Evap Fan

24 67006337 Blade, Fan

(Evaporator)

25 67006339 Grommet, Fan

Motor (2)

W10162809

Motor, Evaporator

Fan

27 D7753903 Funnel, Drain

28 M0500703 Seal, O Ring

29 B8381501 Gasket,

Drain Tube

30 67006406 Screw Adapter
