CABINET PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

12−09 Litho In U.S.A. (mat) (psw) Part No. W10304456 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10279334

Tech Sheet

W10175446

Owners Manual

W10187813

Tag, Energy

10463203SP

Elbow, Fill Tube

3 12698403 Block, Pivot

4 B5759655 Gasket

12963205ED

Hinge, Top Right

6 A3076901 Plug, Button

8 12990504 Screw

9 12992602 Screw

10 M0108107 Clamp, Tube

11 12992201 Screw (6)

13 Cover, Left Hinge

W10217491

White

W10217488

Apollo Grey

14 12992403 Screw (6)

15 Hinge, Center (RT)

13000002WD

White

13000002AP

Apollo Grey

16 12777701 Block, Filter (2)

17 Cover, Corner

12587703W

White

12587703AP

Apollo Grey

12963204ED

Hinge, Top Left

19 Roller Assy.

W10275849

Right

W10275850

Left

20 12991302 Screw

21 Shim, Hinge

12999501 Left

12999502 Right

22 Grille, Toe

W10244559

White

W10244558

Apollo Grey

24 Hinge, Center (LT)

13000001WD

White

13000001AP

Apollo Grey

25 12990511 Screw (10)

26 12726003 Cover, Water Line

W10208593

Guard−Water Valve

28 12990303 Screw (2)

29 12831101 Sweep, Dual Tube

W10211855

Cover, Unit

W10210988

Tube, Drain

M0114003SP

Clip, Speed

33 12820505 Insulation, Sound

34 10354002 Foot Brake

35 Cover, Right Hinge

12962302W

White

12962302AP

Apollo Grey

36 Cabinet (Not a

Servicable Part)

FREEZER LINER PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

FREEZER LINER PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12932103 Guide, Fill Tube

5 13062901 Motor, Evaporator

12570701V

Socket, Light

8 12815301 Cover, Thermistor

W10194422V

Bulb, Light

W10277466

Foil, Housing

11 12226112 Cover, Evaporator

12 12990511 Screw (4)

W10150583

Grommet

W10277025

Module, Light

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 A3189396 Gasket, Bottom

21 B8381501 Gasket

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 12990521 Screw (8)

27 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10261203

Left

W10261204

Right

30 12990501 Screw (6)

33 Rack−Side

W10284694

Left

W10284695

Right

REFRIGERATOR LINER PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

REFRIGERATOR LINER PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806302 Module, Light

W10217740

Overlay

4 12806405 Housing, Control

W10217475

Board, Control

C3680310V

Switch, Light (2)

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

17 12704801 Plate

18 12590620 Head, Water Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 12990512 Screw (2)

B8390302SP

Clip, Facade (2)

12706909SP

Facade, Disp.

12707303SP

Plate, Switch

25 12575501 Switch, Limit

12707206SP

Guide, Waterline

12251001SP

Clip, Waterline

28 12707005 Facade, Disp (Top)

29 12706112 Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 12990513 Screw

W10117358

Insulation, Water

Tank

Following Parts Not Illustrated

W10224292

Harness, Control

(Refrigerator)

(Includes

Thermistor)

REFRIGERATOR DOOR PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

REFRIGERATOR DOOR PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

Illus. Part

No. No. DESCRIPTION

1 Door, Left

W10199095

White

12978035LQ

Satina

2 Door, Right

W10199092

White

12978034LQ

Satina

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

5 12801904 Bin, Shelf (3)

(Medium)

6 Mullion, Door

12722803W

White

12722803AP

Apollo Grey

7 12990204 Screw

8 Gasket, Door (2)

W10163894

White

W10179332

Apollo Grey

9 Handle, Door

13004701W

White

13004701L

Antique Pewter

10 12990504 Screw

11 Stop, Door

12968202W

White

12968202AP

Apollo Grey

W10170766

Nameplate

13 13001201 Mount, Handle

14 12991703 Screw

15 Closure, Door

12028505W

White

12028505AP

Apollo Grey

16 12840002 Bin, Shelf (2)

(Gallon)

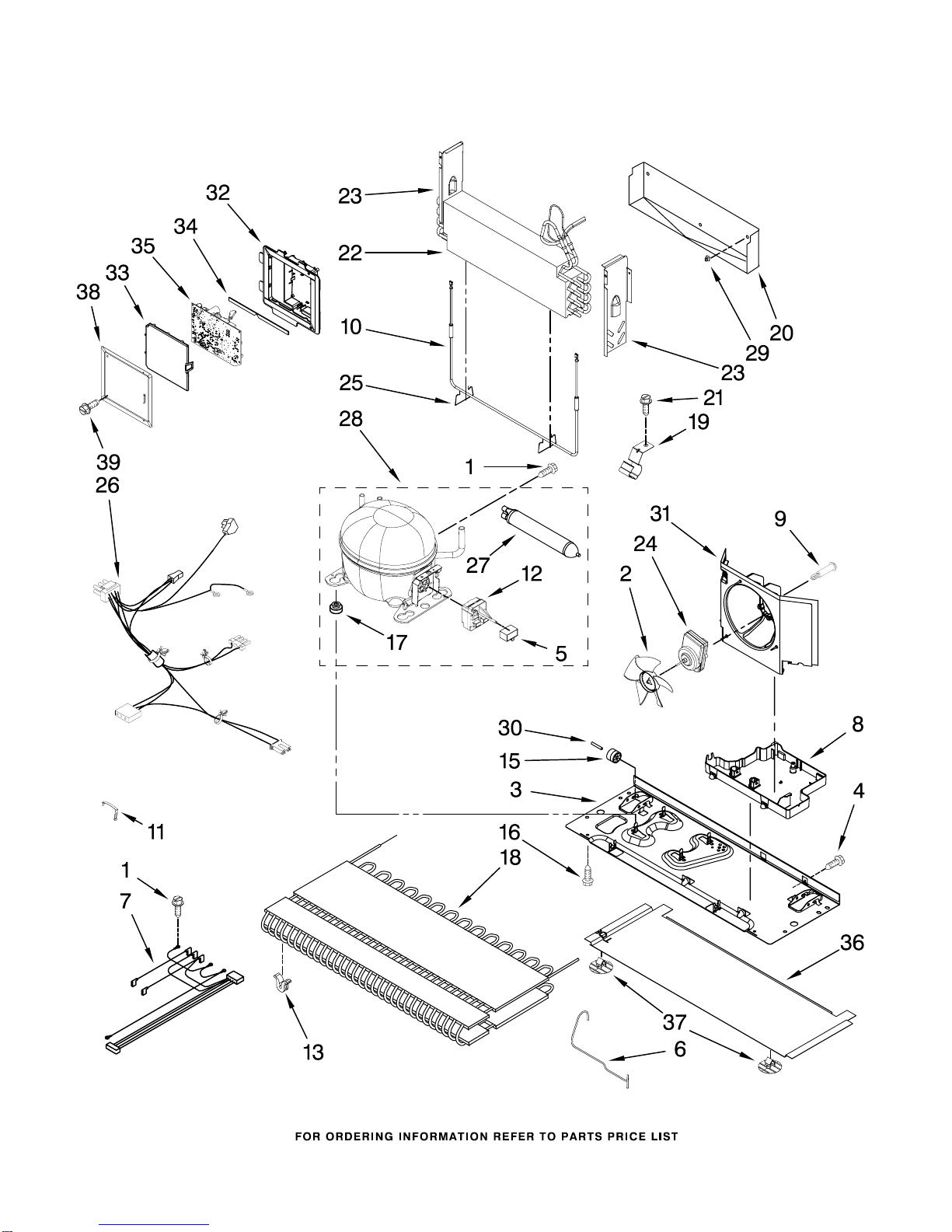

UNIT PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

UNIT PARTS

For Models: MFD2562VEW2, MFD2562VEA2

(White) (Monochromatic Satina)

W10304456

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10233569

Tube, Discharge

W10224515

Harness, Evap.

Heater

W10296785

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Heater, Defrost

W10174384

Strap, Bale

W10194431

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10135026

Condenser

19 10547003 Clip, Drier

W10292803

Tray, Drip

21 12990701 Screw

22 12726403 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

W10239053

Motor, Fan

25 10428101 Clip, Heater

W10234025

Harness, Unit

with Power Cord

W10143759

Drier

W10164016

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10257665

Box, HV Control

33 12957702 Lid, HV Box

34 12957801 Gasket, HV Box

W10205552

Board, Control

W10206338

Extension−Basepan

W10206339

Fastener−Basepan

38 12961602 Cover−Control Box

39 12990702 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
