Maytag MFD2562KEB - Bottom Freezer Refrigerator Manual de usuario

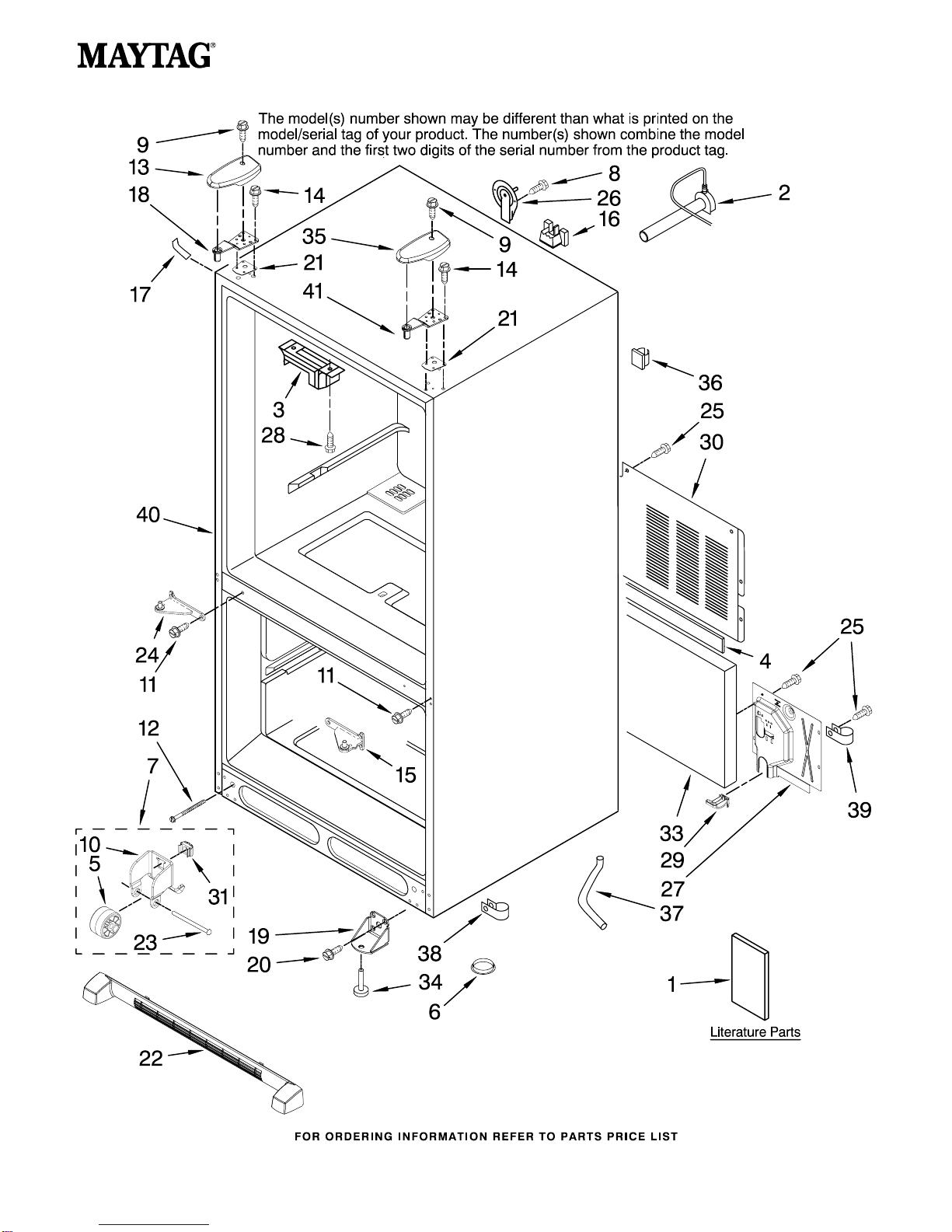

CABINET PARTS

1−09 Litho In U.S.A. (mat)(bay) Part No. W10237828 Rev.A

REFRIGERATOR

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

CABINET PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10175446

Owners Manual

W10183253

Tag, Energy

W10137519

Elbow, Fill Tube

3 67003405 Block, Pivot

4 B5759649 Gasket

5 67005127 Roller

6 A3076901 Plug, Button

7 12580304 Roller Assy. (2)

8 67006287 Screw

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw (6)

12 67006611 Bolt, Adjusting

(Front)

13 Cover, Left Hinge

12684201W

White

12684201B

Black

14 67006303 Screw (6)

15 Hinge, Center (RT)

67006379 White

67006443 Black

16 67004092 Block, Filter (2)

17 Cover, Corner

67003484 White

67003485 Black

12566607ED

Hinge, Top Left

W10208641

Bracket, Foot (2)

20 67006564 Screw

21 12579702 Shim, Hinge

22 Grille, Toe

67006377 White

67006375 Black

23 M1205302 Pin

24 Hinge, Center (LT)

67006277 White

67006275 Black

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 12751509 Cover, Water Valve

28 67006669 Screw (2)

29 67004101 Sweep, Dual Tube

30 67006102 Cover, Unit

31 M0286708 Nut, Speed

33 67003796 Insulation, Sound

34 67003868 Foot Brake

35 Cover, Right Hinge

12684202W

White

12684202B

Black

36 M0104106 Clip (2)

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

39 M0108105 Clamp, Tube

40 Cabinet (Not a

Servicable Part)

12566606ED

Hinge, Top Right

FREEZER LINER PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

FREEZER LINER PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 67006473 Screw (8)

W10194422

Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

15 10623002 Clip, Evap Motor

16 67005653 Switch, Light

17 67006287 Screw (2)

18 Cradle, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

20 67002492 Gasket, Bottom

21 Adapter, Slide

W10128118

Left

W10128119

Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet (2)

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Fz Module

REFRIGERATOR LINER PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

REFRIGERATOR LINER PARTS

6W10237828

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Bracket, Control

and Lights

Y67005640

Keyboard

W10185585

Housing, Control

W10207861

Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

W10194422

Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Filter

UKF8001AXX

Filter, Water

20 12568001 Cover, Filter

21 67006287 Screw (2)

22 B8390302 Clip, Facade (2)

23 67005674 Facade, Dispenser

12707303SP

Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67005674 Facade (Top)

W10153959

Tank, Water

30 61006182 Union

31 67003146 Plug, Bypass

32 67006400 Screw (2)

W10117358

Insulation, Tank

W10130483

Gasket

Following Parts Not Illustrated

67005417 Harness, Control

(Refrigerator)

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

REFRIGERATOR DOOR PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

REFRIGERATOR DOOR PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

Illus. Part

No. No. DESCRIPTION

1 Door, Left

13024022WQ

White

13024022BQ

Black

13024038SQ

Stainless Steel

2 Door, Right

13024021WQ

White

13024021BQ

Black

13024037SQ

Stainless Steel

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67004040 Bin, Shelf (3)

(Medium)

6 67006786 Screw

7 67006901 Screw

8 Gasket, Door (2)

W10163894

White

W10163895

Black

9 Door Handle

67006114 White

W10197298

Black

W10197295

Stainless

10 67006113 Mount, Handle

11 Bushing, Door

(Bottom−Right)

67002732 White

67002731 Black

12 67004641 Bin, Shelf (2)

(Gallon)

13 Bushing, Door

(Bottom−Left)

67002722 White

67002721 Black

14 Mullion, Door

67003263 White

67003264 Black

16 Closure, Door

67003638 White

67003639 Black

17 Stop, Door

12968202W

White

67007011 Black

18 Plug, Button

10712401 White

67004838 Black

19 Bushing, Door

(Upper Left)

12395501W

White

12395501B

Black

20 Bushing, Door

(Upper Right)

67004977 White

67004978 Black

21 67006287 Screw

W10170766

Nameplate

UNIT PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

UNIT PARTS

For Models: MFD2562KEW11,MFD2562KEB11,MFD2562KES11

(White) (Black) (Stainless Steel)

W10237828

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10156818

Blade, Fan

3 12457109 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 67005565 Compressor

(Incudes items

11,12,17,27, &

30)

W10119857

Harness, Evap

Heater

8 12579803 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005562 Capacitor

12 67005561 Relay Assy.

(Inc. Capacitor)

13 61003210 Gasket

W10165425

Thermostat, Def.

15 67005680 Grommet (6)

16 12575309 Shroud

17 67007052 Clip, Capacitor

W10135026

Condenser

W10183707

Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Inc. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, MC

27 2317845 Drier (Service)

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

W10169124

Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

W10205114

Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 12972902 Harness, HV

39 67006615 Screw, Cover

40 67005149 Roller (2)

41 67006434 Axle (2)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
