CABINET PARTS

For Model: MBB1952HEW14

(White)

Part No. W10201417 Rev. A

REFRIGERATOR

4−08 Litho In U.S.A. (pl) (eeb)

CABINET PARTS

For Model: MBB1952HEW14

(White)

W10201417

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137641

Use & Care Guide

67003882 Energy Guide

W10169671

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310729 White

4 67005064 Label, Fill Tube

5 67006118 Roller Assy. (2)

6 12627302 Clip, Grille

7 67006744 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 67001098 Cover, Fill Tube

11 67006380 Screw

12 67005822 Screw

13 A3076901 Plug−Button

14 67006303 Screw (3)

15 Hinge, Center

67006960 White

16 67003868 Foot Brake

17 Cover, Corner

67003484 White

12566604ED

Hinge, Top

19 12479901 Plate, Cover

20 67006564 Screw (4)

21 Cover Hinge

67001014 White

22 Grille, Toe

(Includes Clips)

67003849 White

23 67007018 Pin, Bottom Hinge

24 67006662 Screw

25 67006425 Screw

26 Hinge, Bottom

67001069 White

27 67001173 Cover, Water Valve

28 67006101 Cover, Unit

29 Cover, LW Hinge

12561901W

White

30 67001066 Tube, Drain

31 67001067 Clip, Drain Tube

32 M0274057 Shim

33 B5759649 Gasket

34 67006715 Screw (2)

FREEZER LINER PARTS

For Model: MBB1952HEW14

(White)

W10201417

FREEZER LINER PARTS

For Model: MBB1952HEW14

(White)

W10201417

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67001285 Cover, Light

5 67003636 Motor, Evaporator

Y12570701

Socket, Light

7 67001045 Panel Control

8 67001046 Control,FZ Temp.

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005868 Cover, Evaporator

12 67006425 Screw

W10121318

Grommet

14 67001286 Module, Freezer

Control

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67002286 Gasket, Bottom

21 B8381501 Gasket

22 13024802 Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

25 67003420 Knob, FZ Control

Following Parts Not Illustrated

W10130480

Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Model: MBB1952HEW14

(White)

W10201417

FREEZER DOOR PARTS

For Model: MBB1952HEW14

(White)

W10201417

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

W10176974

White

2 Handle, Door

67005140 White

3 Gasket, Door

W10130150

White

4 67006831 Screw, Handle

5 Plug, Button (2)

10712401 White

6 Plug−Handle Hole

12246601 White

7 67004977 Bushing (4)

8 Stop, Door

67003779 White

9 67006287 Screw

10 67003397 Retainer,

Door Shelf

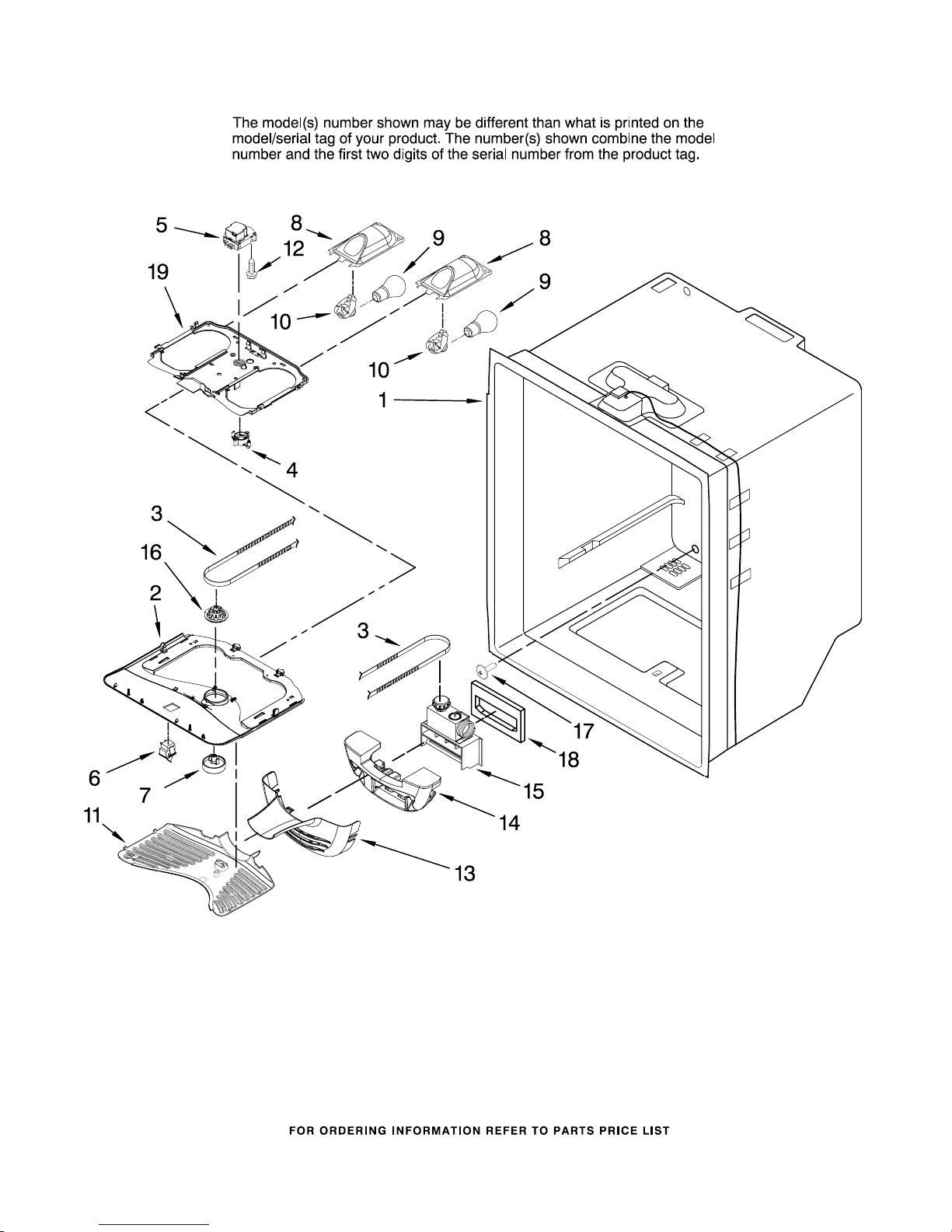

REFRIGERATOR LINER PARTS

For Model: MBB1952HEW14

(White)

W10201417

REFRIGERATOR LINER PARTS

For Model: MBB1952HEW14

(White)

W10201417

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67002083 Module, Light

3 67001040 Belt, Damper

4 67001034 Tensioner, Belt

5 67001036 Timer, Defrost

6 C3680310 Switch, Light

7 67002512 Knob, Front

8 67001035 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67002301 Cover, Light

12 12990514 Screw

13 67003878 Cover, Damper

14 67003803 Insulation

15 67003410 Damper/Gear

Assembly

16 67001033 Knob, Gear

17 M0310343 Plug Button

White

18 67001038 Gasket, Damper

19 67002085 Pan, Timer

Light Housing

Following Parts Not Illustrated

67001043 Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Model: MBB1952HEW14

(White)

W10201417

REFRIGERATOR DOOR PARTS

For Model: MBB1952HEW14

(White)

W10201417

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

67001138 White

2 67006682 Screw−Handle (2)

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 Bucket, Door

67001141 Small (2)

67001021 Medium (2)

6 Plug−Handle Hole

12246601 White

7 Plug, Button (2)

10712401 White

8 Gasket, Door

W10130148

White

9 Handle, Door

67003129 White

10 67006287 Screw

11 Stop, Door

67003779 White

12 67006439 Nameplate

13 67002505 Retainer, Ref Door

14 Bushing (4)

67004977 White

15 Trim, Handle−Top

67005131 White

16 12248201 Screw

17 Trim−Handle,

Bottom

67005137 White
