Maytag MES5552BAB - 30 Inch Slide-In Electric Range Manual

Repair

Parts

List

MODEL NUMBER

MES5552BAB

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

RANGE

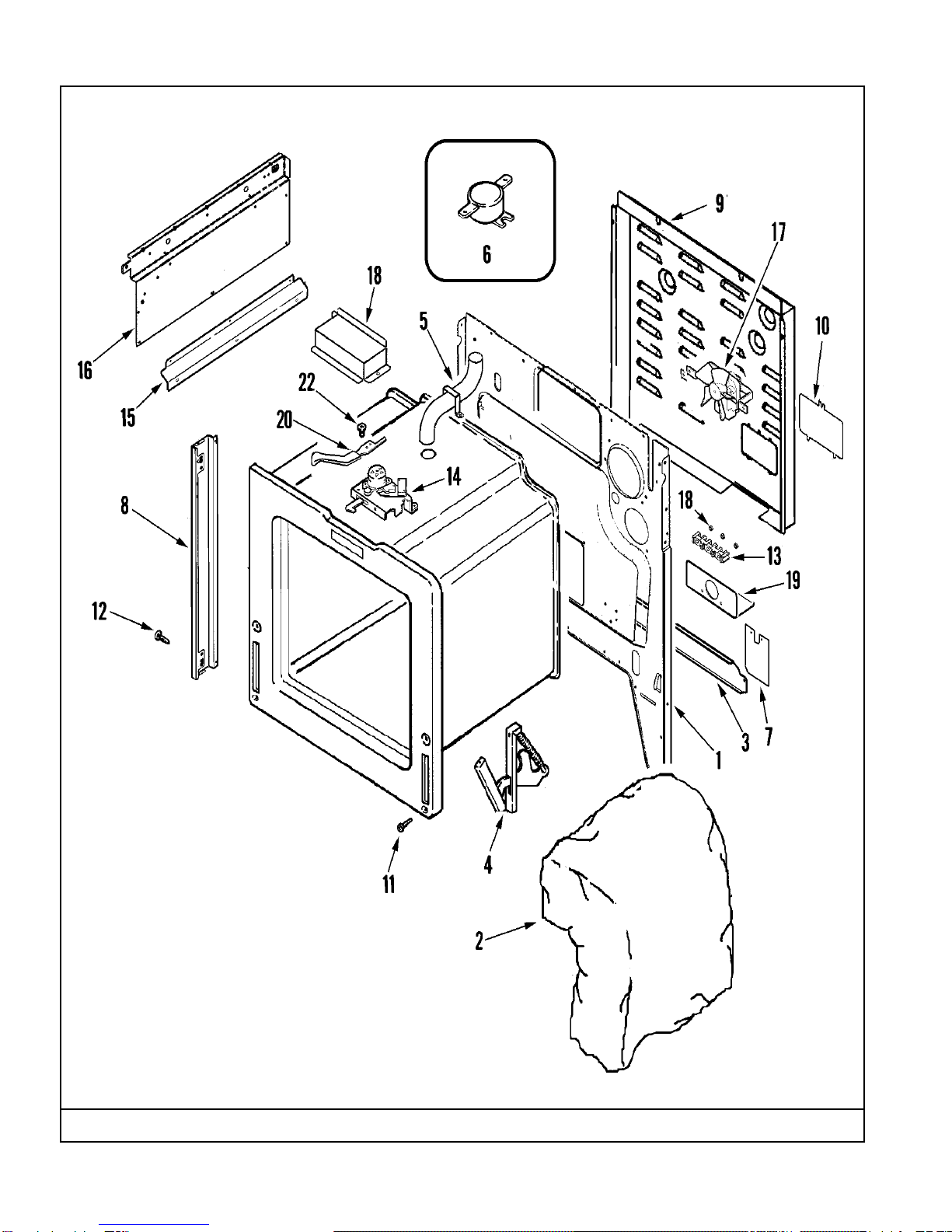

Section: BODY

C14-926

Model: MES5552BAB

BODY

No. Part No. Description

Section:

Series Qty

1 74010949 BACK, MAIN 10 1

2 74010813 INSULATION, WRAPPER 10 1

3 74010815 EXTENSION, MAIN BACK 10 1

4 74011142 HINGE, OVEN DOOR 10 2

5 74010816 TUBE, VENT 10 1

- 74010817 HOLDER, VENT TUBE 10 1

6 74010818 SWITCH, HI-LIMIT 10 1

7 74006364 INSULATOR, POWER CORD 10 1

8 74010831 TRIM, SIDE (BLK) 10 2

9 74006096 COVER, WIRE (REAR) 10 1

10 74005264 COVER, TERMINAL BLOCK 10 1

11 7101P112-60 SCREW 10 4

12 74003976 SCREW, SHOULDER 10 4

13 7401P039-60 BLOCK, TERMINAL 10 1

14 74010897 LATCH ASSEMBLY 10 1

15 74010820 EXTENSION, HEAT SHEILD 10 2

16 74010822 PANEL, SHIELD (RT) 10 1

16 74010821 PANEL, SHIELD (LT) 10 1

17 74010823 FAN, COOLING 10 1

18 74010845 COVER, DOOR LATCH 10 1

19 74004180 BRACKET, POWER SUPPLY 10 1

20 74001075 LEVER, LATCH (BLK) 10 2

21 7103P027-60 NUT, TERMINAL BLOCK 10 3

22 74003975 SCREW (8ABX3/8-BLK) 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

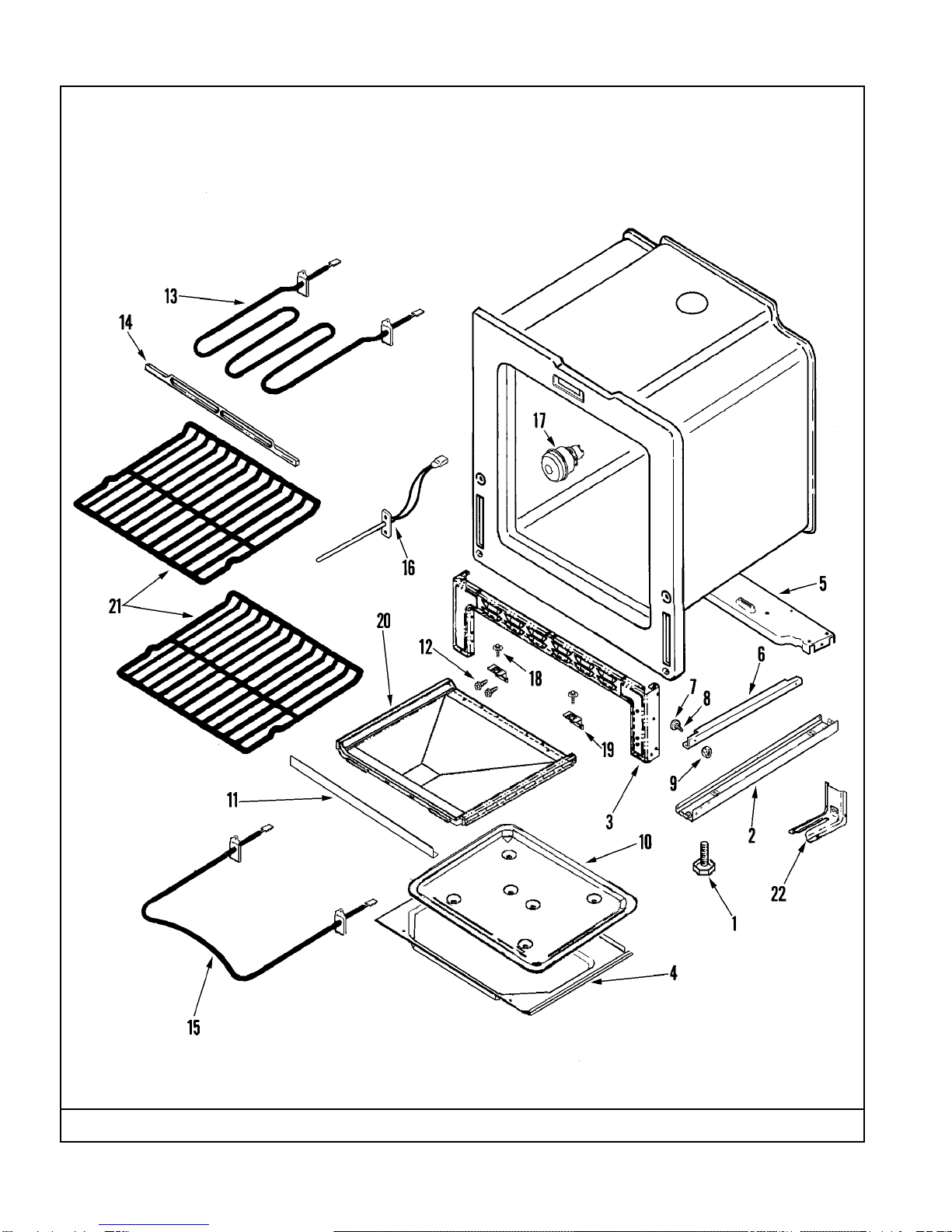

Section: OVEN/BASE

C12-544

Model: MES5552BAB

OVEN/BASE

No. Part No. Description

Section:

Series Qty

1 74010805 SCREW, LEVELING LEG 10 4

2 74010899 BOTTOM, PEDESTAL 10 2

3 74010882 PEDESTAL, FRONT 10 2

4 74006522 RETAINER, INSULATION (BOTTOM) 10 1

5 74007129 SUPPORT, VALVE REGULATOR 10 1

6 74003565 RUNNER, DRAWER 10 2

7 74004078 ROLLER, DRAWER 10 2

8 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

9 74005230 NUT, LOCK (8-32) 10 2

10 74010806 PAN, BAKE 10 1

11 74010807 COVER, FRONT 10 1

12 7101P124-60 SCREW W/WASHER 10 4

13 74003040 ELEMENT, BROIL (6 PASS) 10 1

14 74003386 SUPPORT, BROIL ELEMENT 10 1

15 74010883 ELEMENT, BAKE 10 1

16 74004943 SENSOR, OVEN (LONG) 10 1

17 74010885 LAMP ASSEMBLY 10 1

- 7407P103-60 BULB, OVEN 10 1

18 74003976 SCREW, SHOULDER 10 2

19 74010812 SUPPORT, OVEN BOTTOM 10 2

20 74010853 BOTTOM, OVEN 10 1

21 74001757 RACK, OVEN 10 2

- 7101P352-60 SCREW 10 2

22 74005564 BRACKET, ANTI-TIP 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

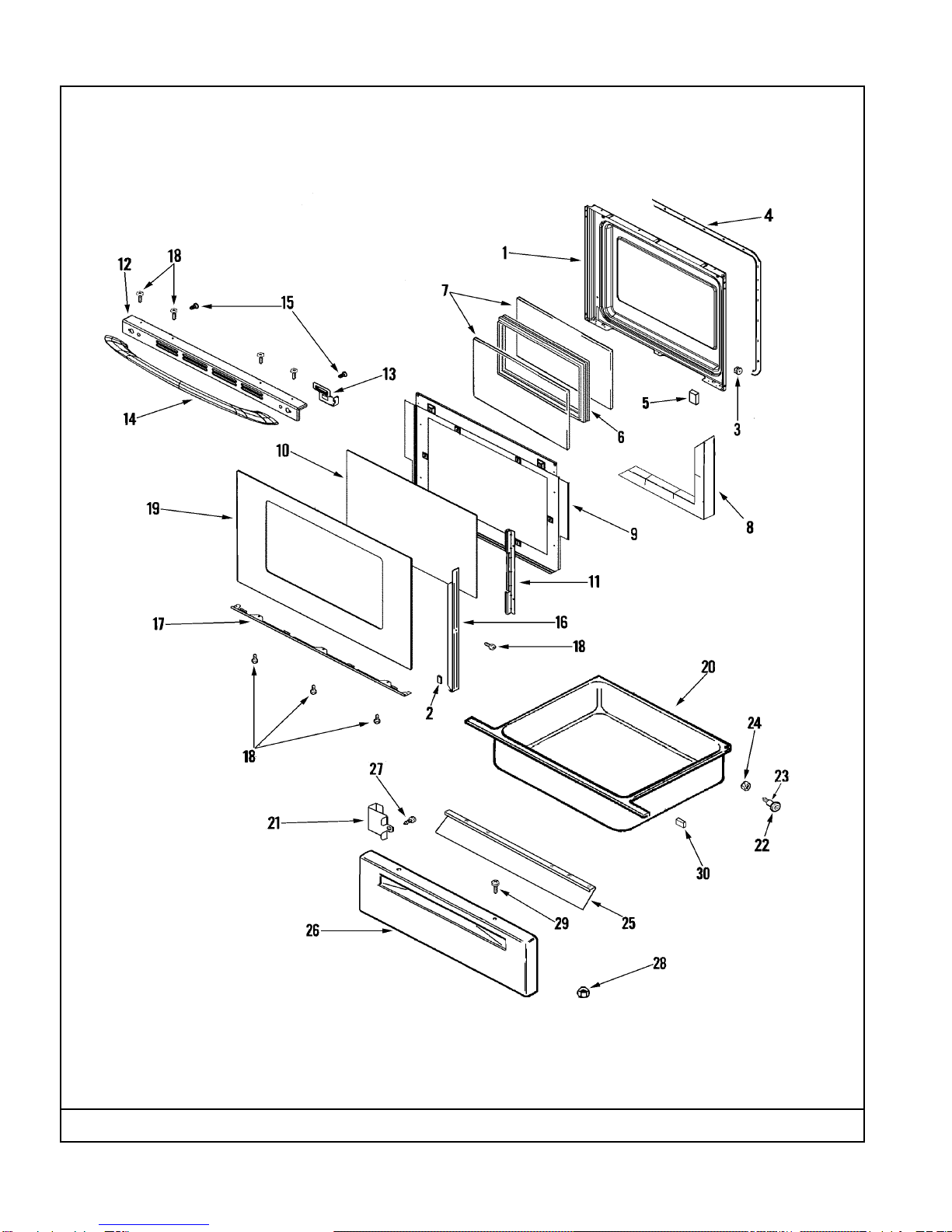

Section: DOOR/DRAWER

C11-871

Model: MES5552BAB

DOOR/DRAWER

No. Part No. Description

Section:

Series Qty

1 74003642 LINING, DOOR 10 1

2 74004224 TAPE, SINGLE SIDED (WHT) 10 2

3 74001574 NUT, SNAP (ROUND-BLK) 10 4

4 7201P046-60 GASKET, DOOR 10 1

5 74005546 SPACER, RUBBER 10 2

6 74003644 FRAME, GLASS 10 1

7 74003645 GLASS, INNER 10 2

8 74003647 INSULATION, OVEN DOOR 10 2

9 74009502 BAFFLE, OVEN DOOR 10 1

10 74004857 GLASS W/TAPE ASSY 10 1

11 74003650 RETAINER, GLASS 10 2

12 74009689 TRIM, DOOR TOP (BLK) 10 1

13 74009699 BRACKET, DOOR HANDLE (LT) 10 1

13 74009698 BRACKET, DOOR HANDLE (RT) 10 1

14 74010971 HANDLE, DOOR (BLK) 10 1

15 74006635 SCREW W/WASHER (HANDLE MTG) 10 2

16 12002359 KIT, DOOR TRIM (BLK) 10 1

17 74009686 SUPPORT, GLASS (BLK) 10 1

18 74009537 SCREW (BLK) 10 9

19 12002395 KIT, DOOR GLASS (BLK) 10 1

20 74008333 DRAWER, STORAGE 10 1

21 74010896 BRACKET, DRAWER 10 2

22 74004078 ROLLER, DRAWER 10 2

23 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

24 7103P082-60 NUT 10 2

25 2404F030-51 LINING, DRAWER PANEL 10 1

26 74003701 PANEL, DRAWER (BLK) 10 1

27 74004310 SCREW, PANEL 10 2

28 74005230 NUT, LOCK (8-32) 10 2

29 74009537 SCREW (BLK) 10 2

30 74005546 SPACER, RUBBER 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

SUPPLEMENTAL INFORMATION

No. Part No. Description

Section:

Series Qty

- 8113P510-60 MANUAL, USE & CARE 10 1

- 8113P572-60 MANUAL, USE & CARE 11 1

- 74011086 HARNESS, MAIN 10 1

- 74010893 HARNESS, COIL TOP/ELEMENTS 10 1

- 74010891 HARNESS, COIL TOP (RT) 10 1

- 74010892 HARNESS, COIL TOP (LT) 10 1

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY FILLER KITS 10 0

- K71FILLB KIT, EXTRUSION FILLER (BLK) 10 1

- UXA1100AAB KIT, SIDE PANEL (BLK) 10 1

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE PANEL KITS 10 0

- W10124350 NOT REQUIRED PART OR SEE NOTE Note: ACCESSORY SIDE TRIM PLUGS 10 0

- 74011434 PLUG, SIDE TRIM (BLK) 10 8

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

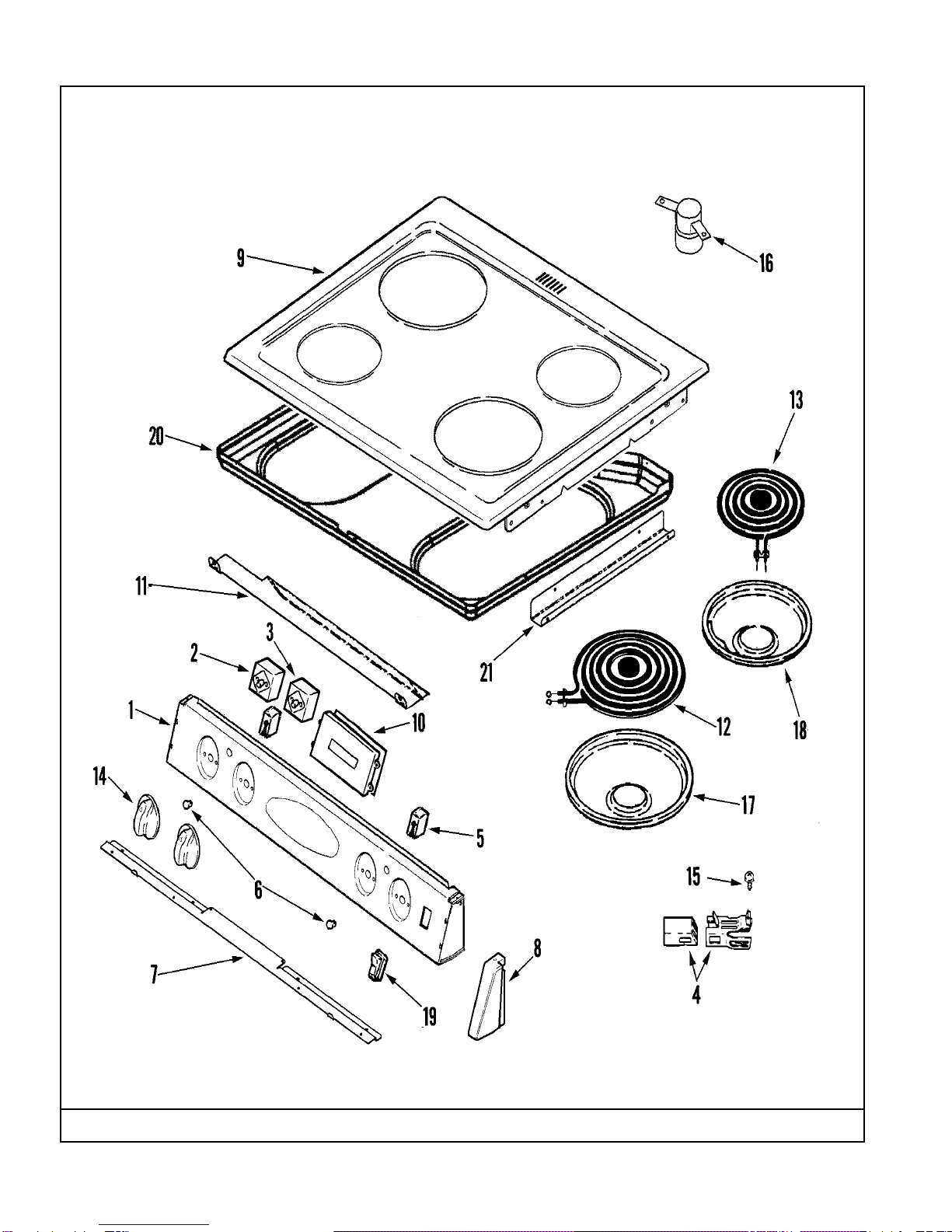

Section: CONTROL PANEL/TOP ASY (MES5552)

C15-625

Model: MES5552BAB

CONTROL PANEL/TOP ASY (MES5552)

No. Part No. Description

Section:

Series Qty

1 74011078 PANEL, CONTROL (BLK) 10 1

2 7403P238-60 SWITCH, INFINITE (SML ELEMENT) Note: (RR/LF) 10 2

- 7101P309-60 SCREW Note: SCREW (INFINITE SWITCH MTG) 10 4

3 7403P239-60 SWITCH, INFINITE (LRG ELEMENT) Note: (RF/LR) 10 2

- 7101P309-60 SCREW Note: SCREW (INFINITE SWITCH MTG) 10 4

4 12001676 RECEPTACLE ASSY.---W 10 4

5 74004153 LIGHT, INDICATOR 10 2

6 7730P011-60 LENS, INDICATOR LIGHT 10 2

7 74004785 SUPPORT, MANIFOLD PANEL 10 1

8 74010834 CAP, END (BLK-RT) 10 1

8 74010835 CAP, END (BLK-LT) 10 1

9 74011071 TOP, MAIN (BLK) 10 1

10 74010671 CLOCK/OVERLAY (BLK) 10 1

11 74010846 SHIELD, CONTROL 10 1

12 74007156 ELEMENT, SURFACE (8") Note: ELEMENT (2500W) (RF/LR) 10 2

13 74007157 ELEMENT, SURFACE (6") Note: ELEMENT (1200W) (RR/LF) 10 2

14 74008945 KNOB (BLK/CHR) 10 4

15 74003357 SCREW (6ABX.25-ZN) 10 20

16 74005759 TUBE, VENT (UPR) 10 1

17 04100393 BOWL, DRIP (8" BLK) 10 2

18 04100392 BOWL, DRIP (6" BLK) 10 2

19 74010227 SWITCH, ROCKER W/SHIELD (BLK) 10 1

20 74006046 BOTTOM, BURNER BOX 10 1

21 74010894 BRACKET, BURNER BOX 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
