Maytag MER7662WB0 Manual de usuario

COOKTOP PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

3−10 Litho in U.S.A. (JMJ) (bay) Part No. W10270026 Rev. B

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN CONVECTION OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10234644

Owner’s Manual

W10237513

Tech Sheet

W10196158

Installation

Instructions

Template, Anti−Tip

9757143 English/French

9757142 English/Spanish

9762761 Brochure, Tips

Safe Cooking

2 Cooktop

W10211389

White

W10211390

Black

W10211391

Biscuit

3 Element, Surface

W10173896

2500/1200 W − RF

W10178016

3000 W − LF

8273994 1200 W − LR

W10170526

Pan, Radiant Elmt

5 3196169 Screw

W10162042

Spring, Locator

7 3196170 Screw

8 3195060 Hinge, Pin

CONTROL PANEL PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10184433

White Left Hand

W10184434

White Right Hand

W10184437

Black Left Hand

W10184438

Black Right Hand

W10184435

Biscuit, LH

W10184436

Biscuit, RH

W10182322

Bracket, Console

3 Panel, Control

W10225535

White

W10225536

Black

W10225537

Biscuit

W10225538

Stainless Steel

4 Switch, Infinite

W10167742

Left Front

3148951 Left − Right Rear

W10149355

Right Front (Dual)

5 3196200 Clip, Spring

6 3196068 Lens, Light

7 Knob, Infinite (4)

W10211371

White

W10211372

Black

W10211373

Biscuit

W10134247

Shield, Heat

W10138683

Brkt, Mntg EOC

10 8272473 Cover, Rear

11 Control, Range

W10236239

White

W10236240

Black

W10236241

Biscuit

12 3196178 Screw

14 3400882 Screw

15 8273564 Clip, Cover

16 Screw

3196166 White

3196168 Black

8281194 Biscuit

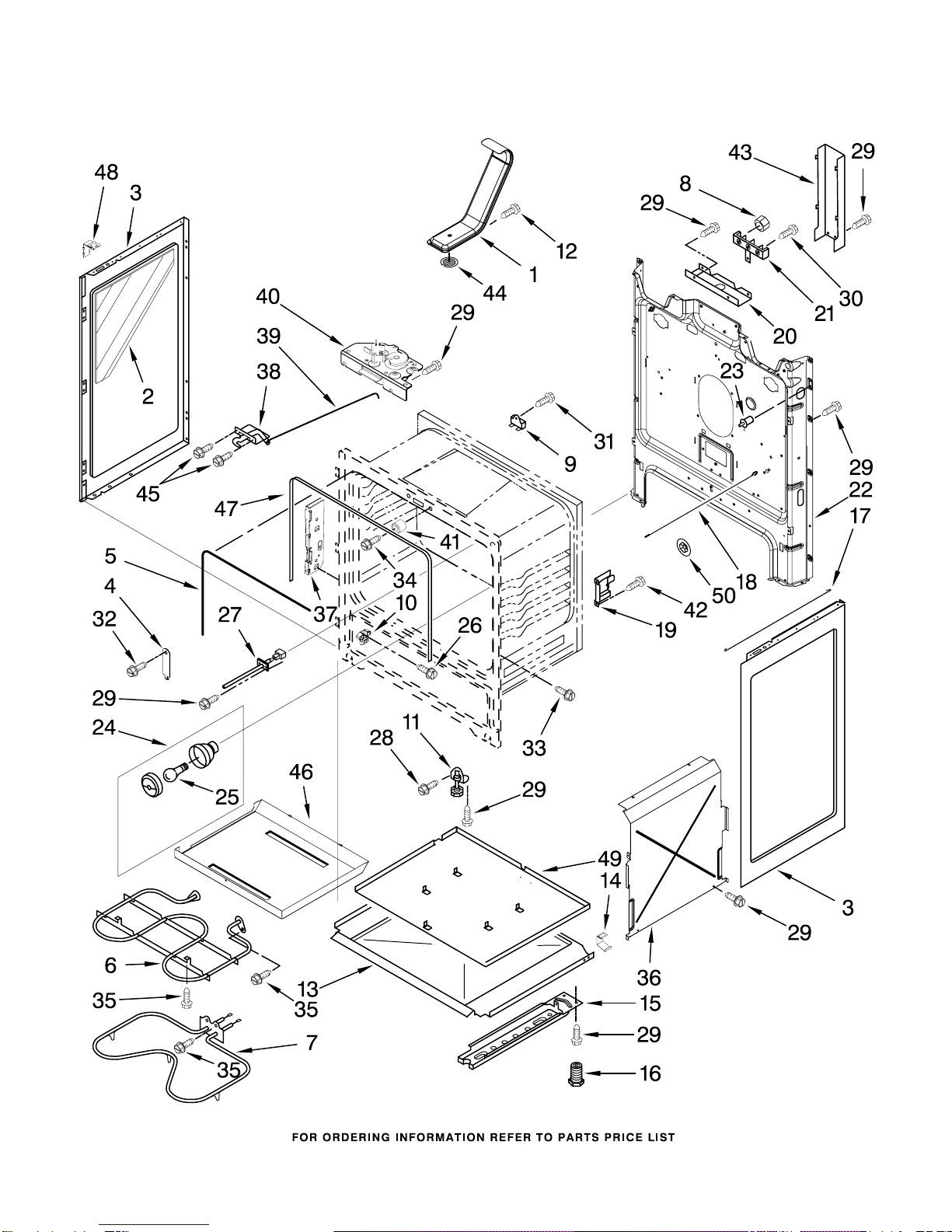

CHASSIS PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

CHASSIS PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10134285

Vent Tube Asmbly

W10182346

Insulation

3 Panel, Side (2)

8053830 White

8053832 Black

8272519 Biscuit

4 9761517 Clip,Door Mntg(2)

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9755770 Element, Bake

(Hidden)

7103P027−60

Nut (3)

9 3196548 Fuse, Thermal

W10114344

Glide, Drwr Top

11 3196037 Foot, Front (2)

12 3196566 Screw

W10134121

Tray, Insulation

W10137382

Clip, Panel (4)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

W10196451

Rod, Insul Retainr

18 9757239 Rod − Dr Switch

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 3196165 Screw

W10181986

Sensor, Oven

28 3196179 Screw

29 3196178 Screw

30 3400016 Screw

31 3196172 Screw

W10031780

Screw

W10067840

Screw

34 3196168 Screw

35 3196174 Screw

36 9758238 Retainer, Side (2)

37 9760407 Brkt − Mounting

38 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

41 9758701 Spacer, Door

42 3196169 Screw

43 9758283 Cover, Box

44 9761301 Screen − Catalyst

45 3196560 Screw (2)

W10183712

Tray−Bake, Hidden

W10010350

Oven Seal, Flange

W10183541

Clip, Spring

W10134125

Shield, Heat

50 3400968 Nut, Push On

INSULATION

W10208653

Insulation, Wrap

W10219986

Insulation, Back

8272613 Insulation, Vent

DRAWER & BROILER PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

Illus. Part

No. No. DESCRIPTION

W10179196

Rack, Oven (2)

2 9761031 Drawer, Storage

W10174396

Brkt−Mntg, Drawer

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

8053339 White

8053341 Black

8272501 Biscuit

6 3196168 Screw

7 8053334 Glide, Drawer (2)

W10031790

Screw(Stls.Model)

9 9781235 Clip(Stls.Model)

W10217860

Panel(Stls.Model)

W10197980

Handle(Stls.Model)

DOOR PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10144869

White

W10144870

Black

W10181675

Biscuit

W10168559

Screw

3 Handle, Door

W10111309

White

W10111310

Black

W10111311

Biscuit

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761493 Hinge, Door (2)

11 Glass, Outer

W10106404

White

W10106405

Black

W10106406

Biscuit

12 Trim, Side

8523172 White Left Hand

8523166 White Right Hand

8523171 Black Left Hand

8523165 Black Right Hand

8523167 Biscuit Left Hand

8523173 Biscuit Right Hand

W10113925

Stainless RH

W10113926

Stainless LH

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

8523178 Biscuit

W10031790

Screw

W10031780

Screw

W10200660

Screw

W10137382

Clip, Panel Side

W10113759

Strap, Door

OPTIONAL PARTS

For Models: MER7662WW0, MER7662WB0, MER7662WT0, MER7662WS0

(White) (Black) (Biscuit) (Stainless Steel)

W10270026

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

Following Parts Not Illustrated

W10174426

Harness, Wire

(Cooktop Left)

W10174425

Harness, Wire

(Cooktop Right)

W10233338

Harness, Wire

(Main)

W10084660

Harness, Wire

(Sensor/Dr Switch)

9757339 Harness, Wire

(Bake, Hidden)

W10144763

Tie, Wire

8523279 Wire, Ground

313660 Clip, Ground Wire

3196154 Screw

3196173 Screw, Grnd Wire
