Maytag MER6755AAS26 Manual de usuario

COOKTOP PARTS

For Models: MER6755AAS26

(Stainless)

9−09 Litho In U.S.A. (MMS) (bay) Part No. W10261617 Rev. B

30" ELECTRIC FREESTANDING

SELF CLEAN RANGE

NON−CONVECT OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8101P630−60

Installation

Instructions

8113P741−60

Owners Manual

9762761 Brochure, Tips

Safe Cooking

2 8273994 Element (RR,LR)

8016P022−60

Glide, Main Top

W10204679

Element (RF)

5 Cooktop

5706X501−09

Black

W10187838

Element (LF)

8004P093−60

Support, Element

8255P412−60

Block, Element

Support

CONTROL PANEL PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Backguard

3807F734−70

Black Left

3907F733−70

Black Right

7730P011−60

Lens, Indicator

3 Panel, Control

7704P001−60

Stainless

7101P633−60

Screw

3801F844−51

Bracket, Control

7407P136−60

Light, Indicator

7 Knobs (4)

7737P232−60

Black

3604F387−51

Shield, Sight

4005F803−51

Cover, Rear Wire

7101P500−60

Screw

3604F405−51

Shield, Wire

7101P434−60

Screw

W10166967

Control, H3 (Elec)

14 Switch, Infinite

7403P373−60

LR,RR

7403P372−60

LF, RF

15 Overlay

7728P500−60

Black

CHASSIS PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

CHASSIS PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8026P082−60

Extension, Vent

8004P024−60

Spacer, Side Panel

7101P618−60

Screw, Shoulder

4 Panel, Side

2618F194−70

Black (2)

3801F656−51

Brack, Anti−Tip

4005F747−51

Cover, Access

3801F924−80

Bracket, Cooktop

7101P507−60

Foot, Leveler (4)

4003F070−51

Base, Gemini

10 Sensor, Oven

7430P044−60

Upper Oven

7430P042−60

Lower Oven

11 Spacer, Top

8010P088−60

Right

8010P087−60

Left

7101P388−60

Screw

4005F592−51

Cover, Bottom Wire

W10167412

Cover, Upper Wire

15 Bracket

3801F705−51

Right

3801F706−51

Left

4002F332−51

Back, Main

7407P181−60

Oven Light Assy

7101P376−60

Screw

8034P008−60

Screen, Smoke

7407P114−60

Bulb, Oven

7101P485−60

Screw

8036P012−60

Sheild, Cord

3807F580−51

Support, Lwr Oven

24 Light Assy.

7407P181−60

Lower/Upper

25 209429 Lens, Bulb

8002P077−60

Latch, Door Lock

27 Bottom, Burner Box

4011F524−51

Right

4011F525−51

Left

7201P089−60

Gasket, Vent

3604F335−51

Sheild, Door Lock

4022W017−45

Vent, Oven

31 Vent, Box

4006W129−45

Lower

4006W139−45

Upper

7101P375−60

Screw

W10190166

Bracket, Pwr Sply

7212P066−60

Seal, Frame

7718P030−60

Plug, Hole

3608F091−70

Trim, Kickplate

7101P633−60

Screw (2)

7450P108−60

Switch, Assy

INSULATION

Insulation, Wrap

7002P490−60

Upper Oven

7002P233−60

Lower Oven

Insulation, Back

7002P434−60

Upper Oven

7002P233−60

Lower Oven

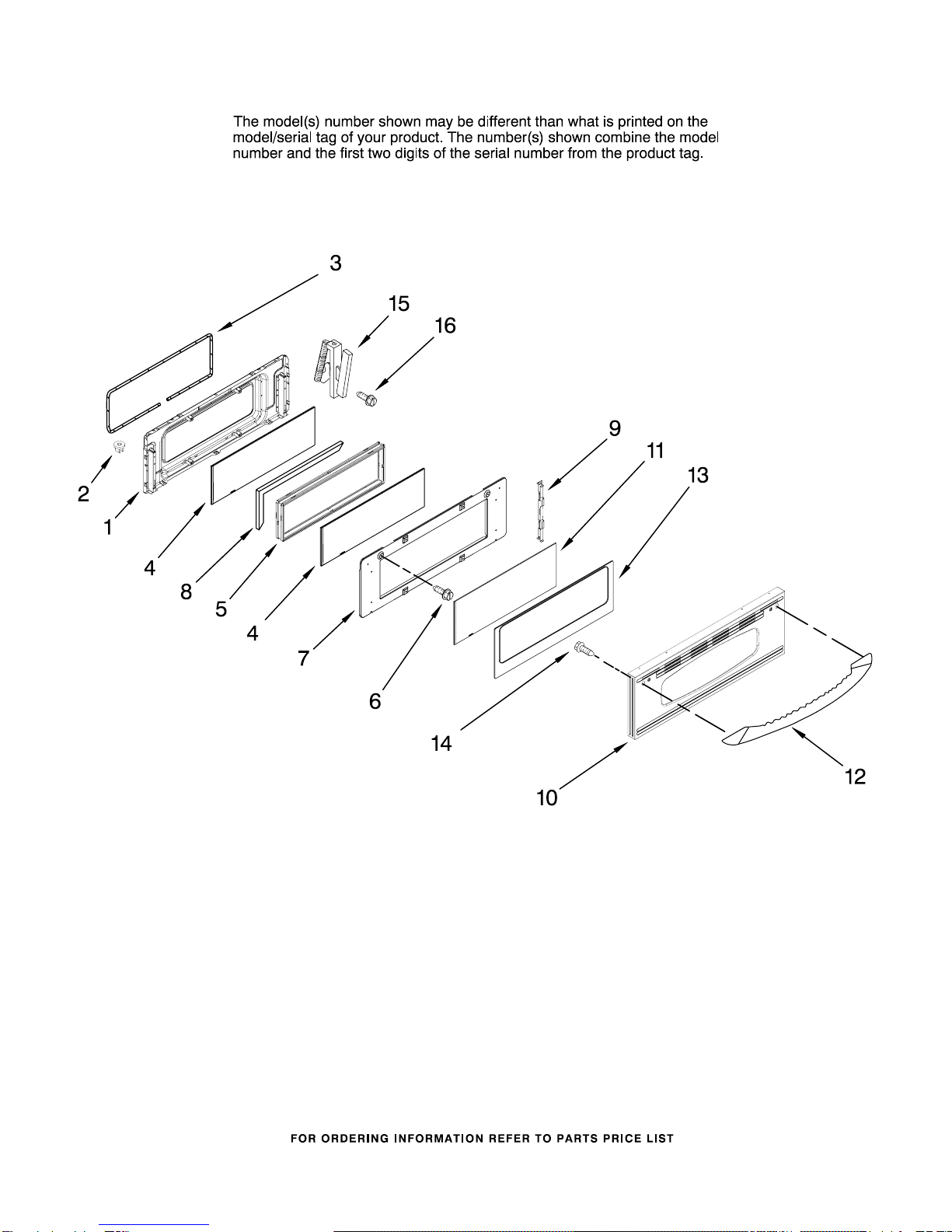

UPPER DOOR PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

UPPER DOOR PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2402W248−19

Lining, Door

2 Nut, Snap

7103P141−60

Black

7201P091−60

Gasket, Door

7902P521−60

Glass, Inner (2)

7907P034−60

Frame, Glass

7101P388−60

Screw

3601F354−45

Baffel, Door

7002P488−60

Insulation, Door

3804F179−45

Retainer, Glass

10 Kit, Door Glass

(Incl. Foil Tape)

7760P150−60

Stainless

7902P542−60

Glass, Oven Door

7701P526−60

Handle, Door

7902P751−60

Glass, Outer Door

7101P675−60

Screw, Handle (2)

7106P148−60

Hinge, Door (2)

7101P282−60

Screw (4)

LOWER DOOR PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

LOWER DOOR PARTS

For Models: MER6755AAS26

(Stainless)

W10261617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7701P526−60

Handle, Door

2 Kit, Door Glass

(Incl. Foil Tape)

7760P154−60

Stainless

7101P388−60

Screw

7101P208−60

Screw,(10ABx1/4P)

7101P675−60

Screw, Handle

W10162384

Gasket, Door

3801F886−51

Bracket, Glass

7101P376−60

Screw

7902P436−60

Glass, Inner (2)

3804F265−45

Bracket, Inner

3601F373−51

Baffle, Door

7002P246−60

Insulation, Door

13 Nut, Snap

7103P141−60

Black

2402W312−19

Lining, Door

7106P141−60

Hinge, Door (2)

3604F441−51

Shield, Door

OPTIONAL PARTS (NOT INCLUDED)

For Models: MER6755AAS26

(Stainless)

W10261617

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350939 Black

285006 Superior Black

62069220 Primer (White)

PAINT, BULK (1 qt.)

799340 Black (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

WIRING HARNESS PARTS

5171P909−60

Harness, Main

Harness, Inf.Sw.

5171P910−60

Left

5171P911−60

Right

5171P467−60

Harness, Side

Mount Lock

5171P462−60

Harness, Sensor

5175P365−60

Harness, Door

Position

8019P026−60

Clip, Harness

7101P027−60

Screw, Ground

8019P013−60

Clip, Wire

7401P157−60

Blocks, Bare Wire

Adapter (Kit of 3)
