TOP AND CONSOLE PARTS

For Model: MGD5600TQ1

(White)

10−07 Litho in U.S.A.(LT) Part No. W10155382 Rev. A

29" GAS DRYER

TOP AND CONSOLE PARTS

For Model: MGD5600TQ1

(White)

W10155382

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10088775

Use & Care Guide

8578217 Wiring Diagram

W10089170

Sheet,

Cycle Feature

W10113080

Wire, Jumper

Mini−Buzzer

3 694419 Buzzer, Mini

W10112578

Bracket, Harness

5 717252 Plug, 2−Way

Terminal

W10112577

Panel, Rear

Console

7 3399639 Switch,

Temperature

8 8312709 Clip−Console (2)

9 693995 Screw, Hex

Washer Head

10 8565972 Screen, Lint

11 8536939 Clip, Spring

12 8533971 Screw, 8−18 x 5/16

13 688983 Screw, 8−18 x 5/8

W10110861

Wire, Jumper

(Temperature)

15 3395683 Connector

(Motor)

W10112597

Top

17 359625 Screw, 8−18 x 1/2

W10110029

Knob, Control (2)

19 3394427 Clip−Harness

20 3936144 Connector

21 8299765 Timer Assembly

(60 Hz.)

22 3397269 Connector−Timer

23 3401144 Connector,

(PTS Relay)

24 3403499 Connector,

2−Position

(Gas Valve)

25 3403498 Connector,

3−Position

(Gas Valve)

W10086704

Console & Control

Panel Assembly

(Includes,

Illus. 6 & 30)

W10117655

Switch,

Push−To−Start

W10110030

Timer−Knob

Assembly

29 94614 Terminal, Female

W10112569

Badge−Assembly

W10110992

Harness, Wiring

W10112603

Seal−Harness

33 3347243 Connector

6−Circuit

CABINET PARTS

For Model: MGD5600TQ1

(White)

W10155382

CABINET PARTS

For Model: MGD5600TQ1

(White)

W10155382

Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

(External Ground)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 3404162 Clamp, Motor

(W/Shield)

7 3396805 Panel, Rear

8 3403630 Clip,

9 3980175 Clamp−Elbow

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 344020 Cord, Power

13 341029 Clamp, Pipe

14 3404413 Plug−Hole

15 3394083 Clip, Front Panel

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length)

(Package of 2)

(Not Included.)

17 660658 Clamp, Motor

18 8530603 Cabinet

(Includes

Illus. 4)

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 3403447 Panel Front

22 8066217 Hinge, Top (2)

23 685203 Clip, Felt Pad (2)

24 3389441 Catch, Door

Assembly

25 3405246 Seal, Door

26 691366 Idler & Pulley

Assembly

27 342055 Screw, 8−18 x 1/2

28 3405514 Hinge, Door

29 8066206 Motor Assembly

30 8066184 Pulley−60 Hz.

31 8066065 Belt, Drive

32 3400500 Bolt,

5/16−18 x 3/4

33 3403431 Strike, Panel

34 348780 Base, Motor

35 3402341 Door, Rear

36 3402335 Door, Front

37 8565970 Handle, Door

38 3406129 Seal & Bearing

Assembly

39 3394975 Plug, Front Panel

40 8318272 Burner, Assembly

60 HZ.

(See Pages 7 & 8

For Further

Burner Breakdown)

BULKHEAD PARTS

For Model: MGD5600TQ1

(White)

W10155382

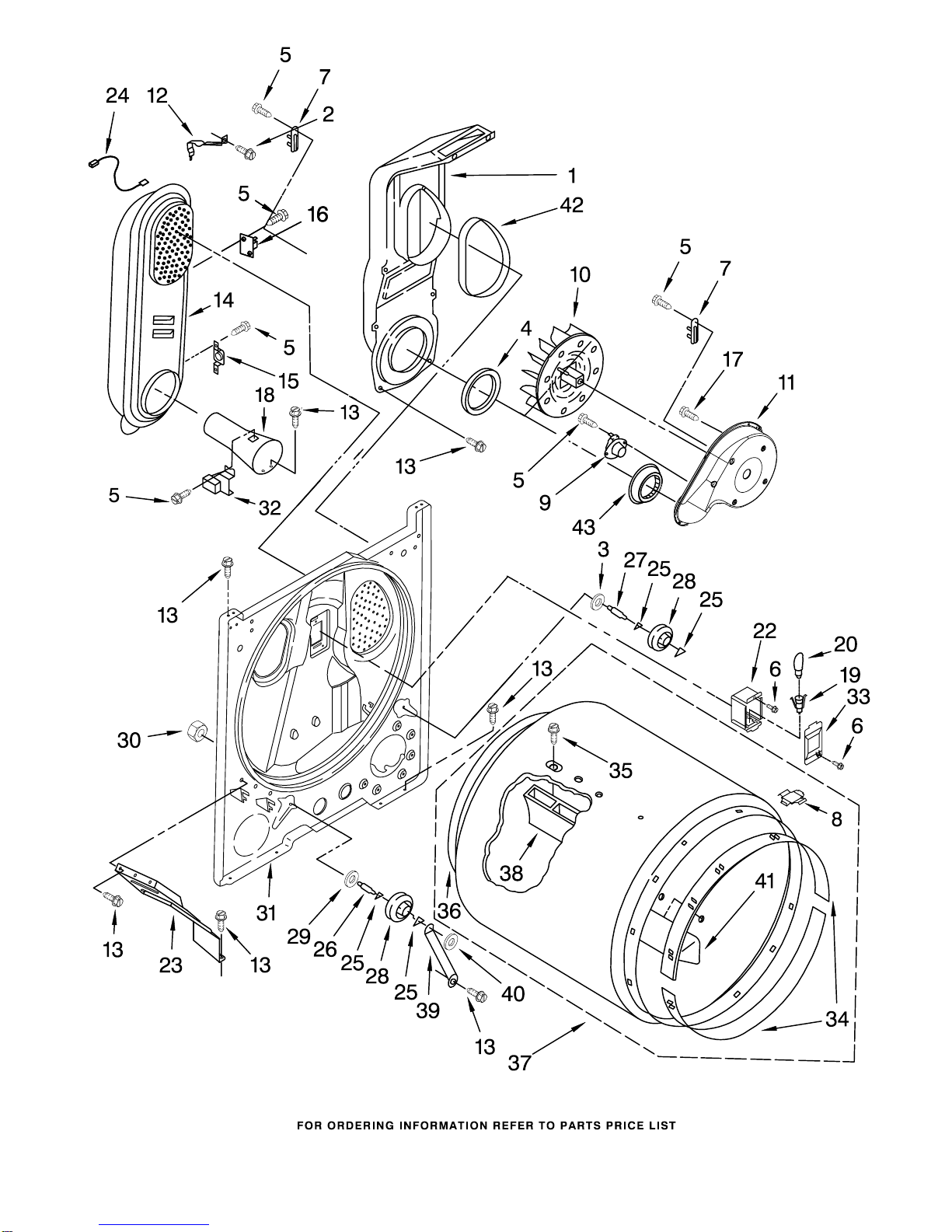

BULKHEAD PARTS

For Model: MGD5600TQ1

(White)

W10155382

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 487909 Screw, 8−15 x 1/2

7 3392519 Thermal−Fuse (91C)

8 8066086 Drum Hole

Plug

9 3387134 Thermostat,

Internal−Bias

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8530285 Box, Heater

15 3403140 Thermostat, 205 F

(96 C)

16 280010 Kit,

Thermal Cut−Off

(Includes

Illus. 15)

17 3390647 Screw, 8−18 x 1/2

18 8066049 Funnel, Burner

19 3403634 Socket Assembly

20 3406124 Bulb

22 3977373 Bracket, Drum

Light

23 3406022 Bracket, Bulkhead

24 3401707 Wire, Jumper

25 690997 Ring, Tri

26 3399506 Shaft, L.H.

27 3399507 Shaft, R.H.

28 3397590 Roller, Support

29 348197 Washer, Support

30 3359452 Nut, 3/8−16

31 3403413 Bulkhead

32 338906 Sensor, Radiant

33 3402841 Lens, Drum Light

34 692526 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

36 3406130 Seal, Rear Drum

37 695587 Drum Assembly

38 692490 Baffle, Drum (2)

39 3976434 Bracket, Support

40 90296 Clip

41 3403636 Baffle, Drum (1)

42 339956 Seal

43 696302 Shield, Exhaust

BA−150

8318272 BURNER ASSEMBLY

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

For Model: MGD5600TQ1

(White)

W10155382

Illus. Part

No. No. DESCRIPTION

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8318272 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw, 8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8318277 Valve, 60 Hz.

(Includes Pipe &

Illus. #7)

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1)

to Type (4) L.P.G.

Following Parts Not Illustrated

For Model: MGD5600TQ1

(White)

W10155382

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGD5600TQ1

(White)

W10155382

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

8522199 Kit, Dryer

Vent Testing

3406839 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)
