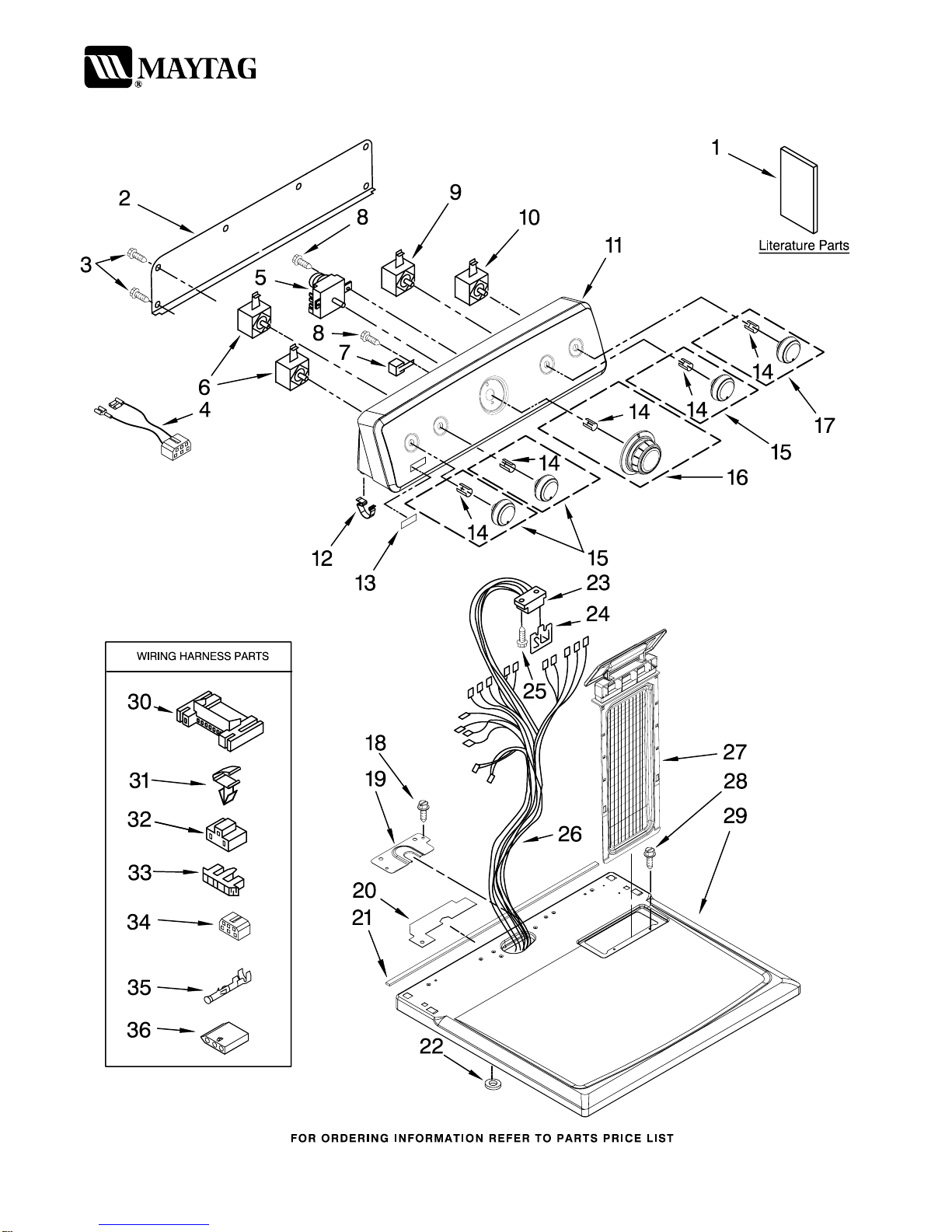

TOP AND CONSOLE PARTS

For Model: MED5707TQ0

(White)

9−07 Litho in U.S.A. (drd) Part No. W10131679 Rev. C

29"ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: MED5707TQ0

(White)

W10131679

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10089177

Sheet,

Cycle Feature

W10088770

Use & Care Guide

W10124168

Wiring Diagram

W10112576

Panel, Rear

3 693995 Screw, 8−18 x 3/8

W10124166

Wire, Jumper

Buzzer On/Off

5 8566184 Timer, 60 Hz.

6 3405156 Switch, Rotary

Twist Mount

7 694419 Buzzer, Mini

8 8533971 Screw, 8−18 x 5/16

9 8578354 Switch,

Temperature

10 3398094 Switch,

Push−To−Start

W10086730

Console & Shell

Assembly (Includes

Items 12 & 13)

12 8312709 Clip, Console

W10112589

Badge Assembly

14 8536939 Clip, Spring

W10112582

Knob, Control (2)

W10112584

Timer Knob

Assembly

W10112586

Knob,

Push−To−Start

18 337686 Screw, 8−18 x 3/4

19 8565981 Bracket, Harness

W10118608

Seal, Harness

W10112267

Seal, Foam

Console Bracket

22 237446 Washer (Top/Chute)

23 3391885 Connector, Edge

24 8558178 Control,

Electronic

25 343641 Screw, 10−16 x 1/2

W10113070

Harness, Wiring

27 8565972 Screen, Lint

28 688983 Screw, 8−18 x 5/8

W10112599

Top

30 3395683 Connector (Motor)

31 3394427 Clip, Harness

32 3401144 Connector

(PTS Relay)

33 3397269 Connector (Timer)

34 3347243 Connector,

6−Circuit

35 94614 Terminal

36 3936144 Connector

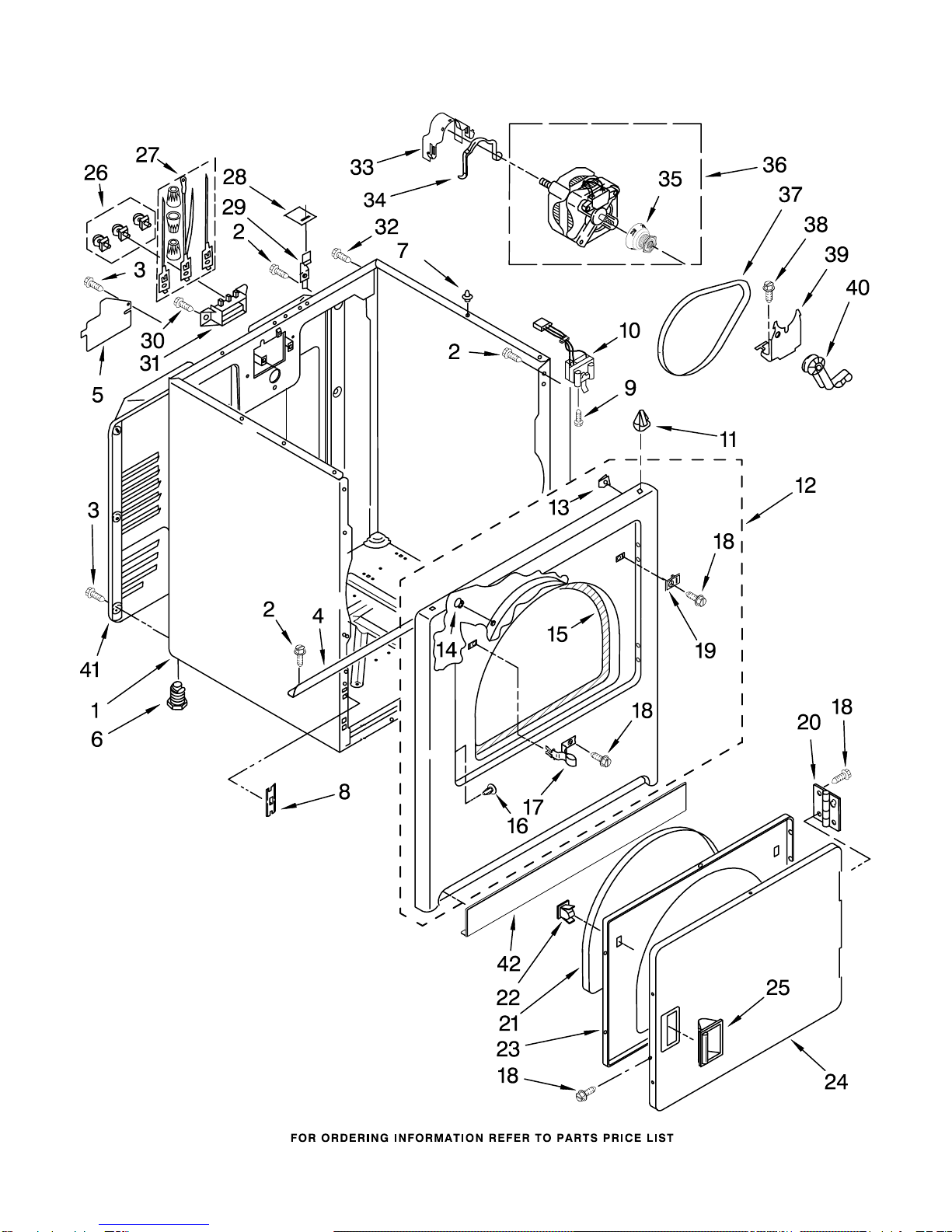

CABINET PARTS

For Model: MED5707TQ0

(White)

W10131679

CABINET PARTS

For Model: MED5707TQ0

(White)

W10131679

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8530603 Cabinet

(Includes Item 4)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 3392100 Foot, Dryer

279810 Foot−Optional

Extended Length

(Package of 2)

(Not Included)

7 18776 Locator, Top

8 3394083 Clip, Front

Panel (2)

9 697773 Screw, 6−20 x 7/8

10 3406107 Switch, Door

11 98669 Lock,

Front Top (2)

12 3403444 Panel, Front

13 98234 Clip, Ground

14 685203 Clip, Felt Pad (3)

15 3406129 Seal & Bearing

Assembly

16 3404413 Plug, Hole

17 3403431 Strike, Door

18 342055 Screw, 8−18 x 1/2

19 3403630 Plug, Strike

W10112600

Hinge, Door

21 3405246 Seal, Door

22 3389441 Catch, Door

Assembly

23 3402341 Door, Rear

24 3402335 Door, Front

25 8565970 Handle, Door

26 279393 Terminal Block

Kit (For

Terminal Block)

27 279318 Terminal, Tinned

& Brass (3)

(Includes Item 26)

28 18849 Pad, Top Hinge (2)

29 8066217 Hinge, Top (2)

30 3393008 Screw, 10−16 x 1/2

31 3397659 Block, Terminal

32 697776 Screw, 10−32 x 5/8

33 3404162 Clamp, Motor

(W/Shield)

34 660658 Clamp, Motor

35 8066184 Pulley, 60 Hz.

36 8066206 Motor Assembly

60 Hz.

W10131364

Belt, Drive

38 3400500 Bolt,

5/16−18 x 3/4

39 348780 Base, Motor

40 691366 Idler & Pulley

Assembly

41 3396805 Panel, Rear

W10112593

Toe Plate Assembly

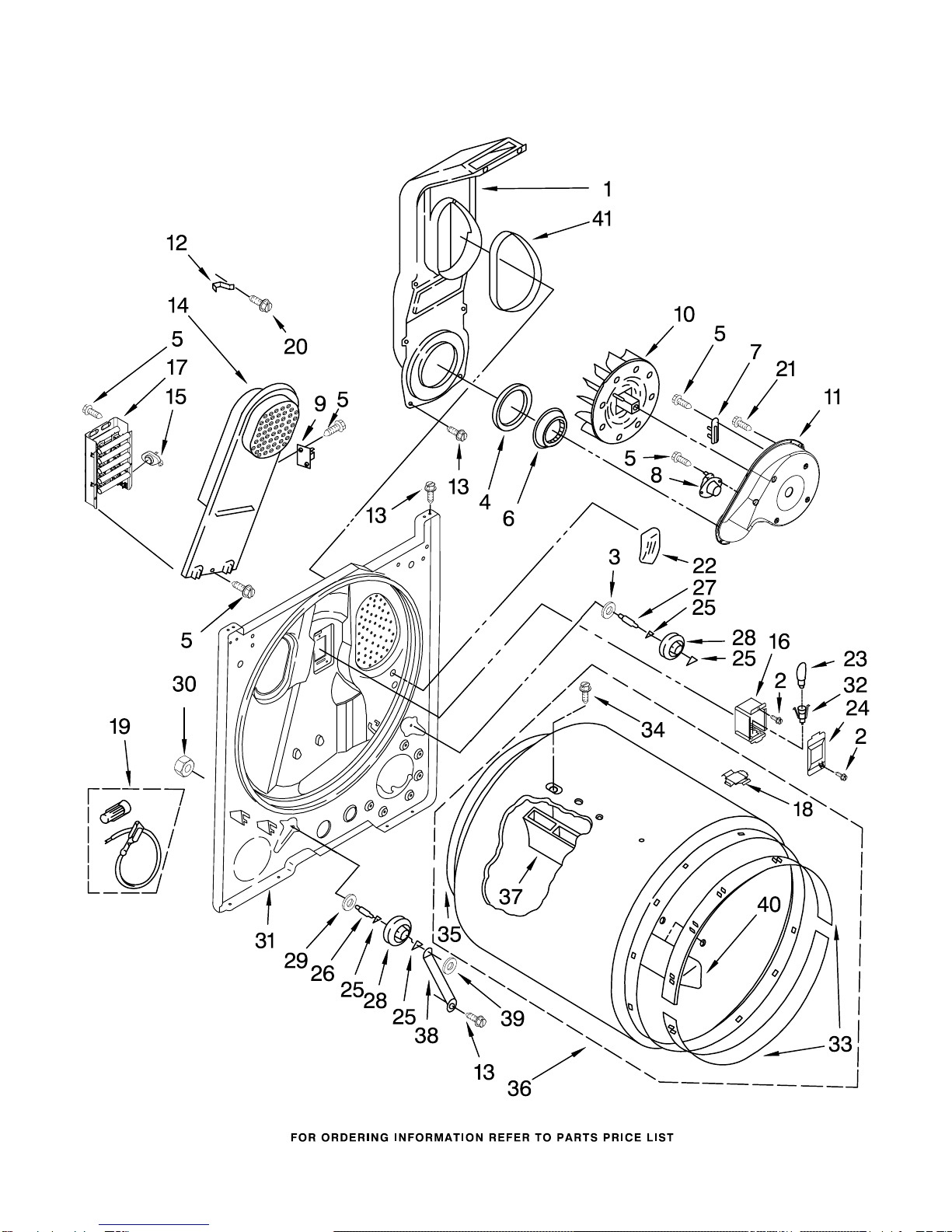

BULKHEAD PARTS

For Model: MED5707TQ0

(White)

W10131679

BULKHEAD PARTS

For Model: MED5707TQ0

(White)

W10131679

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Fuse, Thermal

(91 C)

8 8318268 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes Item 15)

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket, Drum

Light

17 3403585 Element, Heater

18 8066086 Drum Hole

Plug

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3390647 Screw, 8−18 x 1/2

22 3976479 Pad, Sensor

23 3406124 Bulb

24 3402841 Lens, Drum Light

25 690997 Ring, Tri

26 3399506 Shaft, L.H.

27 3399507 Shaft, R.H.

28 3397590 Roller, Support

29 348197 Washer, Support

30 3359452 Nut, 3/8−16

31 3403414 Bulkhead

W10136369

Socket Assembly

33 692526 Ring, Bearing (2)

W10109200

Screw, 11−16 x 3/4

35 3406130 Seal, Rear Drum

36 695587 Drum Assembly

37 692490 Baffle, Drum (2)

38 3976434 Bracket, Support

39 90296 Clip

40 3403636 Baffle, Drum (1)

41 339956 Seal

OPTIONAL PARTS (NOT INCLUDED)

For Model: MED5707TQ0

(White)

W10131679

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3406839 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
