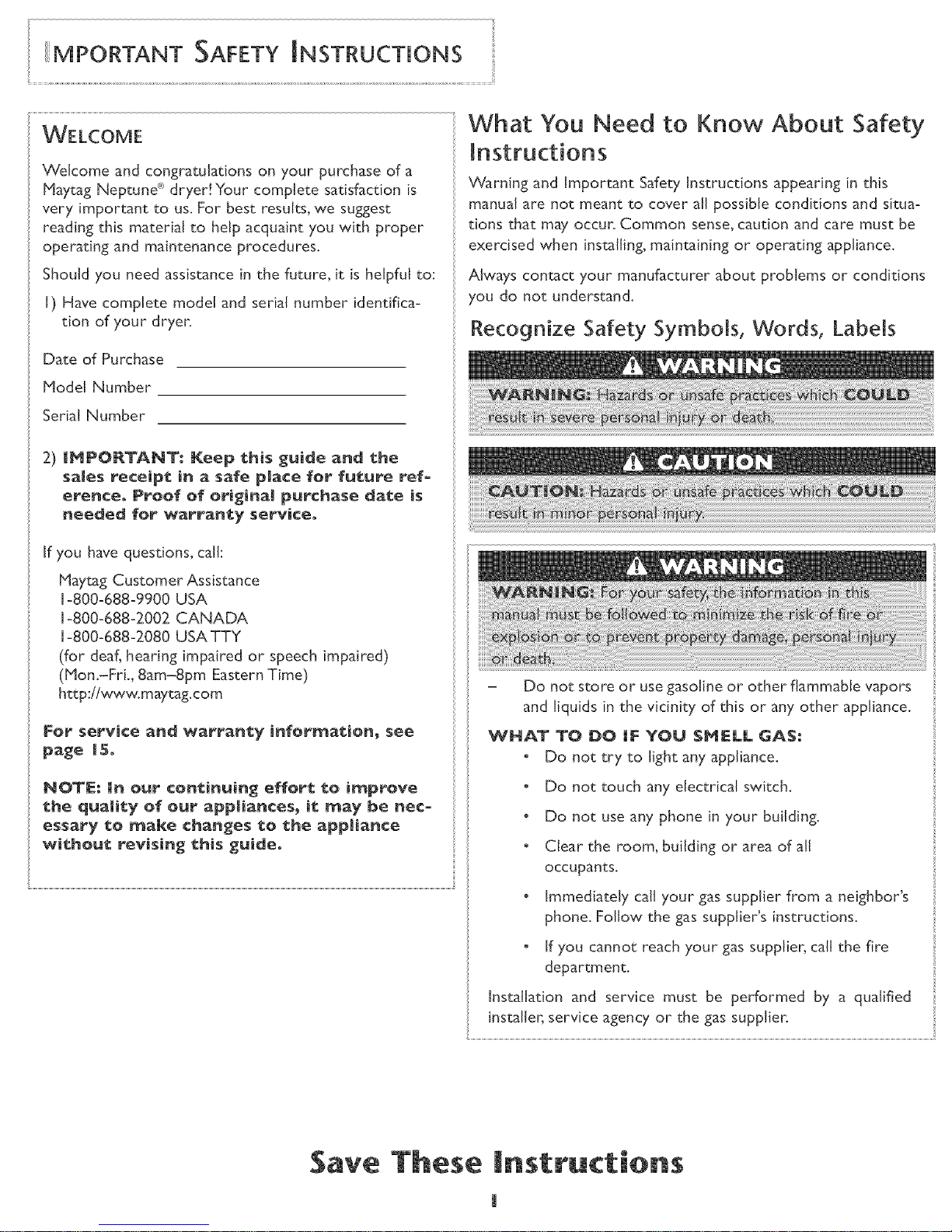

MPORTANT SAFETY INSTRUCTIONS

Welcome and congratulations on your purchase of a

Maytag Neptune e_dryer! Your complete satisfaction is

very important to us. For best results, we suggest

reading this material to help acquaint you with proper

operating and maintenance procedures.

Should you need assistance in the future, it is helpful to:

I) Have complete model and serial number identiflca=

tion of your dryer.

Date of Purchase

Model Number

Serial Number

2) [HPORTANT: Keep this guide and the

sales receipt in a safe place for future ref=

erence° Proof of original purchase date is

needed for warranty service,

If you have questions, call:

Maytag Customer Assistance

I=800=688=9900 USA

1-800-688-2002 CANADA

1-800-688-2080 USA TTY

(for deaf, hearing impaired or speech impaired)

(Mon.-Fri., 8am-8pm Eastern Time)

htt p:/iwvcw.m aytag, com

[=or service and warranty information_ see

page I$.

NOTE: in our continuing effort to improve

the quality of our apptiances_ it may be nec=

essary to make changes to the appliance

without revising this guide°

What You Need to Know About Safety

Instructions

Warning and Important Safety Instructions appearing in this

manual are not meant to cover all possible conditions and situa-

tions that may occur. Common sense, caution and care must be

exercised when installing, maintaining or operating appliance.

Always contact your manufacturer about problems or conditions

you do not understand.

Recognize Safety Symbols, Words, Labels

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

WNAT TO DO [F YOU SMELL GAS:

°Do not try to light any appliance.

°Do not touch any electrical switch.

°Do not use any phone in your building.

° Clear the room, building or area of all

occupants.

° Immediately call your gas supplier from a neighbor's

phone. Fo{Iow the gas supplier's instructions.

° If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

Save These |nstruct|on$

i MPORTANT SAFETY INSTRUCTIONS

I. Read all instructions before using the appliance.

2. To avoid the possibility of fire or explosion:

a. Do not dry items that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline, dry-

cleaning solvents, other flammable or explosive sub-

stances as they give off vapors that could ignite or

explode.Any material on which you have used a

cleaning solvent, or which is saturated with flammable

liquids or solids, should not be placed in the dryer,

until aE[traces of these flammable liquids or solids and

their fumes have been removed.There are many highly

flammable items used in homes, such as: acetone_

denatured atcohol, gasoline, kerosene, some liquid

household cleaners_ some spot removers, turpentine,

waxes and wax removers.

b. Items containing foam rubber (may be labeled latex

foam) or similarly textured rubber-like materials must

not be dried on a heat setting. Foam rubber materials

when heated, can under certain circumstances pro-

duce fire by spontaneous combustion.

3. Do not allow children or pets to play on, in, or in front of

the appliance. Close supervision is necessary when the

appliance is used near children and pets.

4. Before the appliance is removed from service or dis-

carded, remove the door to the drying compartment.

5. Do not reach into the appliance ifthe drum is moving.

6. Do not install or store this appliance where it win be

exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended in

published user-repair instructions that you understand and

have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static

unless recommended for dryer use by the manufacturer of

the fabric softener or product.

10. Clean the lint screen before or after each load.

II.

12.

13.

14.

15.

Keep the area around the exhaust opening and sur-

rounding areas free from lint accumulation, dust and dirt.

The interior of the dryer and exhaust duct should be

cleaned periodically by qualified service personnel.

This appliance must be properly grounded. Never plug the

appliance cord into a receptacle which is not grounded

adequately and in accordance with local and national

codes. See installation instructions for grounding this

appliance.

Do not sit on top of the clothes dryen

Do not place items exposed to cooking oils in the dryen

Items contaminated with cooking oils may contribute to a

chemical reaction that could cause a load to catch fire.

NOTE: Because of continuing product improvements,

[VJaytagreserves the right to change specifications

without notice. For complete details, see the Installation

Instructions packed with your product before selecting

cabinetry, making cutouts or beginning installation.

RYER EXHAUSTTUPS

Read the installation instructions

and the Use and Care Guide.

DON_T

Let a poor exhaust syste_

cause smow drying.

Let your dryer exhaust

the air easily.

DON'T

Restrict your dryer with a

poor exhaust system.

Do DON'T

Use plastic, thin foil, or

non-metal flexible duct.

(-I I I

Keep duct runs as straight

as possible.

DON'T

Use longer than necessary

duct runs with many

elbows.

Clean all old ducts before installing

your new dryer. Be sure vent flap

opens and closes freely. Inspect and

dean the exhaust system annually.

iiiiil.....

DON'T

Allow crushed or clo_ed

ducts and vent.

• After each load.

° To shorten drying time.

° To operate more energy efficiently.

NOTIE_" Do not operate the dryer without the lint filter in place.

Place only one washload in the dryer at a time.

Mixed loads of heavy and lightweight clothes will dry differently:

Lightweight clothes wilt dry, while heavy clothes may be damp.

Add one or more similar items to the dryer when only one or

two articles need drying. This improves the tumbling action

and drying efficiency.

Overloading restricts tumbling action, resulting in uneven

drying as well as excessive wrinkling of some fabrics.

PERATUNG UNSTRUCTIONS

After setting the cycle and desired options, press the

Cy¢|e Se|ector dial to start the dryer.To pause the

cycle, press Cyc|e $e|ector dial again.To restart the

cycle, press Cyclle Se|ector dial and the cycle will

resume from the point of interruption.

Push DisI to

8_rt /Pause

Power Off Powero#

Press the Power Off pad to cancel the cycle and stop

the dryer.

The display window shows the estimated time remaining

in the cycle after the Cycle Se|ector dial is pressed.

The estimated time remaining may fluctuate as the cycle

progresses.

The Drying light will illuminate and remain lit until the

cycle is complete. When the dryer is in the cool-down

portion of the cycle, the Cooling light wiII illuminate.

If the Wrinkle Prevent option has been selected, the

Wrinkle Prevent light will illuminate. Chasing lights will

appear in the display when Wrinkle Prevent is selected

(select models). See page 8.

When the cycle is complete,"END" or "00" (select

models) will appear in the display until the dryer door is

opened.

If the dryer is paused during a cycle, the indicator Eights

will blink until the Cycle Selector dial is pressed.

SiNG THE CONTROLS

Cr Sensor Dry

ink[e RegularJ

Control

Time

Dry

Freshen

Huff

Wrinkle '

Release Quick

Dry

Push DiaHto

Start /Pause

Control features vary by model,

To select acycle, rotate the Cycle Selector dial to the

desired cycle.The indicator light by the cycle name wii{ illumi-

nate.

The Regular and Wrinkle Control cycles are Sensor Dry

cycles. Sensor Dry automatically senses the moisture in the

Loadand shuts the dryer off when the selected dryness Level

(very dry to damp dry) is reached.

Regular

The Regular cycle is designed to dry loads such astowels,

underwear, jeans, etc.

Wrirlk[e Control

The Wrinkle Control cycle is designed to dry wrinkle4ree

cottons, synthetic fabrics, knits and permanent press fabrics

automatically. The cycle minimizes wrinkling by providing a

longer unheated cool-down period at the end of the cycle.

Time Dry 6oMin

50 Min

Time Dry allows you to select the desired cycle

time in minutes.Turn the Cycle Selecgor dial to 40uin

Time Dry, then press the Time up arrow to set 30uin

the drying time. Press the arrow repeatedly to 20M_n

scroll through the time settings.To add or subtract ..................................

time from the cycle, see Options-AdiustTime .........................

page 8. Time

[=reshen Up (select modems)

A short dry cycle designed to remove odors and freshen

garments.

De[icates

The Delicates cycle is designed to dry heat-sensitive items at

the low drying temperature.

Air Fluff

The Air Huff cycle tumbles the load in room temperature air.

Wrinkle Release

The Wrinkle Release cycle will release wrinkles from items

that are dean and dry but only slighdy wrinkled, such as from

a crowded closet or suitcase or from sitting in the dryer too

[0% after the cycle has ended. Wrinkle Release can be used

with any temperature selection.

Quick Dry (semect modems)

Provides a 30 minute dry cycle.

SING THE CONTROLS

To select the dryness level in the Regular orWrinkle Control

Sensor Dry cycles, press the Sensor Dry Level pad. An

indicator light will illuminate next to the desired dryness

level. Press the pad repeatedly to scroll through the settings.

Loads of larger or bulkier size may require theVery Dry

(select models) or More Dry setting to completely dry the

load.The Less Dry setting is best suited for lightweight fabrics

or for leaving some moisture in the clothing at the end of the

cycle. Damp Dry (select models) is designed to partially dry

items. Use for items that lay fiat or hang to dry.

,: :_Normal Dry

/:,_ Less Dry

Damp Dry

Sensor Dry Level

To select the correct temperature for the load, press the

Temperature pad. An indicator light will illuminate next

to the desired temperature. Press the pad repeatedly to

scroll through the settings.

Use the chart below as a guide:

DAY[E@ T[EHP$ LOAD TYP[E

Regular For sturdy cottons or those labeled

Tumble Dry.

Medium For permanent press, synthetics,

lightweight cottons or items labeled

Tumble Dry Medium.

Low For heat sensitive items labeled

Tumble Dry Low orTumbIe Dry

\A!arm.

[E×tra Low Provides the lowest heated dry tern-

(select modeJ[s) perature possible.

ReguUar

Medium

Low

Extra Low

Temperature

IIS[NG THE CONTROLS

Adjust Ti_e

Time can be added or subtracted from the automatically set

times in the Time Dry, Freshen Up (select models), Delicates,

Air Huff, Wrinkle Release or Quick Dry (select models)

cycles.

To add or subtract time from the cycle, press the Adjust

Time up or down arrow pad until the desired time is dis-

played.

End of Cycle Chime

When the cycle is complete, an audible chime will sound.

When theWrinkie Prevent option is selected, the chime will

sound intermittentEy. Adjust the volume of the chime or turn

it off by pressing the Chime pad. Press the pad repeatedly to

scroll through the choices.

Wrinkle Prevent

Wrinkle Prevent provides approximate[)' 95 minutes of inter-

mittent tumbling in unheated air at the end of the cycle to

reduce wrinkling. Press the Wrink[e Preveng pad to acti-

vate this feature.The indicator light above the pad will illumi-

nate when Wrinkle Prevent is selected. Chasing lights appear

in the display when theWrinkIe Prevent option is selected

(select models).The load is dry and can be removed at any

time during the Wrinkle Prevent cycle.

Control Lock

The control panel can be locked for safety, cleaning or to pre-

vent unwanted use.The panel win not function when locked.

To loci< the controls, press and hold the Sensor Dry &.eve[

and Temperature pads for 3 seconds.The Control Lock

indicator light will illuminate.

To unlock the controls, press and hold the Sensor Dry

level and Temperature pads for 3 seconds.The Control

Lock indicator light will go out.

High

Low

Off

i _;l_i¸¸¸:¸:¸i!'

.................../

Chime

_Wfinkme

Prevent/

Sensor Dry Level Temperature

Press the Cycle Selector dial to start the dryenThe dryer

door must be dosed for the dryer to operate. If the door is

opened during the cycle, the Cyc|e Se|ector dial must be

pushed again to resume the cycle once the door is dosed.

Push Dial to

Stsrt /Psuso

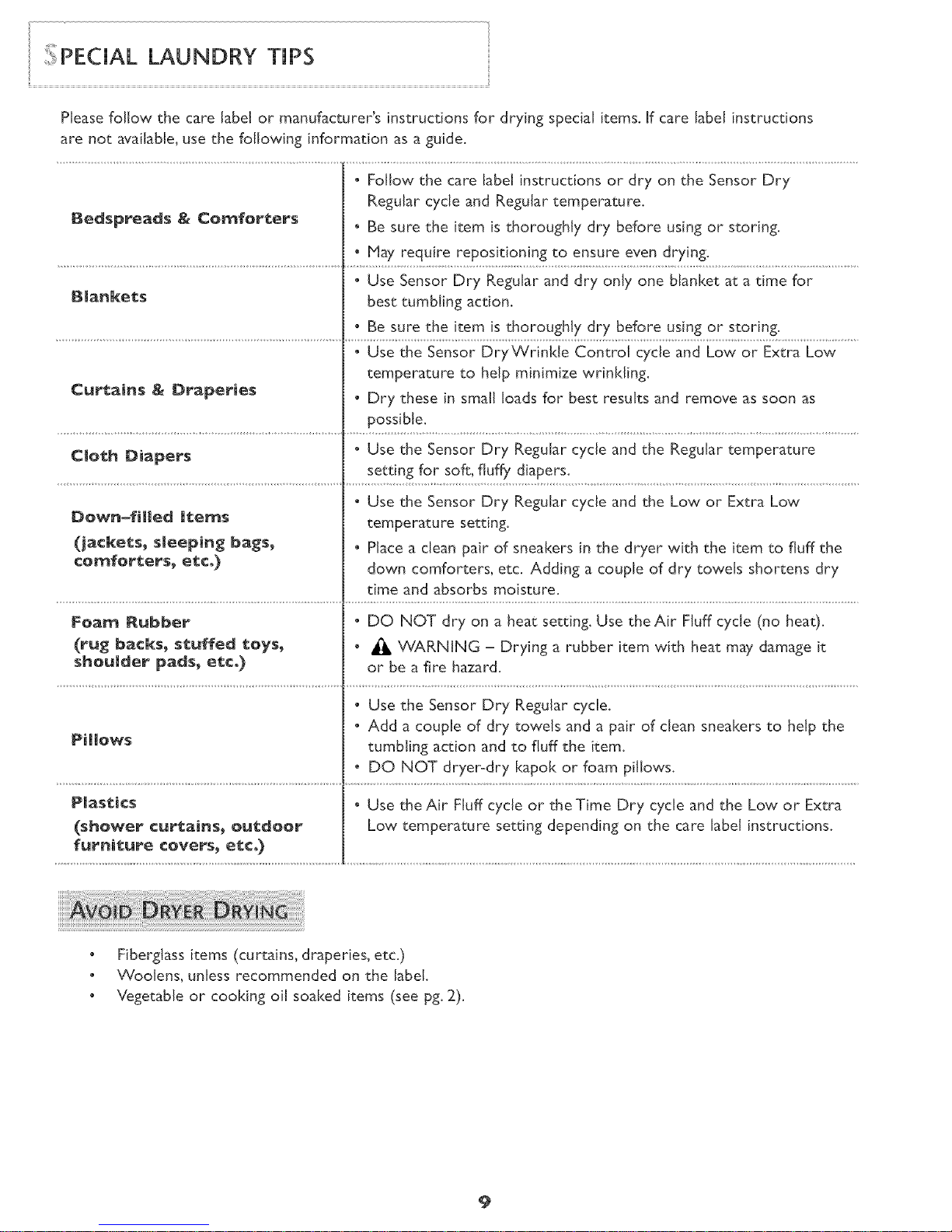

PECUAL LAUNDRY TUPS

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions

are not available, use the following information as a guide.

• Follow the care label instructions or dry on the Sensor Dry

Regular cycle and Regular temperature.

BedsDreads & Co.forgers °Be sure the item is thoroughly dry before using or storing.

• Hay require repositioning to ensure even drying.

• Use Sensor Dry Regular and dry only one blanket at a time for

Blankets best tumbling action.

• Be sure the item is thoroughly dry before using or storing.

• Use the Sensor DryWrinkle Control cycle and Low or Extra Low

temperature to help minimize wrinkling.

Curtains & Draperies ° Dry these in small loads for best results and remove as soon as

possible.

Cloth Diapers "Use the Sensor Dry Regular cycle and the Regular temperature

setting for soft, fluffy diapers.

° Use the Sensor Dry Regular cycle and the Low or Extra Low

Down-filled Items temperature setting.

(jackets_ sleeping bags_ • Place a clean pair of sneakers in the dryer with the item to fluff the

¢omforters_ etc.) down comforters, etc. Adding a couple of dry towels shortens dry

time and absorbs moisture.

Foam Bubber • DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).

(rug backs_ stuffed toys_ ° _ WARNING - Drying a rubber item with heat may damage it

shoulder pads_ etc,) or be a fire hazard.

° Use the Sensor Dry Regular cycle.

° Add a couple of dry towels and a pair of dean sneakers to help the

Pillows tumbling action and to fluff the item.

°DO NOT dryer-dry kapok or foam pillows.

Plastics ° Use the Air Fluff cycle or the Time Dry cycle and the Low or Extra

(shower curtains_ outdoor Low temperature setting depending on the care label instructions.

furniture covers_ etc.)

° Fiberglass items (curtains, draperies, etc.)

° Woolens, unless recommended on the label.

• Vegetable or cooking oil soaked items (see pg. 2).

Otros manuales para MDG6700AWM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Secadora de Maytag

Maytag

Maytag MDE18PD Manual de usuario

Maytag

Maytag MEDX700X Manual de lista de piezas

Maytag

Maytag Bravos W10150660A Manual de usuario

Maytag

Maytag MDE22PD Manual de usuario

Maytag

Maytag SD-1 Manual de usuario

Maytag

Maytag MED6600TQ - 27 Inch Electric Washer Manual de usuario

Maytag

Maytag MGDB850WQ1 Manual de usuario

Maytag

Maytag YMED6230HC0 Manual de operación

Maytag

Maytag W10873035A Manual de usuario

Maytag

Maytag MDG35 Manual de usuario

Maytag

Maytag MEDE900VJ - Performance 7.5 cu. Ft. Steam Electric... Manual de usuario

Maytag

Maytag EPIC Z MGD9800TK0 Manual de usuario

Maytag

Maytag MED6600TQ0 Manual de usuario

Maytag

Maytag MDE208DAYW Manual de usuario

Maytag

Maytag MDG-30 Fast Dry Guía de configuración

Maytag

Maytag MDE2400AYW - 3.7 cu. Ft. Electric Dryer Manual de usuario

Maytag

Maytag MED6400T Manual de lista de piezas

Maytag

Maytag ELECTRONIC DRYER Manual de usuario

Maytag

Maytag MED5591TQ0 Manual de usuario

Maytag

Maytag Performa PYE2000AY Series Manual de usuario

Maytag

Maytag MDG50PCCWW Manual de usuario

Maytag

Maytag LDE8706ADE Manual de usuario

Maytag

Maytag MLE27PN Manual de usuario

Maytag

Maytag MGDB835DW4 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
