Maytag 4GMEDC100 Manual de usuario

W10454277C

ELECTRIC OR GAS DRYER

USE AND CARE GUIDE

SECHE-LINGE ELECTRIQUE OU A GAZ

GUIDE D’UTILISATION ET D’ENTRETIEN

SECADORA A GAS O ELÉCTRICA

MANUAL DE USO Y CUIDADO

Table of Contents

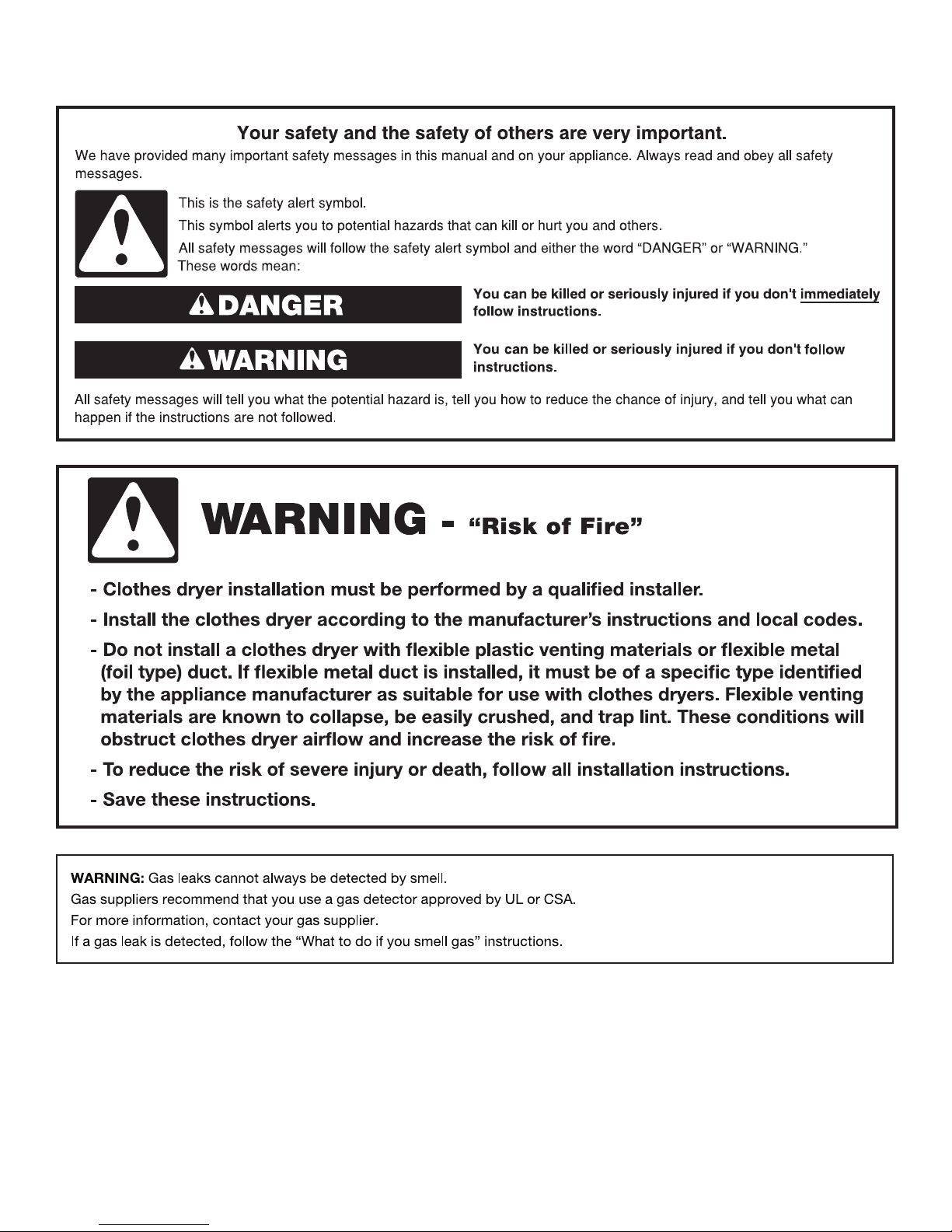

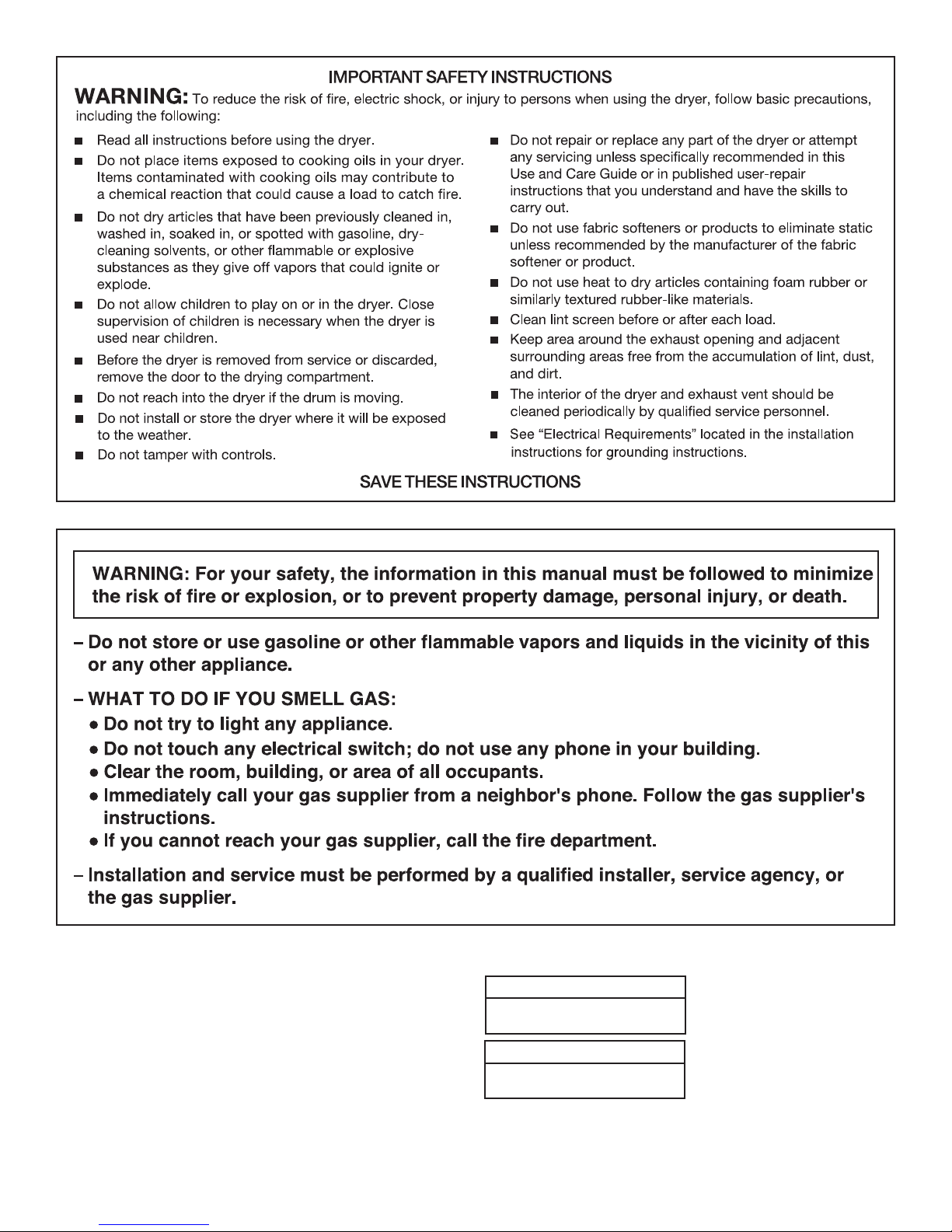

DRYER SAFETY ....................................................................... 2

SPECIFICATIONS..................................................................... 3

CHECK YOUR VENT SYSTEM

FOR GOOD AIR FLOW ............................................................ 4

CONTROL PANEL & FEATURES............................................. 5

SECURITE DU SECHE-LINGE .............................................. 14

SPÉCIFICATIONS................................................................... 15

VERIFICATION D’UNE CIRCULATION D’AIR ADEQUATE

POUR LE SYSTEME D’EVACUATION................................... 16

TABLEAU DE COMMANDE ET CARACTERISTIQUES........ 17

SEGURIDAD DE LA SECADORA .......................................... 25

ESPECIFICACIONES ............................................................. 26

REVISE QUE EL SISTEMA DE VENTILACIÓN TENGA

UN BUEN FLUJO DE AIRE.................................................... 27

PANEL DE CONTROL Y CARACTERÍSTICAS ..................... 28

Table des matières

Índice

CYCLE GUIDE.......................................................................... 6

USING YOUR DRYER .............................................................. 7

DRYER CARE ........................................................................... 9

TROUBLESHOOTING............................................................ 11

GUIDE DE PROGRAMMES ................................................... 18

UTILISATION DU SECHE-LINGE.......................................... 19

ENTRETIEN DU SECHE-LINGE ............................................ 21

DEPANNAGE .......................................................................... 23

GUÍA DE CICLOS................................................................... 29

USO DE SU SECADORA ....................................................... 30

CUIDADO DE LA SECADORA............................................... 32

SOLUCIÓN DE PROBLEMAS................................................ 34

4GMEDC100

4GMEDC300

DRYER SAFETY

UL Capacity

8,16 kg (18 lb)

SPECIFICATIONS

These units are sold in multiple regions with different

requirements for measuring capacity. Below are a few

of the valid forms of measure posted on this product:

Dry Linen Capacity: A weight measure that reects

a maximum load size that can be loaded into the dryer.

UL Capacity: The capacity measure that represents

the capacity at which safety testing was completed.

Dry Linen Capacity

10,5 kg (23 lb)

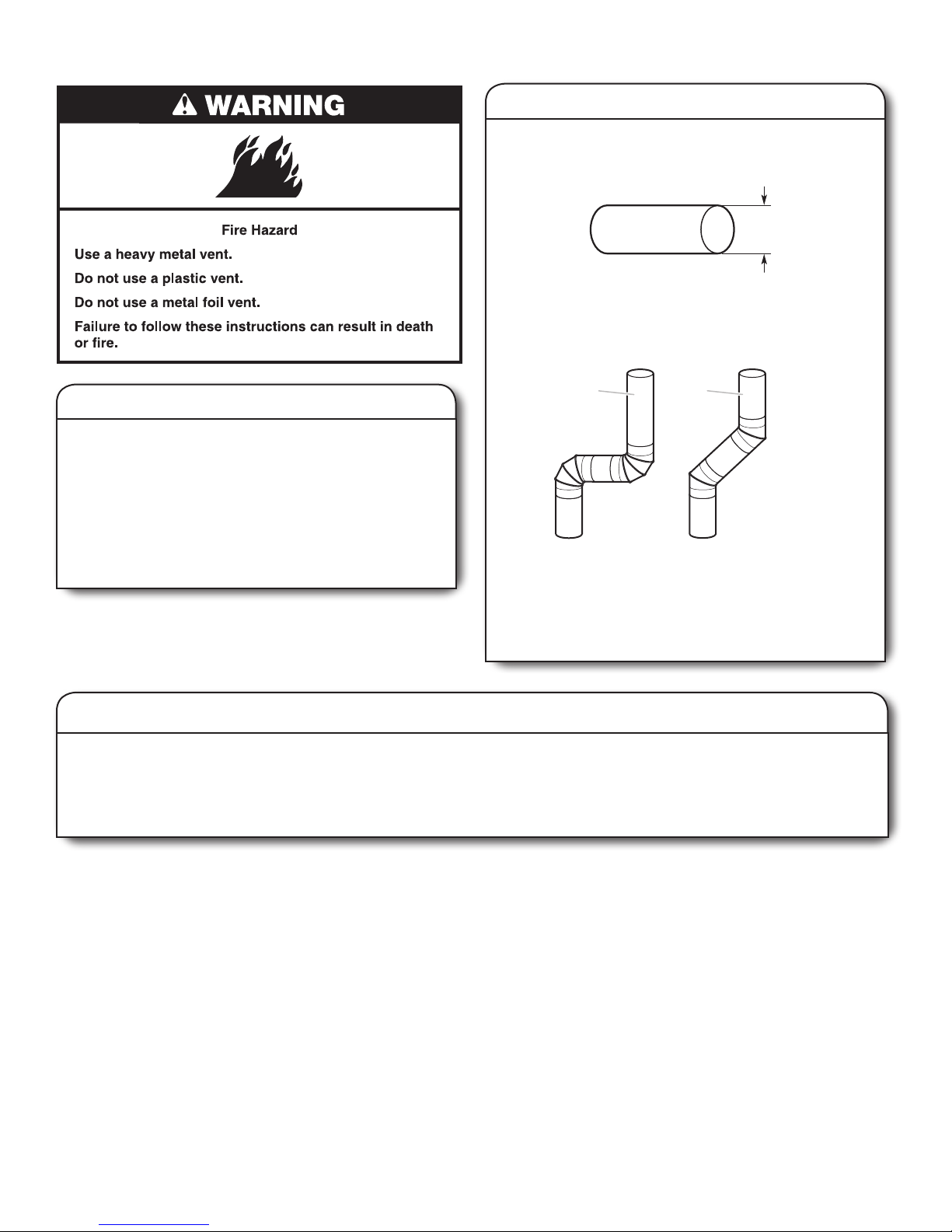

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Good air ow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying times

and improve your energy savings. See “Installation

Instructions.”

The venting system attached to the dryer plays a big role in

good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintain good air ow by:

Good Better

Use Automatic Dry Cycles for Better Fabric Care and Energy Savings

Use the Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Automatic Dry

cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the

dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.

With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying.

Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

■Cleaning your lint screen before each load.

■Replace plastic or foil vent material with 102 mm (4")

diameter heavy, rigid vent material.

■Use the shortest length of vent possible.

■Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

■Remove lint and debris from the exhaust hood.

■Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the “Installation Instructions” supplied with your

dryer for nal product check.

■Clear away items from the front of the dryer.

102 mm

(

)

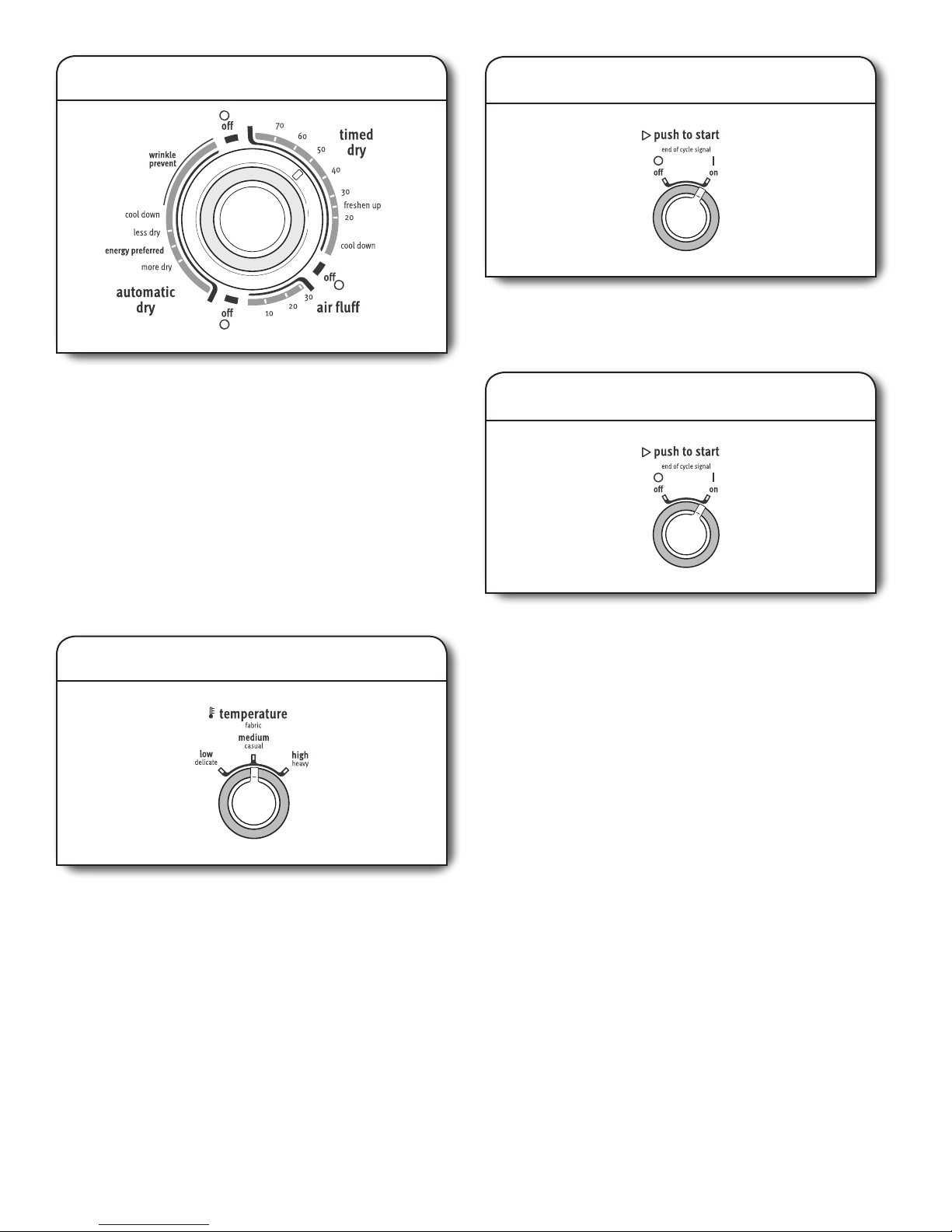

CONTROL PANEL & FEATURES

CYCLE KNOB

Use Cycle Knob to select available cycles on your dryer.

Turn the knob to select a cycle for your laundry load. See

“Cycle Guide” for detailed descriptions of cycles.

TIMED DRY

Will run the dryer for the specied time on the control.

On models with a selectable temperature knob, you may

choose a setting based on the fabrics in your load. On

some models, temperature is included in the cycle

selections. Drying time and temperature will depend

on your dryer model.

AUTOMATIC DRY

Senses moisture in the load or air temperature and shuts

off when the load reaches the selected dryness level.

Gives the best drying in the shortest time. Drying time

will vary based on fabric type, load size, and temperature

setting.

TEMPERATURE / FABRIC (on some models)

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher setting.

PUSH TO START/END OF CYCLE SIGNAL

The End of Cycle Signal produces an audible sound when

the drying cycle is nished. Promptly removing clothes at

the end of the cycle reduces wrinkling.

Turn the END OF CYCLE SIGNAL knob to select the desired

setting (On or Off). Press the PUSH TO START knob to start

the dryer.

Not all features and options are available on all models.

Appearance may vary.

AUTOMATIC DRY - Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Choose ENERGY PREFERRED cycle for optimal energy savings.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

Items to dry: Temperature

Fabric: Available

Options: Cycle Details:

Temperature/Fabric

End of Cycle Signal

CYCLE GUIDE — AUTOMATIC DRY CYCLES

CYCLE GUIDE — TIMED DRY CYCLES

TIMED DRY - Will run the dryer for the specied time on the control.

Not all cycles and settings are available on all models.

NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you

like, select Less Dry next time you dry a similar load.

Casual, shirts, pants,

lightweight items,

synthetics, delicates,

athletic wear

Temperature/Fabric

End of Cycle Signal

Setting the Drying Temperature

If your dryer has multiple heat settings:

A High Heavy temperature setting may be used for drying

heavyweight items such as towels and work clothes.

A Low Delicate to Medium Casual temperature setting may

be used for drying medium-weight items such as sheets,

blouses, dresses, underwear, permanent press fabrics, and

some knits.

Use the Air Fluff (no heat) setting for foam, rubber, plastic, or

heat-sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for

various loads, refer to the care label directions.

Jeans, heavy work

clothes, towels

More Dry

Energy Preferred

Less Dry

More Dry

Energy Preferred

Less Dry

More Dry

Energy Preferred

Less Dry

Temperature/Fabric

End of Cycle Signal

Automatic cycles give the best drying

in the shortest time. Drying time varies

based on fabric type, load size, and

dryness setting.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

Dryness Level:

High Heavy

Medium Casual

Low Delicate

Work clothes, medium

weight fabrics, sheets

Items to dry: Temperature:Cycle: Available

Options: Cycle Details:

Rubber, plastic, heat

sensitive fabrics Air Fluff No Heat End of Cycle Signal No heat drying.

Any load

Low Heat

Freshen Up

Low

Any

Temperature/Fabric

End of Cycle Signal

Temperature/Fabric

End of Cycle Signal

Use low to medium temperature to

smooth out wrinkles, such as those

found in clothes packed in a suitcase or

in items wrinkled from being left in the

dryer too long.

Heavy or bulky

items High Heat High Temperature/Fabric

End of Cycle Signal

Completes drying if items are still damp.

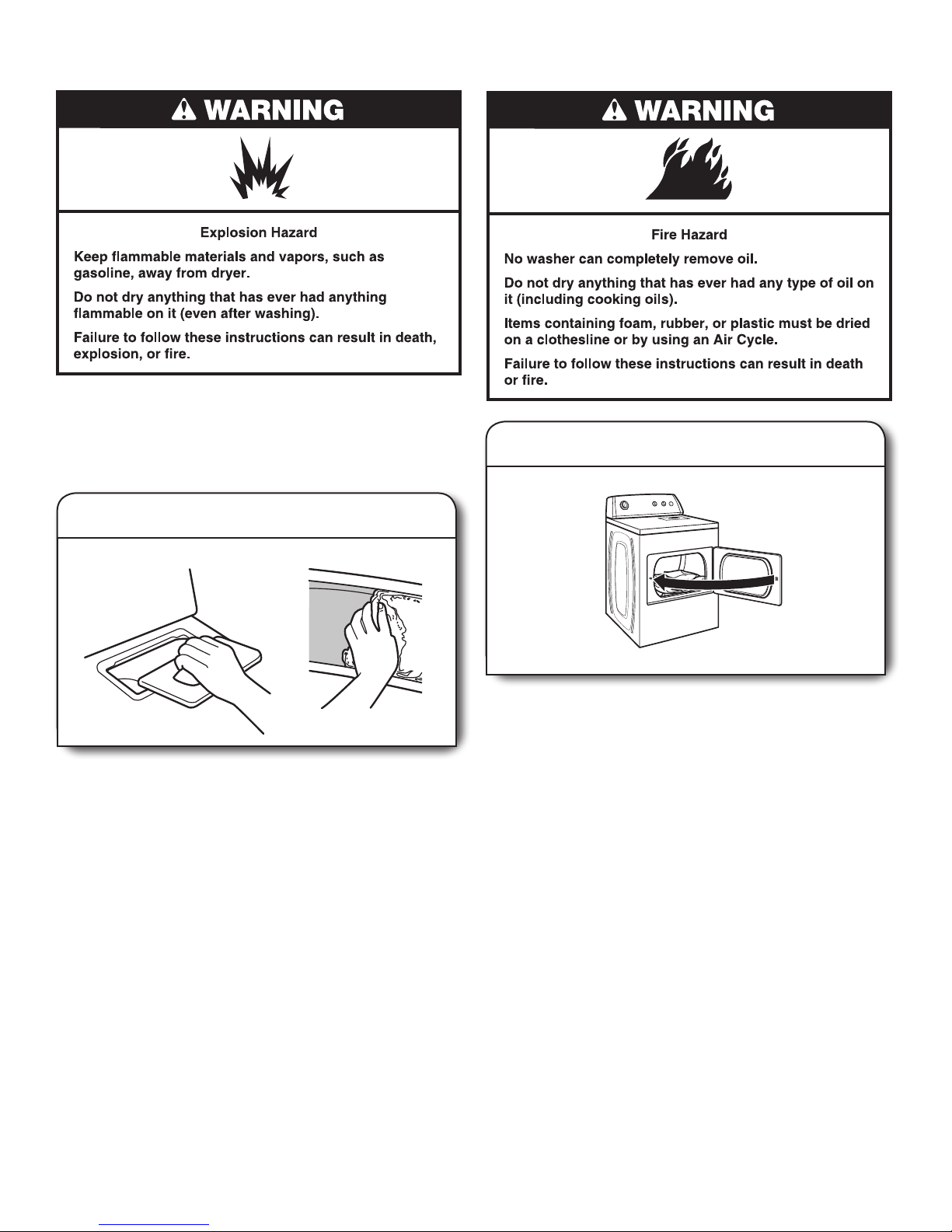

USING YOUR DRYER

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen out

of its holder. Roll lint off the screen with your ngers. Do not

rinse or wash screen to remove lint. Push the lint screen rmly

back into place.

For additional cleaning information, see “Dryer Care”.

2. Load the dryer

Place laundry in the dryer. Close the door. Do not tightly pack

the dryer; clothes should be able to tumble freely.

NOTE: Your model may have a different door than the one

shown. Some models have drop down doors.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this dryer.

Before using your dryer, wipe the dryer drum with a damp cloth

to remove dust from storing and shipping.

6. Press PUSH TO START to begin cycle

Push and hold the PUSH TO START knob to begin the cycle.

4. Set temperature (on some models)

Select temperature by turning the knob to the desired position

or select the Automatic Dry Cycle that has the temperature

included in the cycle selections.

NOTE: Not all options and settings are available with all cycles.

3. Select the desired cycle

Select the desired cycle for your load. See the Cycle Guide for

more information about each cycle.

AUTOMATIC DRY Cycles

You can select a different dryness level, depending on your

load, by turning the knob to dryness level.

Selecting More Dry, Energy Preferred, or Less Dry automatically

adjusts the dryness level of the fabrics at which the dryer will

shut off.

AUTOMATIC DRY cycles give the best drying in the shortest

time. Drying time varies based on fabric type, load size, and

dryness setting. Choose Energy Preferred for optimal energy

savings. Less Dry removes less moisture and is used for loads

you may want to put on a hanger to complete drying.

More Dry removes more load moisture. Energy Preferred is

used for a starting point for AUTOMATIC DRY cycles.

5. Select End of Cycle Signal (if desired)

Turn the END OF CYCLE SIGNAL knob to select the desired

setting (On or Off). The End of Cycle Signal produces an

audible sound when the drying cycle is finished. Promptly

removing clothes at the end of the cycle reduces wrinkling.

Appearance May Vary.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

The lint screen is located in the dryer. A screen blocked by

lint can increase drying time.

To clean:

1. Pull the lint screen out of its holder. Roll lint off the

screen with your ngers. Do not rinse or wash screen to

remove lint. Wet lint is hard to remove.

2. Push the lint screen rmly back into place.

IMPORTANT:

■ Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

■ If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements.”

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel. Reinstall

screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains are not harmful to your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done by a

qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Vacation, storage, and moving care

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. (For gas dryers only): Close shut-off valve to gas supply

line.

3. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

For direct-wired dryers:

1. Turn off power at fuse or breaker box.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

For gas dryers:

1. Unplug or disconnect power to dryer.

2. Close shut-off valve in gas supply line.

3. Disconnect gas supply line pipe and remove ttings

attached to dryer pipe.

4. Cap the open fuel supply line.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level, and

connect the dryer.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Secadora de Maytag

Maytag

Maytag MDE 1100AES Manual de usuario

Maytag

Maytag MEDC500VW - Centennial Series 29 Inch Electric... Manual de usuario

Maytag

Maytag MGDB850WL - 29" Gas Dryer Manual de usuario

Maytag

Maytag MGDB850WQ1 Manual de usuario

Maytag

Maytag MLG24PDAXW1 Manual de usuario

Maytag

Maytag Atlantis MDG7400A Manual de usuario

Maytag

Maytag BRAVOS W10388780A Manual de usuario

Maytag

Maytag MGDE900V Instrucciones de uso

Maytag

Maytag D-5 Manual de usuario

Maytag

Maytag 4KMEDC215 Manual de usuario

Maytag

Maytag MDE9700A Manual

Maytag

Maytag MED5700TQ0 Manual de usuario

Maytag

Maytag MGD8000AG Manual de usuario

Maytag

Maytag W10596022B Manual de usuario

Maytag

Maytag MGD5700TQ0 Manual de usuario

Maytag

Maytag MLG34 Guía del administrador

Maytag

Maytag MEDE900VJ - Performance 7.5 cu. Ft. Steam Electric... Manual de usuario

Maytag

Maytag MD6200 Manual de usuario

Maytag

Maytag NEPTUNE MD98 Manual de usuario

Maytag

Maytag Bravos MEDX600XW0 Manual de usuario

Maytag

Maytag MED6400TB0 Manual de usuario

Maytag

Maytag MEDX550XW Manual de usuario

Maytag

Maytag MDE17MN Manual de usuario

Maytag

Maytag MED6600TQ - 27 Inch Electric Washer Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
